.50 cal duralumin penetration


-=PHX=-SuperEtendard
 Share

Recommended Posts

-=PHX=-SuperEtendard

Regarding the last posts in the now blocked "Armor plating" thread. There are a couple points that have to be addressed.

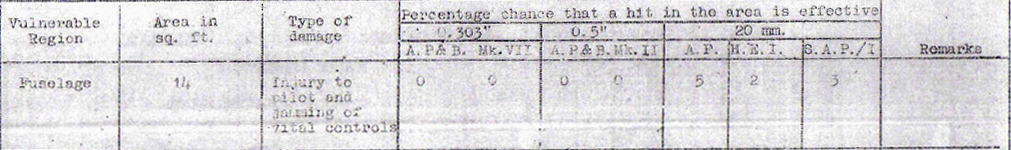

@-[HRAF]Roland_HUNter & @SAS_Storebror  The .5" B Mk II round mentioned in the report is a dedicated incendiary projectile, with little to no armor piercing capability, based of the .303 Incendiary Mk VII.

https://sites.google.com/site/britmilammo/-50-inch-browning/-50-inch-browning-incendiary

Here is a cutaway of the .303 Incendiary Mk VI which would be similar in layout



The British armor piercing .50 cal rounds had "W" as part of their designation

https://sites.google.com/site/britmilammo/-50-inch-browning/-50-inch-browning-armour-piercing

Then in the following paragraphs it's noted that with .50 cal AP projectiles after going through the fuel tank (and thus the dural armor) in 30% of the cases still had enough kinetic energy left to go through 8mm of steel of the pilot seat. That being said if the entry point was below the fuel line the fuel would slow it down enough to not penetrate the 8mm seat armor.

This shows the .50 cal AP doesn't have trouble with the duralumin armor sandwich in the 109, it ends up protecting the pilot when combined with the fuel volume and seat steel armor if the tank is full enough at the point of bullet entry, but the fuel tank would very likely be penetrated, making it thus vulnerable to follow up incendiary rounds that could ignite the fuel leaking out of it inside the fuselage, or in the case of API, have fire risks from the first penetrations as they deliver the incendiary mix past the armor.


Edited by -=PHX=-SuperEtendard
Link to comment
Share on other sites

29 minutes ago, -[HRAF]Roland_HUNter said:

I found this interesting military report:
https://apps.dtic.mil/dtic/tr/fulltext/u2/703874.pdf

Thats report from which i sent you charts of thicknesses of steel and dural and it only supports our claims that 22, neither 27mms of dural cant stop .50 caliber AP round at combat ranges. Based on this chart that shows penetration values of AP round against steel plate under different angles and ranges. 4In4.png

Edited by =DMD=Honza
Link to comment
Share on other sites

Roland_HUNter
9 minutes ago, =DMD=Honza said:

Thats report from which i sent you charts of thicknesses of steel and dural and it only supports our claims that 22, neither 27mms of dural cant stop .50 caliber AP round at combat ranges. Based on this chart that shows penetration values of AP round against steel plate under different angles and ranges. 4In4.png

I don't want to decide in this question, the devs will make a decision and they will research about it.

Link to comment
Share on other sites

41Sqn_Skipper

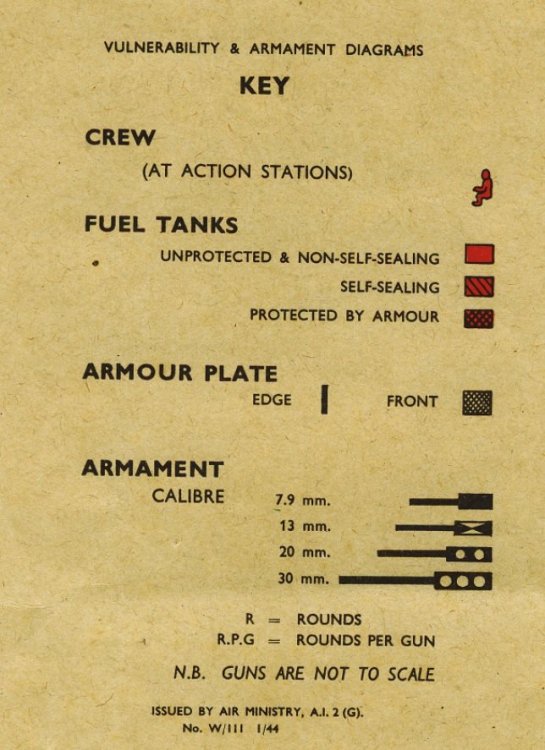

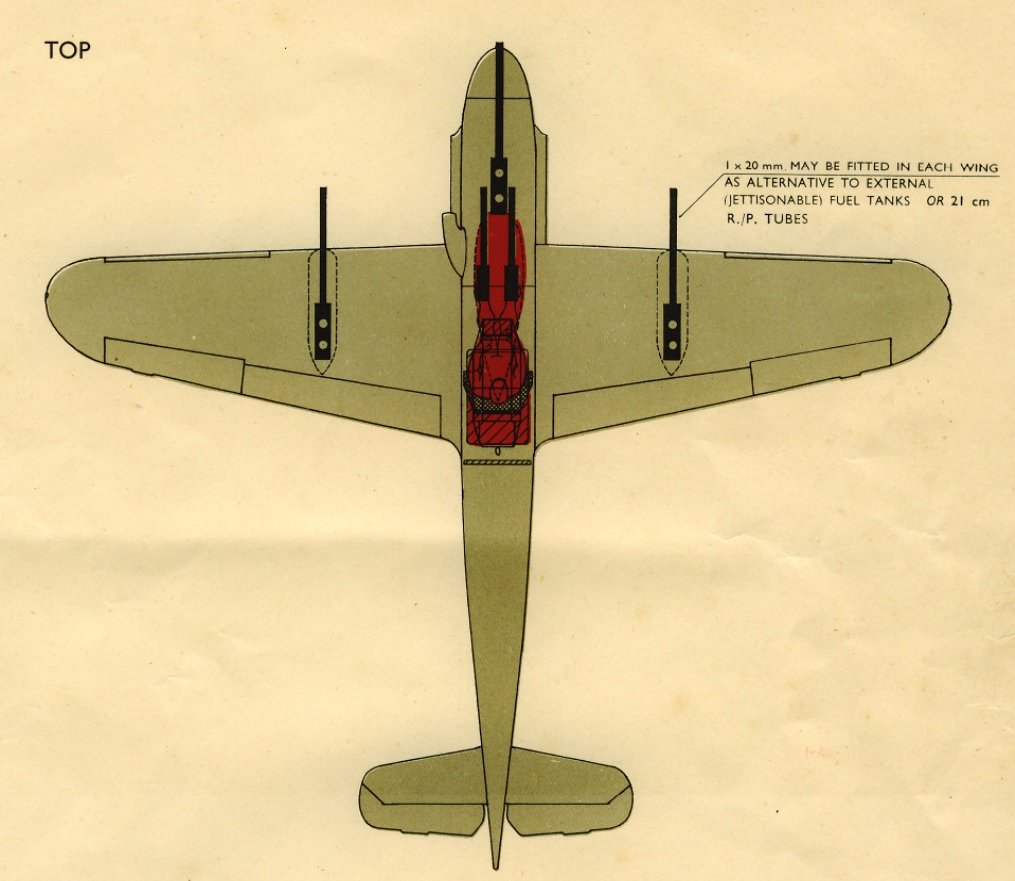

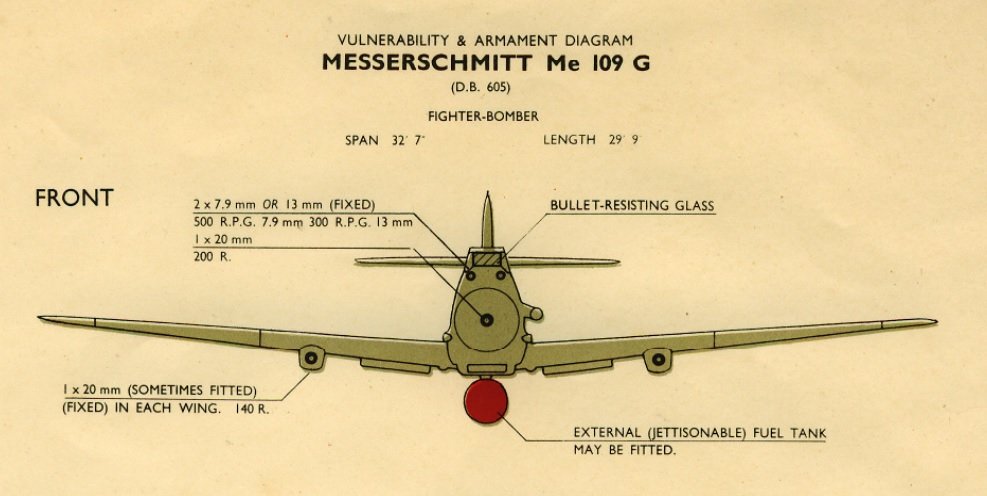

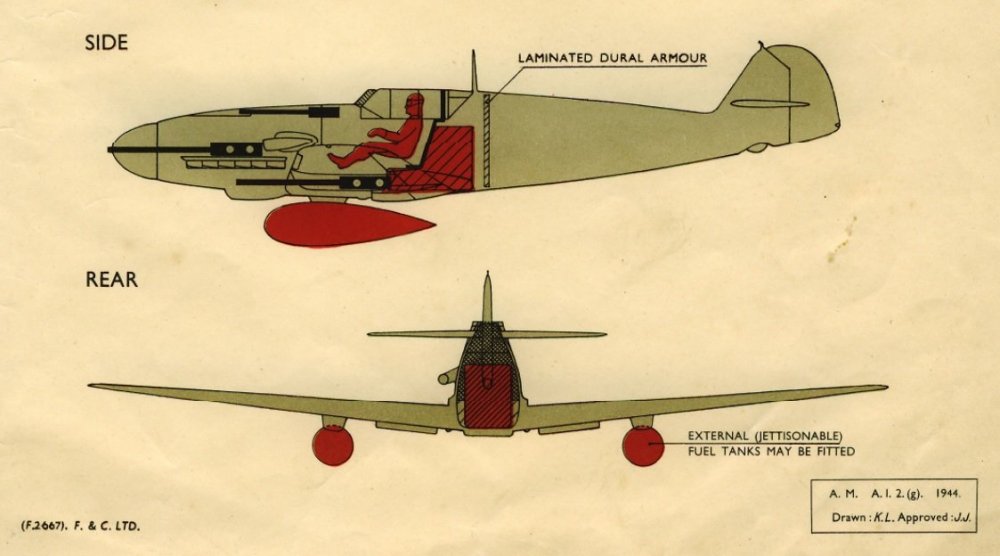

In the previous thread there was a question about the armour of the Bf 109. Here's the Me 109 G (DB 605) armour scheme according to british sources (dated 1944 ... so take it with a grain of salt)












Edited by 41Sqn_Skipper
  • Upvote 2
Link to comment
Share on other sites

I found this article discussing 20mm Hispano AP ammunition.  Looking at those numbers, the Hispano ball round that could only penetrate 12-14 mm of face hardened armor at 200 yards was still defeating both the dural and the pilot's back armor below the fuel line in around 20% of cases.  This makes me wonder if the .5" in the test was even a Browning.  It may have been a .5 Vickers.  Note that there was also a .5" Ball Mk II in this caliber.  An AN/M2 firing .50 M2 AP was rated to defeat 21mm of face hardened armor at 200 yards.



I've only had a chance to do a bit of testing in game on this subject so far, but what I'm finding is that the .50 AP we have is incapable of defeating the 109's back armor at 200m, even with the fuel level of the target set very low.  I've even tried removing the head armor of the target F4 (which the .50 in that test was able to defeat) and even with that gone, its still VERY difficult to get a pilot kill.  By contrast, I can snipe the pilot out of a 190A or P-47D at 350-400m using the .50 AP very consistently.

Link to comment
Share on other sites

7 hours ago, KW_1979 said:

I found this article discussing 20mm Hispano AP ammunition.  Looking at those numbers, the Hispano ball round that could only penetrate 12-14 mm of face hardened armor at 200 yards was still defeating both the dural and the pilot's back armor below the fuel line in around 20% of cases.  This makes me wonder if the .5" in the test was even a Browning.  It may have been a .5 Vickers.  Note that there was also a .5" Ball Mk II in this caliber.  An AN/M2 firing .50 M2 AP was rated to defeat 21mm of face hardened armor at 200 yards.



I've only had a chance to do a bit of testing in game on this subject so far, but what I'm finding is that the .50 AP we have is incapable of defeating the 109's back armor at 200m, even with the fuel level of the target set very low.  I've even tried removing the head armor of the target F4 (which the .50 in that test was able to defeat) and even with that gone, its still VERY difficult to get a pilot kill.  By contrast, I can snipe the pilot out of a 190A or P-47D at 350-400m using the .50 AP very consistently.

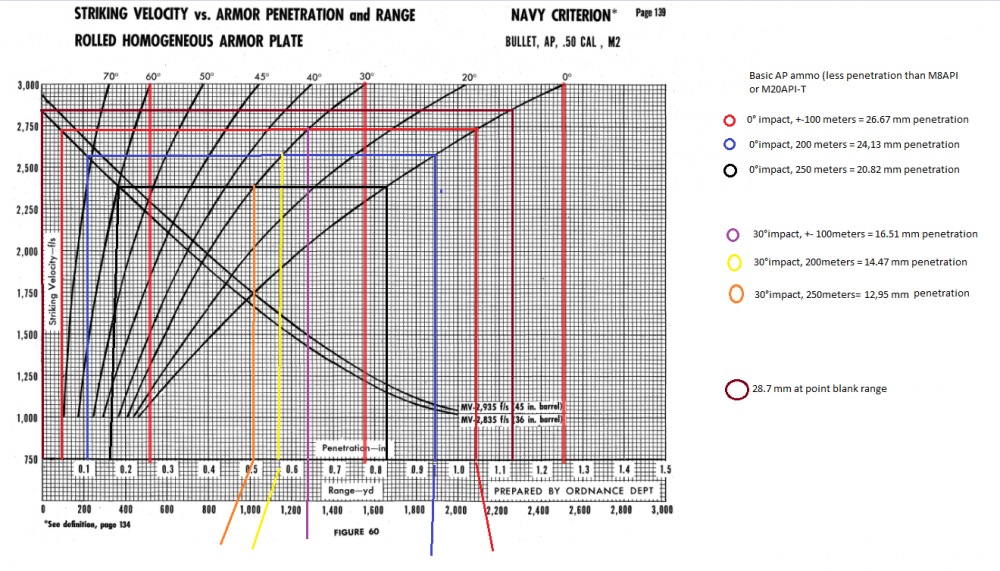

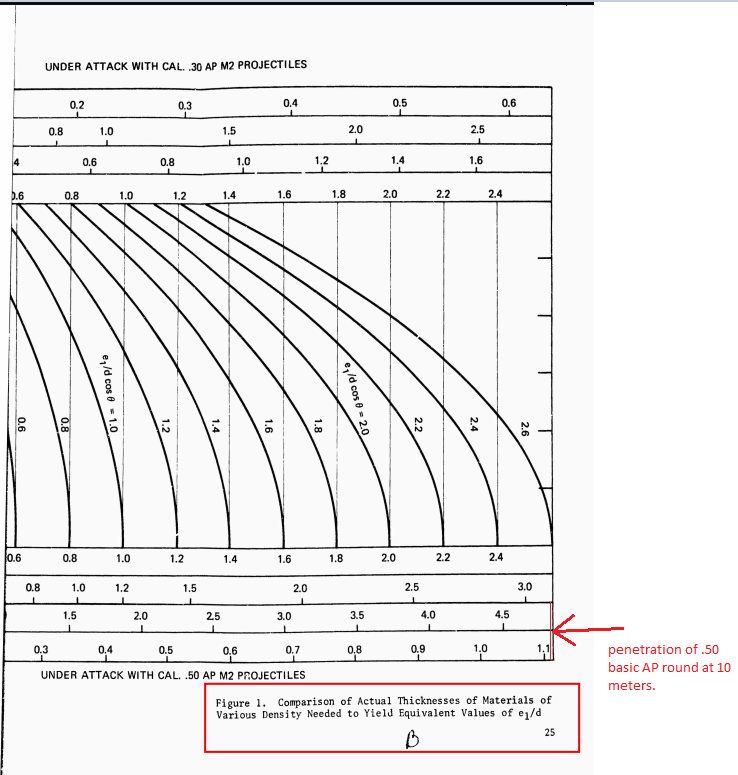

I have modified chart from US tests of .50 hmg AP round, both land 45in barell and 36in plane version. The numbers i made are with 36in version.
And there is two page chart comparing steel, dural and whatever third one is.


Spoiler



Even 27mm which is basically 1inch thick (look at numbers of steel, not even 10mm - 0.36-37in) dural plate in G-K is unable to stop AP round from .50cal M2 and most likely will go through fuel tank and pilots seat at considerable range around 150-200meters if that 109 was in flight as it would consume enough fuel from top part until it gets to combat so most of the pilot is exposed and it would face 80 rounds per second if we have 6x.50 armed plane. And if we dont have different fuel levels in tank affecting penetration, thats absolutely massive oversight from devs part and new dmg model should have never came in without fuel systems changes that are wip.





Edited by =DMD=Honza
  • Thanks 1
  • Upvote 1
Link to comment
Share on other sites

Doesn´t any one take into account that perfect 6 o´clock shots were difficult? I mean, that the shoting wing guns is perfectly aligned at 0º with the back seat/tank armor.

Considering the weight of fire and as soon as you introduce a few degrees of aspect angle plus the slight convergence angle of both wings guns and you have a very good chance that some bullet is going to defeat the armor the same way the germans did with the maginot line.

  • Upvote 1
Link to comment
Share on other sites

On 10/26/2020 at 2:23 PM, =DMD=Honza said:

Thats report from which i sent you charts of thicknesses of steel and dural and it only supports our claims that 22, neither 27mms of dural cant stop .50 caliber AP round at combat ranges. Based on this chart that shows penetration values of AP round against steel plate under different angles and ranges. 4In4.png

Duh.  The .50 started life as antitank round and can penetrate 25 mm of steel armor plate at close range.   27mm of aluminum isn't going to stop it even if it's not a steel penetrator.  AL is a MUCH weaker metal when it comes to stopping AP round because of it's low density and high brittleness.  In the video below you can see that a .50 API goes through 62mm of aluminum no problem.  IMO, no airplane skin or practical pilot armor in WW II is going to stop a .50 AP or API.   Note the entrance and exit damage that should result in aerodynamic issues when a plane is hit with several rounds.





Edited by BCI-Nazgul
Link to comment
Share on other sites

7 hours ago, BCI-Nazgul said:

Duh.  The .50 started life as antitank round and can penetrate 25 mm of steel armor plate at close range.   27mm of aluminum isn't going to stop it even if it's not a steel penetrator.  AL is a MUCH weaker metal when it comes to stopping AP round because of it's low density and high brittleness.  In the video below you can see that a .50 API goes through 62mm of aluminum no problem.  IMO, no airplane skin or practical pilot armor in WW II is going to stop a .50 AP or API.   Note the entrance and exit damage that should result in aerodynamic issues when a plane is hit with several rounds.



Aluminium, yes. Dural? Its different, yet still heavilly underperforming to steel. Duraluminium, aka dural is metal alloy which consist mainly from aluminium but it have other components too and is heat treated to get better strenght and hardness results.
https://www.azom.com/article.aspx?ArticleID=8073

Edited by =DMD=Honza
Link to comment
Share on other sites

1 hour ago, =DMD=Honza said:

Aluminium, yes. Dural? Its different, yet still heavilly underperforming to steel. Duraluminium, aka dural is metal alloy which consist mainly from aluminium but it have other components too and is heat treated to get better strenght and hardness results.
https://www.azom.com/article.aspx?ArticleID=8073

It won't make any difference, .50 will go right through anything in a plane made of DuraAluminium.   In fact, as thin as airplane skins are .50 or even .303 AP will go through multiple sections of airplane skin unless something thicker like an engine is hit.  3mm of DA won't stop these rounds.  It won't even slow them down much.

Link to comment
Share on other sites

9 hours ago, BCI-Nazgul said:

IMO, no airplane skin or practical pilot armor in WW II is going to stop a .50 AP or API.



Yet, the pilot protection of the Fw190 from dead 6 attacks was sufficient against 0.50 rounds. Main point, besides internal components, is the shallow angle of impact on the alumnium aircraft skin prior to hitting the armour plates, having a bad effect on the ballistics. Tests condcuted showed that the pilot would be safe in that kind of attack (at least from direct hits by AP rounds).



Fw190 armour was hardly top of the line, other aircraft carried better protection.

Link to comment
Share on other sites

2 minutes ago, JtD said:



Yet, the pilot protection of the Fw190 from dead 6 attacks was sufficient against 0.50 rounds. Main point, besides internal components, is the shallow angle of impact on the alumnium aircraft skin prior to hitting the armour plates, having a bad effect on the ballistics. Tests condcuted showed that the pilot would be safe in that kind of attack (at least from direct hits by AP rounds).



Fw190 armour was hardly top of the line, other aircraft carried better protection.

Dead six maybe if the pilot got lucky.   I sure wouldn't bet my life on that.   Most attacks do not come from dead six as you know.

  • Upvote 1
Link to comment
Share on other sites

2 hours ago, BCI-Nazgul said:

Dead six maybe if the pilot got lucky.   I sure wouldn't bet my life on that.   Most attacks do not come from dead six as you know.

It is what I said in my previous post. Wing mounted guns and slight aspect angle makes a bullet reaching the cockpit from the sides quite likely. More if you take into account the huge weight of fire of a battery of wing mounted M2s.

Link to comment
Share on other sites

4 hours ago, JtD said:



Yet, the pilot protection of the Fw190 from dead 6 attacks was sufficient against 0.50 rounds. Main point, besides internal components, is the shallow angle of impact on the alumnium aircraft skin prior to hitting the armour plates, having a bad effect on the ballistics. Tests condcuted showed that the pilot would be safe in that kind of attack (at least from direct hits by AP rounds).



Fw190 armour was hardly top of the line, other aircraft carried better protection.


What tests?  The 190 had a similar 8mm backplate/11mm head armor like the 109 but with no additional Dural plate.  .50 AP or API has more then enough penetration to defeat that kind of armor at typical combat ranges.

Link to comment
Share on other sites

Ballistic tests. And you don't need to defeat an armour plate, you need to defeat the entire pilot protection which starts, as I stated already, with the aircraft skin.




Edited by JtD
Link to comment
Share on other sites

1 hour ago, JtD said:

Ballistic tests. And you don't need to defeat an armour plate, you need to defeat the entire pilot protection which starts, as I stated already, with the aircraft skin.




And what gun was used in those tests... We can see only, only ammo and we dont even know what exact ammo is that as its british report

, NOT US one, which is important as m2 was not only one .50 in west. We dont know from which gun and what barell lenght it had, neither if it was wing mounted, so came with angle from side or direct 6oclock shot.

Edited by =DMD=Honza
Link to comment
Share on other sites

Yep, I'm sure the British tested guns and ammo they didn't use in combat and instead of a controlled environment at a shooting range they'd field test it using entire aircraft installations and when they said from directly behind they mean something else. Makes sense.



Just as a reminder - Nazgul was of the opinion that no aircraft skin or WW2 pilot armour would stop a .50 AP. I merely provided an example where this is possible, as some food for thought. Consider it or ignore it, your choice. I don't really care.

Link to comment
Share on other sites

So much of that has been cropped away that it's basically meaningless.  We can't even see what the test target was.  And it's talking about percentage chance of a bullet being "effective".  That sure sounds like some theoretical calculations rather than an actual firing test.  I'd love to see the whole thing if you have it though.

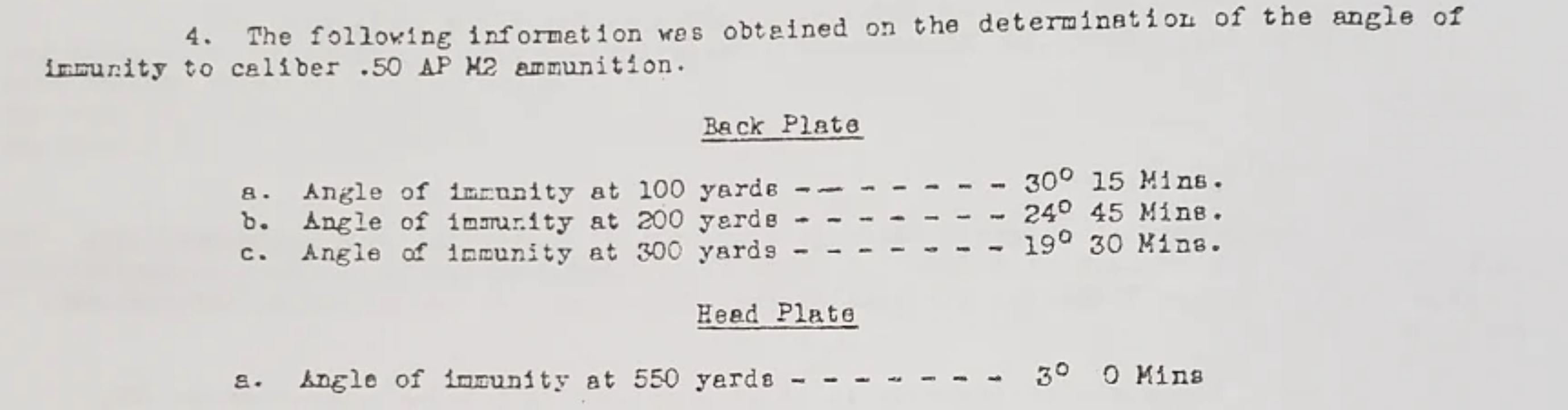

Here's an example of a test of actual US .50 M2 AP ammunition against a piece of enemy aircraft armor:



Page 1

Page 2



It's against the 13.5mm head and back armor from a Japanese Oscar.  The US did us a huge favor and not only carefully measured and tested the plates, but also tested their hardness, which at around 550-600 brinell was in the range of other nations aircraft armor that I've seen reported.  The better of the two plates was capable of being penetrated by the M2 AP round at 2,228 fps at 0 degrees - that equates to about 480 yards from a 36 inch barreled AN/M2 (the lower quality plate worked out to around 600 yards).  Is it possible that German armor was better quality?  Sure, although by 1944 they were suffering their own material issues.  But it strikes me as totally unbelievable that a thinner German plate was impervious to .50 M2 AP at much shorter ranges.  Obviously you could have cases of individual bullets being deflected by hitting a radio or whatnot along the way, or bullets striking from high angle off - but multiple rounds from large batteries of .50s at low angle off should make short work of any bits of wood, rubber, aluminum, radios etc that are in the way.



We see from gun camera footage and combat reports, as well as from German casualties and their own surviving pilots that these gun packages were effective at normal combat ranges.  The only explanation I have that can square these British tests and reports with the other evidence is that the British were either using some sort of sub-standard ammo, or a different caliber entirely in those tests.  It's entirely reasonable that an individual round, or a small number of rounds might fail.  But the idea that either the 109 or 190 were impervious to .50 M2 AP at normal combat ranges is pretty far fetched.



Edited by KW_1979
Fixed link
Link to comment
Share on other sites

Thanks for the report link, but for Page 1 I am not getting a Page not found error.



Page 2: has the following:






Granted that the effect of multiple hits can compromise an armour plate, but I am puzzled at how to reconcile this stated immunity at 100 yards to your calculated 480 yards.

Link to comment
Share on other sites

The link is fixed, sorry about that.  The angle of immunity at 100 yards was 30 degrees 15 minutes.  At any angle below that it would be penetrated - and note the angle gets smaller as range increases - they list the angle of immunity of the head plate (which was the higher quality piece I was refering to) at 550 yards as 3 degrees - so slightly more generous then my range based of the velocity listed on page 1.  But they were also firing from some sort of test rifle instead of an open bolt AN/M2, so the velocity may have been higher than a typical aircraft gun.

  • Thanks 1
Link to comment
Share on other sites

OK, got it now and understand what is being described.



Still not sure if this in any way undermines the game's implementation of the 50 cals though: which do penetrate the back plate of the German fighters fairly easily, as shown by the fuel leaks.  (edit as in a static test on K-4 from six o'clock, 300m range tested just now). Similarly the 109/190 head plate alone can be penetrated easily if only that part is hit. (Same test - "I'm wounded"!)



I really think that if there was an incendiary round modelled with the subsequent higher chance of igniting a hit fuel tank there would be little reason to complain.





Edited by unreasonable
Link to comment
Share on other sites

13 hours ago, unreasonable said:

OK, got it now and understand what is being described.



Still not sure if this in any way undermines the game's implementation of the 50 cals though: which do penetrate the back plate of the German fighters fairly easily, as shown by the fuel leaks.  (edit as in a static test on K-4 from six o'clock, 300m range tested just now). Similarly the 109/190 head plate alone can be penetrated easily if only that part is hit. (Same test - "I'm wounded"!)



I really think that if there was an incendiary round modelled with the subsequent higher chance of igniting a hit fuel tank there would be little reason to complain.







What I'm seeing from my testing is that it's really hard to defeat the 109s pilot armor much beyond about 150-200m (using a 109F4 target aircraft with a nearly empty fuel tank).  Yes, you can punch right through the Dural and get fuel leaks, but its really hard to get to the pilot.  I believed we've discussed that before.  It seems pretty suspect, when you can defeat the armor of a P-47D22 or Fw190A out past 400m for example.  I need to test more to say anything concrete on it though - I just haven't had the time lately.



I agree with you completely on the incendiaries.

Link to comment
Share on other sites

I doubt that the fuel level as measured as a % for weight and endurance purposes actually translates into a physical fuel level for hit recognition purposes. Effectively that would mean having a variable sized hit box with quite complex geometry changing as the fuel level drops.  I would not be surprised if the RNG roll for a fuel leak did not take into account either exact shot placement in the fuel tank hit box, or the current fuel level, but who knows.  Hard to tell from  the kind of testing we can do.



Anyway, as Jason has said in the last DD that they are not revisiting DMs at this time, so time to move on, at least for me.

Link to comment
Share on other sites

VO101Kurfurst
On 11/7/2020 at 12:50 AM, KW_1979 said:



What I'm seeing from my testing is that it's really hard to defeat the 109s pilot armor much beyond about 150-200m (using a 109F4 target aircraft with a nearly empty fuel tank).  Yes, you can punch right through the Dural and get fuel leaks, but its really hard to get to the pilot.  I believed we've discussed that before.  It seems pretty suspect, when you can defeat the armor of a P-47D22 or Fw190A out past 400m for example.  I need to test more to say anything concrete on it though - I just haven't had the time lately.



I agree with you completely on the incendiaries.



It agrees with real life test results by the British, see below.



To get to the pilot on the 109F/G with dural bulkheads behind the petrol tank, you have to go through the highly angled dural skin, 30layers of sandwhiched dural plate behind the tank (this was primarly designed to render ineffective incendinaries from functioning, but was also estimated to be equivalent to 7.3 mm of steel armor), the tank and the fuel inside it, and finally defeat the 8mm angled steel armor.



Reliably defeating so many layers was simply too much for anything under 20 mm.



Even early US .50 incendinary rounds were rendered ineffective by the dural plate, however the Soviet .50 API was still effective, and the US subsequently copied it's design (that's basically M8 API iirc).



It is the dural plate that boost the protection from direct astern that makes it so hard to defeat - it was not present on the 109E (however the Emil had a similarly position steel armor in the same position, but without the pilot's own plate behind his seat), and also removed on late MW boost equipped 109s (those however had a large MW tank filled with water, bets are off how that helped the protection system).

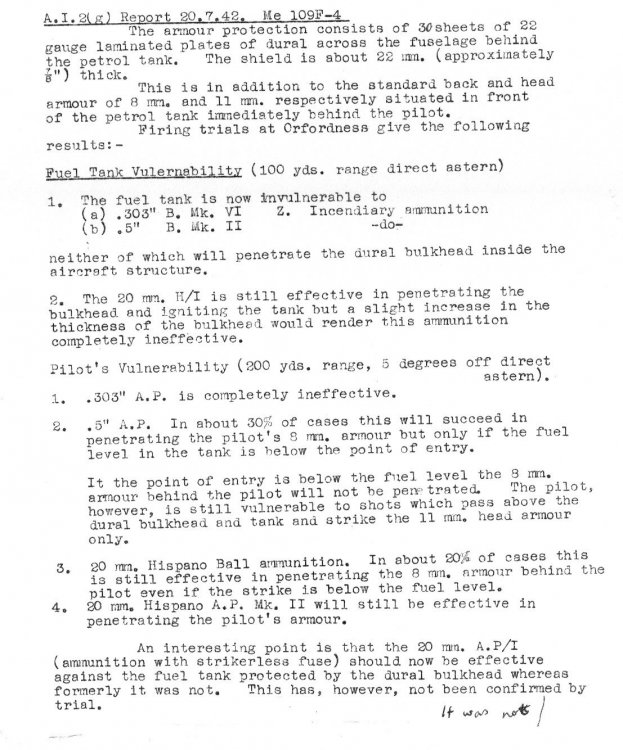

109F_duralplate_effectiveness 303 50 20.jpg

  • Upvote 1
Link to comment
Share on other sites

-=PHX=-SuperEtendard
On 11/5/2020 at 1:39 AM, JtD said:

Ballistic tests. And you don't need to defeat an armour plate, you need to defeat the entire pilot protection which starts, as I stated already, with the aircraft skin.




Do you know what's the specific round they used in that report? I'm suspecting the British .50 cal AP was more similar to the US .50 cal ball since that one was made of steel, while the M2 AP had a tungsten alloy core, which resulted in similar penetration to regular 20mm AP rounds.

Link to comment
Share on other sites

23 hours ago, VO101Kurfurst said:



It agrees with real life test results by the British, see below.



To get to the pilot on the 109F/G with dural bulkheads behind the petrol tank, you have to go through the highly angled dural skin, 30layers of sandwhiched dural plate behind the tank (this was primarly designed to render ineffective incendinaries from functioning, but was also estimated to be equivalent to 7.3 mm of steel armor), the tank and the fuel inside it, and finally defeat the 8mm angled steel armor.



Reliably defeating so many layers was simply too much for anything under 20 mm.



Even early US .50 incendinary rounds were rendered ineffective by the dural plate, however the Soviet .50 API was still effective, and the US subsequently copied it's design (that's basically M8 API iirc).



It is the dural plate that boost the protection from direct astern that makes it so hard to defeat - it was not present on the 109E (however the Emil had a similarly position steel armor in the same position, but without the pilot's own plate behind his seat), and also removed on late MW boost equipped 109s (those however had a large MW tank filled with water, bets are off how that helped the protection system).

109F_duralplate_effectiveness 303 50 20.jpg

Yet that report states that in 30% of cases, .50 ap ammo was able to defeat pilots armor and kill him. And 30% is a lot if youre throwing around 80rounds per second onto target. Btw, do you have any drawings or docs about removing plate in mw50 planes? Its not like i dont believe you, its logical but i was unable to find anything about it and i would really like to know, how it was and mw50 tank is full of highly flammable subsance and system cant work if penetrated because of loss of pressure. (not modelled ingame iirc)

Link to comment
Share on other sites

On 11/9/2020 at 5:29 AM, VO101Kurfurst said:



It agrees with real life test results by the British, see below.



To get to the pilot on the 109F/G with dural bulkheads behind the petrol tank, you have to go through the highly angled dural skin, 30layers of sandwhiched dural plate behind the tank (this was primarly designed to render ineffective incendinaries from functioning, but was also estimated to be equivalent to 7.3 mm of steel armor), the tank and the fuel inside it, and finally defeat the 8mm angled steel armor.



Reliably defeating so many layers was simply too much for anything under 20 mm.



Even early US .50 incendinary rounds were rendered ineffective by the dural plate, however the Soviet .50 API was still effective, and the US subsequently copied it's design (that's basically M8 API iirc).



It is the dural plate that boost the protection from direct astern that makes it so hard to defeat - it was not present on the 109E (however the Emil had a similarly position steel armor in the same position, but without the pilot's own plate behind his seat), and also removed on late MW boost equipped 109s (those however had a large MW tank filled with water, bets are off how that helped the protection system).



This is the report that this whole thread is in regards to.  As stated above, the .50 B. Mk. II was a British designation for their own ammunition.  It's not clear that this is even a .50 Browning, and may have been a .50 Vickers, which also had a similarly designated ball and incendiary round.



As I posted previously, it's telling that in the test we're discussing, the Hispano Mk II Ball round that was rated to penetrate a mere 12mm of armor at 200yards and 0 degrees, could defeat the bulkhead, the fuel tank below the fuel line, and still punch through the pilot's back armor 20% of the time in this test.  By comparison a US M2 AP round was rated to penetrate 21mm of face hardened in that scenario, and at a 20 degree offset could still penetrate 16mm.



In an actual test of US M2 AP ammo against a high hardness Japanese 13.5mm plate which I posted above, the plate was defeated out to nearly 500 yards.  Another report posted above shows that an inch of Dural was equivalent to about .35 inches of face hardened armor.  It seems exceptionally dubious to me that a Hispano Mk II Ball round could outperform M2 AP or M8 API.  Likewise, US combat reports and gun camera film back up the idea that .50 M2 and M8 could defeat the 109s pilot and fuel protection.



I didn't realize that the dural bulkhead was removed in aircraft with the MW50 tank.  My understanding is that those tanks were pressurized by the supercharger.  Obviously the tank would be somewhat effective, assuming it was filled at the time it was struck.  But of course MW50 itself would be somewhat flammable, and my understanding is that the tanks were pressurized by the supercharger - once you poke some holes in the tank it's going to spray its contents everywhere and lose pressure (which is going to result in some engine trouble if the pilot were still running at emergency power).

Link to comment
Share on other sites

The Vickers .50 cal was just a modification of the standard .303 Vickers MG used in ground vehicles and mostly in ships as LAA - AFAIK never in aircraft. If it was tested against aircraft, therefore, it would have probably been tested against the front of attackers, not directly from the rear.



More conclusively, the report uses the expression ".5 inch B. Mk. II incendiary"  In the fuel tank vulnerability section.  This corresponds to = "Cartridge S.A. Incendiary .50 inch Browning B Mark IIz" see https://sites.google.com/site/britmilammo/-50-inch-browning/-50-inch-browning-incendiary



This site also lists ammunition types for the Vickers .5 inch. There is no Mk II incendiary ammunition for the Vickers listed here. The report is dated July 1942.

 "Cartridge S.A. Incendiary .5 inch B Mark Iz" for the Vickers Was issued only from 1943 onwards according to this site.





Edited by unreasonable
  • Thanks 1
Link to comment
Share on other sites

  • 3 months later...
=LD=dhyran
Gents,
latly we saw a lot of discussion about ammunition efficency. this page might help to get a better overview and cools down some expectations vs history:


WORLD WAR 2 FIGHTER ARMAMENT EFFECTIVENESS



© Anthony G Williams & Emmanuel Gustin (with acknowledgements to Henning Ruch)

 Revised August 2013

The comparative effectiveness of fighter guns in the Second World War is a subject of perennial fascination (and a great deal of argument) among technical military historians. This is an attempt to take a fresh and objective look at the evidence in order to draw up comparative tables of cartridge destructiveness, gun power and gun efficiency. The effectiveness of typical day fighter armament fits is also considered.

CARTRIDGE DESTRUCTIVENESS

There are two types of energy that may be transmitted to the target; kinetic and chemical. The kinetic energy is a function of the projectile weight and the velocity with which it hits the target. This velocity in turn depends on three factors: the muzzle velocity, the ballistic properties of the projectile, and the distance to the target. There are therefore two fixed elements in calculating the destructiveness of a projectile, its weight and chemical (high explosive or incendiary) content, and one variable element, its velocity. The key issue is the relationship between these three factors.

A high muzzle velocity will provide a short flight time, which is advantageous in increasing the hit probability and extending the effective range, and will also improve the penetration of AP rounds. However, it might not add much to destructiveness, as unless an AP projectile hits armour plate (and not much of the volume of an aircraft was protected by this), a higher velocity just ensures that a neater hole is punched through the aircraft; the extra kinetic energy is wasted. Also, if the projectile is primarily relying on HE blast or incendiary effect, the velocity with which it strikes the target is almost immaterial. Provided that it hits with sufficient force to penetrate the skin and activate the fuze, the damage inflicted will remain constant. In contrast, AP projectiles lose effectiveness with increasing distance.

It is sometimes argued that a projectile with a high muzzle velocity and a good ballistic shape (which reduces the rate at which the initial velocity is lost) provides a longer effective range. To some extent this is true, but the greatest limitation on range in air fighting in the Second World War was the difficulty in shooting accurately. The problem of hitting a target moving in three dimensions from another also moving in three dimensions (and probably at a different speed and on a different heading) requires a complex calculation of range, heading and relative speed, while bearing in mind the flight time and trajectory of the projectiles. Today, such a problem can easily be solved by a ballistic computer linked to a radar or laser rangefinder, but at the time we are examining, the "radar" was the human eyeball and the "ballistic computer" the human brain. The range, heading and speed judgements made by the great majority of pilots were notoriously poor, even in training. And this was without considering the effects of air turbulence, G-forces when manoeuvring, and the stress of combat. These factors limited the effective shooting range to around 400 m against bombers (longer in a frontal attack) and against fighters more like 250 m.

For all of these reasons muzzle energy (one half of the projectile weight multiplied by the square of the velocity) has not been used to calculate kinetic damage as this would overstate the importance of velocity. Instead, momentum (projectile weight multiplied by muzzle velocity) was used as an estimate of the kinetic damage inflicted by the projectile. It might be argued that even this overstates the importance of velocity in the case of HE shells, as noted above, but the effect of velocity in improving hit probability is one measure of effectiveness which needs acknowledging, so it is given equal weighting with projectile weight.

Chemical energy is generated by the high explosive or incendiary material carried by most WW2 air-fighting projectiles. First, there is the difference between HE and incendiary material, which were often mixed (in very varying proportions) in the same shell. HE delivers instant destruction by blast effect (plus possibly setting light to inflammable material within its blast radius), incendiaries burn on their passage through the target, setting light to anything inflammable they meet on the way. The relationship between the effectiveness of HE and incendiary material is difficult to assess. Bearing in mind that fire was the big plane-killer, there appears to be no reason to rate HE as more important, so they have been treated as equal.

The comparison between kinetic and chemical energy is the most difficult and complicated subject to tackle. This complexity is revealed by the example of a strike by a delay-fuzed HEI cannon projectile. This will first inflict kinetic damage on the target as it penetrates the structure. Then it will inflict chemical (blast) damage as the HE detonates. Thirdly, the shell fragments sent flying by the explosion will inflict further kinetic damage (a thin-walled shell will distribute lots of small fragments, a thick-walled shell fewer but larger chunks), and finally the incendiary material distributed by the explosion may cause further chemical (fire) damage.

There will therefore always be a degree of arbitrariness in any attempt to compare kinetic and chemical energy, as it all depends on exactly where the projectile strikes, the detail design of the projectile and its fuze, and on the type of aircraft being attacked. To allow a simple comparison, we will reduce all these factors to an increase in effectiveness directly proportional to the chemical content of the projectile. We assign to projectiles that rely exclusively on kinetic energy an effectiveness factor of 100%. For projectiles with a chemical content, we increase this by the weight fraction of explosive or incendiary material, times ten. This chosen ratio is based on a study of many practical examples of gun and ammunition testing, and we will see below that it at least approximately corresponds with the known results of ammunition testing.

To illustrate how this works: a typical cannon shell consists of 10% HE or incendiary material by weight. Multiplying this by ten gives a chemical contribution of 100%, adding the kinetic contribution of 100% gives a total of 200%. In other words, an HE/I shell of a given weight that contains 10% chemicals will generate twice the destructiveness of a plain steel shot of the same weight and velocity. If the shell is a high-capacity one with 20% chemical content, it will be three times as destructive. If it only has 5% content, the sum will be 150%, so it will be 50% more destructive, and so on.

The following table for the most common cartridges and loadings used in aircraft guns shows the consequences of these assumptions and calculations. The first few columns should be self-explanatory, as these are basic statistics about the ammunition. HE(M) means Minengeschoss, or high-capacity mine shell. The 'DAMAGE' column shows the results of the calculations described above. To run through an example, let us look at the case of the 7.7x56R (.303") incendiary. The projectile (a "De Wilde") weighs 9.8 g, (which equals 0.0098 kg) and was fired at 747 m/s. Multiplying these gives 747 x 0.0098 = 7.3206, so you have a momentum factor of 7.32. As the bullet contains 5% by weight of incendiary material, the momentum is multiplied by 1.5 to give a destructive power score of 10.98 - rounded to 11.

The last column - 'POWER' - takes into account that different types of ammunition, with different destructiveness scores, were commonly loaded into an ammunition belt or magazine. Many cannon shells were also available with tracers, which reduced the weight of HEI mix. This column therefore shows an average score for the different types to give an overall destructiveness assessment for that calibre. For convenience, the result is divided by ten and rounded to the nearest whole number (except for HMGs), which helpfully leaves the least powerful cartridges, the rifle calibre rounds, scoring 1.

TABLE 1: CARTRIDGE DESTRUCTIVENESS



CARTRIDGE

TYPE

ROUND WEIGHT

MV M/SEC

PROJECTILE WEIGHT GM

% HEI CONTENT

DAMAGE

POWER

7.7x56R

AP /  I

24

762  /  747

11.3  /  9.8

-  /  5

8.6  /  11

1

7.92x57

AP-v

24

865

11.5

-

10

1

13x64B

AP  /  HE

76 /  72

710  /  750

38.5  /  34

-  /  3.5

27  /  34

3.2

12.7x81SR

AP  /  HE

82

760  /  770

35.4  /  33

-  /  2.2

27  /  31

3

12.7x99

API

112

890

43

2

46

4.6

12.7x108

API

125

840

48

4.2

57

5.7

15x96

AP  /  HE

166  /  151

850  /  960

72  /  57

-  /  4.9

61  /  82

7.8

20x72RB

HE

200

600

128

6

123

12

20x80RB

API  /  HEIT  /  HE(M)

182  /  162

585  /  585  /  700

117  /  115  /  92

3.1  /  3.2  /  22

90  /  89  /  206

14

20x82

API  /  HET  /  HE(M)

205  /  183

720  /  720  /  800

117  /  115  /  92

3.1  /  3.2  /  22

110  /  109  /  236

16

20x94

AP  /  HE

250  /  213

700  /  730

112  /  79

-  /  12

78  /  127

11

20x99R

API  /  HEI

183

750  /  790

96  /  95

2  /  6

86  /  120

11

20x101RB

HE

222

750

128

6

154

15

20x105

HE-T c.250 750 134 2 120 12

20x110RB

HE

240

830

122

8

182

18

20x110

HE (Mk II  / Mk V)

257

860  /  830

130

8

201  /  194

20

20x125

HE

290

820

127

7

177

18

23x152B

API  /  HE

467

880  /  880

200  /  200

3  /  7

228  /  300

26

30x92RB HE c.400? 710 264 9 356 36
30x114 HE 520 700 235 c.8? 296 30
30x122 HE c.650? 760 345 c.9? 498 50

30x90RB

HE (M)

480

505

330

25

580

58

30x184B

HE (M)

780

860

330

25

990

99

37x112R HE 838 570 475 8.2 493 49
37x144 HE 965 710 475 8.2 614 61

37x145R

HE

900

610

608

7.4

645

64

37x165R HE 1150 707 644 9 865 86

37x195

HE

1570

900

735

6

1060

106

40mm CL

HE

587

246

585

8.7

269

27

45x186 HE 1900 850 1065 c.6? 1448 145
57x121R HE 2100 495 1500 c.10? 1485 148



Comments on Table 1

Clearly, the resulting scores can only be approximate, and in particular will vary depending on the particular mix of types included in an ammunition belt. The power calculation takes a typical mix of ammunition, where known. They also take no account of the fact that some incendiary mixtures, and some types of HE, were more effective than others. However, they do provide a reasonable basis for comparison. There is no point in trying to be too precise, as the random factors involved in the destructive effects were considerable.

If we compare the values with the few data known from ballistic tests, we have some indications that the factors assumed in the calculations are realistic. The 20x80RB M-Geschoss and the 20x110 (Hispano) HE were rated as about equal; the greater blast effect of the M-Geschoss was countered by the greater penetration and kinetic damage inflicted by the Hispano. They do indeed emerge with similar scores. Also, the Luftwaffe reckoned that it took about four or five times as many 20 mm shells to destroy a heavy bomber as it did 30 mm rounds. The power relationship here is 3.6 times for the MK 108 and 6.2 times for the MK 103, which neatly brackets this observation.

Cartridge illustrations

These photos illustrate the different cartridges listed above.



Left to right: 20x101RB, 20x105, 20x110RB, 20x110, 20x125, 23x152B, 30x92RB, 30x114, 30x122, 30x90RB, 30x184B


Left to right: 30x184B, 37x112R, 37x144, 37x145R, 37x165R (manually loaded), 37x195, 40mm caseless, 45x186, 57x121R

GUN POWER AND EFFICIENCY

The cartridge destructiveness table above only shows the relative effect of one hit. When comparing the guns that fired the cartridges, other factors come into play, namely the rate of fire (RoF) and the gun weight.

To calculate the destructive power of the gun, the 'POWER' factor from the above table has been multiplied by the RoF, expressed in the number of rounds fired per second. This gives the relative 'GUN POWER' figures in the table below. It is important to note that all of the RoF figures are for unsynchronised guns; the exception is the 12.7 mm UB (Soviet Berezin) where the lower RoF figure is for a synchronised gun (which it commonly was in fighters), the higher for unsynchronised. The effects of synchronisation on other guns varied considerably; for German weapons, which used an efficient electrical system, the reduction in RoF was around 10%. For other systems it typically varied between 20 and 40%.

To judge how efficient the gun was, the 'GUN POWER' result is divided by the weight of the gun in kilograms to provide the 'GUN EFFICIENCY' score in the last column. This is, in effect, a measure of the power-to-weight ratio of the gun and ammunition combination.

TABLE 2: GUN POWER AND EFFICIENCY



GUN

CARTRIDGE

RoF RPS

CARTRIDGE POWER

GUN POWER

GUN WEIGHT KG

GUN EFFICIENCY

Browning .303

7.7x56R

20

1

20

10

2.1

MG 17

7.92x57

20

1

20

12

1.75

MG 131

13x64B

15

3.2

48

17

2.82

Breda-SAFAT

12.7x81SR

12

3

36

29

1.24

12.7mm Scotti

12.7x81SR

12

3

36

22

1.64

Ho-103

12.7x81SR

15

3

45

23

1.96

.50 Browning M2

12.7x99

13

4.6

60

29

2.1

12.7mm UB

12.7x108

13 - 17

6

74  - 97

25

3  -  3.9

MG 151

15x96

12

7.8

94

42

2.2

20mm Type 99-1

20x72RB

8

12

108

24

4.5

MG-FF

20x80RB

8

14

126

28

4.5

MG 151/20

20x82

12

16

192

42

4.6

20mm Ho-5

20x94

14

10

154

37

4.2

20mm ShVAK

20x99R

13

11

143

42

3.4

Berezin B-20

20x99R

13

11

143

25

5.7

MG 204 20x105 8 12 96 38 2.5

20mm Type 99-2

20x101RB

8

15

120

35

3.4

HS.7 and 9

20x110RB

6.5

18

117

48

2.4

Hispano II

20x110

10

20

200

50

4

Hispano V

20x110

12.5

20

250

42

6

Ho-1  /  Ho-2

20x125

7

18

126

45

2.8

VYa-23

23x152B

9

26

234

68

3.4

30mm Type 2 30x92RB 6.5 36 234 51 4.6
Ho-155-I 30x114 6.5 30 195 50 3.9
Ho-155-II " 8 30 240 44 5.5
30mm Type 5 30x122 8 50 400 70 5.7

MK 108

30x90RB

10

58

580

60

9.7

MK 103

30x184B

7

99

693

141

4.9

Ho-203 37x112R 2 49 98 89 1.1
Ho-204 37x144 5-6 61 335 130 2.6

37mm M4

37x145R

2.5

64

160

96

1.7

NS-37

37x195

4

106

424

170

2.5

Ho-301

40mm CL

7.5

27

202

132

1.5

NS-45 45x186 4 145 580 170 3.4
Ho-401 57x121R 1.3 148 192 150 1.3



Comments on Table 2

The gun weights quoted above are only nominal and need to be regarded with caution. This is partly because the weights for different guns may not be comparable as various ancillary items may or may not be included; partly because the type and weight of various components were often changed as the guns were developed during the war. Unfortunately detailed weight breakdowns are not available for most guns, making it difficult to allow for these factors.

One exception for which detailed weights are known and which serves to illustrate this issue very well is the US 20mm Hispano AN-M2. This weighed 46.3 kg as a bare gun, but the muzzle brake (not needed with belt feed) weighed 2.1 kg, the front mounting adapter between 3.4 and 6.4 kg depending on the model, the electric trigger and sear mechanism 0.8 kg, the hydraulic charger 1.2 kg, and the ammunition feed 10 kg (60-round drum) or 8.4 kg (belt feed drive), giving a total weight of 60-67 kg depending on the feed mechanism and the mounting adapter.  The mounting or support cradle would be additional to this.

For the very similar British 20mm Hispano II, similar considerations apply although such a detailed weight breakdown is not available. 50 kg (to be precise, 49.4 kg) is for the gun with its front mounting unit. Adding the belt feed put the weight up by several kg (two different belt feeds were used during the war, one 2.3 kg lighter than the other; the front mounting unit was also changed during the war). The weight for the Hispano Mk V was reduced by 11.34 kg, partly by shortening the barrel but also by eliminating the pneumatic cocking system which was not used anyway. The net result was that installed weights for the guns were probably in the region of 57-60 kg for the belt-fed version of the Mk II and 46-49 kg for the MK V.

In contrast to the Hispanos, most belt-fed guns had an integral belt feed rather than a separate bolt-on unit. The 42 kg usually quoted for the MG 151 not only includes an integral belt feed but also the electrical charging device and electric trigger, without which the gun weighed 36-37 kg (sources differ).

Two factors not included are gun reliability and total ammunition weight. The former is simply not available in most cases. The latter involves too many variables. First, the ammunition supply for most guns varied according to the installation. Furthermore, in searching for comparators, there would be the problem of which measures to take: the weight of the number of rounds fired per second, or the weight of the number required to inflict a certain amount of damage? There would be a case for either of these, but they would produce very different results. This issue is however addressed in the next table.

The lower rate of fire of many of the larger guns tends to reduce their power advantage over the smaller calibres. However, in power-to-weight ratio, larger guns are generally better performers (the slow-firing guns such as the American 37 mm M4 and the Japanese H-203 and Ho-401 plus the low-velocity IJA Ho-301 excepted). The Japanese Type 94 anti-tank/Type 98 tank gun firing 37x165R ammunition was used in aircraft but the gun is not listed because it was manually loaded.

Most of the Soviet guns show up as being remarkably efficient, with scores of around 4, but the Hispano and the MG 151/20 also show up well, as do the simple MG-FF and Japanese Type 99 API blowbacks because of their light weight.

The American Browning .50 M2 is an undistinguished performer, particularly when compared with its closest competitor, the 12.7 mm Berezin. The relatively small incendiary content in the .50 API (0.9 g instead of 2 g) gives the Soviet round a flying start, which it adds to by its usefully higher rate of fire, then finishes off in style by being lighter as well, and thereby almost twice as efficient overall. The Browning also makes an interesting comparison with the Japanese Ho-5, which was basically the M2 slightly scaled up to take 20 mm cartridges.

It may appear that this low score of the .50 M2 is in disagreement with the satisfactory experience the USAAF had with this weapon. The answer to this apparent contradiction is that the .50 M2 proved very effective against fighters and (not too sturdy) bombers, if installed in sufficient numbers. Six or eight guns were specified as standard armament, resulting in a destructive power total of 360 or 480, at the cost of a rather high installed weight. Most American fighters were sufficiently powerful to have a high performance despite this weight penalty. Incidentally, the mediocre efficiency score of the .50 M2 is not only an effect of the low chemical content of its projectiles. Even if only the kinetic energy were considered, the efficiency of this gun would remain inferior to that of the UBS, B-20, ShVAK or Hispano, although better than that of the MK 108 or MG-FFM. To sum up, the preferred US armament fit was effective for its purpose, but not very efficient by comparison with cannon.

A further validation of the calculations is provided by the outcome of tests by the USN, which stated that the 20 mm Hispano was about three times as destructive as the .50 M2. In the above table, the ratio between their scores is 3.3.

The outstanding performer is clearly the German 30 mm MK 108, which achieves ten times the destructiveness of the .50 M2 for only twice the weight. It makes a particularly interesting comparison with the MK 103, which fired the same M-Geschoss projectiles. The MK 103 gains an advantage because of its higher velocity, but loses most of it due to its lower rate of fire, then is finally eclipsed in efficiency because of its much greater weight. No surprise that the Luftwaffe considered the MK 108 their premier air-fighting gun despite its low muzzle velocity. The Me 262 jet fighter, with four of these guns clustered in the nose, completely outclassed the firepower of every other WW2 fighter.

At the end of the war the Luftwaffe was preparing a variety of powerful cannon to attack heavy bombers. One was the Rheinmetall-Borsig MK 112 in 55x175RB calibre, which was effectively a 30mm MK 108 more or less doubled in size. The gun fired a 1485g M-Geschoss projectile at 600 m/s at a rate of 5 rounds per second while weighing 275 kg. Assuming a 20% HE weight, the round would have had a cartridge power factor of 270, a gun power of 1350 and an efficiency score of 4.9.

FIGHTER FIREPOWER

Finally, a consideration of how the firepower of day fighters compared with each other, and in particular how it increased during the war. The aircraft have been grouped in early-war, middle-war and late-war fighters, and have been chosen to be representative of their period.

TABLE 3: FIGHTER FIREPOWER



Name

Armament

Weight (kg)

AmmoPower

GunPower

Time to fire 2320

1939 - 1941

Morane-Saulnier MS.406

1 x HS.7 (e)

2 x MAC 1934

91

1680

163

(14.2)

Messerschmitt Bf 109E-4

2 x MG 17 (s)

2 x MG-FFM

149

3680

286

8.1

Fiat G.50 Freccia

2 x Breda-SAFAT 12.7 (s)

107

1800

54

(43.0)

Hawker Hurricane Mk.I

8 x Browning .303

144

2672

160

14.5

Supermarine Spitfire Mk.VC

2 x Hispano Mk.II

4 x Browning .303

235

6200

480

4.8

Lavochkin LaGG-3

1 x ShVAK (e)

2 x ShKAS (s)

93

1970

189

(12.3)

Yakovlev Yak-1B

1 x ShVAK (e)

1 x UBS (s)

178

2908

217

10.7

Curtiss P-40C

2 x Browning .5 M2 (s)

4 x Browning .30

230

5456

163

14.3

Brewster F2A-3 Buffalo

2 x Browning .5 M2 (s)

2 x Browning .5 M2

318

8280

202

11.5

Bell P-39D Airacobra

1 x 37 mm M4

2 x Browning .5 M2 (s)

4 x Browning .30 M2

367

7898

323

7.2

Mitsubishi A6M2 Reisen

2 x Type 97 Fixed (s)

2 x Type 99-1

120

2440

238

9.7

Nakajima Ki-43-Ib Hayabusa

1 x Type 89 Fixed (s)

1 x Ho-103 (s)

70

1310

38

(61.1)

1942 - 1943

Messerschmitt Bf 109F-4

1 x MG 151/20 (e)

2 x MG 17 (s)

129

4200

226

10.3

Messerschmitt Bf 109G-6/R6

1 x MG 151/20 (e)

2 x MG 131 (s)

2 x MG 151/20

286

8640

714

3.3

Focke-Wulf Fw 190A-4

2 x MG 151/20 (s)

2 x MG 17 (s)

2 x MG-FFM

310

10080

666

3.5

Macchi C.205V series III Veltro

2 x Breda-SAFAT 12.7 (s)

2 x MG 151/20

285

8800

438

5.3

Hawker Typhoon Mk.IB

4 x Hispano Mk.II

344

11200

800

2.9

Lavochkin La-5FN

2 x ShVAK (s)

157

4400

220

10.5

Yakovlev Yak-9T

1 x NS-37 (e)

1 x UBS (s)

270

4532

498

4.7

Curtiss P-40E Warhawk

6 x Browning .50 M2

332

6486

360

6.5

Lockheed P-38J Lightning

1 x Hispano M2

4 x Browning .50 M2

429

12200

440

5.3

Republic P-47D Thunderbolt

8 x Browning .50 M2

613

15640

480

4.8

Mitsubishi A6M3a Reisen

2 x Type 97 Fixed (s)

2 x Type 99-2

162

4000

262

8.9

Kawasaki Ki-61-I-KAIb Hien

2 x Ho-103 (s)

2 x Ho-5

280

7000

362

6.4

Nakajima Ki-44-IIc Shoki

2 x Ho-103 (s)

2 x Ho-301

363

2040

459

(5.1)

1944 - 1945

Messerschmitt Me 262A-1a

4 x MK 108

413

20880

2320

1.0

Focke-Wulf Fw 190A-8

2 x MG 131 (s)

2 x MG 151/20 (s)

2 x MG 151/20

431

16160

826

2.8

Focke-Wulf Fw 190A-8/R8

2 x MG 131 (s)

2 x MG 151/20 (s)

2 x MK 108

458

17420

1608

1.4

 Supermarine Spitfire Mk.XIVE

2 x Hispano Mk.II

2 x Browning .50 M2

 276

 7100

 520

 4.5

 Hawker Tempest Mk.V

 4 x Hispano Mk.V

 374

 16000

 1000

 2.3

 Lavochkin La-7

 3 x B-20S (s)

 147

 4290

 330

 7.0

 North American P-51D Mustang

 6 x Browning .50 M2

 385

 8648

 360

 6.5

 Kawanishi N1K2-J Shiden

 4 x Type 99-2

 255

 7800

 480

 4.8

 Kawasaki Ki-84-Ib Hayate

 2 x Ho-5 (s)

 2 x Ho-5

 291

 6600

 484

 4.8



Comments on Table 3

The armament installations are listed in the second column. In some cases there were several alternative armament installations for the specified type of aircraft; of these one has been chosen. The (e) and (s) in the armament column indicate engine cannon and guns synchronised to fire through the propeller, respectively. Where the rate of fire for the synchronised installation is not known, a reduction of 25% of the unsynchronised rate of fire has been assumed. An exception was made for the MG 131 and MG 151/20 with their efficient electrical priming systems (10%) and the big Browning .50 M2, Ho-103, and Ho-5 (40%) which reportedly suffered badly when synchronised.

The specified weight is the weight of the bare guns and the ammunition. It does not include belt links, ammunition tanks, gun mounting points and recoil buffers, synchronisation systems and trigger gear, et cetera. Realistic figures for the weight penalty would probably be 30 to 60% higher; for example, values are known of 685 kg for the P-38J and 495 kg for the P-39D.

The ammunition power value is the cartridge power value from Table 1, multiplied by the number of cartridges carried. The gun power value is the sum of the gun powers as in Table 2, but recalculated to take into account the effects of synchronisation.

The final column gives the time in seconds, needed to fire the equivalent of an ammunition power of 2320. The choice of this value is somewhat arbitrary; it was selected simply because the heaviest armed fighter - the Me 262 - was capable of delivering this firepower in one second, so it enables easy comparisons to be made. Not all fighters carried that much ammunition; for those aircraft that did not the time has been put between brackets.

During 1939 - 1941 we see that all fighters of the Axis nations and the USSR have fairly modest firepower. This characteristic is also shared by the Hurricane Mk.I (and of course the Spitfire Mk.IA). Near the end of this period the UK and USA started to build fighters with much more firepower, and by 1942 the Curtiss P-40E and Hawker Typhoon were established in service. With those fighters the armament pattern preferred by these two nations emerged: six .50 M2 guns and four Hispano cannon, respectively. We see that these choices are approximately the same in weight, but the second offers twice the firepower. Armed with six .50 guns in the wings were also the F4F-4, P-51D, and most of the production of the F6F and F4U. Some US fighters - the most important of them was the P-51B - had only four .50 M2 guns, resulting in a firepower value of just 240, well below average after 1941.

In the second period the firepower of Axis fighters is substantially improved, mostly by the introduction of multiple and better 20 mm cannon: the MG 151/20, Ho-5 and Type 99-2. The weight of their armament installations remained fairly low, especially compared with that of the new American fighters, the P-38 and P-47. But the empty weight of these aircraft was 5.8 and 4.5 tons, compared with 2.6 tons for a Bf 109 and 3.5 tons for an Fw 190A, so the weight of the armament was roughly proportional. The Japanese made an interesting attempt to improve the firepower of the Ki-44 by installing the 40 mm Ho-301 cannon, firing caseless ammunition. But the 245 m/s muzzle velocity of these weapons was far too low, and they failed in combat. Not many of these Ki-44-IIc aircraft were built.

In the final period specialised bomber-killers such as the Fw 190A-8/R8 and Me 262 appeared, with impressively high firepower values due to their MK 108 cannon. These too had a relatively low muzzle velocity, but at 505 m/s this was still sufficient for engaging bombers. Exchanging two MG 151/20 for MK 108 cannon nearly doubles the firepower of the Fw 190A-8. It is also obvious that the armament installations of these fighters are quite heavy, especially for the small Fw 190; the A-8/R8 was heavily armoured as well. The need to destroy heavy bombers had an adverse effect on the performance of German fighters.

An obvious overall tendency is that towards steadily increasing firepower: The average gun power in the three periods is 210, 460 and 870. This comes with a rise in the average weight, which climbs from 175 kg over 300 kg to 340 kg. In the first years of war a third of the selected fighters fails to reach the 2320 ammunition limit, but in the last years they all carry much more than that.

Of course, the projectiles could only inflict damage if they hit the target, and in aerial combat the great majority missed (estimates for an average pilot's hit rate varying between two and five percent). Pilot skill was by far the most important factor in this, in combination with the quality of the gunsight; it was claimed that the gyroscopic sight (which entered UK/USA service in 1944) put deflection shooting within the ability of the average pilot and thereby doubled armament effectiveness. Other factors were the nature of the target (its size and whether or not it was manoeuvring), the steadiness of the fighter as a gun platform, the muzzle velocity of the guns (the higher, the better) and the location of the guns, centre-mounted ones being more efficient than wing-mounted over a wide range of target distances.

Criticisms and Alternatives

The publication of this study has created much interest and comment. Unsurprisingly, the most vocal commentators have been those with criticisms of the methodology used. This section has therefore been added in order to describe and answer the criticisms.

There are four principal criticisms, which are mainly centred on the validity of the comparison between the .50 Browning and the rival cannon. In these tables, the Browning compares rather poorly and this is sometimes, of itself, taken to discredit the entire comparison on the grounds that the USAAF was the most successful air force, so its chosen armament had to be much better than this study suggests. This general point will be returned to later. The specific criticisms are:

1. The kinetic element of destructiveness is measured at the muzzle, not at combat range. The subtext of this argument is that the .50 Browning, having better ballistics than cannon, retains a higher percentage of its destructiveness at long range than cannon.

In fact, while it is true that most cannon shells slow down more quickly than the .50 calibre bullets, it is not true that their destructiveness reduces pro rata. As has already been pointed out in this study, much of the destructiveness of cannon shells lies in their HE/I content, which is not affected at all by the striking velocity as long as it is sufficient to actuate the fuze. So while both .50 bullets and cannon shells lose kinetic effectiveness with range (the cannon shells at a faster rate), in overall destructiveness (kinetic +chemical) most cannon shells actually lose effectiveness more slowly than the bullets.

It is also worth pointing out that most successful attacks in WW2 took place at fairly short ranges at which different projectile ballistics would not have had a major effect on destructiveness. During 1940 the RAF rapidly dropped the harmonisation distance for their fighter guns from 370 to 230m, and were annoyed that the narrow gun bays in the Spitfire's wing prevented them from harmonising the 20mm cannon down to their preferred distance of 180m (at which they did most ammunition effectiveness testing). Although successful attacks at longer ranges were possible, particularly against large, stable targets like heavy bombers (as the Luftwaffe discovered), it seems probable that the great majority of shoot-downs took place between 100 and 300m. This is often not appreciated by players of combat sims, who think that the ability to score routinely at ranges of 1,000m or more in their games reflects WW2 reality – it doesn't!

2. The way of calculating the chemical destructiveness is too crude. It is suggested that instead of just adding an arbitrary percentage to the kinetic destructiveness depending on the percentage weight of HE/I filling, an energy calculation should be produced. This would calculate the kinetic energy of the projectiles (in joules) at some typical combat range, then add to this a calculation of the chemical energy (also in joules) contained within the high explosive (if any).

There is a lot of merit in this suggestion, which is more scientific in its approach. However, there are some drawbacks also. First, there is the question of what constitutes a typical combat range. And whatever range was selected, the kinetic energy with which the projectiles struck the target would vary considerably depending on whether the engagement was a tail chase, a beam attack or a head-on attack.

Second, there is the comparison between the various HE and incendiary compounds used. Some of the information required as to their chemical energy is difficult to obtain, and in any case the filling of some shells varied through time, in ways which have not always been recorded.

The final response is the simplest: this approach, while affecting the relative scores of some of the projectiles, doesn't actually change the 'order of merit' very much. Basically, the lower-powered AP or small-HE-capacity cannon shells (which derive most of their effectiveness from kinetic energy) tend to show up as less effective than in Table 1, while the high capacity HE shells show up as being more effective. As these types were typically mixed in an ammunition belt, the net result is no significant change in the rankings.

Henning Ruch has done some calculations on the basis of the 'kinetic+chemical energy' equation and compared the results with those in Table 1. If the .50 Browning is taken as the baseline and given a score of 1.00, the following are some results for other rounds: As you will see, the 'total energy' calculation as much as doubles the performance of the high-capacity cannon shells, while reducing by as much as a quarter  the score of the AP projectiles. [Table amended and extended 25 January 2009]

CALIBRE PROJECTILE TABLE 1 SCORE ENERGY SCORE ENERGY / TABLE 1
40mm CL HE 5.87 13.83 2.37
30 x 90RB HE (M) 12.61 23.03 1.83
20 x 80RB HE (M) 3.04 6.21 1.39
20 x 82 HE (M) 3.48 6.53 1.27
30 x 184B HE (M) 21.52 26.69 1.24
20 x 94 HE 2.76 3.39 1.23
37 x 145R HE 14.02 16.69 1.19
20 x 72RB HE 2.67 3.02 1.13
15 X 96 HE 1.70 1.92 1.13
20 x 110RB HE 3.96 4.42 1.12
20 x 110 (Mk V) HE 4.22 4.71 1.12
20 x 110 (Mk II) HE 4.37 4.86 1.11
20 x 125 HE 3.85 4.23 1.10
23 x 152B HE 6.52 7.13 1.09
37 x 195 HE 23.04 24.92 1.08
20 x 99R HEI 2.61 2.82 1.08
20 x 101RB HE 3.35 3.61 1.08
15x96 HE 1.78 1.92 1.08
7.7 X 56R I 0.24 0.25 1.05
12.7 x 108 API 1.24 1.29 1.04
23 x 152B API 4.96 5.08 1.03
13 x 64B HE 0.74 0.74 1.00
12.7 x 99 API 1.00 1.00 1.00
20 x 82 HET 2.37 2.31 0.97
20 x 82 API 2.39 2.32 0.97
20 x 80RB HEIT 1.93 1.84 0.95
20 x 80RB API 1.96 1.84 0.94
12.7 x 81SR HE 0.67 0.63 0.94
20 x 99R API 1.87 1.73 0.92
7.92 x 57 AP-v 0.22 0.20 0.91
15 x 96 AP 1.33 1.19 0.90
7.7 x 56R AP 0.19 0.15 0.80
12.7 x 81SR AP 0.58 0.47 0.80
13 x 64B AP 0.59 0.44 0.76
20 x 94 AP 1.70 1.26 0.74

3. The shorter flight time of the .50 bullets, plus the larger number fired for a given weight of armament, greatly improves the hit probability of this armament by comparison with the slower-firing cannon, making shoot-downs more likely.

The first part of this criticism is undoubtedly correct, but the second part does not follow. The relative lack of effectiveness of the .50 bullets mean that it is necessary (on average) to score many more hits to shoot down a plane than with cannon armament. These two factors probably more or less cancel each other out.

As has already been observed, hit probability is also affected by many other things apart from gun performance: the quality of the gunsights, the location of the guns, the stability of the aircraft as the gun platform, and above all, pilot skill. These cannot be taken into account in a study of this type – there are just too many variables.

4. That the calculations understate the effectiveness of cannon in general, and large-calibre cannon in particular. This is partly because while a machine gun bullet relying in kinetic energy has to hit something vital to have an effect (or score so many hits close together that it shreds the structure) - it otherwise just makes small holes - a single cannon strike anywhere on the aircraft can inflict significant damage. It is also argued that a hit by one large cannon shell is more effective than hits by several smaller shells generating the same total damage score, as these will be spread across the aircraft instead of being concentrated at one point.

These points are valid. However, it is also true that cannon shells did not always explode when they hit – the fuze could sometimes fail to function – in which case they were reliant solely on their kinetic damage. Again, it seems likely that this would more or less counteract the criticism.

In conclusion, while it is admitted that some elements of the calculations – especially concerning the relative weighting given to kinetic and chemical damage – are open to criticism, in practical terms the results stand up quite well. Changing the method of calculation affects some scores but has surprisingly little effect on the overall 'order of merit' of the destructiveness rankings. Where it does have an effect, it is generally to boost the scores of high-capacity HE shells while reducing those of lower-velocity AP cannon shells and AP bullets, which is validated by the Luftwaffe's decision to focus on chemical rather than kinetic energy in developing their aircraft weapons.

To return to the obviously controversial question of the relatively poor performance of the .50 Browning: as has already been stated in this study, "the preferred US armament fit [of six or eight .50 HMGs] was effective for its purpose, but not very efficient by comparison with cannon". It is worth pointing out that for as long as the battery of .50s proved adequate against the targets usually encountered, there were strong arguments in favour of retaining the weapon, as the standardisation of production, supply, maintenance and training provided great logistic benefits by comparison with the plethora of different weapons fielded by the Germans and Japanese in particular. Of course, the USA did make some use of the 20mm Hispano cannon, but this was severely limited by production problems: that is another story, told elsewhere on this website!



  • Like 1
  • Upvote 1
Link to comment
Share on other sites

-=PHX=-SuperEtendard

@=LD=dhyran  According to that table in "cartridge destructiveness" the 12.7x99mm cartdridge is listed as 43% more destructive than the 13x64B, however currently in game in regards to skin damage, the 13x64B is 6100% more destructive than the 12.7x99mm based on the amount of impacts needed to increase wing aerodynamic damage level.

You can try this mod QB.Rails made which increases the skin level damage of the 12.7mm AP to be 15 times weaker (from 62 times weaker in the stock game) then heavy machinegun HE rounds in regards to skin damage and people is quite pleased with it.



  • Haha 1
  • Upvote 1
Link to comment
Share on other sites

RedKestrel
9 minutes ago, -=PHX=-SuperEtendard said:

@=LD=dhyran  According to that table in "cartridge destructiveness" the 12.7x99mm cartdridge is listed as 43% more destructive than the 13x64B, however currently in game in regards to skin damage, the 13x64B is 6100% more destructive than the 12.7x99mm based on the amount of impacts needed to increase wing aerodynamic damage level.

You can try this mod QB.Rails made which increases the skin level damage of the 12.7mm AP to be 15 times weaker (from 62 times weaker in the stock game) then heavy machinegun HE rounds in regards to skin damage and people is quite pleased with it.



Yeah, as I stated in another thread where this was posted, those charts don't temper expectations for the .50 cals - that study shows a .50 cal gun/ammo combo that is performing much better than what we see in the sim.

Link to comment
Share on other sites

-=PHX=-SuperEtendard
3 minutes ago, RedKestrel said:

Yeah, as I stated in another thread where this was posted, those charts don't temper expectations for the .50 cals - that study shows a .50 cal gun/ammo combo that is performing much better than what we see in the sim.


Yeah, I would even think it's quite overestimated to be frank. 30mm only 12 times more destructive than the heavy machine guns... it doesn't sound right.

Link to comment
Share on other sites

Mac_Messer
14 minutes ago, -=PHX=-SuperEtendard said:

@=LD=dhyran  According to that table in "cartridge destructiveness" the 12.7x99mm cartdridge is listed as 43% more destructive than the 13x64B, however currently in game in regards to skin damage, the 13x64B is 6100% more destructive than the 12.7x99mm based on the amount of impacts needed to increase wing aerodynamic damage level.

Your "Skin damage" is not "cartridge destructiveness". You should read the whole thing =LD=dhyran posted. 🈴️



"There are therefore two fixed elements in calculating the destructiveness of a projectile, its weight and chemical (high explosive or incendiary) content, and one variable element, its velocity. The key issue is the relationship between these three factors."



No chemical energy for 50cal we have ingame.

  • Haha 1
Link to comment
Share on other sites

-=PHX=-SuperEtendard
Posted (edited)
5 minutes ago, Mac_Messer said:

Your "Skin damage" is not "cartridge destructiveness". You should read the whole thing =LD=dhyran posted. 🈴️



"There are therefore two fixed elements in calculating the destructiveness of a projectile, its weight and chemical (high explosive or incendiary) content, and one variable element, its velocity. The key issue is the relationship between these three factors."



No chemical energy for 50cal we have ingame.


The relationship between chemical and kinetic energy isn't properly portrayed/weighted in that table. As you can see the overall results don't make that much sense, like 30mm vs 12.7mm as I said in my post.

Trying to argue with that table and saying "look the game is correct" shows a lack of understading of how the current damage model works and the problems it has.

Edited by -=PHX=-SuperEtendard
  • Upvote 2
Link to comment
Share on other sites

Mac_Messer

Oh so the table is obviously wrong. I should have known:rolleyes:

Edited by Mac_Messer
Link to comment
Share on other sites

-=PHX=-SuperEtendard
2 minutes ago, Mac_Messer said:

Oh so the table is obviously wrong. I should have known:rolleyes:


You can easily put 30 rounds on target in a single pass with something like a P-47. If we used the values in that table it would equate to 2 to 3 rounds of 30mm impacts, it would rip planes appart both structurally and aerodynamically, I don't think anyone would like that.

Link to comment
Share on other sites

Mac_Messer

The tables and comments to them clearly identify the differences between 30mm HE and 50cal (12.7mm API).



"As has already been pointed out in this study, much of the destructiveness of cannon shells lies in their HE/I content, which is not affected at all by the striking velocity as long as it is sufficient to actuate the fuze. So while both .50 bullets and cannon shells lose kinetic effectiveness with range (the cannon shells at a faster rate), in overall destructiveness (kinetic +chemical) most cannon shells actually lose effectiveness more slowly than the bullets."



50cal never acted like 30mm HE and never should ingame.

Link to comment
Share on other sites

QB.Rails
57 minutes ago, Mac_Messer said:

50cal never acted like 30mm HE and never should ingame.

Is anyone arguing that it should? I think most people have been arguing that it’s not performing as it should compared to the other HMG’s. Knowing how the game is currently working with damage, to me the big difference is AP vs. HE. HE appears to be having a bigger effect on aero damage compared to AP. Making the AP/HE combo guns like the 131 and The UB more effective than the M2. Even when it comes to structural damage the M2 should be better than the other two weapons but they still perform slightly better.



Link to comment
Share on other sites

RedKestrel
1 hour ago, Mac_Messer said:

Your "Skin damage" is not "cartridge destructiveness". You should read the whole thing =LD=dhyran posted. 🈴️



"There are therefore two fixed elements in calculating the destructiveness of a projectile, its weight and chemical (high explosive or incendiary) content, and one variable element, its velocity. The key issue is the relationship between these three factors."



No chemical energy for 50cal we have ingame.

Even if you just use the calculated kinetic energy portion of the .50 cal to arrive at a damage number based on their stated methods, you still have a round that is performing much better than represented in game relative to other ammunition, even if you only go against aircraft structure and not skin, as per the tests done by others.

I've read the whole thing multiple times over the years. I don't think that chart is really as useful as people think it is. It all flows logically from its main premise but we don't have any real-world tests or anything of the sort to back up the assumptions made about the relative destructiveness of the weaponry. As soon as you venture outside of calculating kinetic energy (well, momentum I guess, which is a valid choice) it all becomes very arbitrary and difficult to compare to anything.

The study takes kinetic energy and applies multipliers based on chemical energy - but the two types of energy are discrete and there is no reason one directly influences the other. It also lumps incendiary effects in with explosive effects - those are different types of chemical energy with very different possible effects on the aircraft. They hand wave this away by stating that it doesn't change the rank order of the results...but that kind of thinking shows they may have gone into this with a number of assumptions they expected to be true, and they used their method because it lined up with those preconceptions.

It acknowledges how difficult it is and how arbitrary it is, but then they go ahead and just start multiplying, and we have to take their word for it that it lines up with 'various practical tests'. And how do they see it lining up with practical tests that were not conducted by them, or with their chart in mind? Do they rank the amount of damage somehow, and it lines up with their chart? What criteria are they using to evaluate the results of the real world tests?

It looks like they have made a regime for assessing ammo effectiveness and then compared it subjectively with outcomes of other tests and seen that, broadly, it seems to work. Without knowing the parameters of the tests they reference, there is no real way to assess how close the study comes to real life.

Frankly, I think the whole central premise of that study is seriously flawed. I don't think you can assess aircraft armament in the way they want. I don't think you can lump together all the different types of damage and arrive at a single number representing cartridge effectiveness. There are too many variables. It's good that they acknowledge the variables, but they should have taken an honest look at what they were trying to produce and realized that they were better off finding another way. Instead we have the authors' confident statements that this is the best way with nothing in the way of validation offered.

But regardless  the 12.7 X 99 in that chart is still more effective at causing aircraft structural damage than what we have in-sim, where the other HE equipped rounds are substantially better at damaging heavy aircraft structures. Because the study is trying to arrive at a single value, it's fair game to use those relative values to assess how the sim works vs. the chart.



1 hour ago, Mac_Messer said:

Oh so the table is obviously wrong. I should have known:rolleyes:


It's been presented as if it supports the current way the DM functions regarding HE and AP and it really doesn't. People are arguing that if you take the table at face value and were to apply the various interpretations of cartridge effectiveness in-game, you would actually get a much improved damage output from the M2 .50 cals. Even if you cut the damage in half by removing the chemical component from the 12.7 X 99 round and nerfing it a bit, it is still more effective than in sim, relative to HE rounds of similar calibre.

It's funny that it's being posted as some kind of proof that the current DM regime is correct when a halfway careful reading shows that it doesn't.


  • Upvote 5
Link to comment
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now
 Share

×
×
  • Create New...
