Gambit21

Airfield Textures not loading...

Recommended Posts

I'm having a consistent problem where on some maps, airfield textures do not load.



I'm missing runways, field textures etc.

This was happening before with Kuban Autumn, so I simply used the Summer map as a work-around.

Now the same thing is happening with Moscow winter, however if I load say Moscow Autumn the airfield textures load.



However the terrain pre-set dialog box remains on "Lapino Summer" no matter what I choose.



For the moment this doesn't matter too much, and as long as the Bodenplatte winter airfields load when the map comes I'm good...however I'd like to solve the issue just the same.

Any ideas?

Share this post


Link to post
Share on other sites

Suggestion:





  1. Save your entire MCUs setup as a group.
  2. Close mission editor
  3. Open mission editor to a completely new/clean map
  4. Setup winter/autumn/summer colors as necessary
  5. Put your group into the clean map
  6. Check/Test to make sure no MCU moved (They shouldn't have)
  7. Check/Test to see if it fixed the texture issue
  8. ????
  9. Profit?
Edited by [TWB]Sketch
  • Upvote 1

Share this post


Link to post
Share on other sites
18 hours ago, JimTM said:

Does running the editor reset tool help?



It does not.

8 hours ago, [TWB]Sketch said:

Suggestion:





  1. Save your entire MCUs setup as a group.
  2. Close mission editor
  3. Open mission editor to a completely new/clean map
  4. Setup winter/autumn/summer colors as necessary
  5. Put your group into the clean map
  6. Check/Test to make sure no MCU moved (They shouldn't have)
  7. Check/Test to see if it fixed the texture issue
  8. ????
  9. Profit?



Nope - a problem with the editor even when starting a mission from scratch. :(

Share this post


Link to post
Share on other sites

I have no idea...



Try this maybe?



  1. Close the editor
  2. In your games folder, under the data subfolder, delete rename the files ctreecache.eng
    and mtreecache.eng to something like ctreecache.eng_OLD.
  3. ????
  4. Profit?



Otherwise... you'll probably have to reinstall the game? I can't think of another solution.

Share this post


Link to post
Share on other sites

Thanks - I’ll try that, if no joy I’ll ask Alex.

If that doesn’t work I’ll consider a reinstall - which is a pain with my slow connection.

  • Sad 1

Share this post


Link to post
Share on other sites

terrain presets is nothing more than a drop down box.  It does not tell you what is selected, it just lets you know what your options are.



Could you post a screen shot of just the mission properties window?  you can blank out anything you may not want public at this time,



and, is just a hand full of airfields, or all airfields.  If it is just a few, what are a couple of them (and grids), and what map they show up with, and what map they do not show up with,





Share this post


Link to post
Share on other sites

I had the issue with the kuban map summer / autumn, where the cities objects, and the artillery, trucks etc. had the winter textures. Amazing to have snow covered houses in full summertime.

One thing that solved the problem was to go and check in the mission parameters file that the season was effectively correctly registered.

You have two seasons, summer and winter coded as: "su" or "win".

Summer applies for spring and autumn. For unknown reasons either you have nothing registered or "win" instead of "su".

So I set it manually. And then you have to open and save a few times the map (empty map) by checking that the mission properties GUI and MAP are correct.

Then I loaded the templates, city, ports, objects and they came with the right texture.

Now I am on 3.010b and did not have an issue so far. Cross fingers 😎



Share this post


Link to post
Share on other sites

The editor simply will not load airfield textures on some maps, regardless of other factors.

This happens with Moscow Winter, and Kuban Fall so far that I've noticed.



I don't have this problem with Kuban Summer, or Moscow Summer, or, or Stalingrad etc.

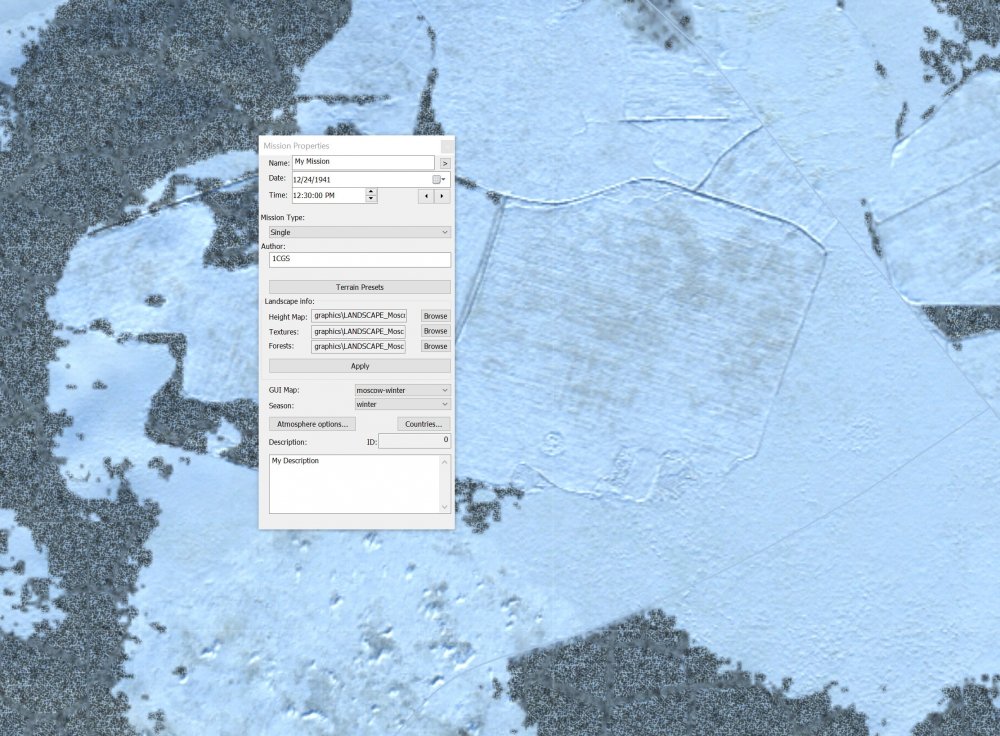

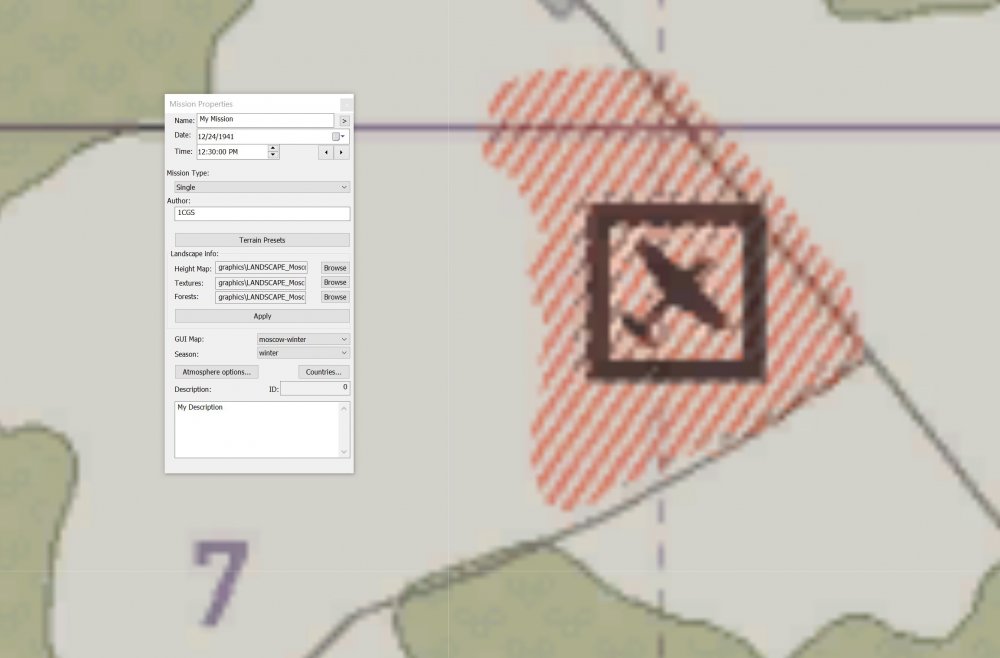

Here's are two shots of a new mission file, same place on the map.

There should be airfield textures in this spot.



Textures are absent in the mission itself as well.

For Kuban, this is why I build my whole campaign on the Summer map rather than fall.

For right now I'm building Bodenplatte logic so it doesn't matter which map I use as a stand-in...so I just switched to Moscow.



Still would like this solved.







Edited by Gambit21

Share this post


Link to post
Share on other sites

damn gambit, I never see airfield textures when I am in map mode as in pic 2.  When ever I go to place a fakefield, I have to go to map mode like pic one to determine the orientation of the airfield icon, then switch to the other map mode to continue editing.



Share this post


Link to post
Share on other sites

Ok Gambit, i see what you wrotte me. It's a settings of the editor.  But i can't tell you which one, because i didn't know how to enter in that settings (i would like to know, because it could open some possibilities after running test). I encountered once that, and i solved it by resetting the editor or/and copy all the editor directory from another installation (i didn't remind me, but it was one of the both choice).

Share this post


Link to post
Share on other sites
On 2/8/2019 at 9:17 PM, Gambit21 said:

The editor simply will not load airfield textures on some maps, regardless of other factors.

This happens with Moscow Winter, and Kuban Fall so far that I've noticed.



I don't have this problem with Kuban Summer, or Moscow Summer, or, or Stalingrad etc.



Here's are two shots of a new mission file, same place on the map.

There should be airfield textures in this spot.



Textures are absent in the mission itself as well.

For Kuban, this is why I build my whole campaign on the Summer map rather than fall.

For right now I'm building Bodenplatte logic so it doesn't matter which map I use as a stand-in...so I just switched to Moscow.



Still would like this solved.

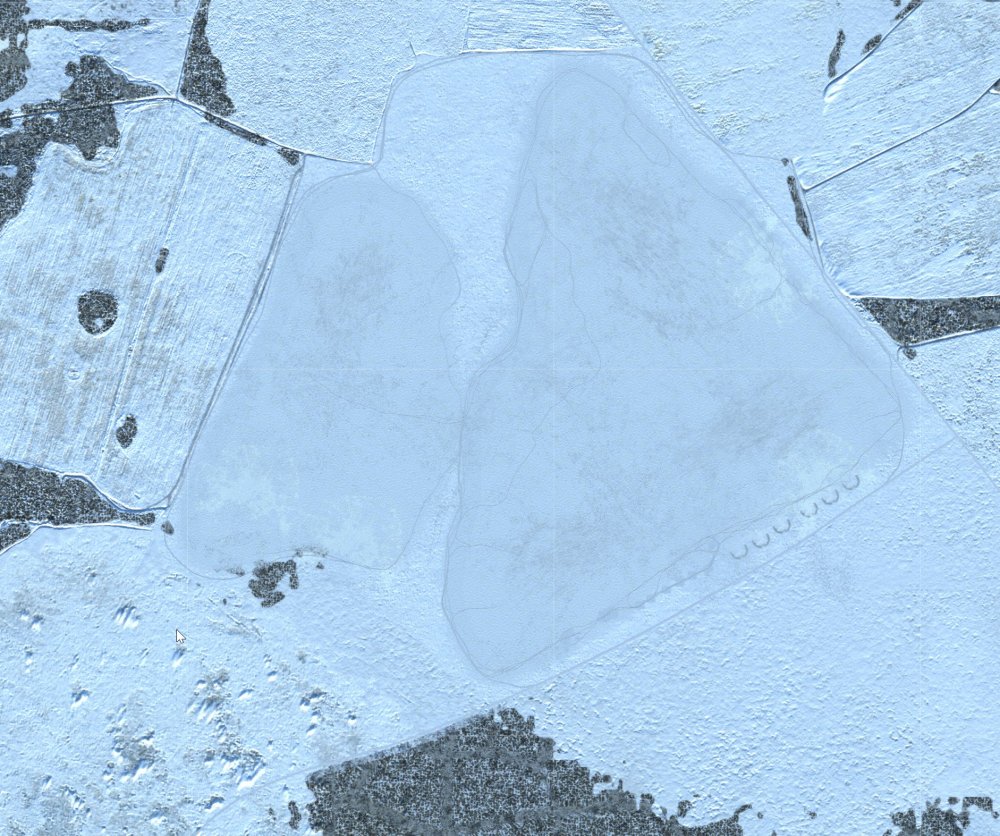

I tried on my system and no problem, the Moscow Winter map loads all textures. Here is the one of the Airfield you had an issue.

L-37-SW_Krassnodar_Asien_500K_Ausg.2_LMN_VI_1943.thumb.jpg.2124c3f4bb4b21075957436c5791e7d9.jpg



Maybe the Map or some texture files are corrupted.



Share this post


Link to post
Share on other sites

No it's not corruption. It's a setting in the editor which give you access to the substrate of the map (but i don't know how. I already have that problem). In those settings, you can erase an airfield (as a position on the map, and the runway, as we can see on the screen from Gambit) from the map. And that's what happened to Gambit.

Share this post


Link to post
Share on other sites
15 minutes ago, WWSitttingDuck said:

So, if I can not see runways in normal editing view, I suffer from the same thing?





Yep. You should see airfield/runway textures on all maps.

I only have this issue on some maps.

Airfields show up normally Kuban Summer for instance, but are missing on Kuban Autumn for me.

Missing on Moscow Winter as well.

Share this post


Link to post
Share on other sites

fwiw

stalingrad summer no

stalingrad yes

stalingrad autumn yes



moscow winter yes

moscow autumn no



lapino yes

lapino summer no

lapino autumn yes



Kuban spring yes

Kuban summer yes

Kuban autumn yes



I did dick around with the tools and location database settings (at the risk of screwing things up completely)  Did not seem like anything I did made any changes.  But I only do MP, so when I place that fake field, I have to orientate that icon, and never remember seeing a runway. I would have to switch to the gui map mode, and place and orientate the icon that way.  I suppose they could have been there in some instances, and I just did not notice them.  Would not surprise me.

Share this post


Link to post
Share on other sites

I've asked Alex on the dev team about this, he hasn't had the problem or heard of it.

Next is posting a request on the beta forum for an overwrite file for the airfield textures.

Share this post


Link to post
Share on other sites

Know how people freak out when it's suggested to fiddle with files, but this is working for me.



Took a look at my dedicated server install.  It's pretty vanilla, the only thing run off the Il2 game has been the Dserver.  All the airfields appeared on all the maps when I  opened  ME on the server.



Compared the directories on the server to what I have at home.  This does not have anything to do with ungtp, these are folders that already exist.

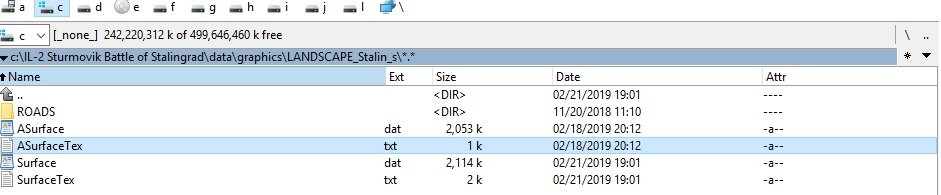

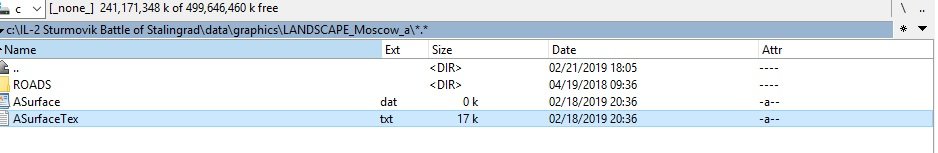

In data/graphics/landscape/xxxxxxxx, all the landscape folders on the server have a Roads directory, and nothing else.

In the same folders at home, I have the Roads directory, and additional files,  a surface.dat, and a surface.txt.   I renamed them both Asurface.dat and Asurface.txt

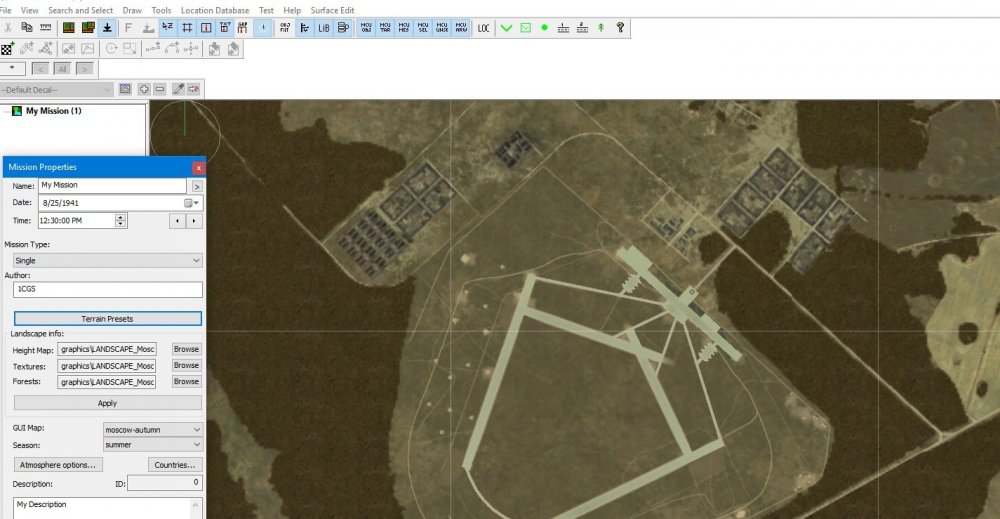

Started ME, and now I have airfield textures with the Moscow Autumn map.

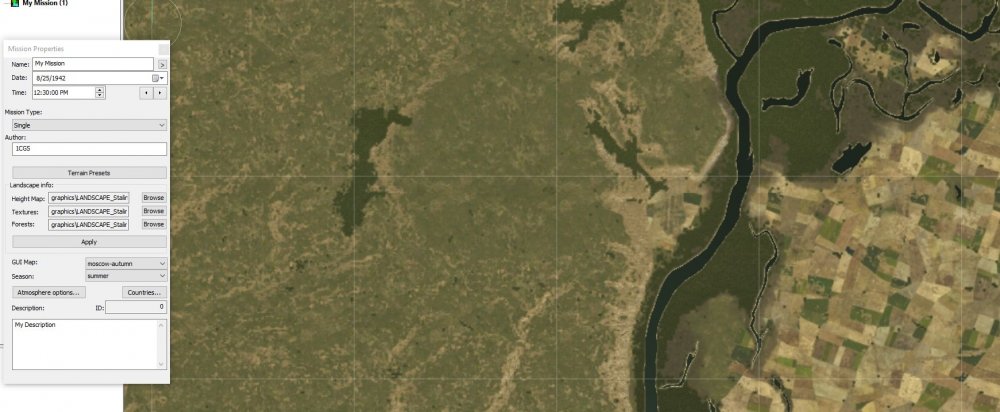

This is my Stalingrad Summer without editing those 2 files

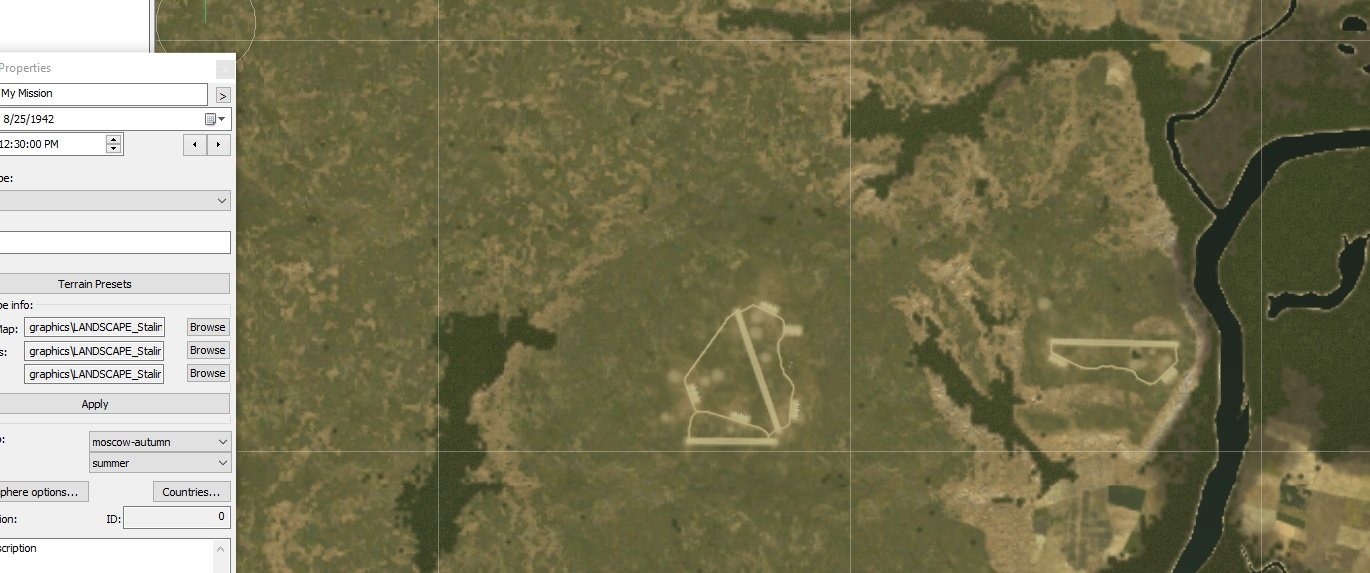

This is Stalingrad Summer after I edit the files






What I might suggest is someone with pull, to ask the Dev's just what is going on with these files. Are they needed, but corrupt, or maybe they should not be there, but somehow ended up in our installation.  Can't say for certain, but did seem like ME took longer to load (if that is at all possible) after I edited the files.

Edited by WWSitttingDuck
  • Upvote 1

Share this post


Link to post
Share on other sites

I did look to see if ME recreated the files, but guess it does not do it until you close ME, or maybe when you start the game.



But it does indeed recreate the 2 files I renamed.  They are not identical.  I still have airfields textures on my maps.




Edited by WWSitttingDuck

Share this post


Link to post
Share on other sites

I checked in detail and I am ok with all texture airfields on all the maps. Must be luck.

Share this post


Link to post
Share on other sites
On 2/17/2019 at 11:10 AM, Habu said:

No it's not corruption. It's a setting in the editor which give you access to the substrate of the map (but i don't know how. I already have that problem). In those settings, you can erase an airfield (as a position on the map, and the runway, as we can see on the screen from Gambit) from the map. And that's what happened to Gambit.



Hey Habu,



I installed those files that you sent, but I still don't have airfield textures. :(

Share this post


Link to post
Share on other sites
18 hours ago, Gambit21 said:



Hey Habu,



I installed those files that you sent, but I still don't have airfield textures. :(

Check MP.

Share this post


Link to post
Share on other sites

Hello all,



I read this thread with great interest. I faced a similar issue for the first time two days ago following the latest 3.012b release - but this might be by coincidence only. Not only airfields were affected but also any buildings, blocks and even roads had disappeared in the ortho view. By switching to the camera view I found out that a second map had been placed over the "base map" obscuring any texture and structure. The topmost map carried all trees but was wavy and obviously corrupted. ALL maps were affected, however, the respective missions played without any issue.



The remedy: I deleted the ctreecache and the mtreecache files. A safe operation because Il-2 writes new ones each time it is started. I found this hint somewhere else in this forum as a measure to make newly written missions appear in the game's list if not visible immediately.



For the moment everything works fine again so I can't post screen shots to illustrate the findings. I'll do so should the problem reoccur after a while.



Cheers

HaMa

Edited by Hamaha15

Share this post


Link to post
Share on other sites

Hello all,

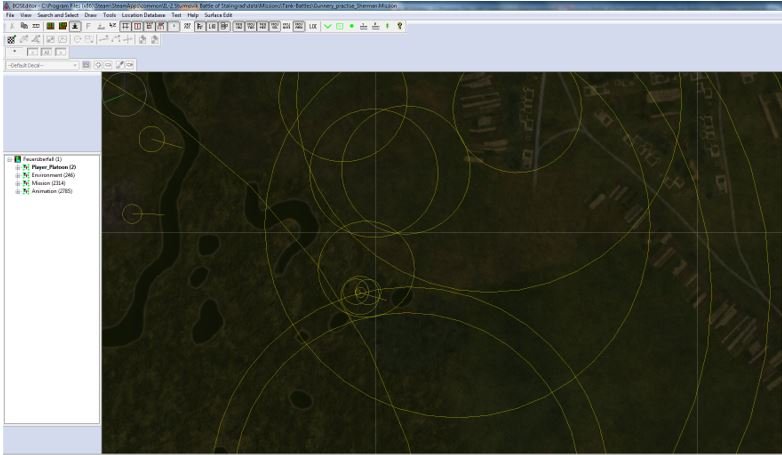

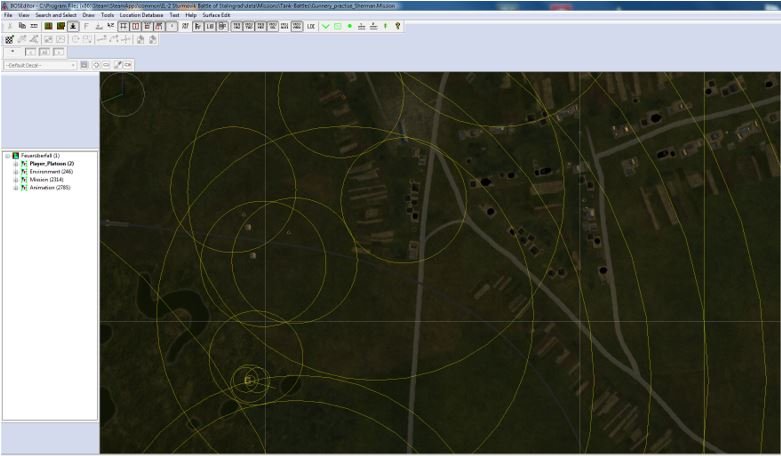

FYI: the issue described above has reoccurred recently. The first three pictures show the defect, the forth picture shows the ortho-view after having fixed the issue. This time, however, deletion of the ctreecache and mtreecache files didn't help alone. I had to open the mission in the game. After that the map was OK...



Cheers



corrupt-map_1.JPG.73fd1138ddad1f73fb23c8f2c5738651.JPGcorrupt-map_2.JPG.c16f7dc31cabf3af21fa7f5db4f9135e.JPGcorrupt-map_3.JPG.4b240023934f185cd37222a7ab37d777.JPG




Share this post


Link to post
Share on other sites

Like Gambit, I also am having trouble with loading airfield textures from the  "Lapino Summer" map.



After reading through the post above, is there any solution to this problem? Are the developers aware that there is problems with the Mission Editor??



Roodster

Share this post


Link to post
Share on other sites
12 hours ago, IckyATLAS said:

Check also this post:





thanks for the help Icky but when I open the editor and open the Lapino summer map, there is nothing there, even after I load all the textures and without grouping anything..

Share this post


Link to post
Share on other sites

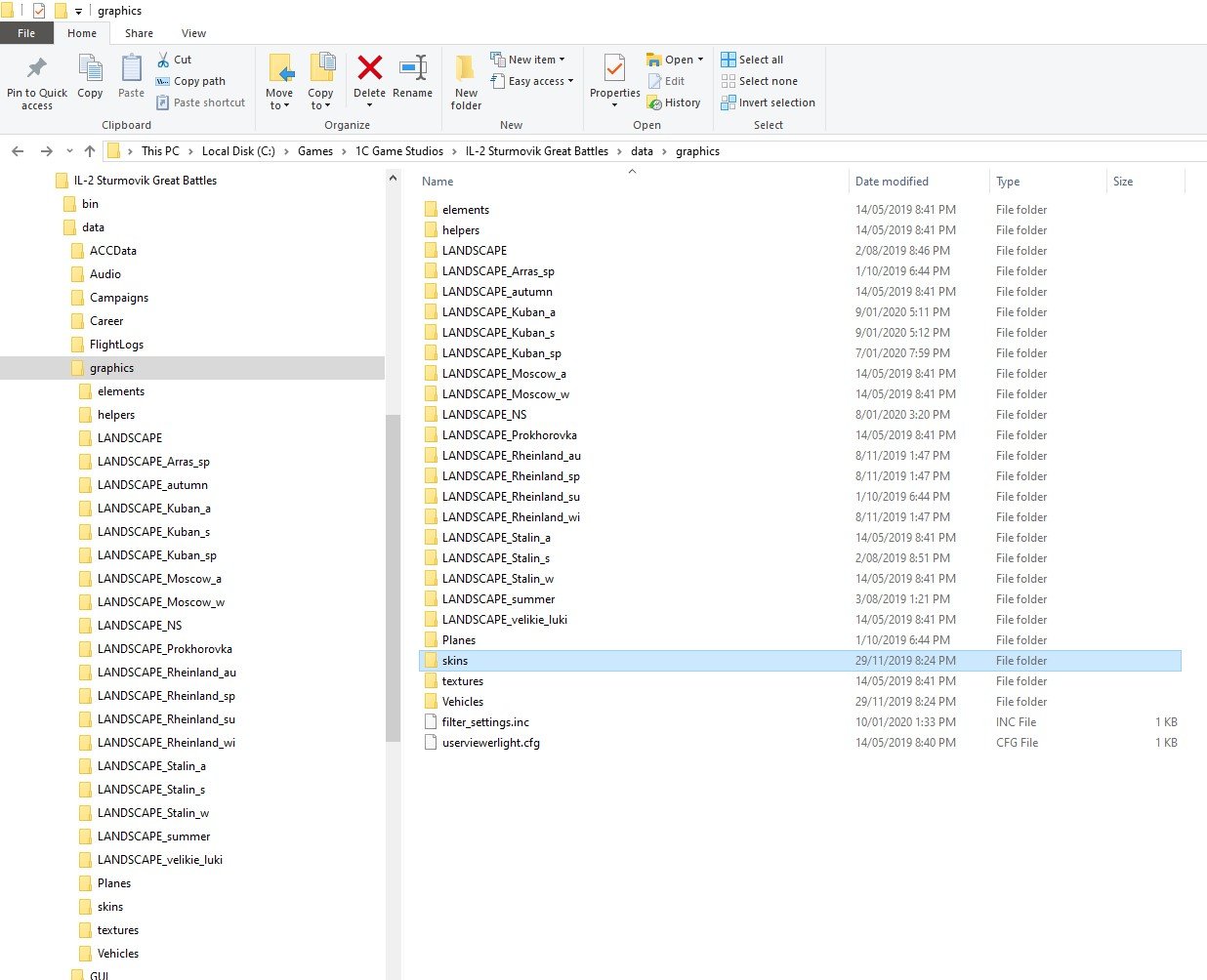

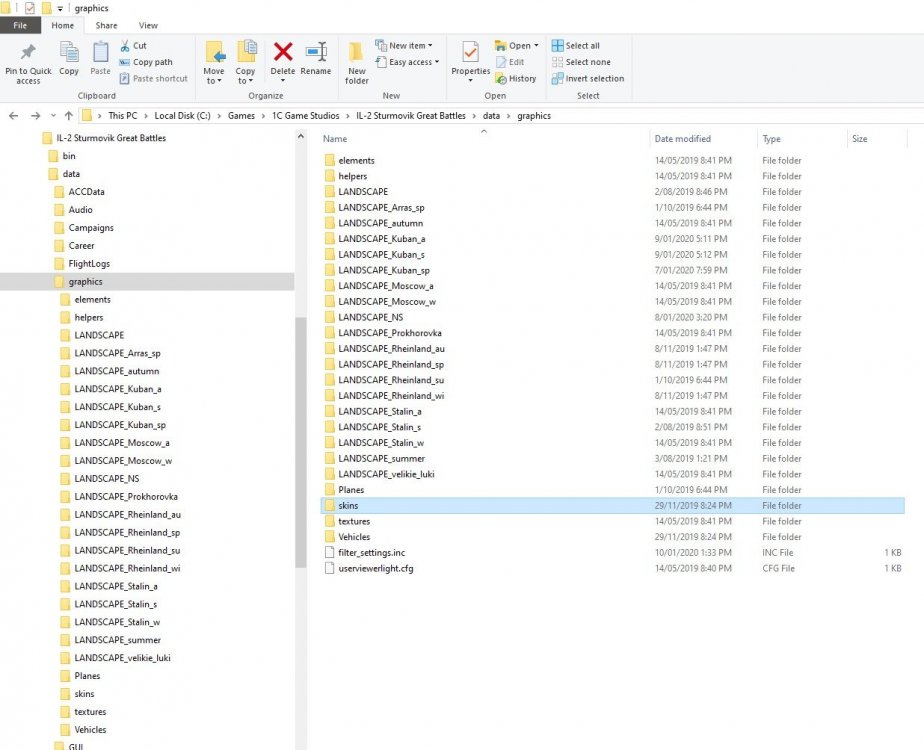

When I checked my directory for the map, I found out that Lapino is not listed??? Do any of you guys have the same issue? If so, how do you solve it?

See me screenshot>

Map Directory.jpg

Share this post


Link to post
Share on other sites

Maybe it is time to do a complete and full reinstall from scratch. In general this is the best way.

Anyway you have your own  mission, campaign, skins, mods etc. backuped out of the Game directory.

The better way is to download again the version from IL2 Website so that you have the last version directly instead of all the incremental updates.



Share this post


Link to post
Share on other sites
On 1/10/2020 at 7:24 PM, IckyATLAS said:

Maybe it is time to do a complete and full reinstall from scratch. In general this is the best way.

Anyway you have your own  mission, campaign, skins, mods etc. backuped out of the Game directory.

The better way is to download again the version from IL2 Website so that you have the last version directly instead of all the incremental updates.



After putting up with more multiple crashes, this afternoon I was looking at some skins our squadron had made in "Viewer" and the game crashed again!!🤬🤬🤬

That was the final straw!! I did a full reinstall from scratch!! I haven't had another crash since then (better not speak too loud otherwise the gremlins will hear me and start their old tricks again!!!) I can now also see the airfield textures at Lapino in the summer map!!

 @IckyATLAS Thanks very much for the advice. Problem solved (for the time being), @Gambit21 This worked for me with regard to crashes, so it may work for you mate. What have you got to lose?? Just a suggestion anyways.... 👍👍

Edited by Roodster

Share this post


Link to post
Share on other sites

Again the airfield textures disappeared.

I was on Kuban Summer Map. Changing to Kuban Spring like Gambit did solved the issue but I wanted to be back to my Summer Map, otherwise I have to change all the mission maps and set up again date and time conditions etc..

So I looked at was has been said in this post with ctreecache, mtreecache and the comments made by WWSitting Duck on his Surface Files.

Deleting the mtreecache and ctreecache did not make a difference. They were recreated by the system but no change for airfield textures.

Then I decided to delete the Surface and the SurfaceTex files and everything was okay again.

New Surface and SurfaceTex file have been created by the system.



I had saved separately the old Surface and SurfaceTex, so now I could compare.

There is no difference between the buggy SurfaceTex and new SurfaceTex. They are absolutely identical and they list what there is in the Surface.dat file.

But huge difference between the two Surface.dat files. The buggy one has a size of 1 kbyte and the new one 3160 kbyte. See the difference.



My opinion is that when the editor does the saving he creates those files. The SurfaceTex is just the readable list of all that is contained in the Surface file.

For whatever reason the Surface file during the saving is interrupted and not terminated, so finally corrupted.



The solution is just scrapping them. Why did I think that just deleting them was the best solution and without risk. For two reasons:



1) The two SurfaceTex are identical, this means that what has to be put in the Surface file is specified by default in this list and should not change if we do not mess up with the map structure and texture itself in the editor.



2) I never change the map textures, structure with the editor. I use a stock system with no mods at all. I use whatever the system generates as textures through the various season maps, and whatever is generated by the Date, time, Atmospheric, Sea_State etc parameters. That is all. This means that the only change on the map is imported objects and all the mission stuff. These are things that come on top of the map and do not change the map itself.



As a result I could easily scrap the two files. And now all is fine.





  • Thanks 1

Share this post


Link to post
Share on other sites
On 2/6/2019 at 9:31 PM, Gambit21 said:

Thanks - I’ll try that, if no joy I’ll ask Alex.

If that doesn’t work I’ll consider a reinstall - which is a pain with my slow connection.



The pain can be softened a little maybe: after each major update i freshly download the new version, and then back it up on a spare USB drive first as a whole.

If you want then copy missions and campaigns, the wilson and Syn_Vander stuff into the new main installed game, and delete the old later. Or keep using the old installation.



--------

Icky's post above about the SurfaceTex and Surface file are interesting. I tried some landscape details-coloring mod once, but think it screwed op my installation then:

reinstalled the lot from a fresh download (think it was with 4.002). Anyway i'll stay clear of map etc modding, just some plane skins will have do for me.



But it would be nice if you could add some missing airfields like i know existed in Holland WW2, and are not on the Rhineland Map.

Share this post


Link to post
Share on other sites

The is also a ttreecache.eng file. Maybe this should be also deleted. Anyone tried already?

Share this post


Link to post
Share on other sites

mtree = multiplayer mission

ctree = campaign mission

ttree = training missions



just as all three are temp file in the sense that if you delete them, the game rebuilds them when you restart, the surface and surfaceTex file are the same.  I understand why a pilot might be reluctant to delete files, but it's pretty simple,  if you do not have airfield textures in ME, the first thing I would do is delete surface and surfaceTex for that map.  Am pretty sure your airfields will come back.  At any rate, it will not harm anything.

Share this post


Link to post
Share on other sites

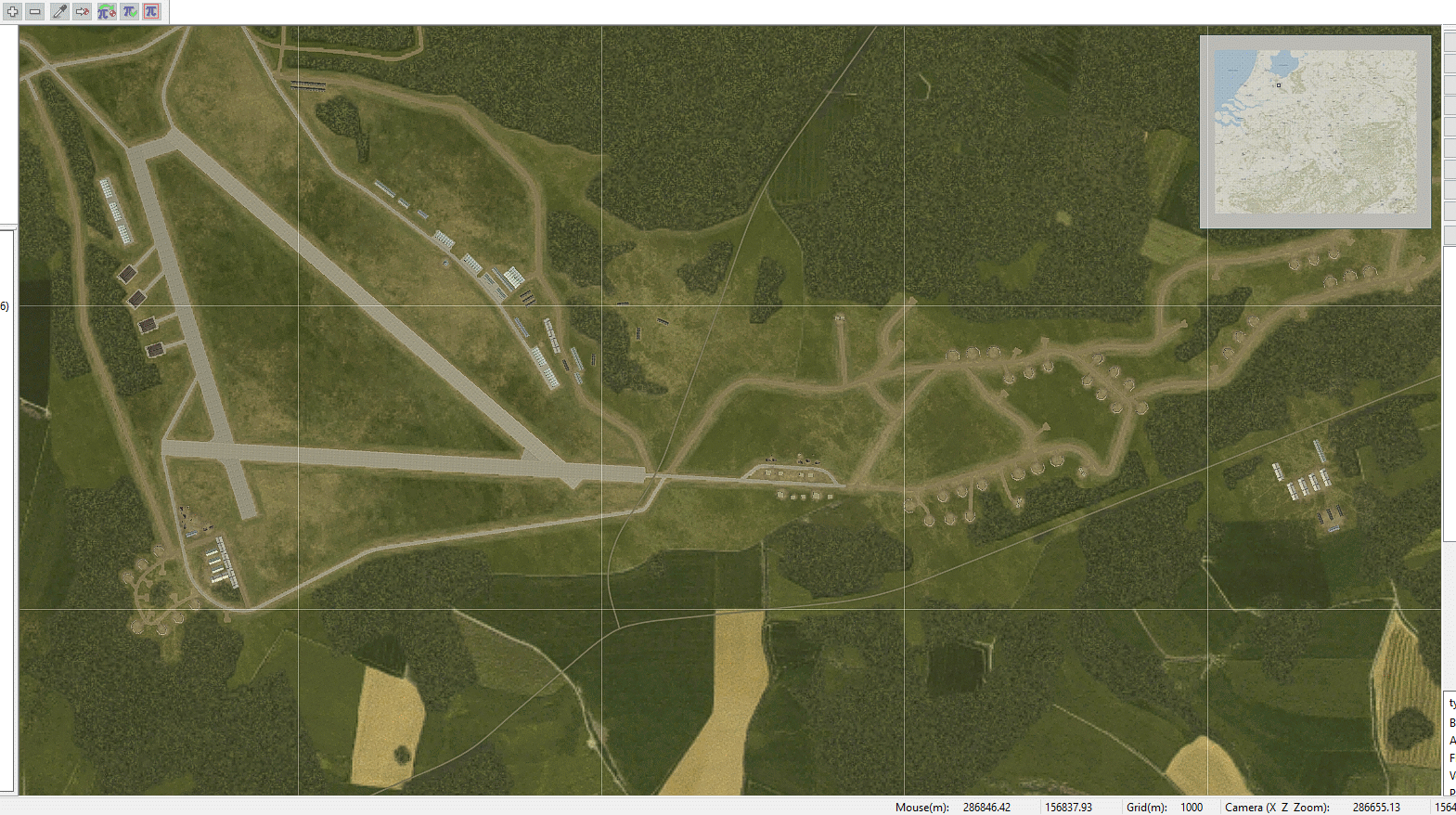

Can confirm that deleting the Surface.* files in the graphics\LANDSCAPE_{mapname} fixes the issue - way to go and thank you, @WWSitttingDuck

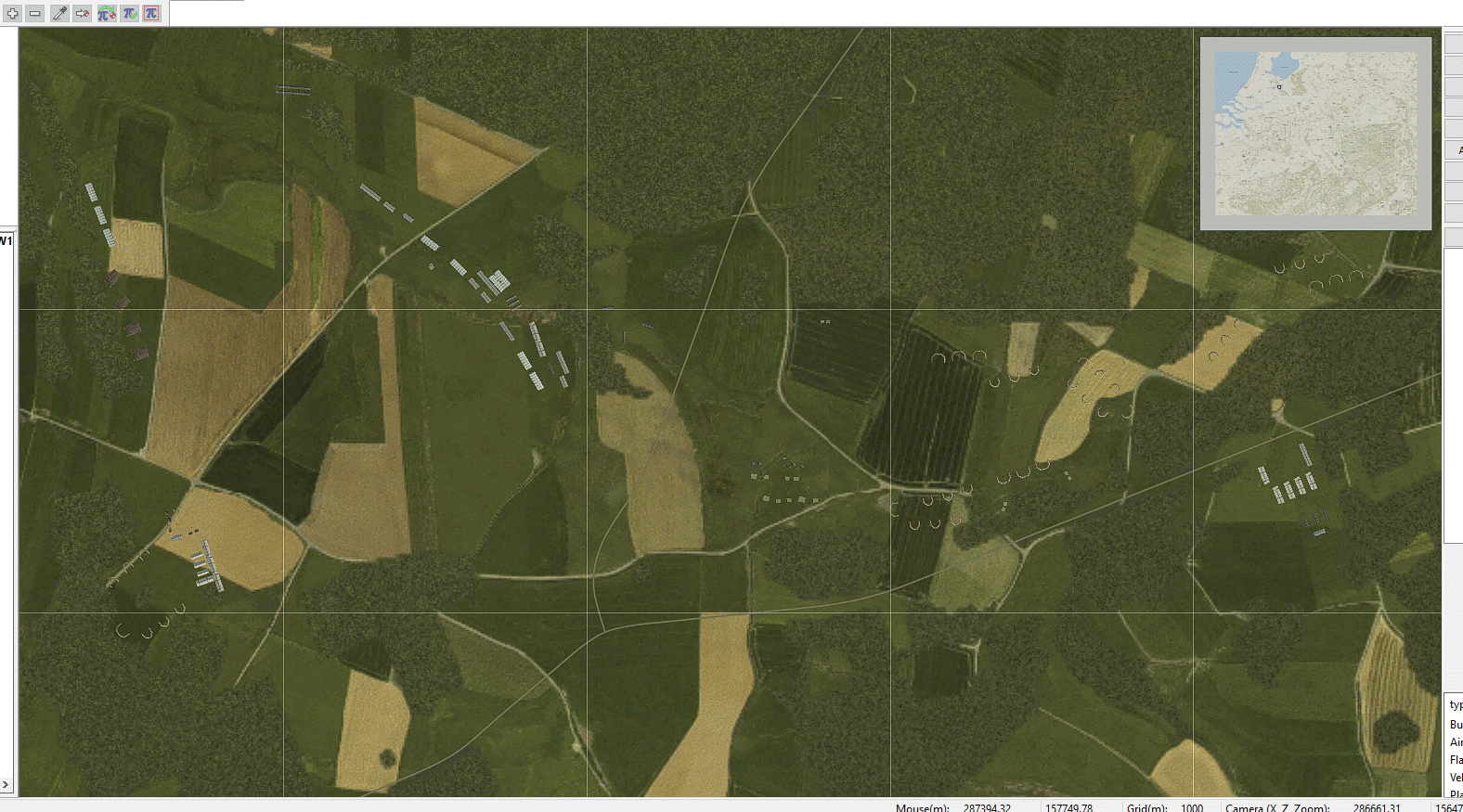

I had the problem with the Rheineland Summer map.  Renamed the Surface.tex and Surface.,dat files, started IL2, Loaded a mission using that map, exited IL2, then fired up the Mission Editor, loaded a mission using that map and voila, there's the missing airfields. The ones that were missing for me were all the runways and ramp areas for the new airfields on the Rheineland map, but only for the summer map, autumn was fine.








Share this post


Link to post
Share on other sites

An additional element to this nice conversation, is that mtreecache, ctreecache and ttreecache are not created every time. I did some tests and the file creation date stays. This means that the Editor would use the existing file and rewrite inside it. Maybe this causes issues from time to time and the file gets corrupted. Deleting them is the best way to force the editor to recreate them.

Share this post


Link to post
Share on other sites
On 3/8/2020 at 8:23 PM, WWSitttingDuck said:

mtree = multiplayer mission

ctree = campaign mission

ttree = training missions

...



I could be wrong, but I think mtree is for single-player missions and ttree is for tracks.

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

×
×
  • Create New...
