Tempest Mark V research


ShamrockOneFive
 Share

Recommended Posts

On 8/16/2018 at 5:03 PM, Talon_ said:

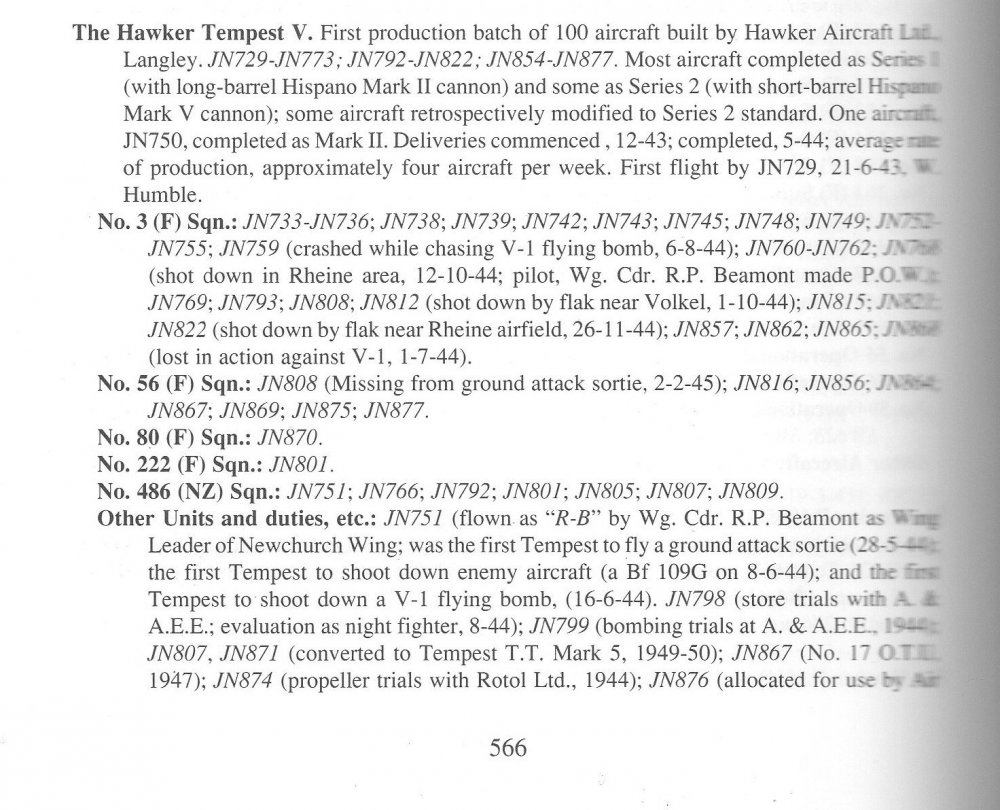

First production batch of 100 aircraft built by Hawker aircraft Ltd., Langley, Buckinghamshire. JN729-JN773, JN 792-JN822, JN854-JN877. Most aircraft completed as Series 1 (with long barrel Hispano Mark II cannon) and some as Series 2 (with short barrel Hispano Mark V cannon); some aircraft retrospectively modified to Series 2 standard. One aircraft, JN750, completed as a Tempest Mark II. Deliveries to RAF commenced 12-43, completed 5-44; average rate of production, approximately four aircraft per week.

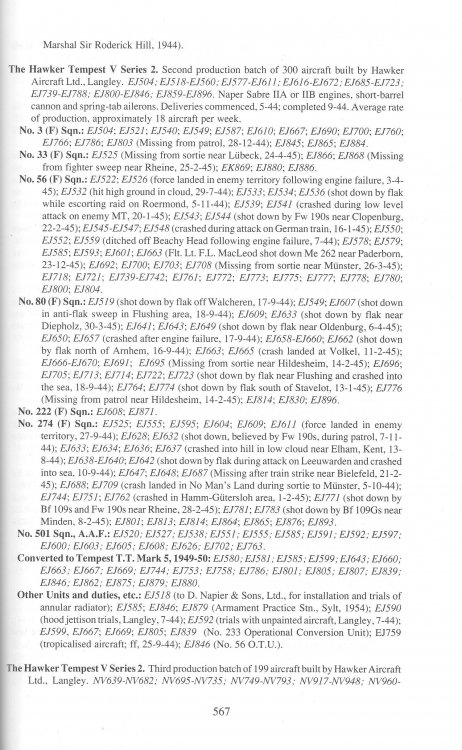

Second production batch of 300 aircraft built by Hawker Aircraft Ltd, Langley, Buckinghamshire. EJ504, EJ518-EJ560, EJ577-EJ611, EJ626-EJ672, EJ685-EJ723, EJ739-EJ788, EJ800-EJ846, EJ859-EJ896. Series 2 aircraft, Sabre IIA engines with modifications, short-barrel cannon, spring tab ailerons. Deliveries commenced 5-44, completed 9-44; average rate of production approximately 18 aircraft per week.



Third production batch of 199 aircraft built by Hawker Aircraft Ltd, Langley, Buckinghamshire. NV639-NV682, NV695-NV735, NV749-NV793, NV917-NV948, NV960-NV996. Sabre IIB engines and spring tab ailerons. Deliveries commenced 9-44, completed 2-45; average rate of production approximately 12 aircraft per week.



Fourth and final production batch of 201 aircraft built by Hawker Aircraft Ltd, Langley, Buckinghamshire. SN102-SN146, SN159-SN190, SN205-SN238, SN253-SN296, SN301-SN355. Sabre IIB engines, universal armament provision and drop tank plumbing. Deliveries commenced 1-45, completed 6-45; average rate of production approximately 9 aircraft per week. SN 368-SN416 cancelled in 1945.




IIA (modified) tempests at the start of operations









IIBs arrive in force

Tempest Production:

1st Batch: Start with JN.  ? Engine

2nd Batch: Start with EJ. Sabre IIA engine

3rd Batch: Start with NV. Sabre IIB engine

4th Batch: Start with SN. Sabre IIB engine

Sabre IIB engine was always 11lbs, while Sabre IIA engine was 9 lbs initially then converted to Sabre IIB. Is it correct?

According to Tempest Victories:

http://www.hawkertempest.se/index.php/piloter/victories

In September when Dora appeared,  5 victories, all by EJ, on 29-30 September.

In October,  4 victories, all by EJ & JN.

In November,  6 victories,  all by EJ & JN.

In  December,  37  victories,  all by EJ & JN

In January 1945,  44  victories,  1 by JN, 2 by NV, 41 by EJ

In Feb,  21 victories,  11 by EJ, 10 by NV

In March,  35 victories,  20+ by NV, several SN, others are EJ

In April, 61 victories, 46 by NV & SN, others are JN/EJ.



Conclusion:  In January 1945, production 3rd batch with Sabre IIB Tempest were in the service, but the quantity is small. In February, Sabre IIB Tempests account for 50% victories. From September to December 1944, Sabre IIA engine Tempest were the absolute mainstream, however, their conversion to IIB status  is unknown. We don't know how much of them were upgraded to 11 lbs setup in late 1944.







  • Upvote 1
Link to comment
Share on other sites

Multiple things :

- Looking at victory claims doesn't give you an accurate view of what was flying at any given moment in time. At least look at the losses too.

- Obviously aircrafts didn't fly the entire campaign with the same engine. At best, the serial gives you the engine it was delivered with. (Check earlier in the thread if you need evidence re. swapping engines, I've posted some.)

- Even then, we know the listing you gave above to.be erroneous in parts, when it comes to the characteristics of aircrafts from each batch. Production Sabre IIb could have been introduced in some late EJ, or in some early NV, but like other characteristics, it doesn't necessarily coincide with the beginning of a new batch.

- The sabre IIa and IIb are the same engine. As explained in "British aero piston engines" the IIb is a prod line standardization of changes made to the IIa, both in production and in the field. There are three differences, all of them necessary to achieve +11lbs: a new shaft to absorb the power, a new boost control capsule to let the supercharger know it can allow up to +11lbs, and a third one I can't remember right now. So any Tempest that was flying during the V1 campaign, and all subsequent Tempests, were actually using a Sabre IIb, whether it was designated as such when delivered or not.

Edited by Quinte
  • Like 1
  • Thanks 2
  • Upvote 3
Link to comment
Share on other sites

26 minutes ago, Quinte said:

There are three differences, all of them necessary to achieve +11lbs: a new shaft to absorb the power, a new boost control capsule to let the supercharger know it can allow up to +11lbs, and a third one I can't remember right now.



Shaft yes, boost control capsule is pretty much just a valve like on any modern supercharger, and the third change is the boost control cam fitted to the throttle unit that changes the ratio of throttle opening rate so that the same two throttle positions are used for both military (unchanged) and full boost power (2lbs more) between the old and new engines (the "ramp" from military to emergency is less linear with the new cam).

Link to comment
Share on other sites

unreasonable

And Sabre IIB, whether factory produced or field mod was cleared for 11lbs according to it's PNs whether it is flying on 130 or 150 octane, right?



Honestly I cannot see what the fuss is about: it is clear to me that the most sensible interpretation of the data shown is that while we could have two Tempest engine variants with 9lbs and 11lbs,  given the time-frame of the BoBP game it would also make perfect sense to have only one, which would have to be IIB on 11lbs.





  • Upvote 2
Link to comment
Share on other sites

Also to add, any 150 octane Sabre IIA would have been modified to IIB standard by adding a new shaft and boost valve - but probably not control cam as this is a pilot ergonomic issue - in order to run +11lbs in the first place. If it hadn't, the engine would have simply failed.



The reason this is not more clearly mentioned is that the Sabre IIB does not exist when this is happening - it's just an upgrade for the existing engine. These parts later went on to be named the Sabre IIB when installed from the factory.



Link to comment
Share on other sites

1 hour ago, Quinte said:

Multiple things :

- Looking at victory claims doesn't give you an accurate view of what was flying at any given moment in time. At least look at the losses too.

- Obviously aircrafts didn't fly the entire campaign with the same engine. At best, the serial gives you the engine it was delivered with. (Check earlier in the thread if you need evidence re. swapping engines, I've posted some.)

- Even then, we know the listing you gave above to.be erroneous in parts, when it comes to the characteristics of aircrafts from each batch. Production Sabre IIb could have been introduced in some late EJ, or in some early NV, but like other characteristics, it doesn't necessarily coincide with the beginning of a new batch.

- The sabre IIa and IIb are the same engine. As explained in "British aero piston engines" the IIb is a prod line standardization of changes made to the IIa, both in production and in the field. There are three differences, all of them necessary to achieve +11lbs: a new shaft to absorb the power, a new boost control capsule to let the supercharger know it can allow up to +11lbs, and a third one I can't remember right now. So any Tempest that was flying during the V1 campaign, and all subsequent Tempests, were actually using a Sabre IIb, whether it was designated as such when delivered or not.





Good points, but let's be conservative.

1) Assume modification from IIA to IIB took place from 1st September 1944.

2) Assume this modification 100% completed in 28 February.  From March 1945, 60% victories from 3rd & 4th production batch, plus upgraded IIA for 2nd batch tempests, I believe most Tempests were on 11 lbs in March 1945 on front line.

3) Assume the modification rate is linear.



1st September 1944 is Day one, 28 Feb 1945 is Day 180, then 1st January 1945 is Day 123, which means 123/180= 68.3% of Sabre IIA had been modified to 11 lbs boost when Bodenplatte began.  On 30 November 1944, around 50% Tempest were 11 lbs boost.



Above is the most conservative estimation, when your multiple things are considered, perhaps more than 80% Tempests were on 11lbs boost when Luftwaffe began to attack on 1945 new year‘s day.



In September when Dora appeared,  5 victories, all by EJ, on 29-30 September.

In October,  4 victories, all by EJ & JN.

In November,  6 victories,  all by EJ & JN.

In  December,  37  victories,  all by EJ & JN

In January 1945,  44  victories,  1 by JN, 2 by NV, 41 by EJ

Around 52 victories in 1944, 37 of them = 71% of all 1944 victories took place in December when more than half Tempests were 11 lbs (most conservative estimation).



My conclusion: For bodenplatte operation scenario,  9 lbs Tempest is the minority.

Link to comment
Share on other sites

7 hours ago, VO101Kurfurst said:

That's a nice collection of victory claims, thank you. It looks like the first claim was made in June 1944 (3 claims made), then its nothing until the end of September 1944 (5 claims made 29-30 September). 4 claims in October, 6 in November. Then action begins in earnest from December.

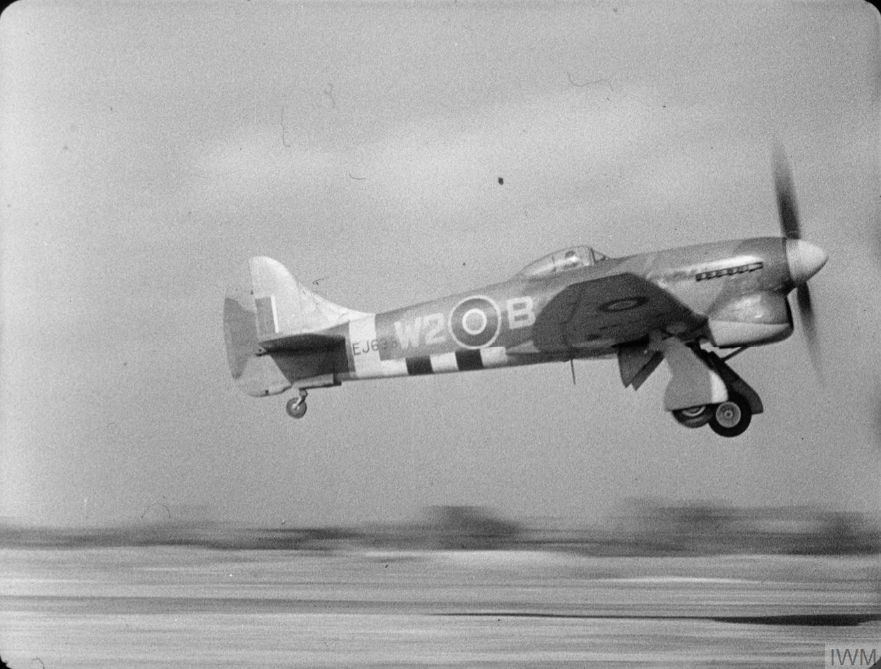

EJ693 of 486 Sqd flew 16 missions over the continent from 9 - 18 Sept when based at Newchurch.  On 11 Sept even flew an escort mission to the Ruhr.



 http://www.hawkertempest.se/index.php/survivors/2015-01-19-19-22-20/ej6932



On 25 August 1944, No 56 Squadron conducted a fighter sweep across the channel to Cassel and Tempests were once more back in action over the continent. In addition to the Newchurch Wing, Nos 274 and 80 Squadrons were engaged in attacks against targets in France

On 25 August 1944, No 56 Squadron conducted a fighter sweep across the channel to Cassel and Tempests were once more back in action over the continent. In addition to the Newchurch Wing, Nos 274 and 80 Squadrons were engaged in attacks against targets in France

Edited by MiloMorai
Link to comment
Share on other sites

32 minutes ago, No.41_Glen said:



Good points, but let's be conservative.

1) Assume modification from IIA to IIB took place from 1st September 1944



This is wrong. Any plane that ran on +11lbs was already modified in August and the parts are still being manufactured and delivered to 150 Wing over summer. In fact they've been serialised into engines being built over that same summer that are then installed into airframes delivered as early as September as brand new engines without retrofit.

Link to comment
Share on other sites

VO101Kurfurst
1 hour ago, unreasonable said:

Honestly I cannot see what the fuss is about: it is clear to me that the most sensible interpretation of the data shown is that while we could have two Tempest engine variants with 9lbs and 11lbs,  given the time-frame of the BoBP game it would also make perfect sense to have only one, which would have to be IIB on 11lbs.



I am sure this unbiased principle will be equally applicable to Axis aircraft ratings by all of our unbiased users.

Link to comment
Share on other sites

This isn't a thread about balance, and thus isn't a thread about axis engines. This is a Tempest V research thread. Please consider treating it like a resource for collecting information for the Devs and not somewhere to discuss postwar Bf109 ratings on unavailable fuel. I will happily engage with you on that topic in the "Bf109 engine settings" thread should you choose to create it.

Edited by Talon_
Link to comment
Share on other sites

VO101Kurfurst

Dancing around the question as always it seems.



So, any presentable hard evidence of Tempest Squadrons using higher than +9 lbs ratings between their move to the Continent (28th September) and Bodenplatte (1st January 1945)?



It seems that the only evidence there is that in this period the ratings were reduced to +9 lbs.

Link to comment
Share on other sites

We've answered the above question here:





Paragraph 2+3 of this document shows that the RAF no longer needed to reduce boost when equipping the Tempest with 130 grade fuel:




Edited by Talon_
Link to comment
Share on other sites

1 minute ago, VO101Kurfurst said:

No evidence for use of +11 lbs boost between 28th September 1944 and 1st January 1945 it is then.



You are the only person that believes this. The Tempest boost was simply never reduced.

7 hours ago, Talon_ said:

Sabre IIB modification 😉





More evidence of Sabre IIB at +13lbs with Rotol props





Does anybody have this book? It would be great to get +13lbs as a modification. Need info on timeframe really.

Edited by Talon_
Link to comment
Share on other sites

unreasonable
21 minutes ago, VO101Kurfurst said:



I am sure this unbiased principle will be equally applicable to Axis aircraft ratings by all of our unbiased users.



The document you like to refer to mentioning the intention to reduce to 9lbs has, right on the top, the words Tempest V/Sabre IIA.  The third paragraph mentions "the engine" - it is referring to the Sabre IIA. So this document says nothing whatsoever about the Sabre IIB, even if you believe that the "intention" mentioned in the third paragraph was actually implemented: an assumption for which there is no evidence.



We also know that the Sabre IIB was always cleared for 11lbs.  The fuel is irrelevant since 11lbs was achievable on 130 octane.   So the only two relevant issues, if you have to chose only one variant, are the mix of IIA vs IIB throughout the BoBP period, and whether the IIAs in the time scale were running at 11lb.    In Glen's conservative analysis of the rate of change to IIBs,  and working on the assumption that the IIAs were running on 9lb, he says   "My conclusion: For bodenplatte operation scenario,  9 lbs Tempest is the minority."



If, as others have said, the technical details suggest that the IIAs were not in fact downrated at all, then 9 lbs would not have been present at all.  Either way, the most representative Tempest engine setting would be 11lbs.



You "liked" that first post of Glen's, so I do not see why you do react to my statement of the consequences of it with this sarcasm.

Link to comment
Share on other sites

VO101Kurfurst

That's all nice and well expect for the part that everything is pure speculation without evidence between the hard evidence of the boost rating having been decided to be decreased to +9 lbs on 18 September, including that for some miraculous reason, the decision made by SHAEF Headquarters was supposedly not carried through. For which there is absolutely no evidence of course.



Regarding that Sabre IIAs were converted to Sabre IIBs en mass - again there is absolutely no evidence. The first such document that suggests that such modification actually took place by maintenance units comes from January 1945 and concerns less than 20 aircraft. Again, it is speculated that for some unknown reason, they were supposed to be the last ones.



Then it is speculated again that there was a gradual modification of all Tempest engines to IIB standard - again, no evidence that such decision was taken, or was scheduled in such way.



What we do know is that the first several batches of Tempests were delivered with Sabre IIA, originally rated at +7, later increased to +9 and then provisionally for the V-1 menace duration for +11, and that Sabre IIA ratings were reduced to +9 lbs by decision taken on 18 September.

We also know that this +9 lbs rating remained unchanged at least until early 1945, given the information in subsequent engine tables.

We know that later batches of Tempest were delivered with Sabre IIB (with increased ratings of noted in January-February 1945 documents), however that most of the victory claims were made by aircraft originally delivered with Sabre IIA.



It is, beyond the realms of speculation, unclear when the Sabre IIB was cleared in operations for +11 in late 1944 (might as well as late as early 1945), or how many were there in the mix of Sabre IIAs and IIBs.



Given the aforementioned facts, your assumption that the 'most representative' Tempest engine setting would be 11 lbs is, in its entirety, rests on speculation and not evidence.

Link to comment
Share on other sites

11 minutes ago, VO101Kurfurst said:

and that Sabre IIA ratings were reduced to +9 lbs by decision taken on 18 September.



Please post this document because right now the previously posted document only proves that:



11 minutes ago, VO101Kurfurst said:

the decision made by SHAEF Headquarters was supposedly not carried through.



The document refers to Sabre IIAs because only the Sabre IIA exists. It's very simple to understand this. The Sabre IIB is only named that to show that the modifications that are already flying in all the IIAs are included from the factory.



The IIA cannot take +11lbs for anti-diver operations without modification, so the modification was developed, the IIA was upgraded and called the IIB in the factory. After that modification, the plane performs the same on 130 as it did on 150, showing that the fuel is irrelevant.

Edited by Talon_
Link to comment
Share on other sites

You keep reposting this document that supports my argument - I assumed you must have something more. This document is talking about the modified IIA engine that is named the IIB in the factory, and how it runs fine at +11lbs of boost on 130 grade. This document is actually superseding, on 14th September, prior orders to lower the boost level.



EDIT: I think it's fair to say the issue of this letter has been thoroughly put to bed now, so if you could please refrain from posting about this until you have further information that would be appreciated. This is supposed to be a resource thread, not for argument. Please post additional resources.

Edited by Talon_
Link to comment
Share on other sites

VO101Kurfurst

Indeed its time to put the speculation to rest. No evidence could be provided for use of +11 lbs boost between 28th September 1944 and 1st January 1945.



When you have something, please do post it. Until then, stop speculating.

Link to comment
Share on other sites

16 minutes ago, VO101Kurfurst said:

Indeed its time to put the speculation to rest. No evidence could be provided for use of +11 lbs boost between 28th September 1944 and 1st January 1945.



When you have something, please do post it. Until then, stop speculating.



Constantly correcting you is adding a lot of extraneous material to this thread. I appreciate English isn't your first language however you have to come to terms with the fact your document does not show Tempests being reverted to +9lbs, only a recommendation for keeping them at +11lbs against prior plans.

  • Thanks 1
Link to comment
Share on other sites

VO101Kurfurst

I am sure that ‘reduction of max allowable pressure to + 9 LB/ sq. inch’ has many possible interpretations.



War is Peace,

Freedom is Slavery,

Ignorance is Strength,

Reduction is Increase.





  • Sad 1
Link to comment
Share on other sites

It's the paragraph before that which is important.

Looks like we should be able to carry more than 200 RPG. This is not the only account I have seen expending over 1000rnds 20mm. Seems like almost 300rpg was common on ground strikes.


Link to comment
Share on other sites

ACG_Talisman
10 hours ago, VO101Kurfurst said:



Personally I think that the fact that no victories claims were made in the period while Tempest squadrons were authorized to use higher boost in connection with V-1 intercepts is very telling as to the relevance of special boosts between August-September 1944 as far as combat operations are concerned.

Kurfurst,

As far as combat operations were concerned here is an operations record book account of anti-diver (V-1 flying bomb) operations and armed recce over the continent in the same month of August 44 (I have previously posted example from Sep 44).  You will see 25th Aug starting with anti-diver patrols and then an armed recce into France at Cassel, Nr St Omer.  Anti diver patrols are then resumed on 26th Aug.  Then on 27th Aug another armed recce near St Omer.  Then on 28th Aug an attack on a radar station in France at Cassel, near St Omer.  Seems they made a hell of a mess of it!



So you see that 150 Octane anti-diver squadrons were also on operations over Europe in between anti-diver operations during Aug as well as September as per my previous post.

I trust that you don't think that they kept changing the type of fuel they were using from one hour to the next.  They used 150 Octane because they were one of the many anti-diver squadrons that were also used for operations over Europe from time to time.  I hope that is clear enough for you.  This is evidence of what actually happened.




Edited by 56RAF_Talisman
  • Thanks 1
  • Upvote 1
Link to comment
Share on other sites

Nine (9) Tempests from 3 Sqd went to Brussels on Aug 28.



501 Sqd flew its last 'Diver' night mission  27 March 1945. On April 1 returned to daylight duties.

Link to comment
Share on other sites

The Sabre IIBs were cleared for +11 lbs, 3,850 rpm, combat 5 minutes limit. Those Sabre IIA's having Mod. No. Sabre/158 or 297 ("strengthened propeller reduction gear assembly") were converted to IIB's by the incorporation of a new boost control cam (Mod. No. Sabre/433) and a new boost control capsule (Mod. No. Sabre/435).

Link to comment
Share on other sites

13 hours ago, VO101Kurfurst said:

Dancing around the question as always it seems.



So, any presentable hard evidence of Tempest Squadrons using higher than +9 lbs ratings between their move to the Continent (28th September) and Bodenplatte (1st January 1945)?



It seems that the only evidence there is that in this period the ratings WERE reduced to +9 lbs.

Any presentable "hard evidence" that Sabre IIAs were definitely derated? Of course not, it is just wishful thinking that "...their intention to..."  somehow reads as as "...M.A.P have stipulated that all Sabre IIAs will have their maximum boost pressures reduced to ..."

Where is Kurfurst's "hard evidence" that this was carried out, as per intent?

Has Kurfurst found, for example, any Squadron, or Wing records showing that their engines were operating at +9 lbs?

Has Kurfurst stumbled across a trove of technical documents proving that Sabre IIAs were limited to +9 lbs boost?

All that can be gleaned from the document being repeatedly posted by Kurfurst is that there was an intention to derate Sabre IIAs - it can by no means be interpreted to prove that Tempest Vs didn't use +11 lbs boost between September '44 and January '45.

As it is, the only person who has to prove his proposition/belief that the Sabre IIAs definitely operated at +9 lbs boost, between September '44 and January 1 '45 is...Kurfurst.

  • Thanks 1
Link to comment
Share on other sites

5 hours ago, NZTyphoon said:

Has Kurfurst found, for example, any Squadron, or Wing records showing that their engines were operating at +9 lbs?



He won't.



Thanks to this thread I spent five hours poring over the ORBs from 3, 80, 56 and 274 squadrons from September to December 1944. That's how I came across the info above regarding possible ammo overload. I read every page of every ORB - no mention of boost adjustment is made at any point by any squadron.



No 80 Sqn ORB, 1944



No 3 Sqn ORB, 1944



No 56 Sqn ORB, 1944



No 274 Sqn ORB, 1944

  • Like 2
  • Upvote 3
Link to comment
Share on other sites

6 hours ago, NZTyphoon said:

As it is, the only person who has to prove his proposition/belief that the Sabre IIAs definitely operated at +9 lbs boost, between September '44 and January 1 '45 is...Kurfurst.

Since Milo and Kurfurst, sadly, decided to join the party, reducing this thread to a bunch of nothing and useless, I guess choosing words carefully is very much necessary.

The Sabre IIa definitely operated at +9lbs at all times. At this time, any Sabre operating at +11lbs was de facto a Sabre IIb, Save for those few days between the +11lbs tests and the apparition of the IIb denomination in August.

Typhoons which were not modified for anti-divers operations and retained a Sabre IIa kept being limited at +9lbs.



The argument here is that only a very few, unserviceable, Tempests, wouldn't have been modified to run anti-divers ops at +11lbs, so they were in a large majority fitted with a IIb.



Note that the fuel used is irrelevant, since both Sabre IIa and IIb operated at the same boosts regardless of the fuel used.



This had obviously not been anticipated, as every other engine needed the new fuel to operate at higher boost. So obviously, as the M.A.P's plan was to revert to 130 octane, the plan was to modify all fighters back to lower boosts (or at the very least those which would be transferred to the continent afterwards)

And it was done. Except that Sabre powered aircrafts didn't need the modification, and could still fly at higher boost. Removing the modifications in the field could , maybe, have been done. Except the RAF was by that time accepting deliveries of Sabre IIb Tempests, and it would be beyond stupid to use manpower hours to remove those mods when the new aircrafts were coming with them on. In fact, the third batch was ordered with the IIB engine, showing the intent to keep the higher boost.

  • Upvote 2
Link to comment
Share on other sites

I joined the party well before you did Quinte.The party went downhill with the attempt to castrate the Tempest as has been attempted in the past on untold number of times for another certain British aircraft.

Link to comment
Share on other sites

On 8/22/2018 at 4:19 PM, Talon_ said:

Does anybody have this book? It would be great to get +13lbs as a modification. Need info on timeframe really.

I do. I believe this part in particular to be a mistake, though. This is in a part that deals specifically with the V1 chase ops, and while the switch to the Sabre IIb did come with an increase in max RPM from 3700 to 3850, the increase in bosst was necessarily from +9lbs.



This book doesn't say anything about the removal of spring-tabs either, but doesn't show any picture of them. What it does say is that the second batch had some Sabre IIb Aircrafts, which confirms the points made previously.



"British Piston Aero-engines and their aircrafts" does state that the Sabre IIc was fitted to both Tempests V and Typhoons. Since Typhoons were immediately either scrapped or put in storage at the end of the war, this suggests it was fitted to a Tempest V during the war.

The Sabre IIc is the only engine that fits the +13lbs and Clostermann's statement about +13lbs and then some more WEP, since it had a max boost of +17,5lbs, 3850RPM, 3055hp in M stage. I could never find any precise info on when that happened, though. If we're to believe Clostermann didn't exaggerate, that's in late march at least. So probably later.

  • Upvote 3
Link to comment
Share on other sites

I haven't read any ORB from 1945, but in future I can. Sadly there are even more Tempest squadrons in 1945 so it might take me a while but I'll slog through all of them, sqn by sqn, starting with Clostermann's.

Edited by Talon_
Link to comment
Share on other sites

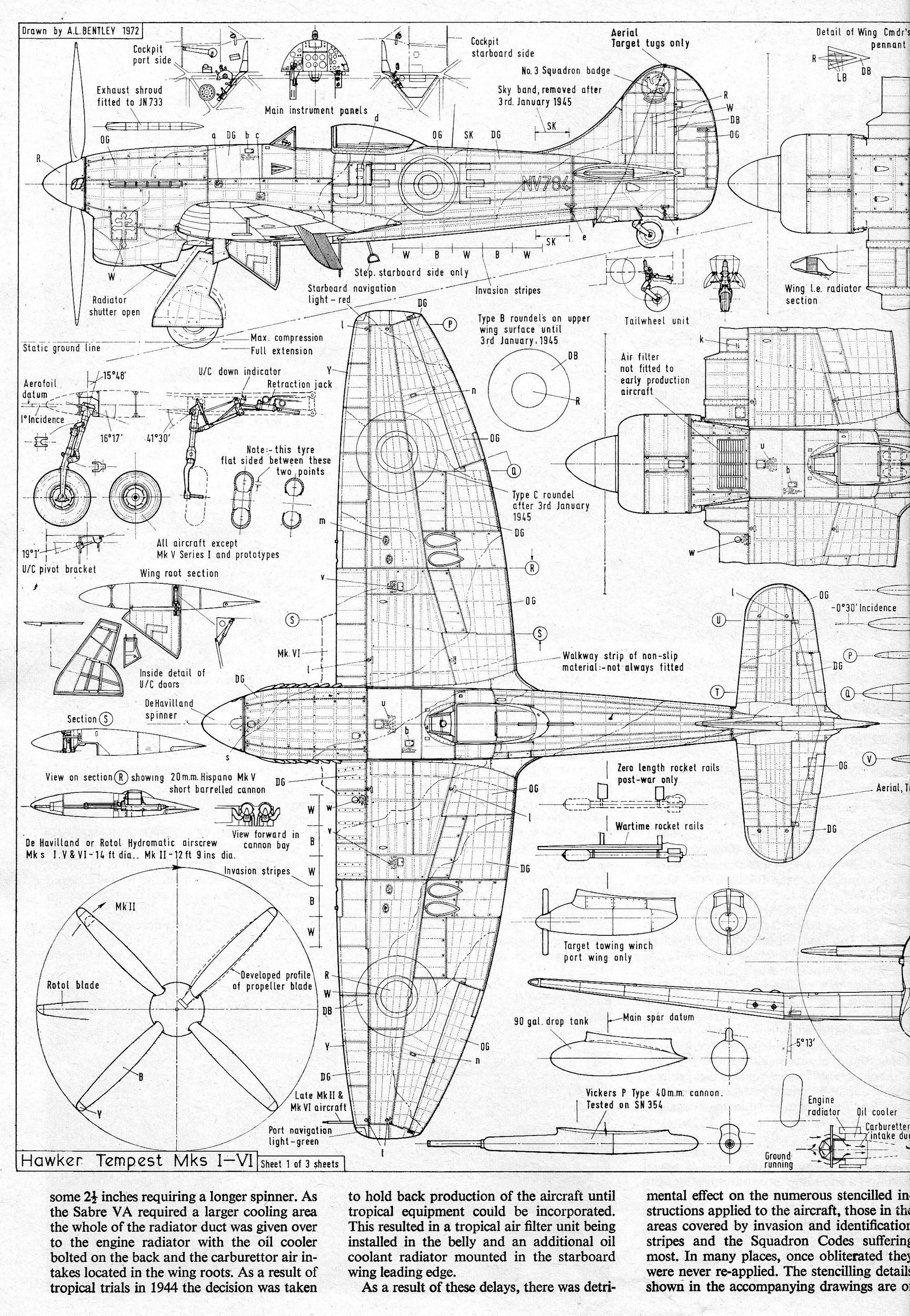

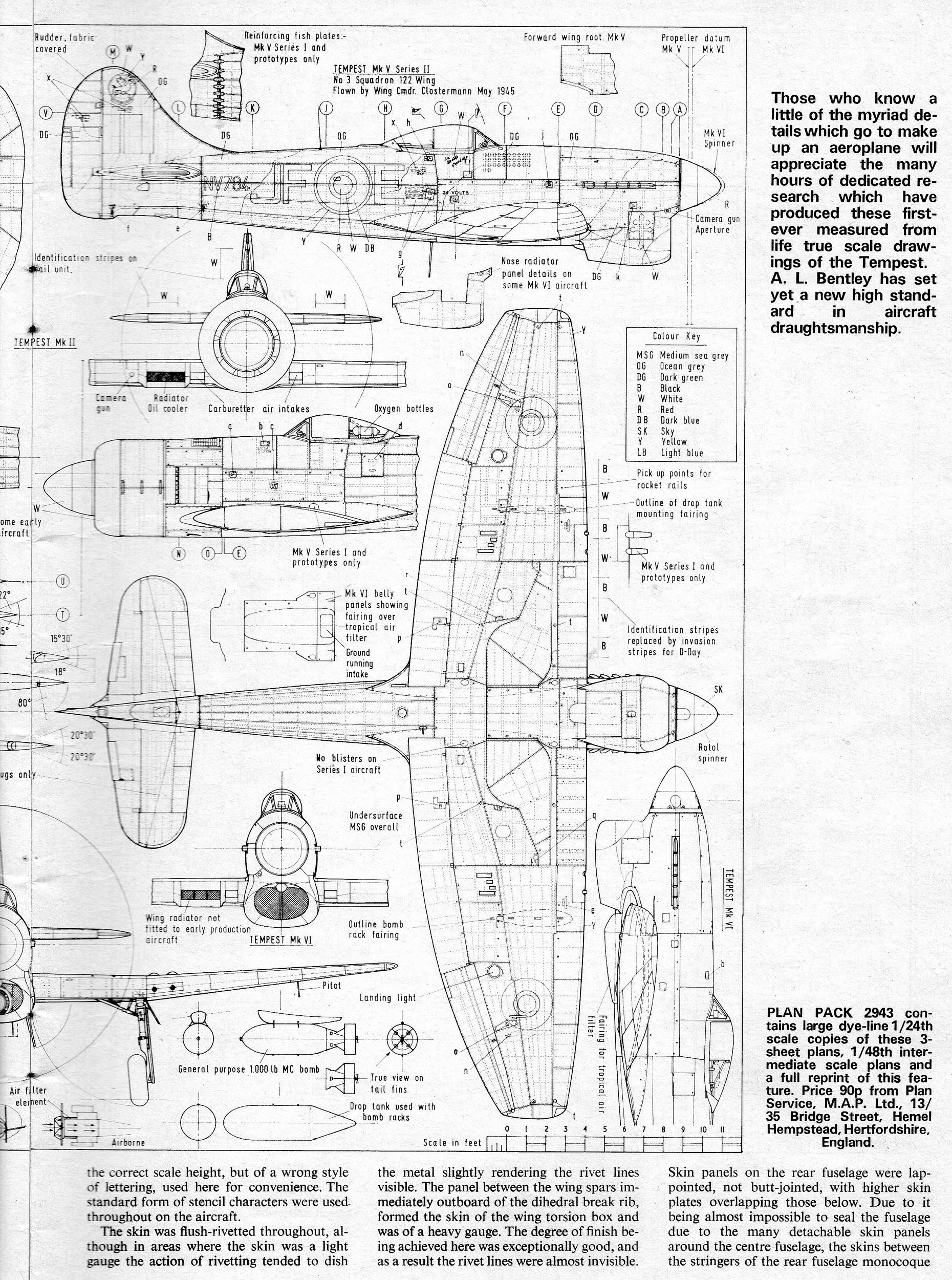

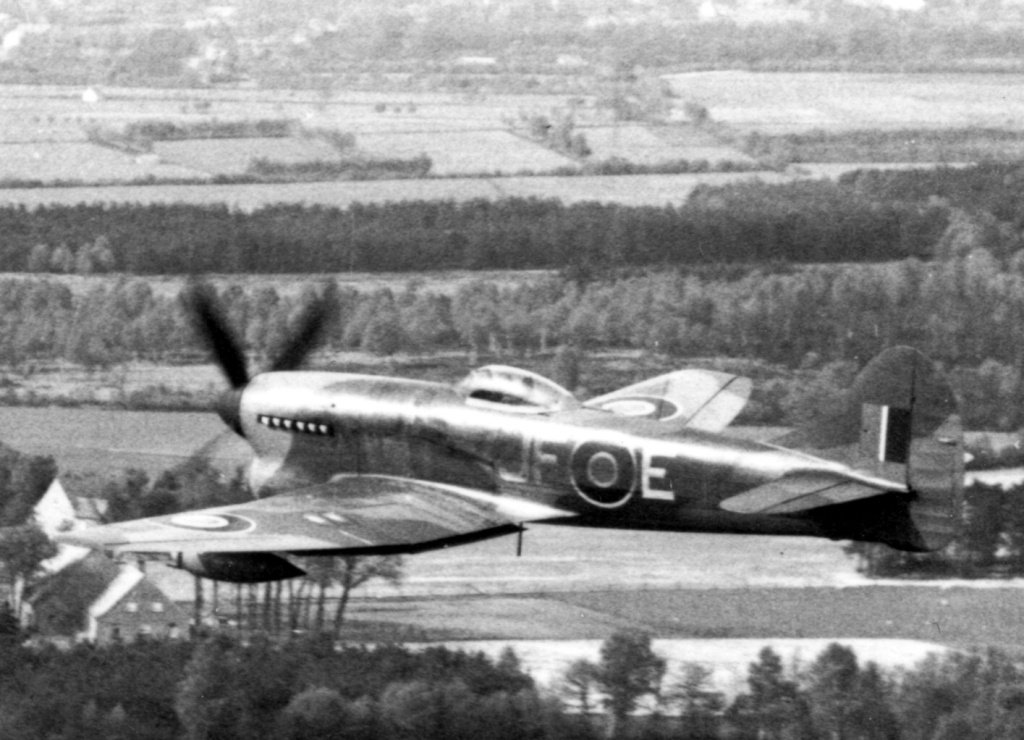

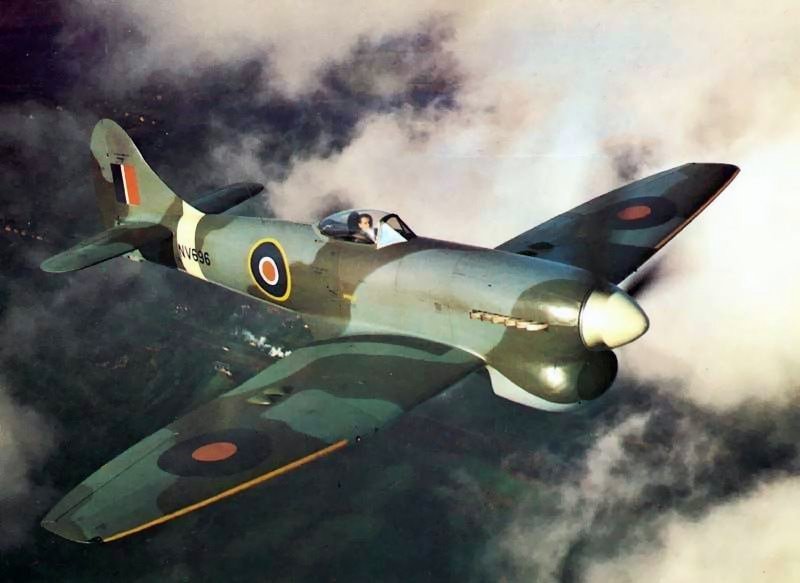

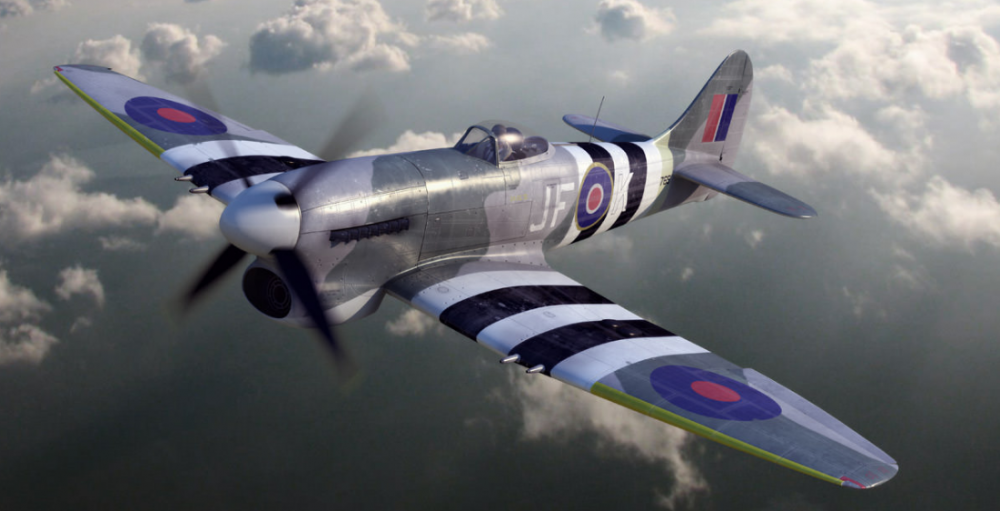

Need to get some late Tempest pics (no Sky band, no sky spinner and with yellow border C1 roundels). I didn't find too much on the Imperial War Museum website.

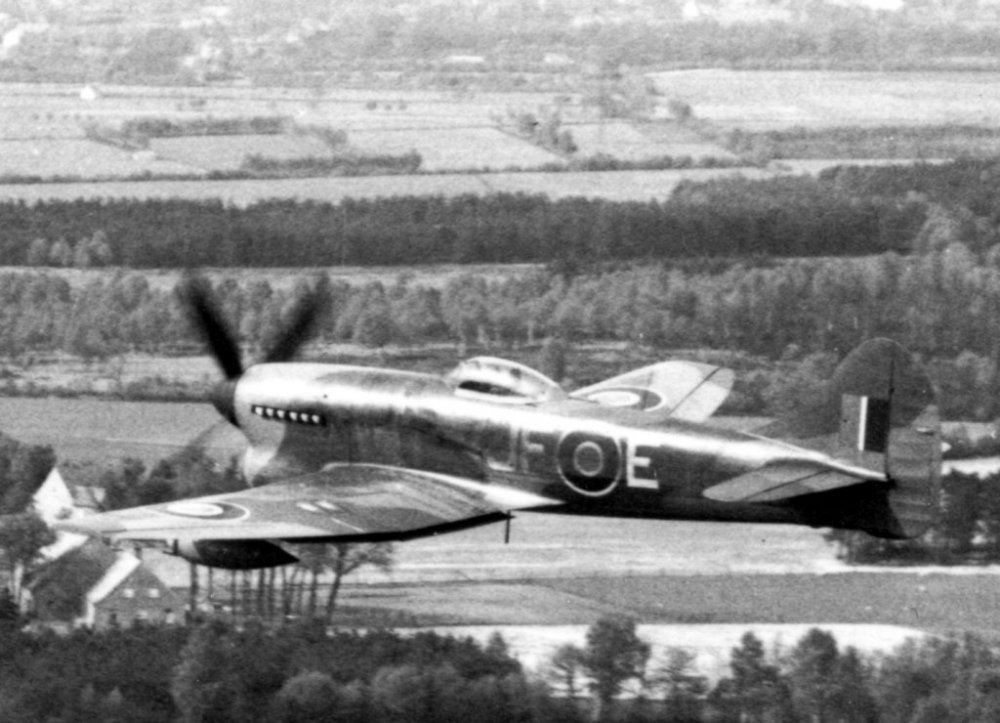

Do we know if these barrel stubs (image 1 only) are transitionary? They don't seem to feature on most aircraft.







Edit: C1 roundels clearly visible on Clostermann's bird uppers


Edited by Talon_
Link to comment
Share on other sites

unreasonable

That top picture looks like a RC model to me. (I wish there was some way in Google images of taking all the modelling crap out of the search).



From my books it looks like the barrel stubs were on the series I only. So we should not be getting them.

Edited by unreasonable
Link to comment
Share on other sites

5 hours ago, Talon_ said:

Need to get some late Tempest pics (no Sky band, no sky spinner and with yellow border C1 roundels). I didn't find too much on the Imperial War Museum website.

Do we know if these barrel stubs (image 1 only) are transitionary? They don't seem to feature on most aircraft.







Edit: C1 roundels clearly visible on Clostermann's bird uppers




For interest, a few years ago I found an old 'Scale Models' magazine from waaay back in 1973, that had an excellent article on the Hawker Tempest written by A. L. Bentley. The main points about the differences between early production "Series 1" Tempest Vs (JNxxx serials) and "Series 2" (EJxxx, NVxxx, SNxxx) :



* Series 1 = most used long barrelled Hispano IIs; Series 2 = short barrelled Hispano V;

* Series 1 = wings weren't able to carry drop tanks, bombs or rockets; Series 2 = wings reinforced, plumbed and wired to carry drop tanks and ordnance;

*Series 1 = rear spar pick-up structure and fuselage structure from Typhoon, as described in attachment...

In addition, but something not noted by Bentley, the wheels on the Series 1s were ex-Typhoon 5 spoke, whereas those of the Series 2s were slightly narrower, 4 spoke.

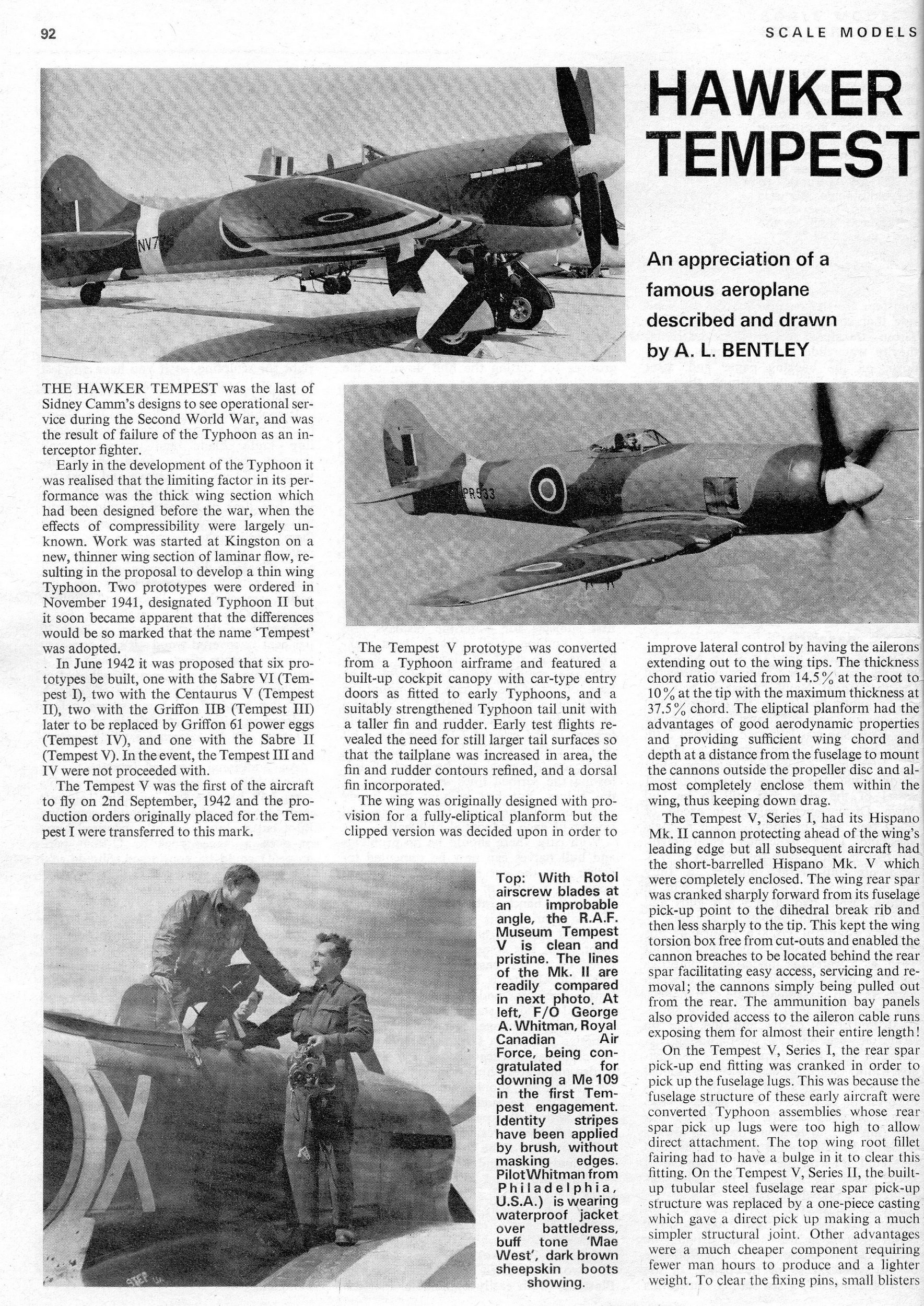

1-1-Tempest spring004-001.jpg

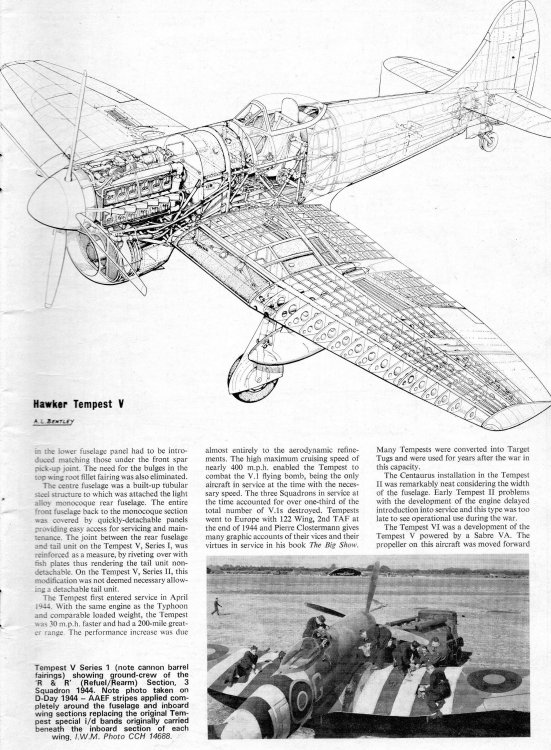

1-1-Tempest spring005.jpg

Continuing with Bentley's article (hopefully, of some use to the developers?)





1-1-Tempest spring006-001.jpg

1-1-Tempest spring007-001.jpg

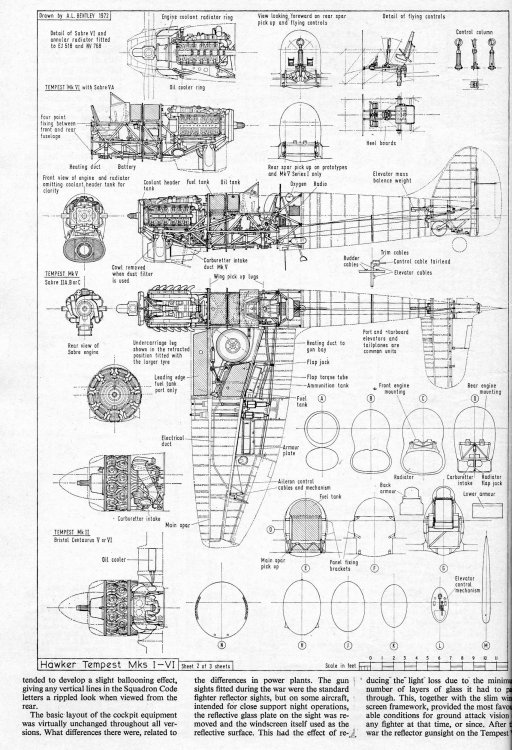

1-1-Tempest spring008.jpg

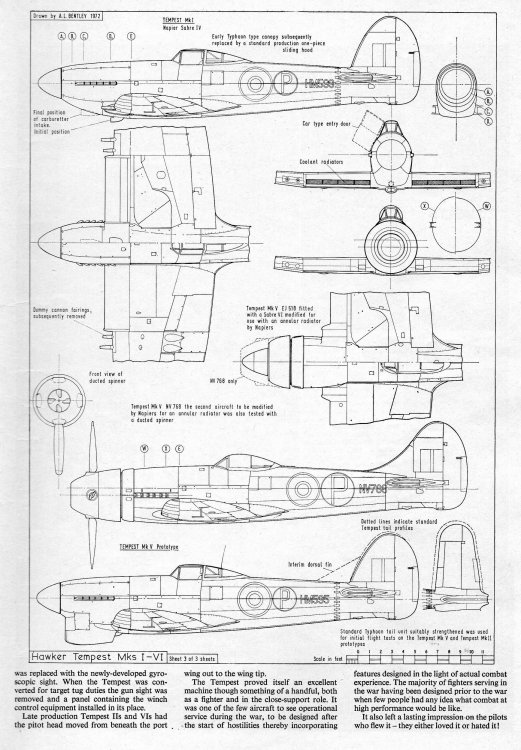

1-1-Tempest spring009.jpg

  • Like 2
Link to comment
Share on other sites

On 8/24/2018 at 12:00 AM, Quinte said:



This book doesn't say anything about the removal of spring-tabs either, but doesn't show any picture of them. What it does say is that the second batch had some Sabre IIb Aircrafts, which confirms the points made previously.



Second production batch of 300 aircraft built by Hawker Aircraft Ltd, Langley, Buckinghamshire. EJ504, EJ518-EJ560, EJ577-EJ611, EJ626-EJ672, EJ685-EJ723, EJ739-EJ788, EJ800-EJ846, EJ859-EJ896. Series 2 aircraft, Sabre IIA engines with modifications, short-barrel cannon, spring tab ailerons. Deliveries commenced 5-44, completed 9-44; average rate of production approximately 18 aircraft per week.



Second production batch of 300 Tempest Vs built by Hawker at Langley: EJ504; EJ518-EJ560; EJ577-EJ611; EJ616-EJ-672; EJ685-EJ723; EJ739-EJ788; EJ-800-EJ846; EJ859-EJ896 Sabre IIA or IIB, Hispano V cannon, spring-tab ailerons Deliveries commenced 5-44; completed 9-44 18 aircraft per week. (From Francis K Mason Hawker Aircraft Since 1960, 1991 page 567



http://www.hawkertempest.se/index.php/piloter/victories

29 Sept

Fw190

1

56

S/L D.V.C. Cotes-Preedy

US-C (EJ721)

Emmerich area



29 Sept

Fw190

1

56

F/L A.R. Moore

US-M (EJ741)

Emmerich area



19 Nov

Me262

1/2
1/2

486

P/O O.D. Eagleson
F/L Taylor-Cannon

SA- (JN858)
SA- (EJ828)

Rheine

The last A/C with EJ896 series number, is 55 after EJ828 which had a victory on 19 Nov 1944, that's only three weeks gap(18 aircraft per week), so the last A/C of 2nd Batch(EJ896) joined the war no later than 10 December. This is the hard evidence that SabreIIB engine involved in 1944's battle.





Edited by No.41_Glen
Link to comment
Share on other sites

  • LukeFF pinned this topic

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now
 Share

×
×
  • Create New...
