Recommended Posts

Posted

A 250 ton Groove mobile crane

  • Like 1
Chief_Mouser
Posted
2 hours ago, LuseKofte said:

A 250 ton Groove mobile crane



Luse, do you always work in your socks? Or are you trying to keep the crane clean?

Posted
2 hours ago, 216th_Cat said:



Luse, do you always work in your socks? Or are you trying to keep the crane clean?

I always have my shoes off inside

cardboard_killer
Posted
2 hours ago, -Six-Motivated said:

I'm hoping one day to throw in a dedicated throttle and pair of rudder pedals



I have a similar set up, but with the Xwinds pedals and CH throttle. Both I got used for very reasonable prices. Keep your eyes peeled.

sturmkraehe
Posted
On 5/15/2021 at 7:32 PM, ThereIs0nly0ne said:

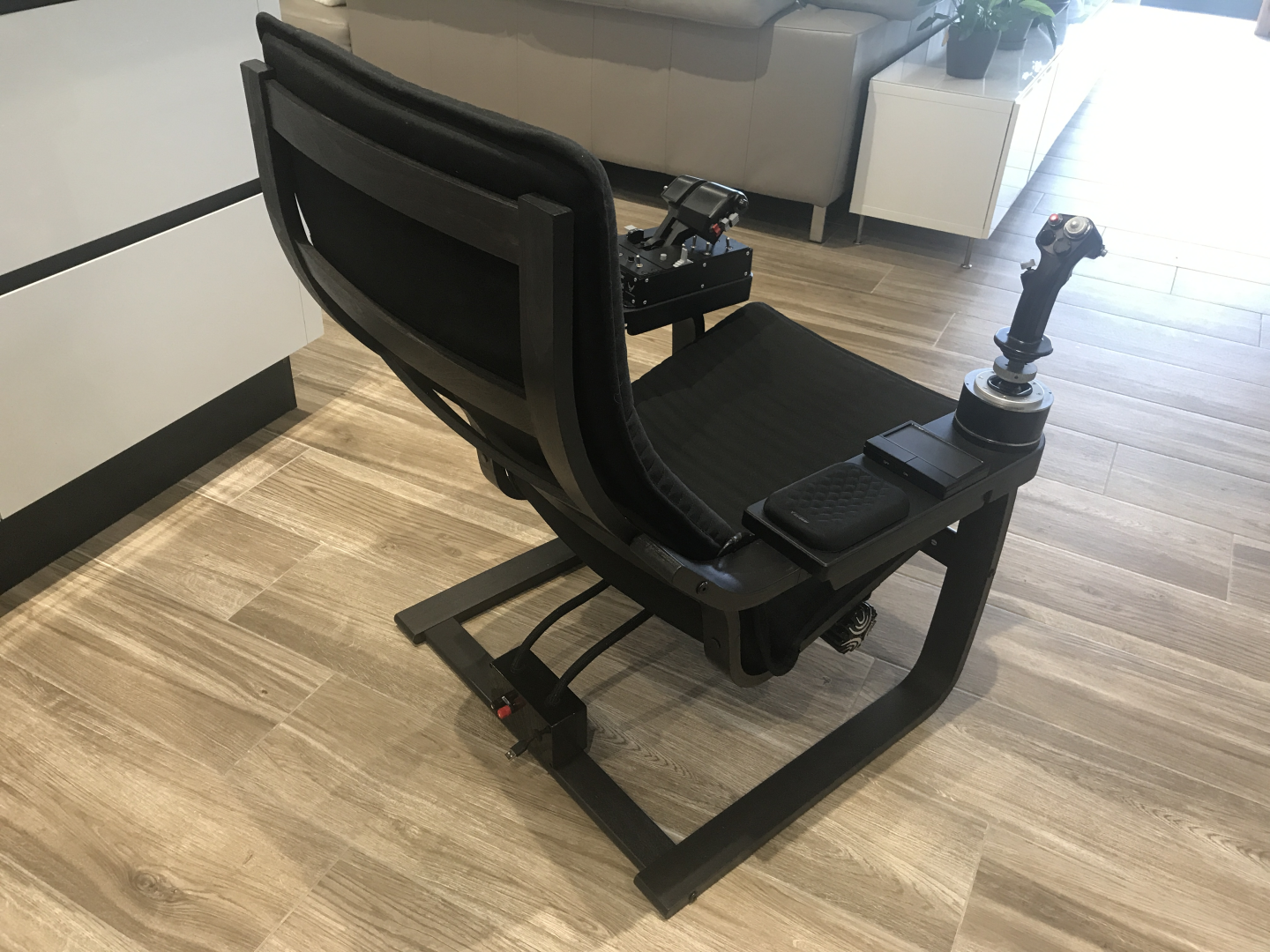

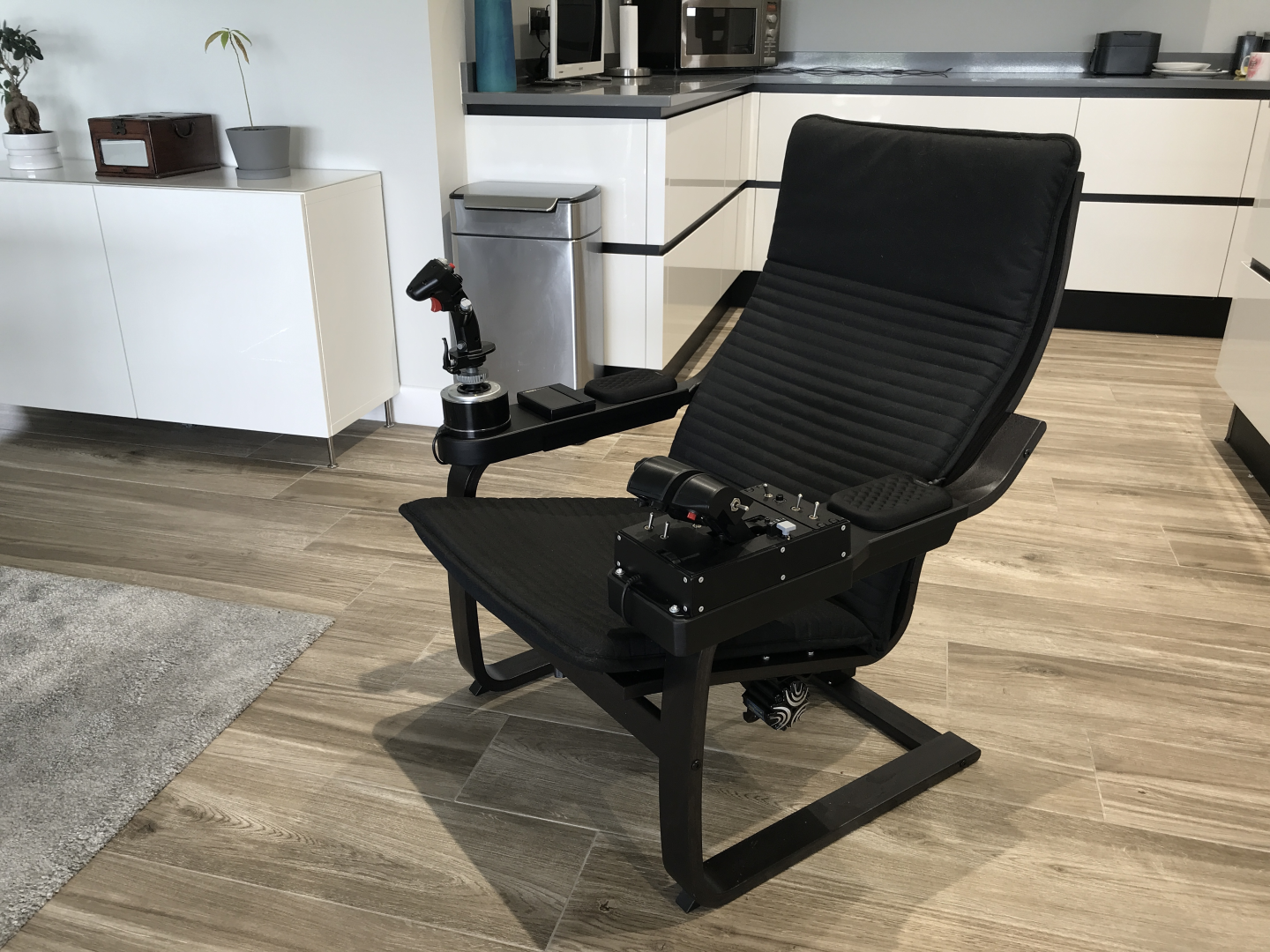

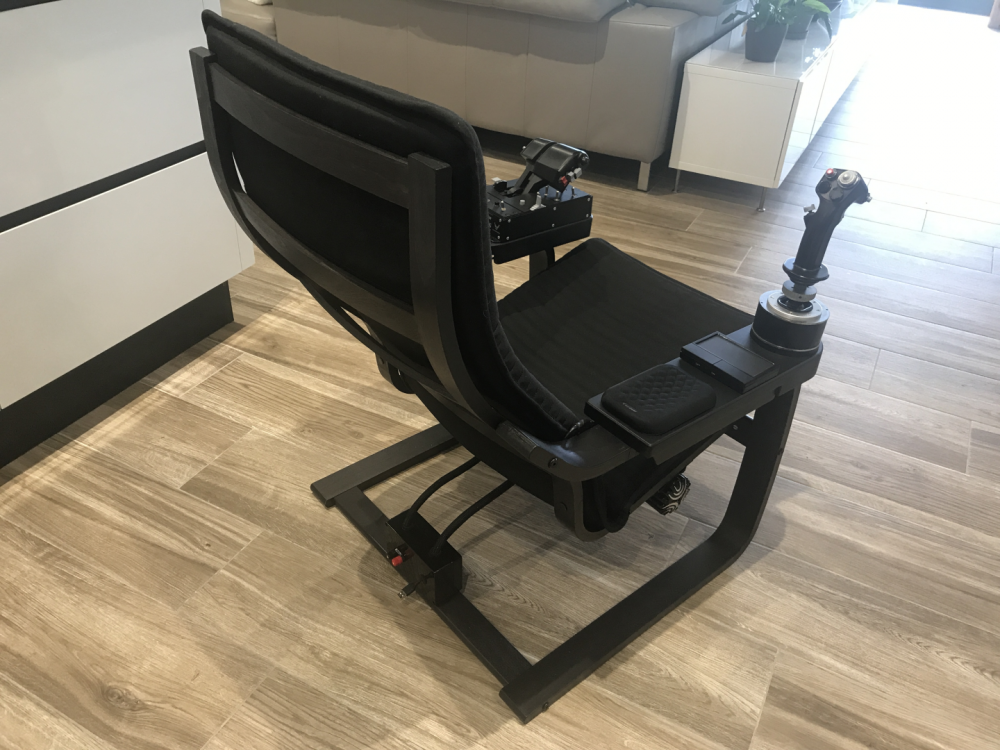

I'm currently building a modular cockpit based around an Ikea Poang chair. It has to be portable so that's the main reason I went for the Poang; it's light and also reasonably cheap to use as a basis to work around and modify. The seat has integrated cabling returning to a project box for easy connection to the PC and amp. There are a couple of Buttkicker Mini LFE's attached to the base of the chair. The HOTAS panels are detachable.

I still have to complete the pieces for the rudder pedals.





Best use of ikea stuff!

  • Like 1
kissTheSky
Posted



3 hours ago, -Six-Motivated said:

It ain't much, but it's mine. I'm hoping one day to throw in a dedicated throttle and pair of rudder pedals but until then, my VKB Gladiator Mk.II makes due!



That’s how it all starts ?. Then all of a sudden, you find yourself with multitude of controllers and dedicated cockpit(s)


1 hour ago, cardboard_killer said:



I have a similar set up, but with the Xwinds pedals and CH throttle. Both I got used for very reasonable prices. Keep your eyes peeled.



Pretty much this. Check your Craigslist periodically and you’ll find reasonable options.

ThereIs0nly0ne
Posted
On 5/21/2021 at 11:07 PM, sturmkraehe said:

Best use of ikea stuff!



Ikea can be great!! I've modded a few things around the house with Ikea bits and pieces.

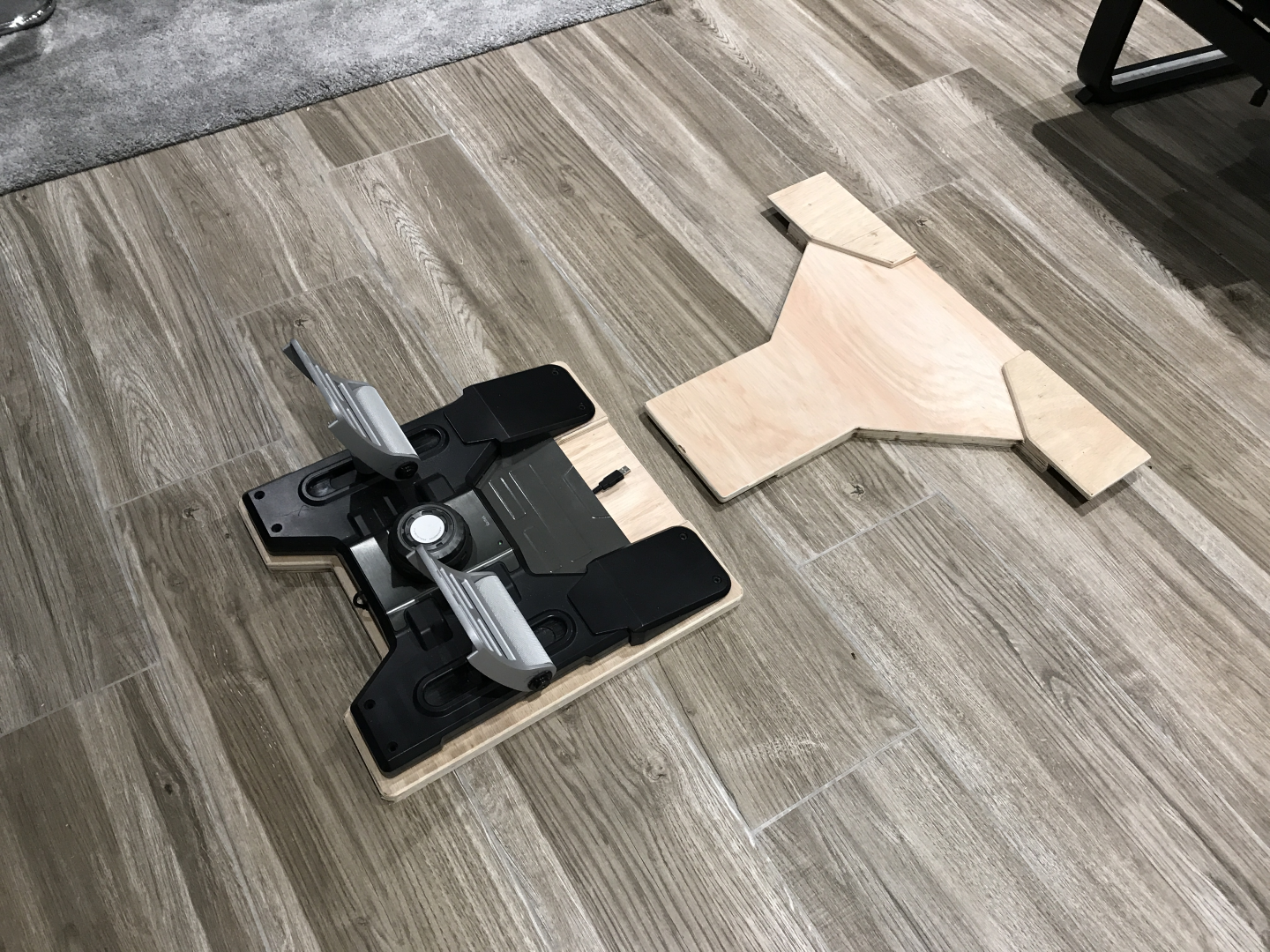

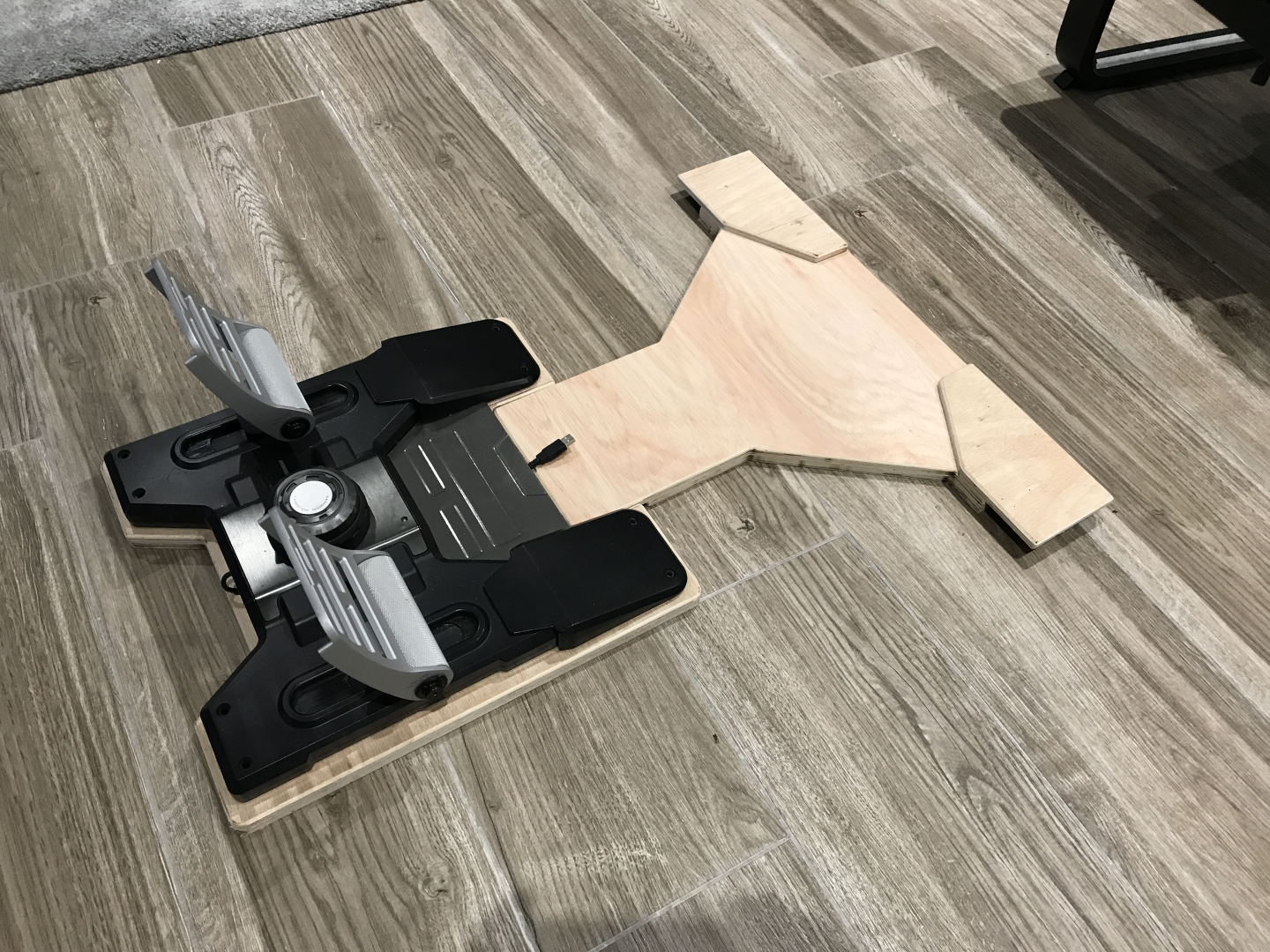

Was going to wait until I'd finished the rudder pedal assembly before posting but whilst I'm here ...



I will be filling and sanding today. Still waiting on a few bits to arrive before I can complete though.

Once the 4 main pieces are done (2 HOTAS panels and the 2 rudder pedal panels) I will time how long it takes to assemble / disassemble - current reckoning is 3 - 4 minutes each but we'll see.




  • Like 1
  • Upvote 1
  • 2 weeks later...
Posted

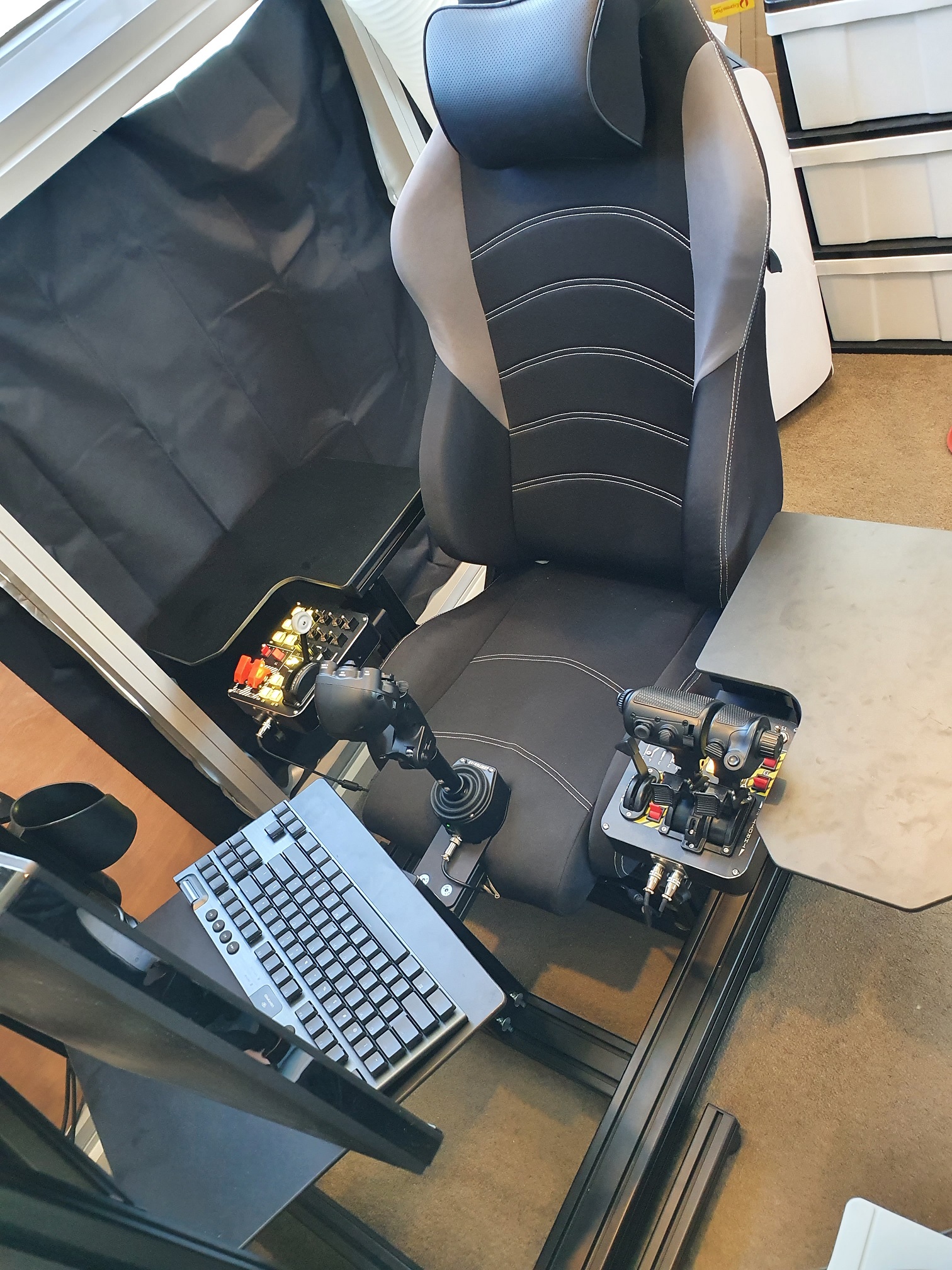

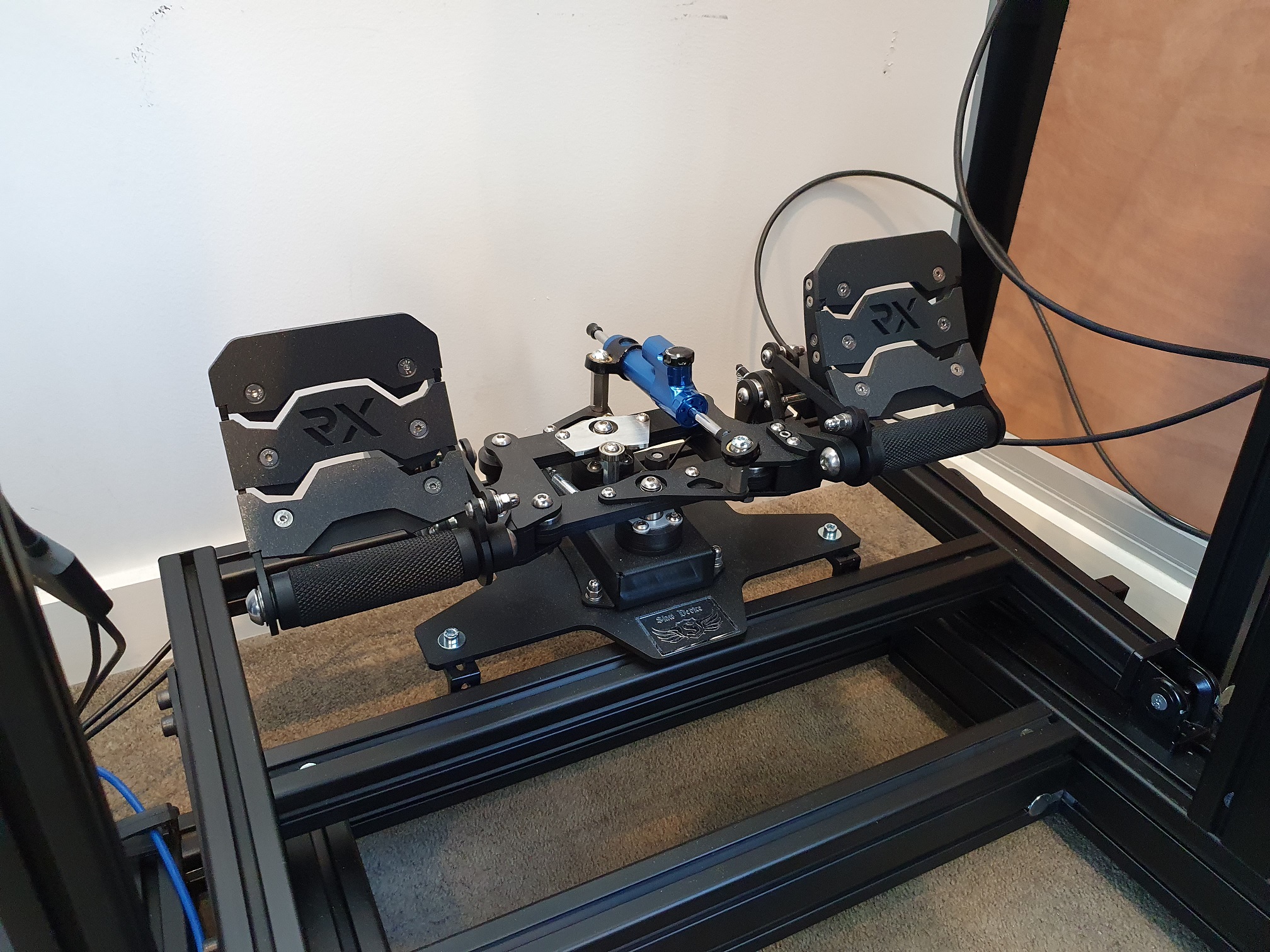

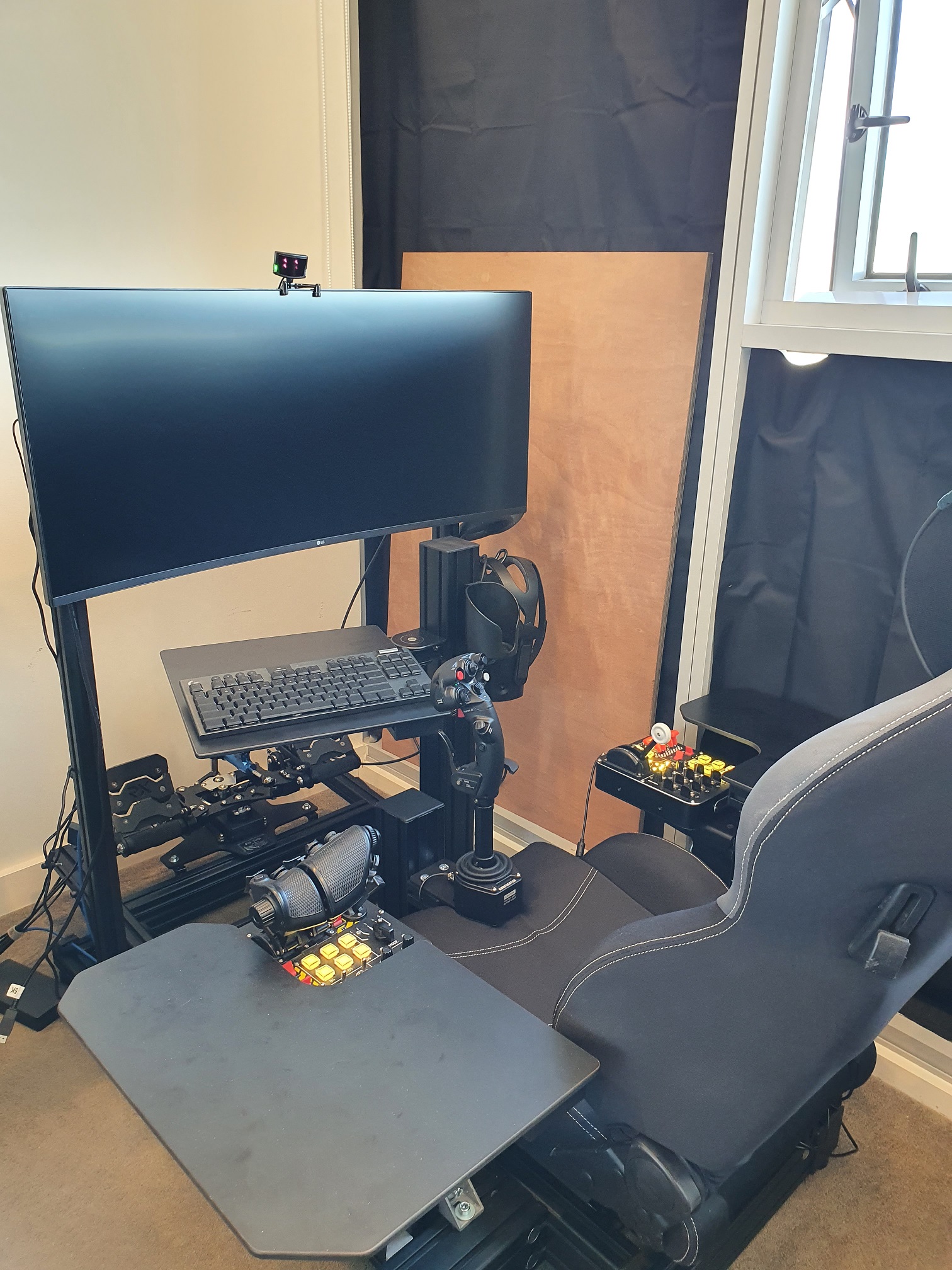

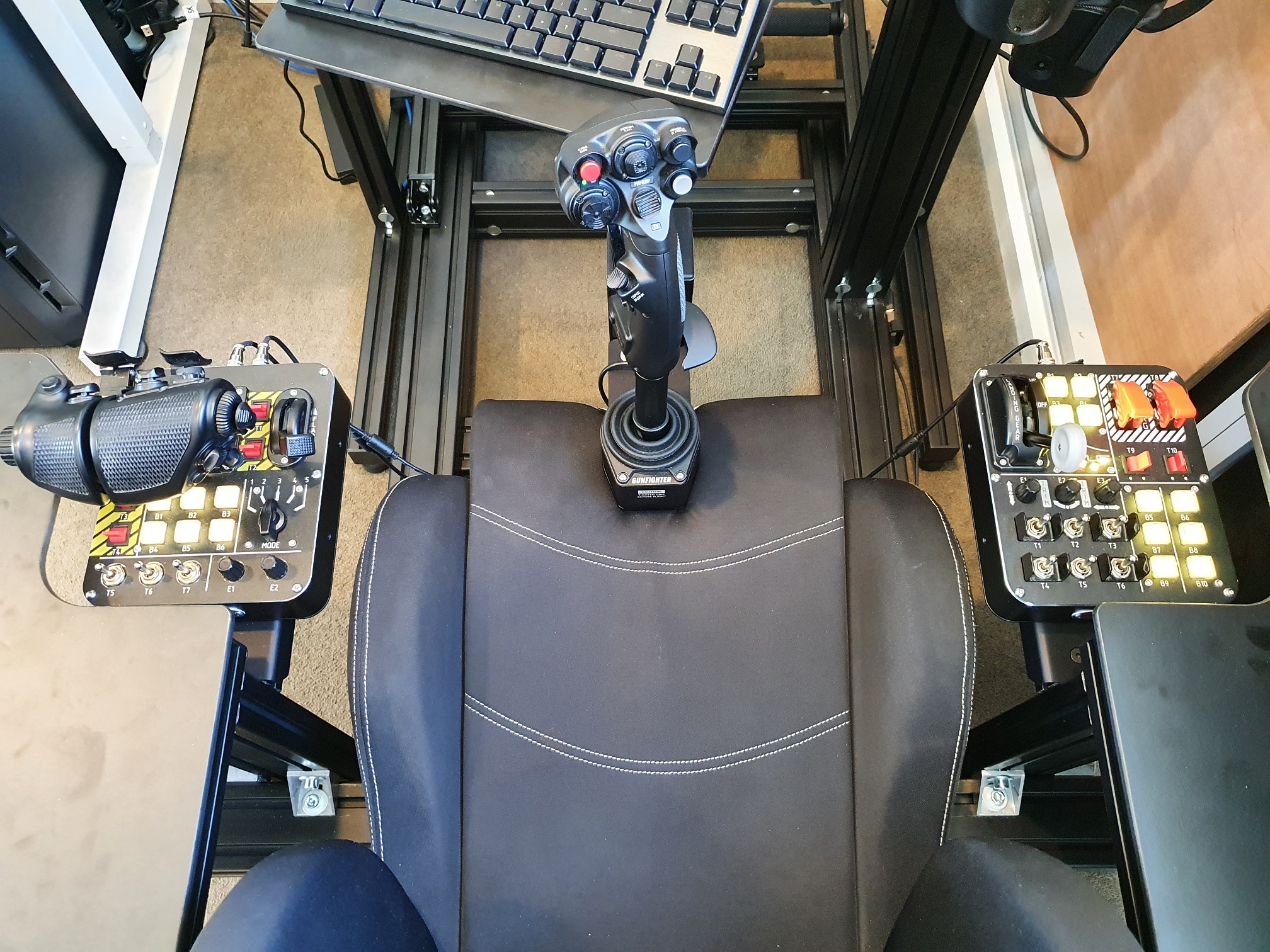

I finally gave in and constructed a general simpit from the Monstertech kits. I'm mostly just into DCS and IL-2 (and flying circus), and don't really do much civ/MSFS. So I've gone with a combat sim setup with centre stick.



I've tried a variety of setups in the past including desk mounts, chair mounts, desktop etc. Had an Obutto about 10 years ago back when I was young and childless too, although gave up sims for a while in between due to having no spare time. In the end I wanted a pit again and decided on the Monstertech for the great flexibility it has. I'm always changing things up so its good I can adjust or add and remove things when needed.



Managed to source the car seat second hand for only $150, although may upgrade to a better quality "Wider" seat in the future.



Took about a week to construct and adjust, part time fitting in around work etc. Finally I can say I'm happy with my setup and don't have any more plans for upgrade!





20210602_103020.thumb.jpg.86265d0557f5771b43c7b17a01f91a2f.jpg20210602_102628.thumb.jpg.942771d3f972579af5e04811b7d19f54.jpg20210602_102659.thumb.jpg.61d8edbdf01a4c1e5ed157e81308ee38.jpg20210602_102811.thumb.jpg.2fdd9aec27b572965896c72e82809985.jpg

  • Like 15
  • Upvote 4
Posted

Great set up Dan!



I have pit envy :)

  • Like 1
  • 3 weeks later...
SR603-McMurdo
Posted (edited)


spacer.pngspacer.pngspacer.pngspacer.pngspacer.pngspacer.pngspacer.pngspacer.pngspacer.png

Hello every one just finished my pit the last part to be installed was the throttle from iron mechanic also have rudder pedals from Slaw and was lucky to get a KG13 stick and base from BRD be for he stopped production thanks to all of them for there marvellous controllers.

This started of as a FW190 A8 pit but the FW190 throttle was hard to find and myself and my friend started to fly the  Me110 more and will fly Ju88 C6 when it is released, so decided on a twin throttle plus the use of a thrust master MFD with small screen this is good for squad commands and the small screen has Graphix card info on it. So my pit would probably look more like the FW P.II if the war dragged on and it was ever made ? so sorry puritans for this effort :) big thank you to J2_SteveF for the MK108 cannon switch and spare KG13 . right hope the photos work .

Edited by SR603-McMurdo_VR
no photos lol
  • Like 29
  • Thanks 3
  • Upvote 5
SR603-Flowbee
Posted

Incredible! ?


Best use of a cupboard ever. Like stepping into a Tardis and winding up in a WWII FW190. Have to come visit and see this work of art and engineering. All the best Mac!

  • Like 1
SR603-McMurdo
Posted

nice to hear from you flow never see you on to bizzie skinning i would imagine :) see you soon m8.

Posted

Mc Murdo..stunning cockpit...waooo???

Posted

S'alright I suppose  ;)



I've also been fortunate to see this pit in person, albeit a couple of years ago.



It was Stunning then and has only gotten better :)



Well done Mate

  • Like 1
Posted
18 hours ago, ITAF_Rani said:

Mc Murdo..stunning cockpit...waooo???

Indeed.  That is art.

Posted

This is amazing work!!

JG1_Lipfert
Posted

Kameraden,



2021 redo






S!

  • Like 7
  • Upvote 1
  • 2 weeks later...
Panzerlang
Posted

After fitting the new pedals I figured I'd give the pit a face-lift with some blackboard paint. It stinks and I might be high but it looks good. ?




  • Like 1
  • Haha 3
Posted

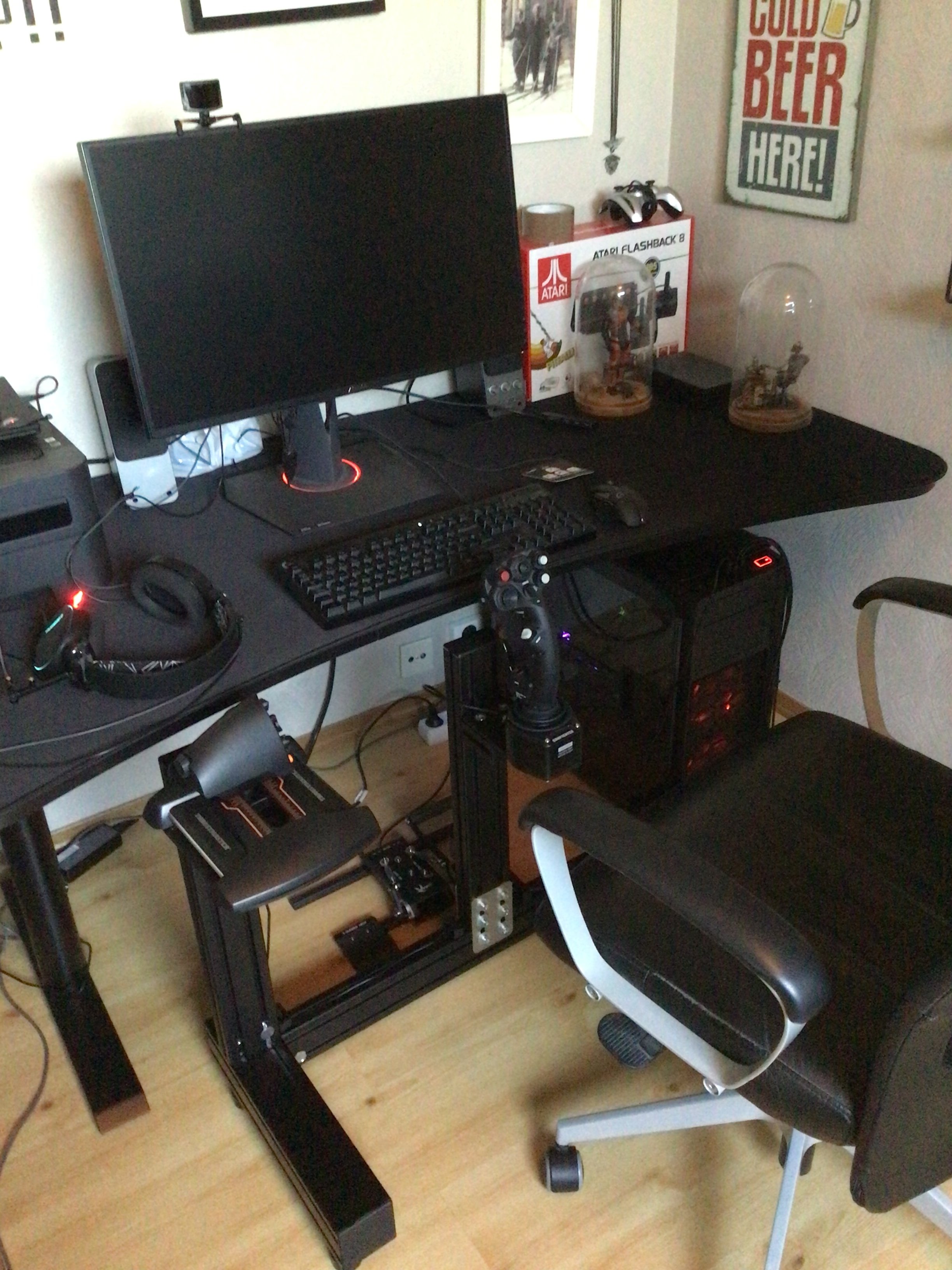

Gunfighter MK III, VKB T-Rudder MK IV, TCWS Throttle, TrackIr 5 and Monstertech flight stand (that I recieved today). Will switch the TCWS to the VKB TECS throttle if it ever releases. ?






  • Like 2
Posted

Here's mine. I do have some nice RX Viper rudder pedals but cleared all my clutter to make this video. ?







  • Like 6
  • Thanks 2
  • Upvote 2
Posted

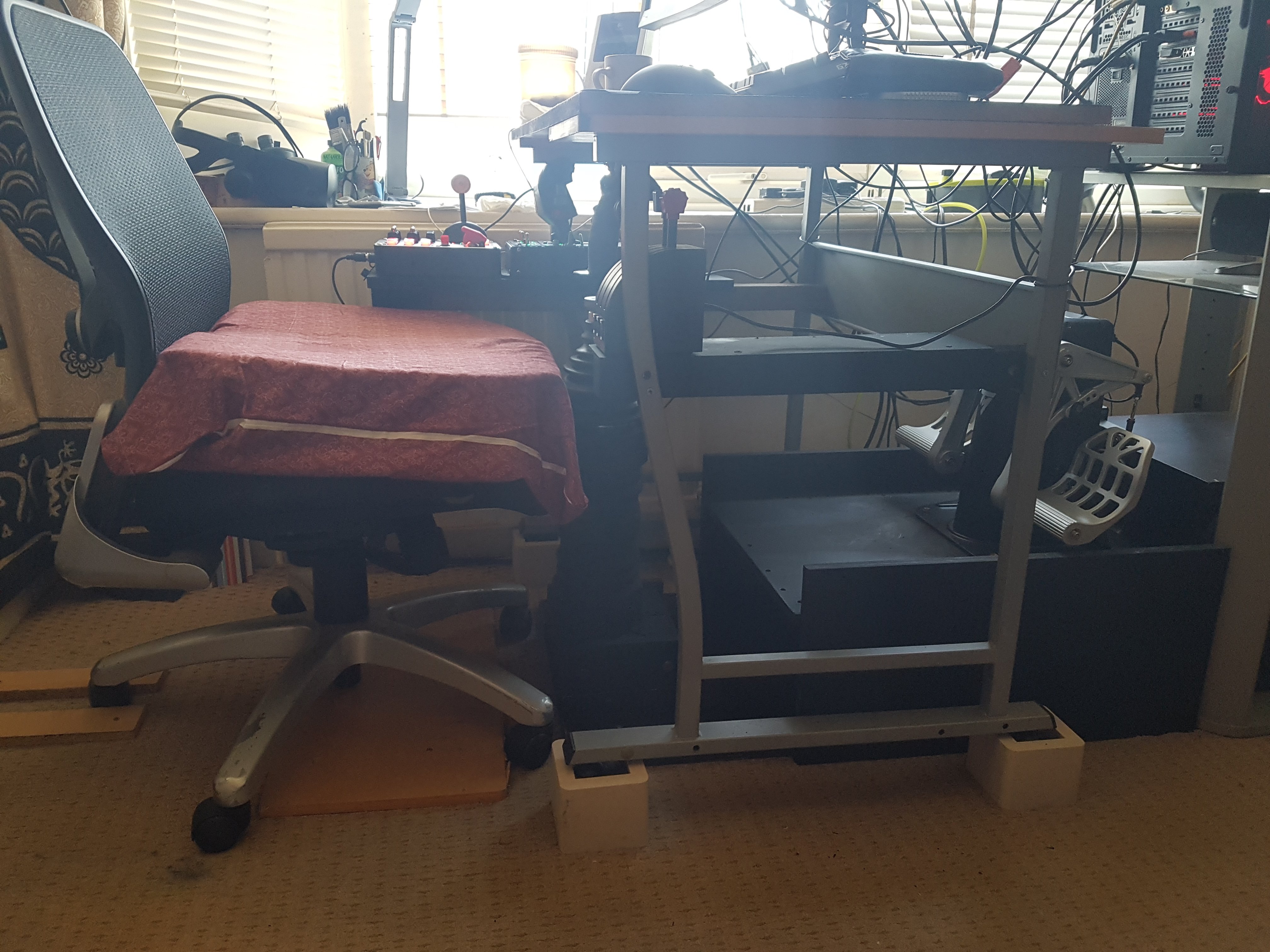

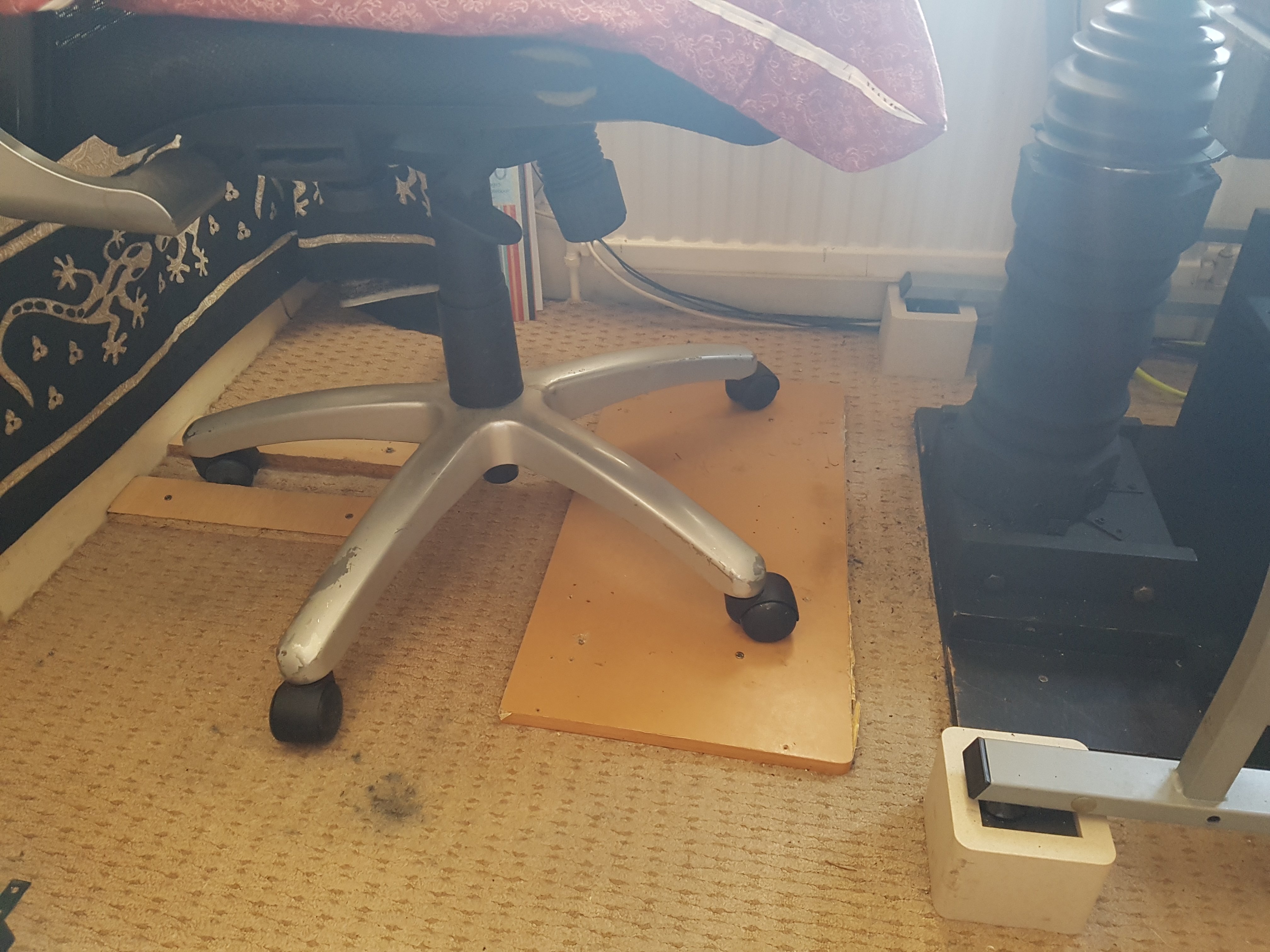

While idly looking for a height-adjustable floor-mounted joystick base I came across many weird and wonderful solutions for securing the standard office chair (on wheels). So I thought I'd share my very simple solution that works flawlessly. The chair's rotational issue is dealt with by virtue of my thighs being pressed against the side consoles.
The floor plates are screwed directly through the carpet into the floorboards but a separate base-plate could be used instead. :)


Seat in the 'locked and lowered' position.


  • Like 4
Posted (edited)

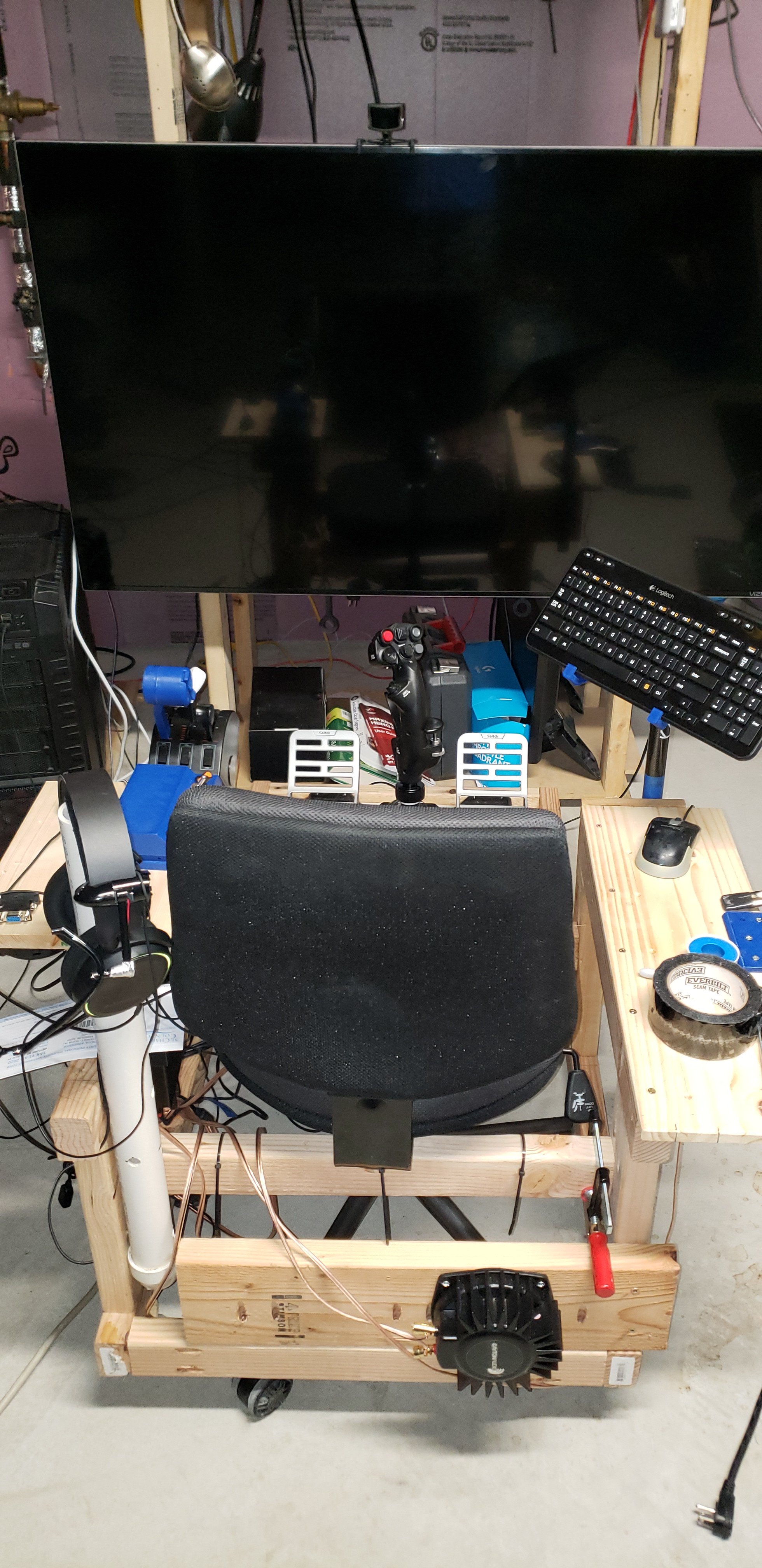

After 4 years I unpacked my equipment and was using my desk for work and flying.  That didn't last long and recycled some leftover shelves, replaced with x52 with a Virpil stick and repurposed my old 55" instead of going with VR.  I like McMurdo's setup and will eventually build a closet around this setup to reduce the noise as well as a redesigned base.



Edited by =TU=Gh0st
  • Like 3
  • Thanks 1
  • Upvote 2
Posted

Current (and final) update, the new stick. :)


  • Like 5
  • 1 month later...
1/JSpan_Wind75
Posted (edited)

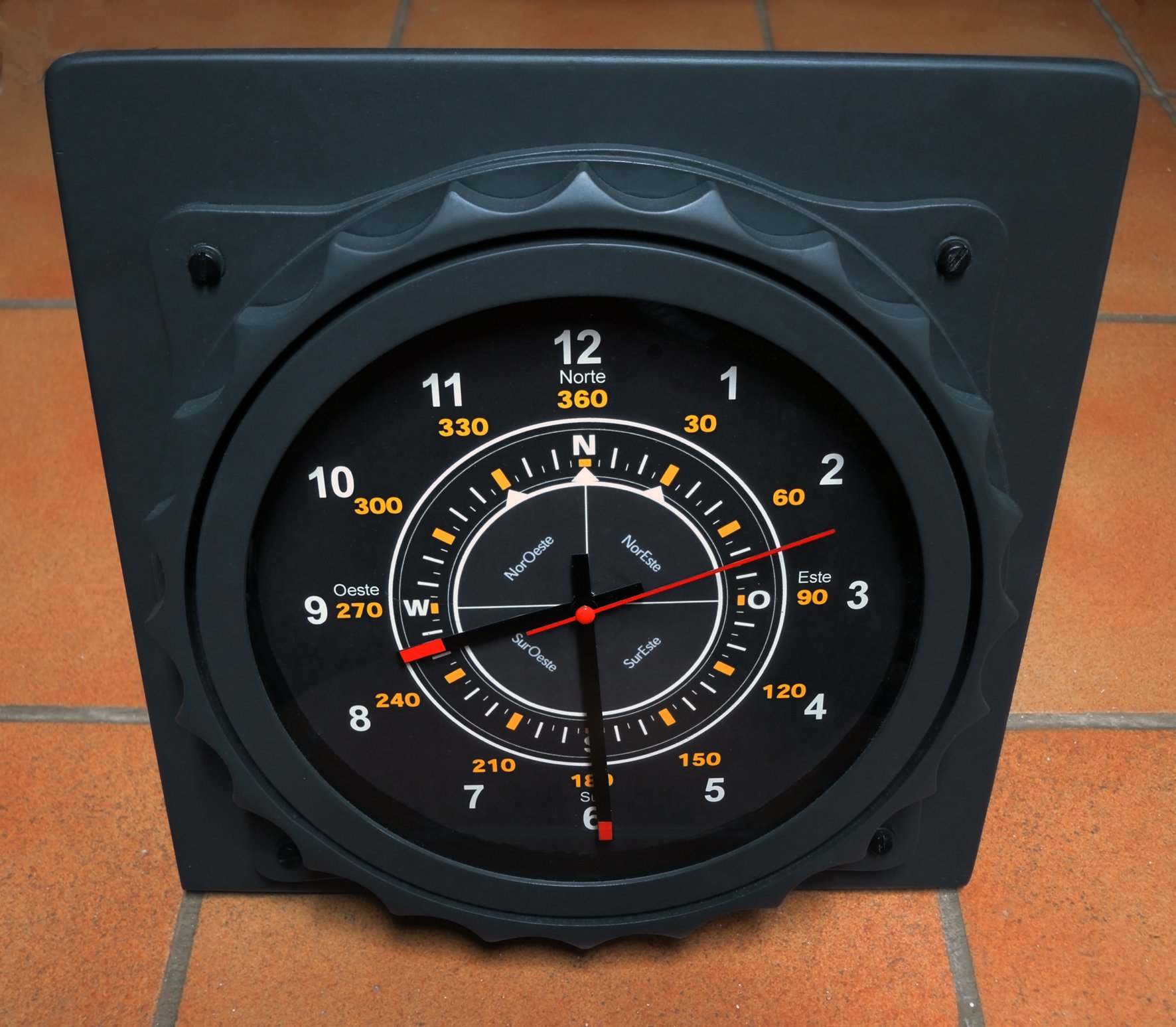

Compass Luftwaffe watch

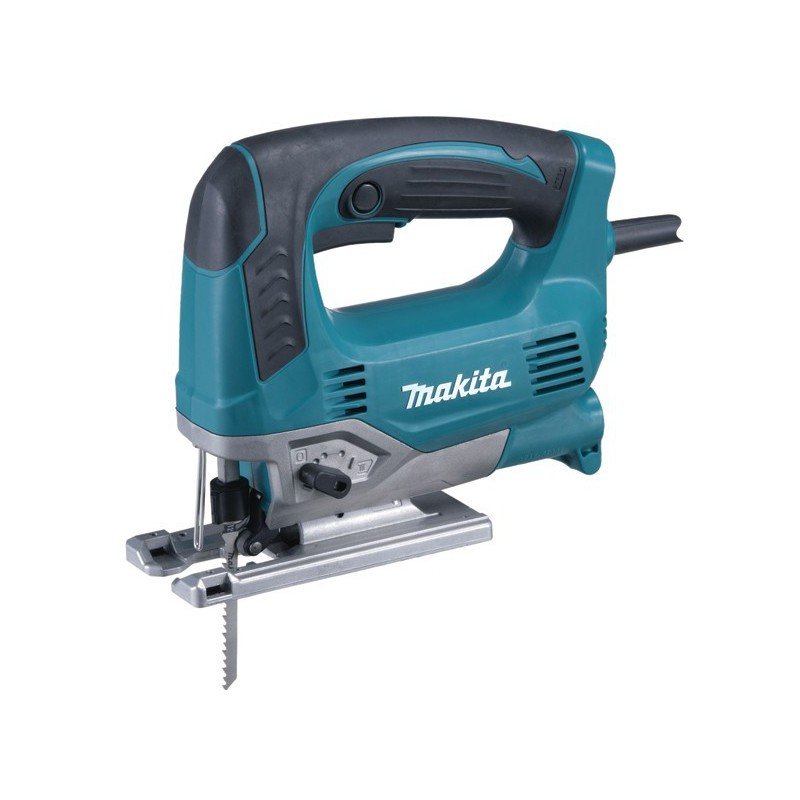

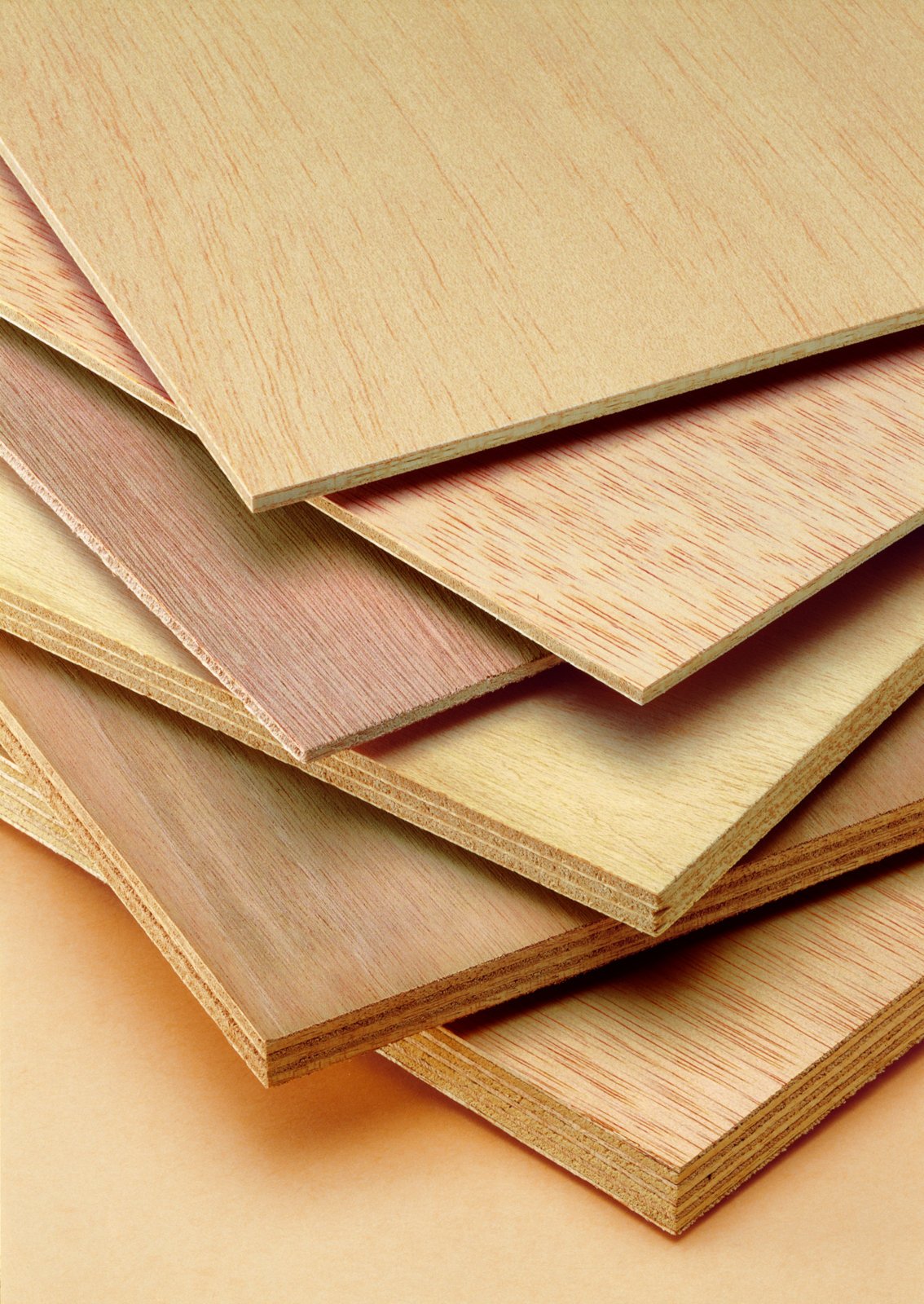

Some plywood, a jigsaw, carpenter's glue, poxypoly glue, an impression of the clock compass and a few cans of spray paint, lots of sandpaper and several coats of paint plus an A3 print of the dial and voila. Dimensions 35x35 cm





COMPASS RELOJ.jpg




Edited by 1/JSpan_Guerrero
  • Like 11
Posted

My 3.0


  • Like 1
cardboard_killer
Posted
22 minutes ago, GOA_Companere_Firebird_VR said:

My 3.0



Dude, you're flying a Christmas tree. :)

  • Like 1
  • Haha 1
  • 2 weeks later...
-332FG-Gordon200
Posted

@jskibo Your set up looks like the sim pits made by Viperwing for use with a very expensive VR headset.

So far they have cockpits for F16, F18 and F35. https://viperwing.com/





  • Like 4
  • Thanks 2
  • 1 month later...
Posted (edited)

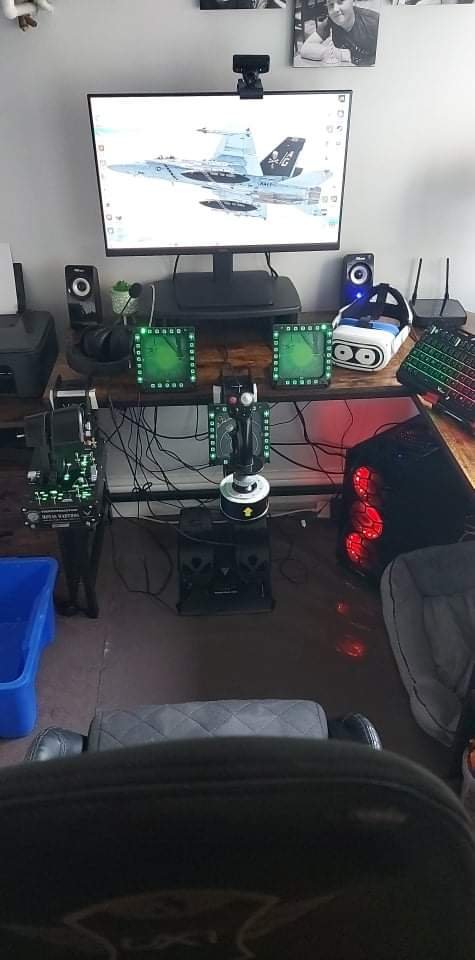

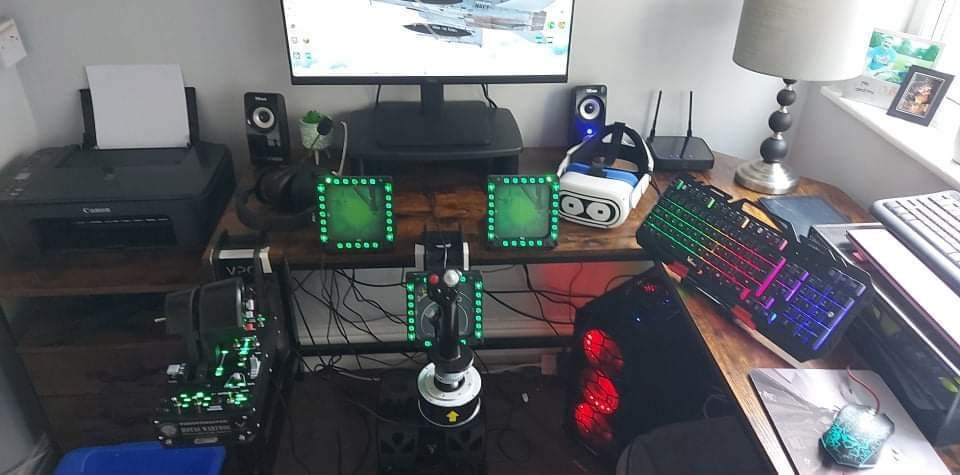

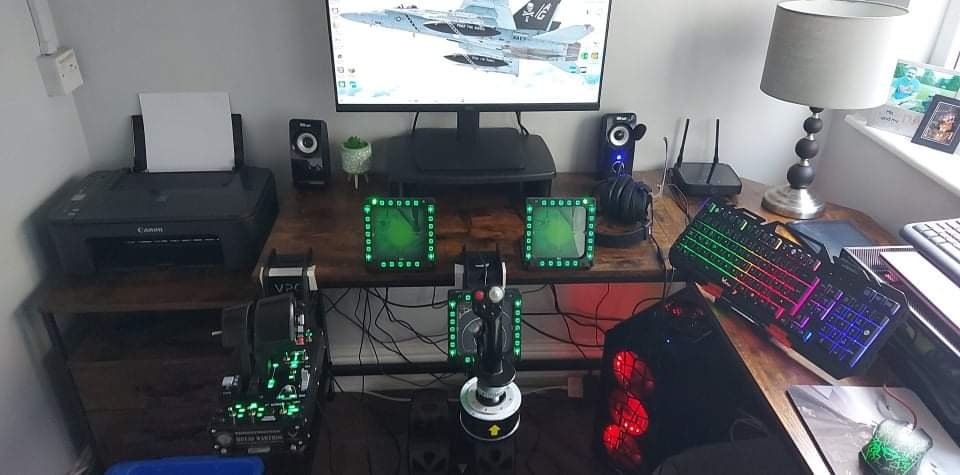

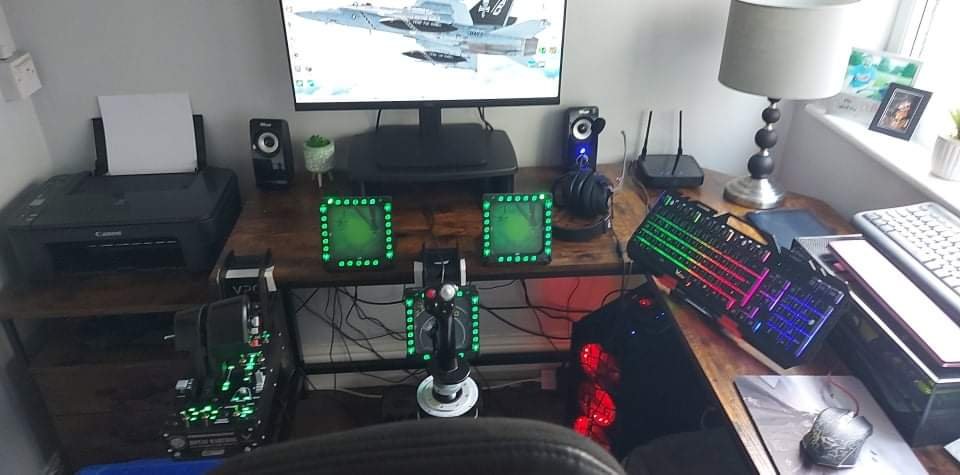

Just getting back into Flight sims and here is my set up, unfortunately I share the box room (office) with the wife and have to keep setting up and taking apart the set up so she can work lol

Looking to Santa to get me a Stream Deck XL to use instead of the keyboard, hopefully this will help with button pressing whilst flying in VR

Also seriously need to sort cable management out soon lol ?








Edited by DirtyBri
  • Upvote 1
  • 2 weeks later...
Posted (edited)

@DirtyBriThat Bender VR is hilarious! Cool idea.

Edited by BP_Lizard
  • Thanks 1
  • 2 weeks later...
SvAF/F16_Goblin
Posted

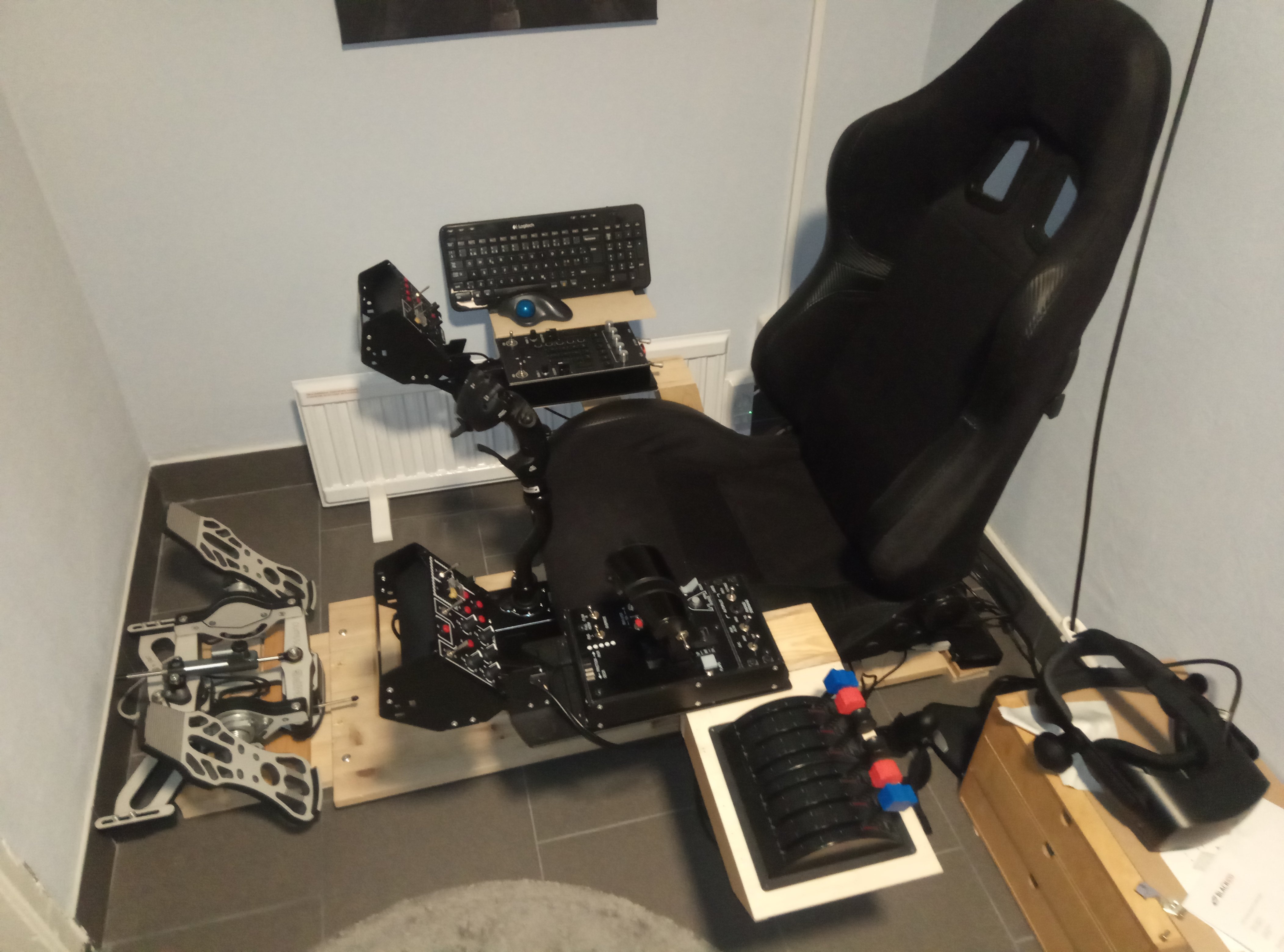

Made som modifications to my pit.

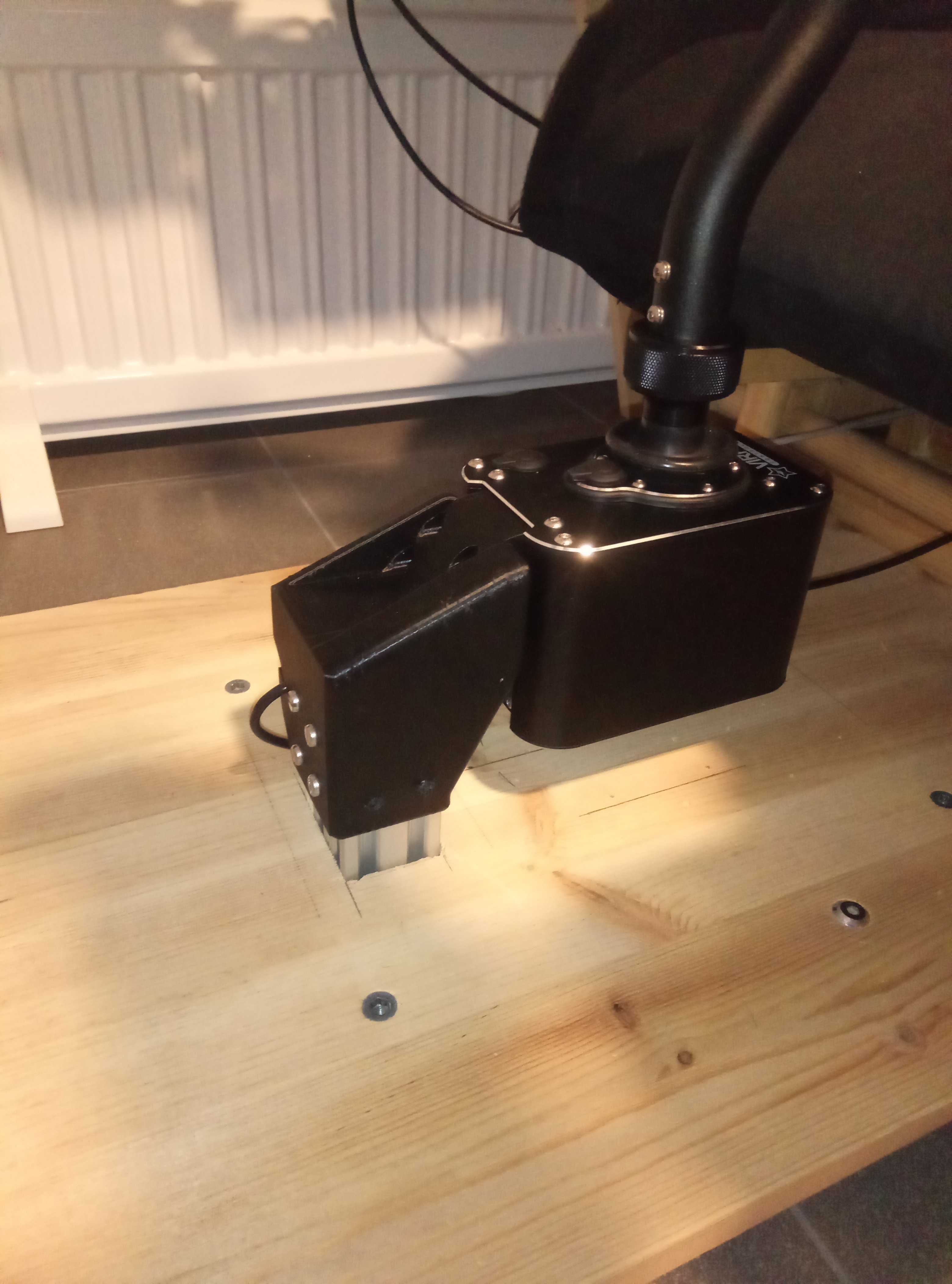

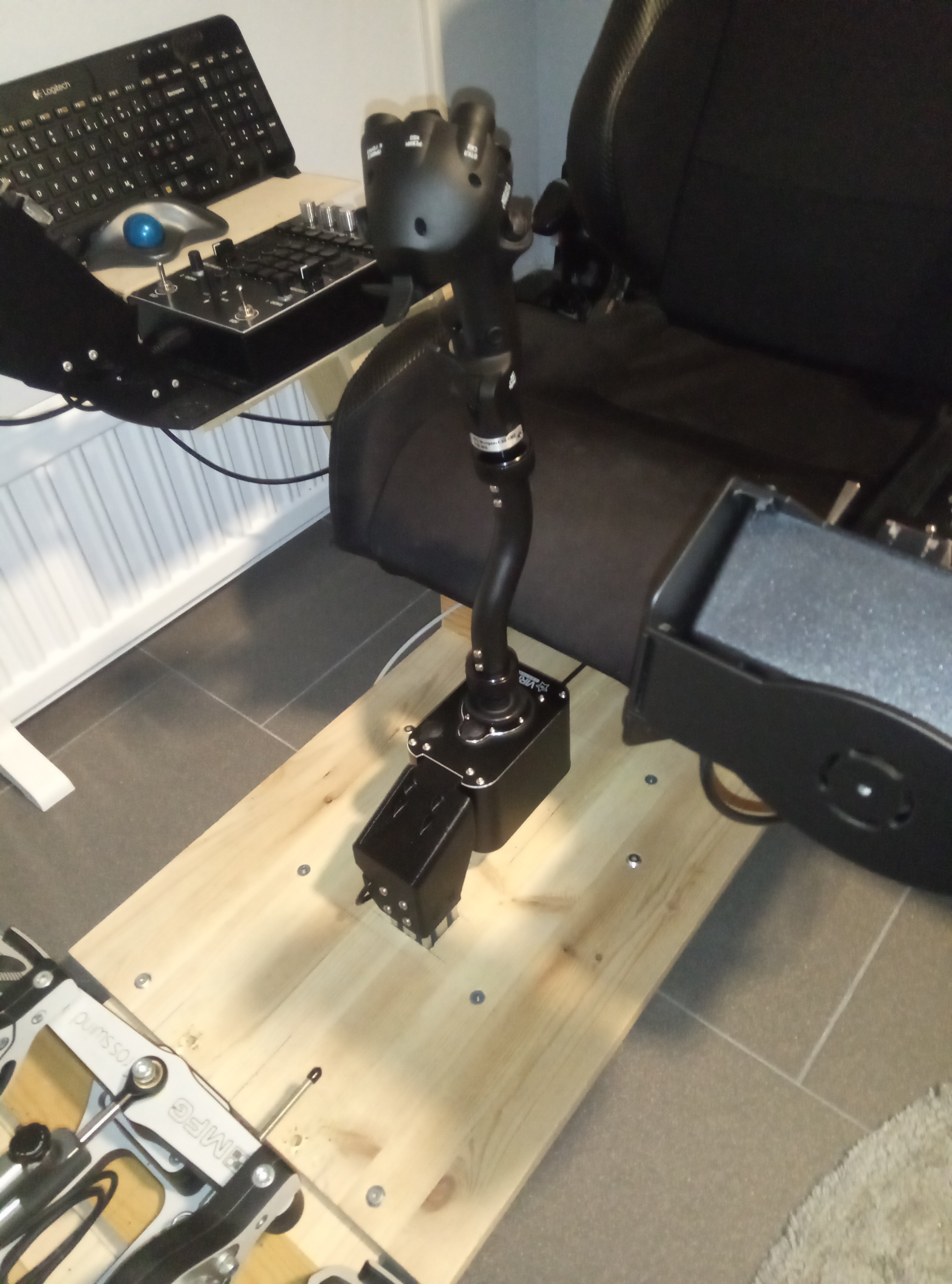

Ordered a Virpil Mogoos T-50CM2 base and stick to replace my warthog. Printed an adapter from thingiverse and used 20x40 profile in my stack to attach it. A 40x40 hole in the floor of the pit made a stable fixing point.

 IMG_20211203_105333_2.thumb.jpg.6e36ac6bccd0cc85b39990b0b1c5d55d.jpgIMG_20211203_105325_6.thumb.jpg.1cdff1f9e905498245c1462b82d21fae.jpgIMG_20211203_105344_3.thumb.jpg.b32be07c1e5bf4549d5e2213a0c241d4.jpg

  • Like 4
  • Upvote 1
GOA_Karaya_VR
Posted (edited)

3.0 cockpit




Edited by GOA_Karaya_CRI*VR*
  • Like 3
  • Upvote 1
RAAF492SQNOz_Steve
Posted
1 hour ago, GOA_Karaya_CRI*VR* said:

3.0 cockpit


Very nice! Like the German style rudder pedals.  Must take a bit of wiggling to get into the seat.



Love the huge Trim wheel that is located on the lower right hand side of the picture ?

  • Thanks 1
  • 5 weeks later...
Posted (edited)

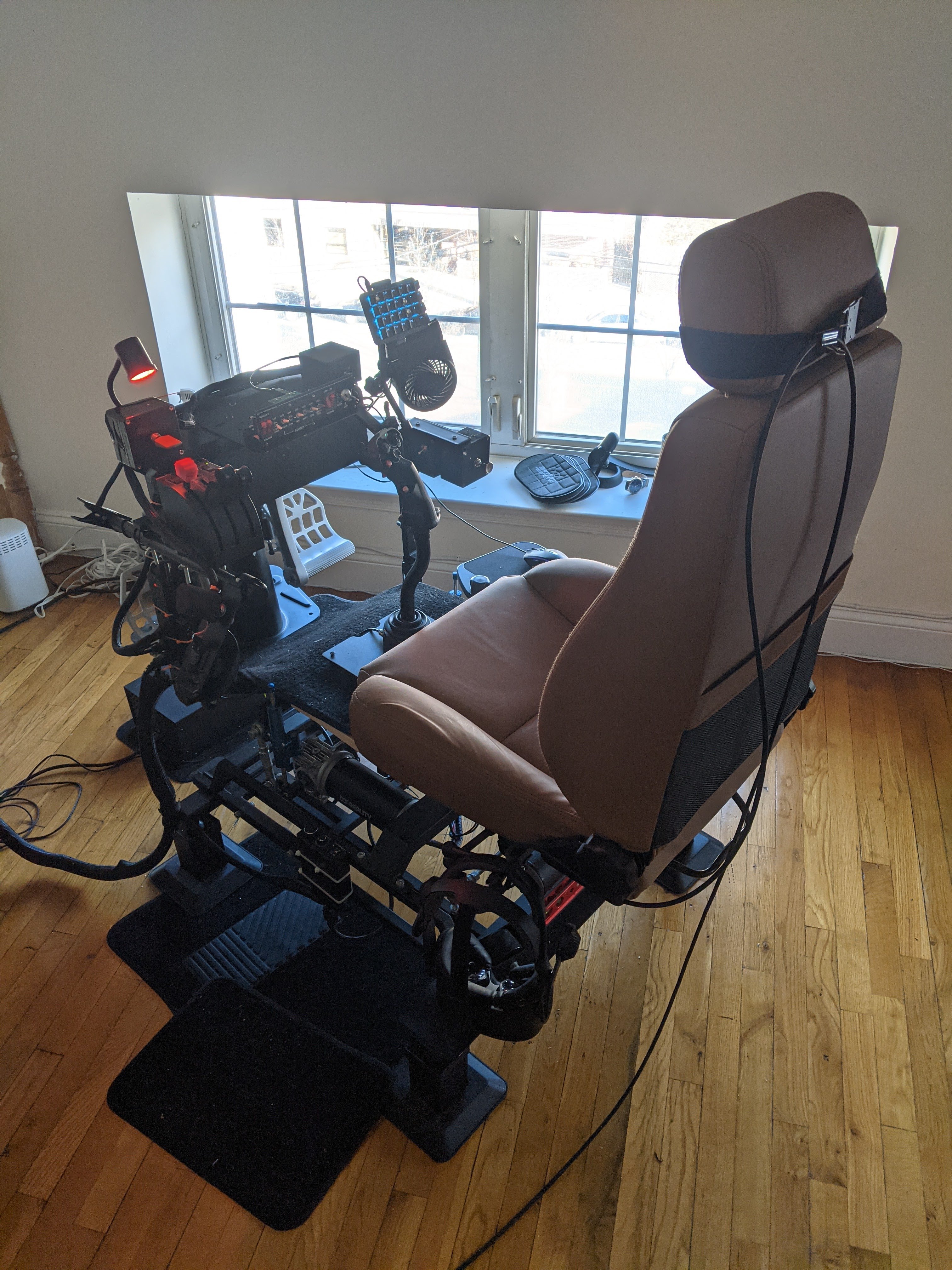

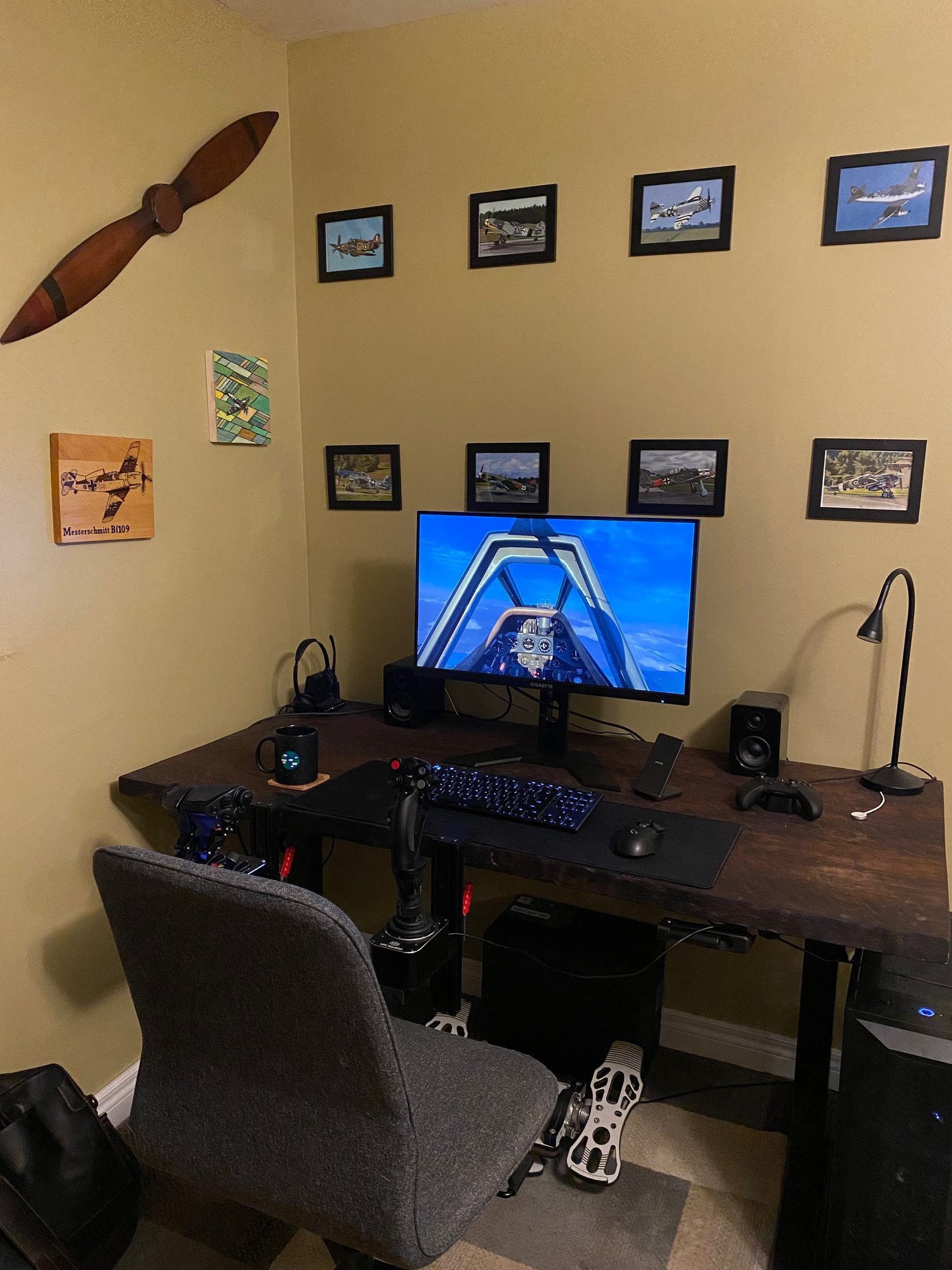

Here's mine... I used to have an Obutto setup but it was just too... limiting, now I can use the desk for work + general PC use + gaming again.

Edit to add info + new picture to show the rest of the wall as it's all plane art :).

Chair is an Ikea Ljangfall without the castors.

Desk is a primecables crank-adjustable standing desk frame + I had a local woodworker make me a slab from a tree and stain it, front is a live edge (but subtle enough that my mounts fit).

Foxx Mounts + Virpil WarBRD/MT50CM1 + Virpil CM3 Throttle.
MFG Crosswind Rudder Pedals



At this point my setup is 'finished' -- the only thing I'd like to do is paint the MFG Pedals black/graphite... will look up the best way to do it and take my time.






Edited by R3animate
Additional info!
  • Like 6
  • 3 weeks later...
Posted (edited)

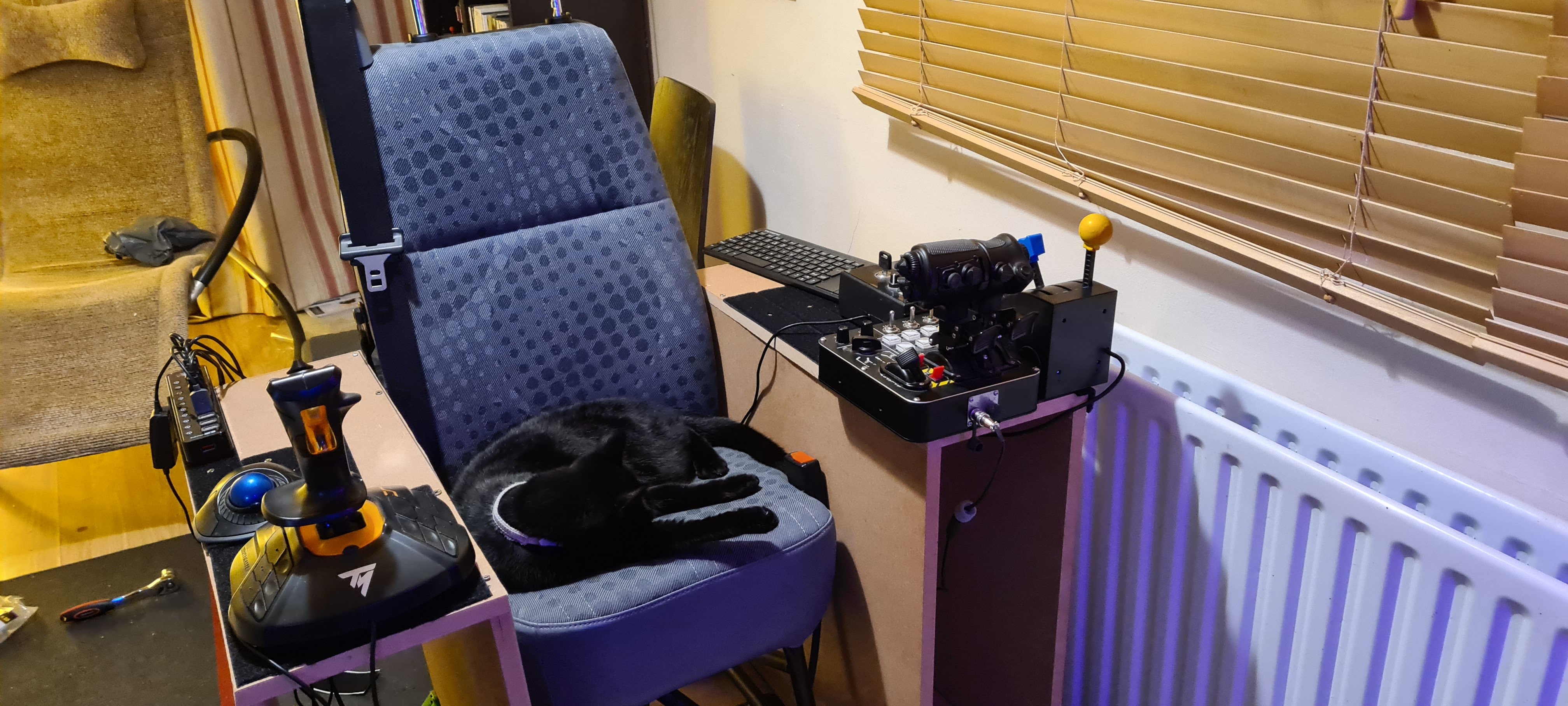

Here's my own current home cockpit setup. I built this by buying a chair on ebay which is meant to be used in a van, then building a wooden frame around it. The chair is bolted to the plywood base, it's very secure and definitely isn't going anywhere. I am using a Virpil throttle, a T16000m stick and thrustmaster rudder pedals, a thrustmaster throttle quadrant for radiators and mixture with 3d printed and spray painted knobs. I did this to make them feel very different to each other in VR. Also a USB button box that was meant for iRacing but I use with IL-2. I have to use AutoHotKey scripts to make it do what I want. In particular the switches that can latch up or down need AHK to get them to press keys when latched up then the same keypress when pushed down again, these are used for landing gear and bomb bay door toggles. I have a trackball, since I find this easier to use in VR, and a wireless keyboard. I added a numpad style device since this is good for pressing certain keys without taking the headset off.

20211021_125320.thumb.jpg.dabe0f236f82f38a5a185f5c5732ce39.jpg20211023_213113.thumb.jpg.9a55955a7a1ecf2b48454c21373dbea2.jpg


Edited by fraggg
  • Like 1
  • Upvote 3
Airborne-1980
Posted

From Mfs2020 to IL2... Just started IL2, and it's awesome.



  • Like 4
  • Upvote 1
Mustang_Driver
Posted

Hello everyone

I have gone through this entire cockpit build topic and really enjoyed seeing everyone’s setup!

I was a frequent user of the original version of IL 2 and have just purchased the most recent version.

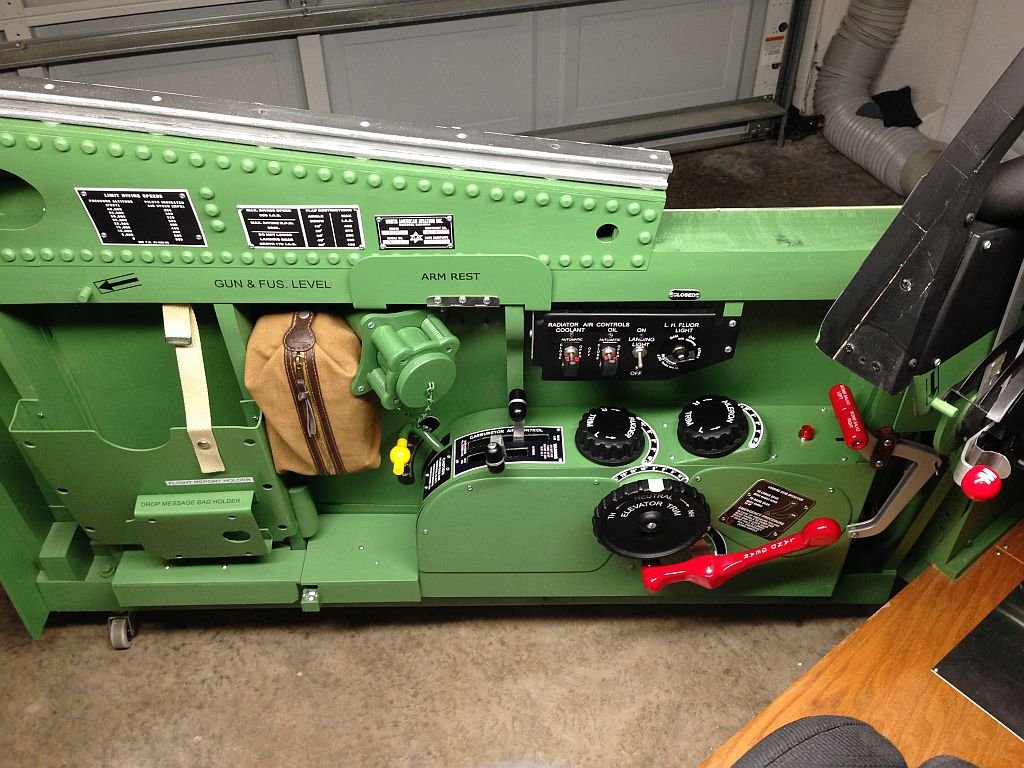

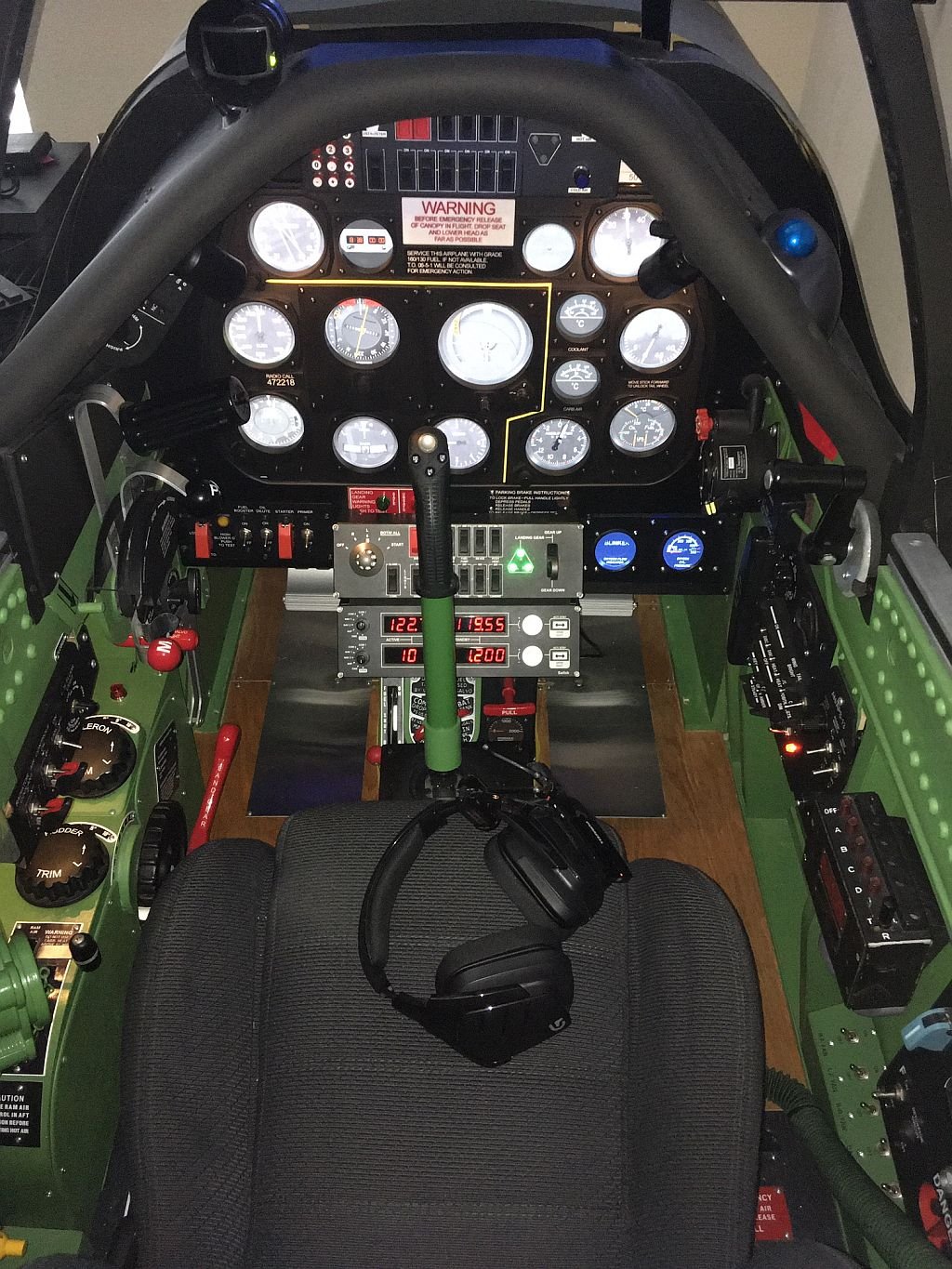

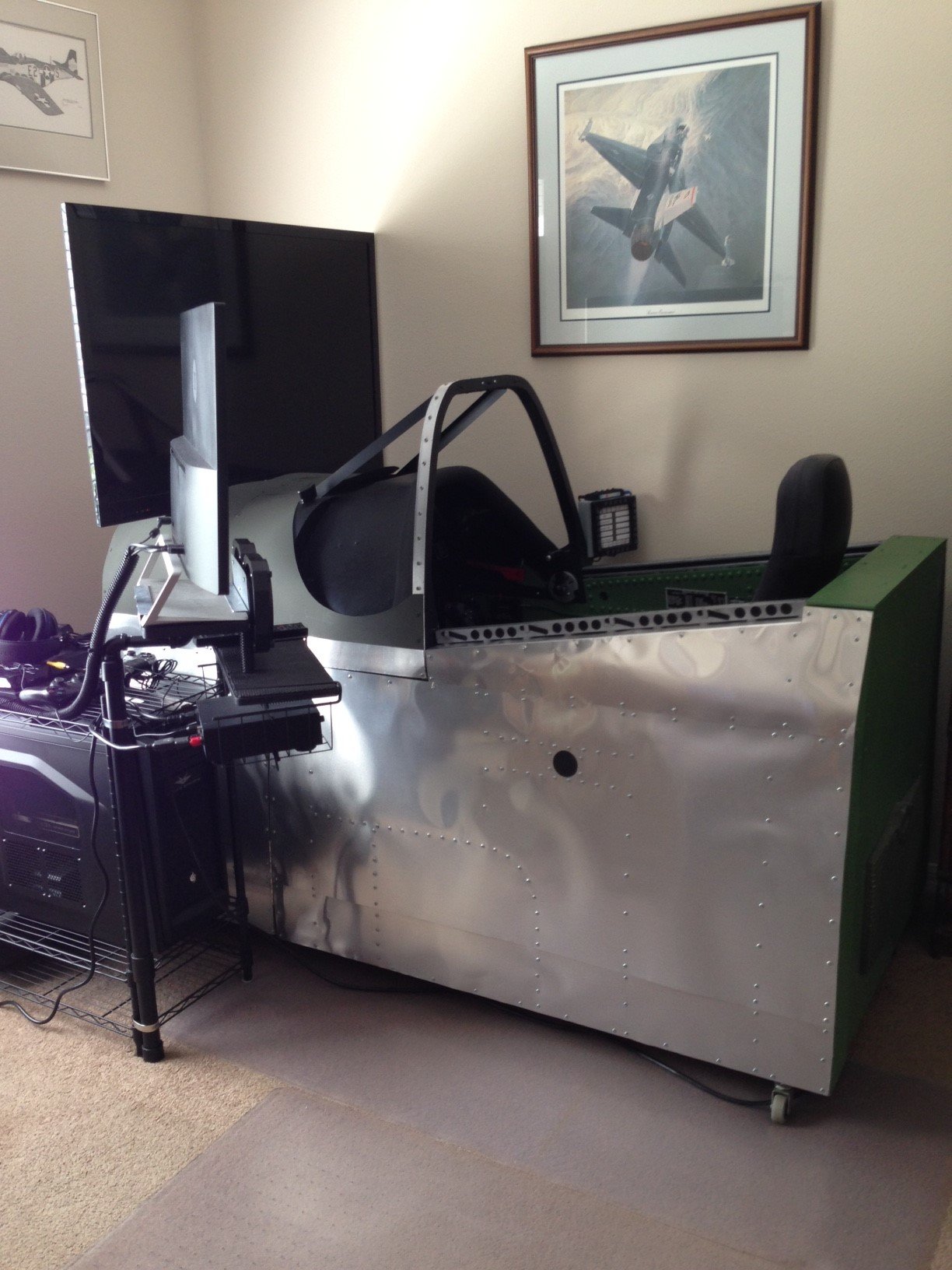

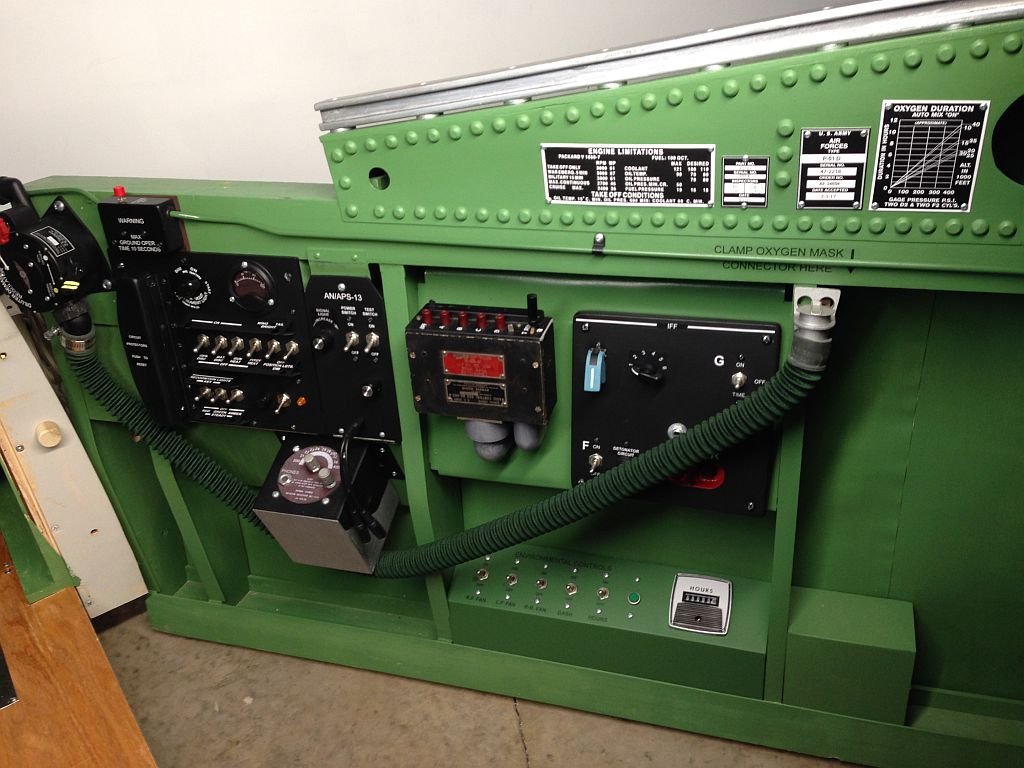

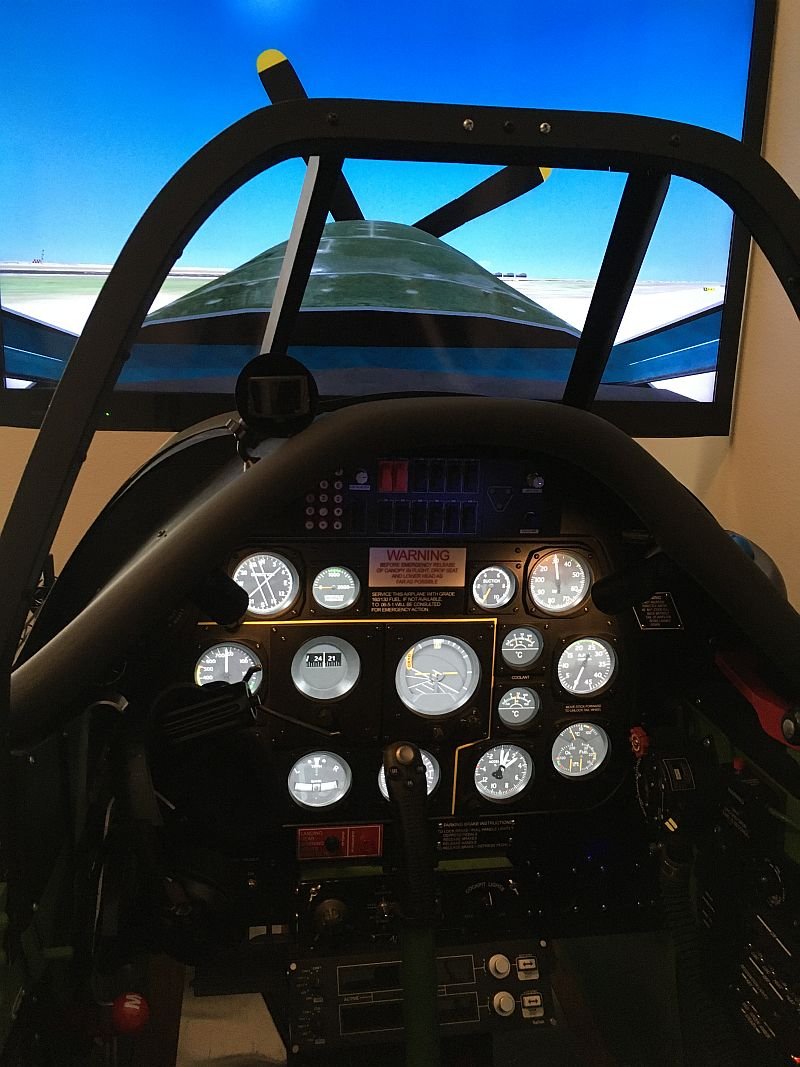

Here is my pit which I built from 2015-17.  Even though it’s a P-51D MIL pit I do have Air Manager gauges for the MIL & CIV P-51, T-6, P-40 and C-172.  By adding or removing a few control devices I can make the MIL pit work reasonably well for the planes I listed. It was initially built for FSX/P3D with plans for a future combat sim and now with IL2 installed I’ll start getting my controllers setup.

Ed



2 IMG_4934.JPG

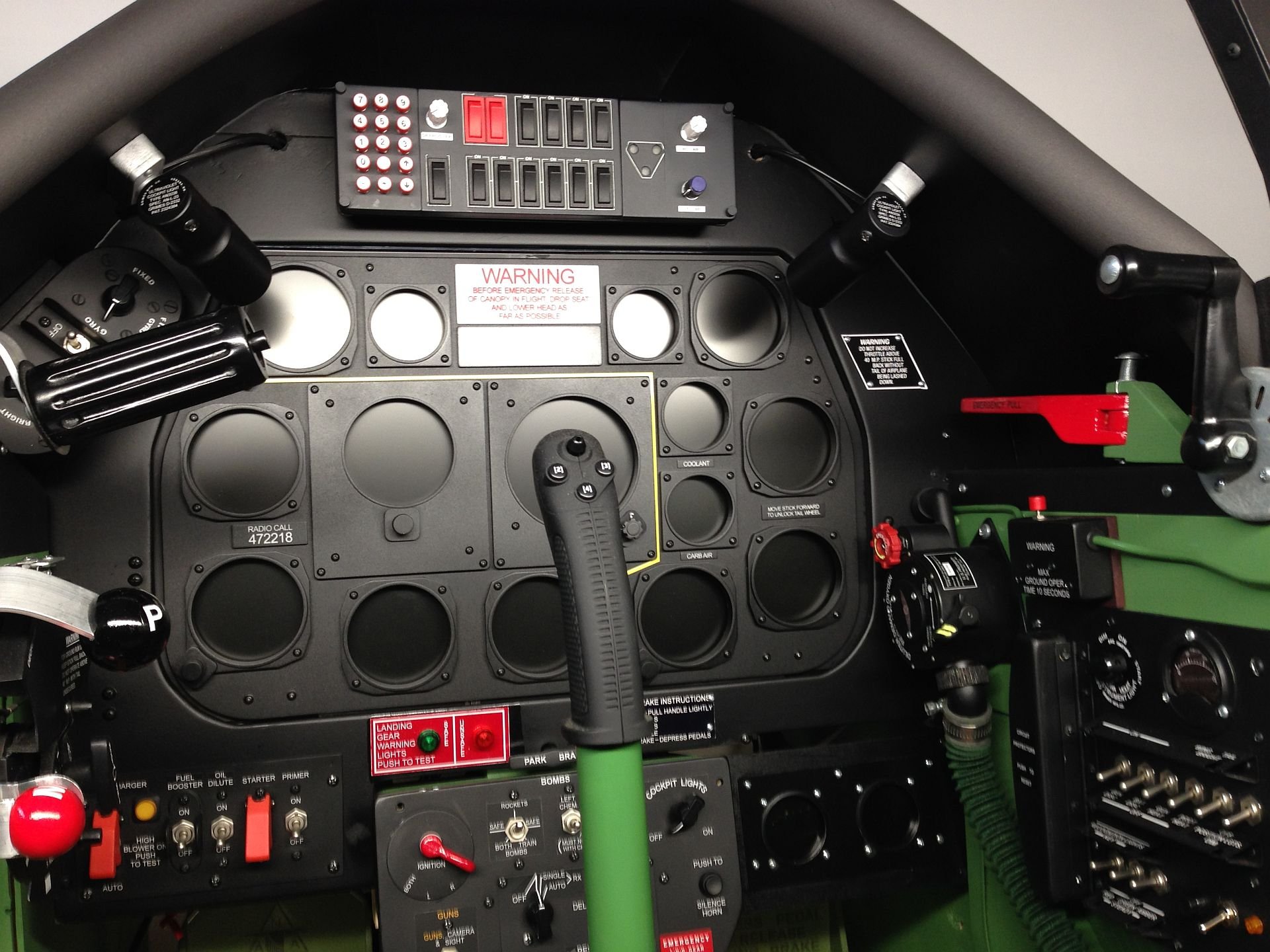

3 dash IMG_3574 a.jpg

9 left IMG_3530 a.jpg

11 right IMG_3581 a.jpg

5 IMG_0616 a.jpg

6 IMG_0521a.jpg

  • Like 23
  • Thanks 1
  • Upvote 8
Posted

Wow, that really looks great!
