A complete guide to set up Head-tracking (Opentrack)

Recommended Posts

Posted (edited)



Hello there, fellow pilots,

As time progresses, more and more players join the IL-2 community have difficulties setting up head-tracking. One of the more common issues I come across is the installation and configuration of a head-tracking clip/hat and head-tracking software.

To help these new players, I took it upon myself to write a clear and elaborate guide that will help anyone setup a new head-tracking system with the use of Opentrack. I will keep the topics separated by chapter to keep a clear distinction between the different elements.

Keep in mind that this is purely based on my experience and that of those I talked to. Your experience may differ!



----------------------------------------------------------------------------------------------------------------------------------------

Abbreviations

Before we start, here are a few things that are useful to know the meaning off.



  • DoF: Degrees of Freedom. How many axes of movement are recognized.
  • Tracking Clip: a clip that connects to your headset with 3 IR lights.
  • Tracking Hat: a baseball cap with 3 IR lights.
  • IR filter: an infrared filter that removes all light except for IR light.
  • DIY: Do It Yourself.
  • Curves:  see explanation in the “How head-tracking works” section.
  • Point of rotation: The point around which your head rotates.



----------------------------------------------------------------------------------------------------------------------------------------

How head-tracking works

To understand head-tracking, you need to understand 3 things: the hardware, the head movement and the curves.

Hardware

Headtracking can be done with several systems. I will discuss the most common and most reliable method in flight sims: an infra-red camera with infra-red LEDs mounted to via a clip or hat.

The camera: Most cameras have a filter that will remove infra-red light out of the picture as this will cause unwanted brightening of the picture. However, for head-tracking, we want the opposite. By only using infra-red light, we can easily track a small infra-red LED light without the interference of other colours. The infra-red light is not visible to the human eye but is easily visible to a camera.

The most common camera used is a PS3-Eye camera. This camera is modified so that it will only detect infra-red light.

Infra-red LED’s: On the Tracking Clip/Hat, you will find three infra-red LED’s. These LED’s emit only an infra-red light. These 3 lights are positioned in a specific orientation so that when you move your head, their relative position will change. This relative position is then used by the program to figure out how your head moves.

Head movement

You can move your head in 6 different ways, so you have 6 degrees of freedom (6 DoF). The following different movements are possible (without the movement of the eyes)

  • Yaw: Rotating your head from side to side. (just like an aircraft)
  • Pitch: Rotating your head up and down (again just like an aircraft)
  • Roll: Rolling your head from side to side (and again just like an aircraft)
  • X: Horizontal sideways movement
  • Y: Vertical movement (up and down)
  • Z: Zoom (Forwards/backwards movement)

These movements are translated by a head-tracking program like Opentrack into movement of your head on the screen. This is done with the use of curves.

Curves

When dealing with head-tracking, a glaringly obvious problem will present itself. To look towards the sides, backwards, and up or down, you need to turn your head. However, your monitor does not move with you when moving your head. This means that when you look back, you can’t see your monitor anymore. To solve this problem, a multiplier is used. For instance, when you move your head 5 degrees right, the game will move your head 30 degrees right in-game.

These multipliers can be tweaked to your liking. You might like a dead zone in the middle; a zone where your small movement will lead to no movement in-game at all (useful for looking down the sights).

The great advantage of these multipliers is that they can be tweaked to get different effects. For instance, if I want small movement when looking forward but large movement when looking back, then you can use curves. These curves are fully adjustable and should be set to your liking.

Keep in mind that it will take a little bit of time to get used to these curves. However, you get used to them quite quickly and then you won’t even notice it is there. It will feel natural.



----------------------------------------------------------------------------------------------------------------------------------------

Why should you get a head-tracking system?

Headtracking may seem a bit daunting in the beginning. There are many reasons why you should get into head-tracking. I will list a few of them below and discuss them.

Advantages during a flight

These are probably the most important reasons why you should get a tracking setup. Hence why I placed it first.

The main reason most people have given is the ability to scan the sky for opponents and tracking your opponents during a fight. I totally agree with this. The fluid movement of the head and the ability to focus on and follow your target give you a huge advantage over someone who does not have head-tracking.

During a flight with a wingman, you can keep easy track of your wingman and find him again easily when you lose track of him.

I also found that it helps with navigation. It is much easier to find ground objects that will help you determine your position.

Lastly, I found that it helps with reading the instruments in the cockpit. I exclusively fly with the instruments and not with the tech messages on the side. Without head-tracking, it is much harder to look at the different instruments as you can’t really look at one specifically.

Headtracking is quite cheap

Although there are expensive options like VR and TrackIR, there are also several cheap options. TrackHat and DelanClip, for instance, provide a complete setup for only 35-40 euro. A DIY system can be made for as little as 10 euro! If you are willing to make it yourself.

Head-tracking is easy to set up

If you follow this thread, it will be easy, and you are good to go in no time. Once it is set up, you will probably never have to look at it again.

What games use head-tracking

It works with several games. The ones that I know about are:



  • IL-2 Great Battles
  • Arma 2
  • Arma 3
  • Rise of Flight
  • DCS
  • IL-2 Cliffs of Dover
  • Euro Truck Simulator 1
  • Euro Truck Simulator 2
  • Star Citizens
  • Assetto Corsa
  • Dirt Rally
  • Richard Burns Rally



There are much more so let me know if you know a game I need to add.



----------------------------------------------------------------------------------------------------------------------------------------

Different head-tracking systems

There are several options to choose from. The following options are the ones I have come across that are the best for Flight Sims:

TrackHat, this is a good price/value option. The cheapest complete starters set is 37 pounds. In this starter set, you get a modified PS3 eye camera, cabled TrackHat clip, instruction manual and all software is provided. All elements can also be bought separately. The TrackHat Clip is durable and will last you a good while. This product is reported to be very easy to setup with good customer support.

DelanClip, not used as much as the TrackHat but does seem to be a good alternative to TrackHat. A bit cheaper then TrackHat but has the wiring exposed.

Do It Yourself Tracker with PS3 cam and Opentrack: this is by far the cheapest setup. Investing some of your own time, you can get a fully operational setup for as little as 10 euro. (prices will vary from place to place). It will take some knowledge and research to build your own tracking clip and modify a PS3 camera. The advantages speak for themselves though. Cheapest of all options, highly stable, reliable Opentrack software, and 100% customisable. This setup is (if setup correctly) much more stable than TrackIR.

TrackIR 5: TrackIR was the pioneer in the head-tracking industry but has become terrible price/value deal. There are equally good or better options for a lower price. However, the curves are easy to setup and are very smooth during use. This product is by no means bad. It works well and is quite easy to set up. It is just incredibly expensive compared to the competition.

Tracking Clip or Tracking Hat

Which you choose is up to you. From experience (yes, I used both), I can say that it depends on whether you use headphones or not.

With headphones, a clip, mounted on the side, is easier. It is smaller and does not block your vision at all. I do not recommend using a tracking hat with headphones as it can create an uncomfortable feeling (your experience may differ). The cap can also (depending on your curves) block your view when looking down.

If you don’t use headphones, then it is much easier to use a Tracking Hat as there is nothing to mount a clip too.

Tracking accuracy is not of importance when choosing one of these. They will give you the same performance.

Wired or wireless Tracking Clip/Hat

This is a personal choice. I have written the advantaged and disadvantages below. It is up to you to choose which you prefer.

Wired, advantages

  • Never stops working
  • Always reliable output
  • Often cheaper

Wired, disadvantages

  • Cable could get in the way
  • Not complete freedom of movement as the cable might restrict some movement
  • Takes up a USB slot.

Wireless, advantages

  • No annoying cable
  • No restriction on freedom of movement

Wireless, disadvantages

  • Battery could be heavy (depending on what battery you use)
  • Battery runs out (incredibly annoying if it happens during flight)
  • Requires recharging
  • Battery might not last forever

Although both have their advantages and disadvantages, it is up to you to decide which to choose. I can, however, give you my experience since I have used both (both DIY).

I find the cable a large improvement over the battery. The reliability is the largest selling point for me. Combined with a headset that has a cable, I simply don’t notice the cable during flight. The restriction posed by using a cable is also not really a big deal since I have enough slack in the cable to compensate.

I found the batteries annoying as they would constantly die. I used a homemade system with 1 9V rechargeable battery. Even though I had 2 batteries that I could swap quite quickly, they did always die at the worst possible time. During dogfights or when starting a bombing run are the most annoying.



----------------------------------------------------------------------------------------------------------------------------------------

Where to get your hardware and software

In this guide, I will walk you through the steps to set up an Opentrack setup as this is currently the best software (and it is free). The coolest part about Opentrack is that it will work with pretty much any setup and product. Below I have listed some of the best options and where to get the hardware and software.

Hardware

The easiest method is to buy a complete head-tracking setup. This will guarantee you a working product and does not require any modification by you.

  • Make sure to get a Tracking Clip or Hat AND a PS3 Eye camera.
  • You can get all TrackHat hardware here: https://www.trackhat.org/
  • You can buy the DelanClip here: http://www.delanengineering.com/
  • I might make a guide on how to make your own tracking system, but for now, this will do just fine.

Installing the hardware

Installation is quite easy. However, here are a few points you need to pay attention to.

  • Tracking Clip: Attach the clip to the side of your headset. Which side is up to you.
    • You will notice one long arm on your clip. This long arm should be the lower arm.
    • It is best not to place the clip horizontal on top of the headset since opentrack is not designed for that.
  • Tracking Hat: Put it on your head but NOT backwards!
  • Camera: the camera is best placed on top of the monitor. Opentrack is designed to work with this and should, therefore, work best when placed there.
    • Trackhat: When using a Tracking Hat, it is best to place the camera in the middle of your monitor. This will give you the most freedom of movement in all directions.
    • Trackclip: since the clip is offset to the side, you might want to do the same with your camera. Place your camera in line with your tracking clip. It is not really necessary but it might avoid some freedom of movement issues later on.

Software

  • The Opentrack software can be found here: https://github.com/opentrack/opentrack/releases
    • There are other options like FaceTrackNoIR and Freetrack. However, I found Opentrack the most reliable and it is the only free head-tracking software that is still updated on a regular basis.
    • TrackHat has its own modified version of Opentrack called “TrackHat Opentrack”.
      • !!! Do not use the TrackHat version of Opentrack! Based on issues brought fourth by you guys, I learned that it contains several problematic bugs that the original Opentrack does not have! !!!
  • For the PS3 Eye camera, you will need to install the CL-Eye Platform Drivers from Code Laboratories: https://mega.nz/#!QkAjnBwD!-ULu08uFwGK5hl7ugbFZfuAw2hIdFpwVtn-jewThrN8

Installing the software

The only software you need to install is the Opentrack and the CL-eye drivers. The installation of both software is straightforward and should not need any explanation.



----------------------------------------------------------------------------------------------------------------------------------------

Setting up your Opentrack

We have finally reached the point where we can set up your head-tracking system. The easiest method is to go through each screen one by one.

I will use various images to point out what I am talking about.

  • Red outlines in the images show you what settings you really should use. Using other settings might not work.
  • Blue outlines show you what you can change depending on your setup or liking.
  • Orange outlines show unimportant stuff that you don’t have to worry about. Just leave it as is.

 CL-Eye Test (Only for PS3-Eye)

Before you start with Opentrack. You need to set the camera to its correct settings. To do this, open the program CL-Eye Test. This program allows you to test the camera and change some recording settings.

In the program, click on "Options" and go to "Video Capture Filter". Set the sliders as follows:

  • Set the "Gain" Slider all the way to the left.
  • Set the "Exposure" slider all the way to the right.
  • Set the "White Balance" sliders all the way to the right.
  • Make sure the “Auto” Boxes and "Colour bar" box are unchecked.

If you find that the settings don’t work well for you, feel free to play around a bit with the different sliders to get the best result.

Hit “OK” when you are done and open Opentrack.






Main screen

This screen is the one you will see the most. This shows you all relevant information when using the head-tracking software.

The start and stop buttons do exactly what you think they do. No need for further explanation.

The “Raw Tracker Data” shows you the raw input data from your head movement. (Note, this number is rounded off)

The “game data” shows you the values that are sent to the game. These values are set by your “mapping (curves)” (will explain that in the section Mapping) (Note, this number is rounded off)

You will need to set the following settings:

  • Input: PointTracker 1.1
  • Output: Freetrack 2.0 Enhanced
  • Filter: Accela

“Profile” gives you the option to create a new profile. Do this before you set up your new mapping and options settings. You can have as many setups as you like. In general, you need one for each game since one game might handle the data differently from another.






Input

Click on the little hammer on the right of the drop-down menu to go to the PointTracker Settings window.  Here you can set up your camera and your tracking clip/hat.

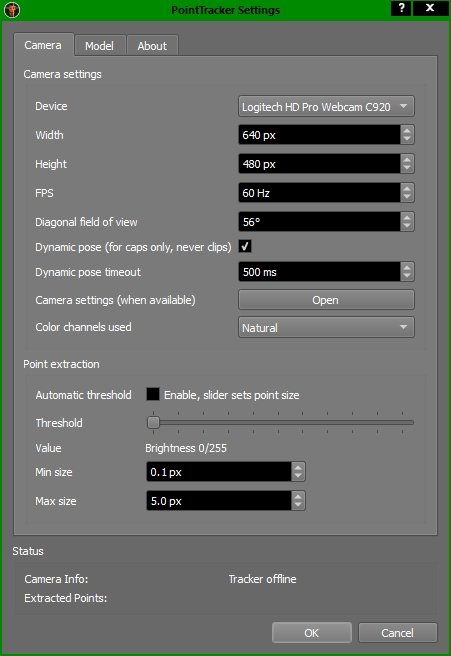

  • Camera Settings: You want to set these as displayed in the image if you use the PS3 Eye. This will give you the smoothest result. If you use a different camera, you will have to adjust these settings according to your camera’s specifications.
    • Diagonal field of view should be set to either 56 (red dot) or 75 (blue dot) for the PS3-Eye Camera.
  •  Point Extraction: Here you can set the threshold between which a point is used or not. You will have to play with this to set it correctly for your unique room and setup.
    • The “Threshold” option lets you set how bright a dot must be in order to be picked up.
    • “Min size” Lets you set the smallest size a dot can be to be used. If the dot is smaller: it is not used.
    • “Max size” Lets you set the largest size a dot can be to be used. If the dot is larger: it is not used.
    • I suggest disabling “Automatic threshold”. Does not work all that well. It is better to find your own settings.
    • TIP: Set the Point Extraction on a sunny day. That way you can set it up to work both in daylight and night-time.
  • Model Clip: here you can set the dimensions of your clip. Make sure to measure these from your tracking clip.
    • Note: the values in the images are my custom settings. Yours will differ!
  • Model Cap: Same as Model Clip but for when you use a Hat.

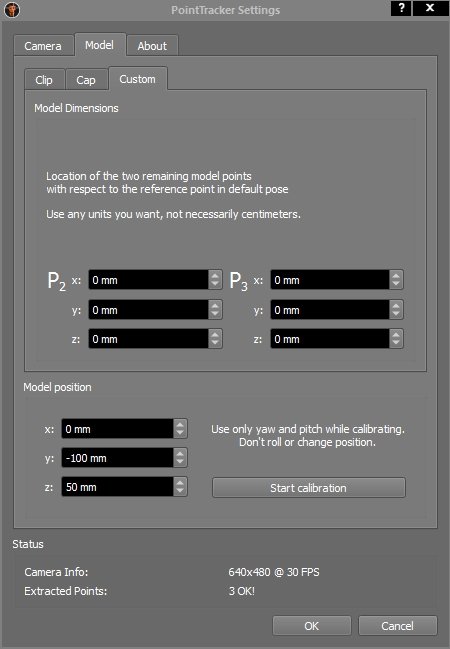

  • Model Position: this is a crucial thing to set up. Your head-tracking clip/hat is offset from your point of rotation. This means that it will translate your movement incorrect if you move your head. To fix this, you must calibrate your system. Simply click the start calibration button (head-tracking must be started before you can click Start calibration) and move your head around a bit. Stop the calibration and it will have found a point that is quite close to your point of rotation.
    • Note: it is highly unlikely that finds the exact point but that won’t really be an issue. If you want a better result, you can adjust it manually.
    • The directions for manual calibration (from your point of view when looking at the monitor):
      • X 0 Y 0 Z 0 is chosen as one of the 3 LED's. This could differ per user.
      • X + is to the right, - is to the left
      • Y + is above, - is below
      • Z + is behind, - is in front






Output

Set this to Freetrack 2.0 Enhanced and leave it alone. No need to change the settings.

Filter

The filter takes your raw data and smoothens it a bit so that you don’t get any annoying jittering when looking around. I use the standard Accela settings. If you want to smoothen it a bit more. I suggest only moving the “general - Smoothing” by a few milliseconds. Any smoothening will introduce a slight delay. If set low enough (say 2ms), you won’t really notice this delay.

Leave the other settings as they are.



Note: As of version 2.3.10, the "General" and "Rotation nonlinearity" have been removed. They are not really needed anyway. The other settings should work fine unchanged.






Options

Note: I use a slightly older version of Opentrack (I use 2.3.1.5). Your options menu might have some features added or removed!

In the options, you can set how your Head-tracker works.

Shortcuts

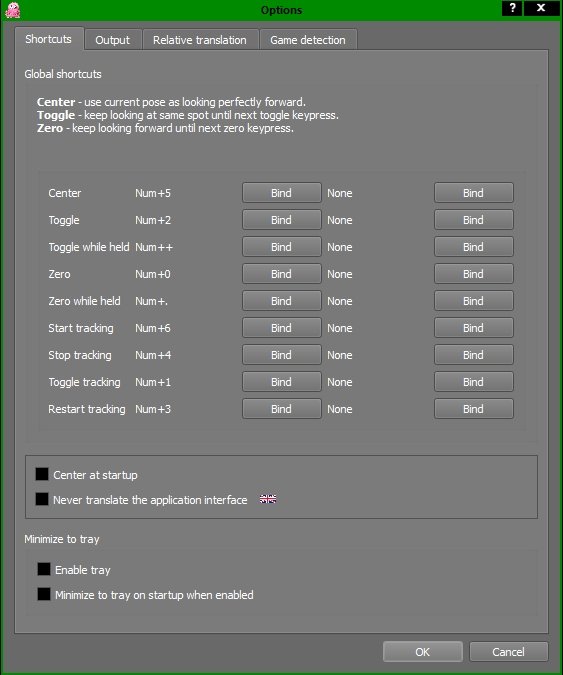

Here you can set up your preferred shortcuts to start and stop your head-tracking. I am not going over each individually but I will provide you with the important binds.

  • Center: This will recenter your system and take your current head position as the new "looking straight forward".
  • Toggle: will "pause" the system and lock your head position. Press it again and you will go back to tracking again.
  • Zero: Locks your head in the centered forward facing position. If you use "Neck displacement" in the Relative translations tab, then you can still move left, right, up, down, forward, and backwards but all forms of rotation are locked.
  • Toggle tracking: this does the same as "Start tracking" and "Stop tracking" but on a single button or button combination.
  • Restart tracking: It stops and then restarts your tracking.

Camera

  • Camera angle has been removed from the current versions. You should not have to worry about this. But for those that might need it (only in older versions of Opentrack😞
    • Camera Angle compensates for an offset camera. If your camera is to the side, this will let you set the values so that moving towards the middle of the screen will also result in your in-game head moving to the middle of the screen.
  • Custom center pose allows you to set a custom “forward” view. I advise you leave this alone. You really don’t need it.
  • Centering method allows you to set what type of tracking technology is used. Leave this on Absolute as this is how camera head-tracking works.

Output

Here you can set how your head movement is translated. In general, you should leave most as they are. My personal setup has Roll disabled since it gives a bit more of a realistic feel. What settings you use is up to your personal preference.

  • CSV Data Logging: leave this off. It is only useful if you have problems with tracking. In all other situations, it is just annoying.

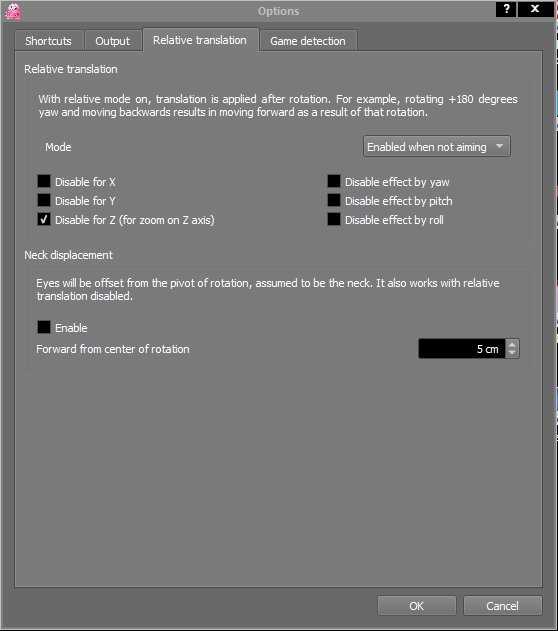

Relative translation

  • Relative translation allows you to change how head movement is translated when you look to the side or to the rear. For instance: when you look behind you and you want to move your head to the right, then you will have to move your head to the right. Leaving this off will mean you have to move your head to the left in order to move to the right when looking back.
  • Neck displacement will offset your eyes based on where your point of rotation is. With this off, your head movement in-game is basically as if your eyes are a single dot at the same place of your point of rotation. That is not what happens in real life. With these settings, you can set the horizontal and vertical distance of your eyes from your point of rotation.
    • Note: this is different for each person. Set your own values.

Game detection

Here you can add games and link them to different profiles. Opentrack will then activate your desired profile when you start a game.

To set this up:

  1. Click on the + sign.
  2. Click on the “…” button right of the newly added line.
  3. Find the .exe file of the game. (For IL-2 Grand Battles it is IL-2.exe).
  4. Press the drop-down below "Profiles" and select the profile you want to open with that game.
  5. Hit "OK" and you are done.






Mapping

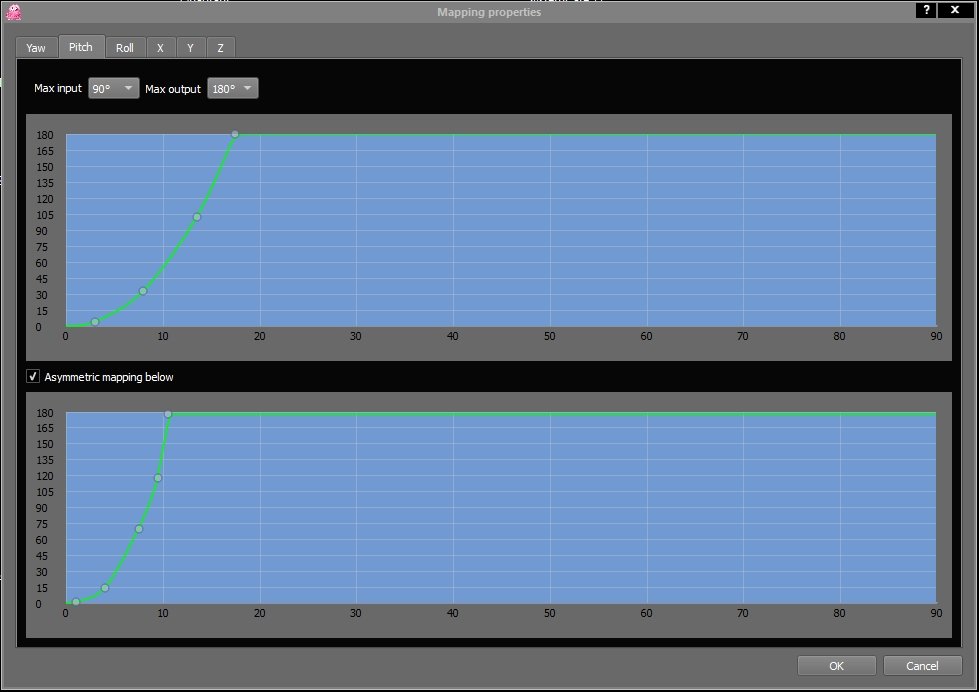

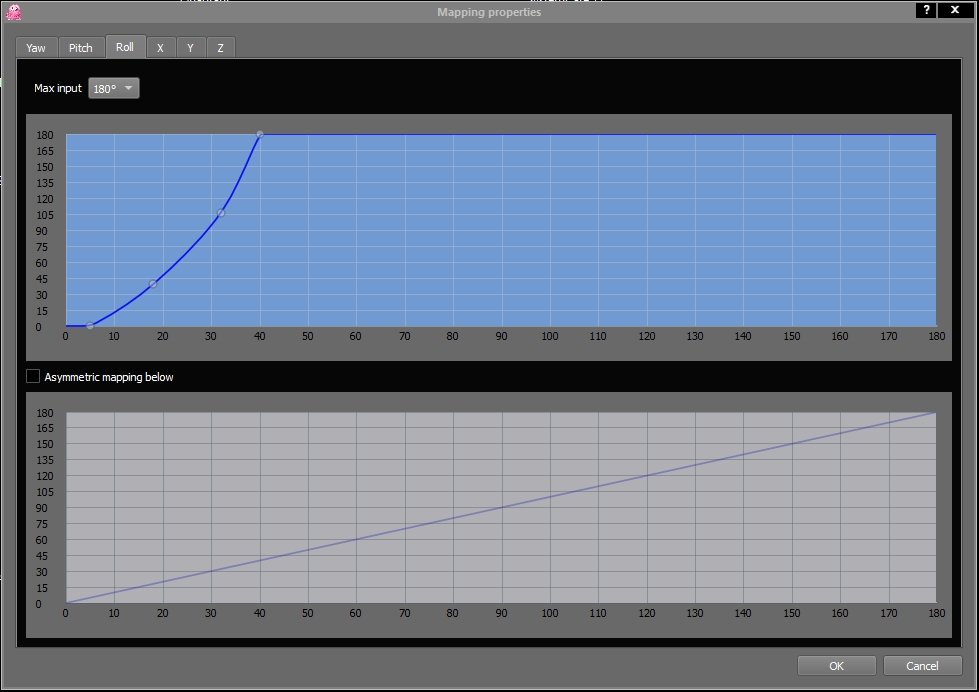

This is probably the most important part to set up to your liking. These settings will determine how your head movement will be translated in-game. Let me talk you through the basics.

  • Yaw, Pitch, Roll, X, Y, Z in the top indicate which of the axis you are changing.
  • Max rotation: This sets how far you can rotate your head in degrees. Usually, 30 or 45 is enough. It is not very likely that you will rotate your head more than 45 degrees.
  • Max translation: This sets how far you can move your head. (forward, backwards, side to side, etc.) I have mine set to 10 or 15 cm.
  • Horizontal axis: the horizontal axis in the diagram displays how many degrees or cm you have moved your head in the real world.
  • Vertical axis: the vertical axis displays what angle the program will send to the game.
  • Indicator dot: the indicator dot is a grey moving dot that will show you where you are looking at that very moment.
  • Curve dot:  the curve dots are grey dots you place on the line to change the path of the line (curve).
  • Asymmetric mapping: Asymmetric mapping lets you create different curves for when looking one way or the other in the same plane. This is most useful for when looking up or down.






----------------------------------------------------------------------------------------------------------------------------------------

How do you set your “curves”?

I use this method for all axis. If you follow these steps you will have all axis setup in no time. For this explanation, I use the Yaw axis, but it works for all axis.

  1. Create a new profile:  Click on “Profile” on the main screen and click on “Create new copied config”. Add a name you like. This will copy your profile. This is useful since you will preserve your old settings. If you mess up. You can simply restart with your previous profile.
  2. Start your head-tracking: you must have it on to see the indicator dot move on the mapping curve.
  3. Open the Mapping Properties: click on the “Mapping” button on the main screen.
  4. Finding the Maximum point: Rotate your head to the right so that you look straight at the edge of your monitor. Now carefully look at where the indicator dot is based on the horizontal axis. This point above the horizontal axis is your maximum point.
  5. Setting the maximum point: set the maximum point by clicking anywhere in the blue box. A grey curve dot will appear, and the curve will change. Now click and hold the dot so you can drag it to the top of the blue box right above the maximum point you found in step 2.
    1. You now have a linear translation. This will give you the most realistic effect, but it can feel a bit twitchy when looking through the sights.
  6. Setting a dead zone: (optional) to set the dead zone, click anywhere in the blue box but to the left of the maximum point. Now drag this dead zone point all the way to the bottom left so that you only see a small horizontal line. If you want a larger dead zone, drag the dead zone point a bit to the right.
  7. Creating a curve: (optional) If you don’t want a linear translation. You can create a curve. The image below shows a curve very close to mine (mine has no dead zone). With a curve, you can change how your head movement is translated. The curve shown below does the following: small head movements in real life (in a generally forward direction) translate to small head movements in-game. However, when looking backwards (Looking towards the side of your screen), a small head movement will translate to large head movement in-game. You can create these curves by adding more curve dots and placing them where you like. It is completely up to you how you want these curves.
    1. Tip: make the curve as smooth as possible. Sudden bumps are very noticeable and feel unnatural.
  8. Asymmetric mapping: (optional) To set up the asymmetric mapping, click the checkbox. The bottom diagram will now become blue and can be edited. Change it to your liking following the steps 3 through 7.
  9. Test your setup: Click on “OK” in the bottom right to save these settings. Open the game you want this head-tracking profile for and test if you like it. You can make changes to the curves while you are in-game and test them right away. No need to close the game or the "Mapping properties" window.
  10. Setting the other axis: simply click on the next Yaw, Pitch, Roll, etc. tab in the Mapping properties and redo steps 3 through 9.

These steps should guide you smoothly through the process of setting up your curves. It might take some tweaking to get something you like.

If you don’t know where to start, I have added my profile below. Simply copy the file “IL-2 Smooth.ini” and past it in Documents/Opentrack-2.3

My profile: http://www.mediafire.com/file/yxsub8v2yj4kn3z/IL-2 Smooth.ini






----------------------------------------------------------------------------------------------------------------------------------------

Basic troubleshooting

Of course, using a new program requires some trial and error. Luckily, you don't have to go through this process all alone. Here are a few common problems and how to solve them.

Loss of correct tracking

There are several ways that Opentrack could lose track of your LED's. The most common way is where one or more of the LED's gets covered up or falls outside of the camera's field of view. Usually, Opentrack will reacquire the lost LED('s) and track normally. However, sometimes Opentrack reads the LED's wrong and your tracking will no longer match your head movement. To fix this try the following steps. They should fix your problem.

  • Try to recenter your headtracking. Use the "Center" shortcut key to do this.
  • If that does not work. Try to restart tracking. This can be done either by using the "Restart tracking" shortcut key or by manually stopping and restarting Opentrack.



It is possible that light from another source (sun, lamp, reflection, etc.) is interfering with your LED's during use of Opentrack. In this case, follow the steps of "Opentrack is not picking up the LED's".

Opentrack is not picking up the LED's

The LED's on your tracking clip or hat are not the only objects in this world that can produce infrared light. This light is all around us and almost every light course will emit it. For Opentrack to find your LED's, you will need to be sure that opentrack and your surrounding is setup correctly. These steps will guide you through the process.

  • Make sure no direct sunlight is entering your room. Close your curtains and try to leave no gaps. You don't need to darken your room completely but just make sure that any light entering your room has to go through a curtain or some other form of fabric.
  • Remove any small light source that is in the field of view of your camera. Either move them out of the field of view of your camera or turn them off during use of Opentrack. Large lights can be left in the background since they can be filtered out with the next step but make sure this light does not end up behind one your LED's when moving your head.
  • Remove any reflective items or make sure they don't reflect light from another source. It is possible that an object or mirror in the background is reflecting enough light to interfere with Opentrack. Either remove these objects, the light source they reflect from or cover them up with something non-reflective.
  • Ensure that your "Point extraction" is set correctly. You can find out how to do this by scrolling up to the section "Setting up your Opentrack" --> "Main screen" --> "Input". Make sure to set it so that the large lights in the background are not picked up. This is best done during a sunny day. This will ensure that your tracking works both during the day and the night.

Calibration button is greyed out

Calibrating your Opentrack can only be done when Opentrack is tracking your movement. Start opentrack and try to calibrate again. For manual instructions; go to the section "Setting up your Opentrack" --> "Main screen" --> "Input"

Tracking is inverted

It could happen that Opentrack is translating your head movement wrong. For instance, you move your head up but in Opentrack your view goes down. Or you roll your head left but it rolls right instead. This is easily fixed. On the main screen click on "Options" and go to "Output". Check the Invert box behind the axis that is inverted.



If you have run into different issues and found a solution. Let me know and perhaps I can add it to this section.

----------------------------------------------------------------------------------------------------------------------------------------

Important notes

Run as Administrator: Opentrack will only work if you run it the same as your game. This means that Opentrack will only work if: Neither Opentrack nor the game is run in admin mode. Or, both are run in admin mode.

If you have any questions, problems or if you would like to add something: let me know with a message below.

To those that already use head-tracking: please share your experience below.



----------------------------------------------------------------------------------------------------------------------------------------

Credits

Author:

Neeraj -BlackHellHound1- Bindraban

Proofread:

Bismarck

Experience on head-tracking setups:

Boris_CRO

Evarno

Herne

M_(voided)

Asgar

Braino

Operation Ivy

Przybysz86

Amergin Amonnen

DerSheriff

Testing:

Neeraj

Przybysz86

Additions to the text:

Boris_CRO

DanTDBV



----------------------------------------------------------------------------------------------------------------------------------------



Edited by BlackHellHound1
Added a warning about TrackHat Opentrack
  • Like 3
  • Thanks 4
  • Upvote 11

Share this post


Link to post
Share on other sites

Very well written and everything explained clearly. I have been using OT for a long time now and swear by it.  You might want to consider going to the opentrack site and adding a link to this on the wiki page.

Share this post


Link to post
Share on other sites

Great post but yikes I tried your profile and....well each to their own and all that. I don't understand why when you look up you sink into the floor of the aircraft?

Share this post


Link to post
Share on other sites
Posted (edited)

Very comprehensive guide BHH. Well done!

I do think the 3DOF trackers like EDtracker are worth a mention though. I was lucky enough to get hold of a TIR5 for almost nothing and whilst its my usual "go-to" device, my set up (armchair for a seat on a family TV in a very sunny room) often makes the less fussy EDtracker a better choice for "get in and fly" days when I cant afford the time taken to set up the camera etc (obviously not an issue for fixed rigs and set ups).

Ive also had to go to some lengths to get TIR to work with both the hat reflectors and the Delan-clip. This is because locating the TIR camera on my 40" TV was so hit and miss so I had to concoct an additional arm on my wheel stand pro for it.  In fact sitting on anything other than a PC chair with the screen at the normal "office" monitor height can be a problem. This is especially problematic f you are using a big screen TV and sitting lower than its top edge (cos you just LURVS your armchair :-)) since its putting the camera outside of the intended position regardless of it being mounted top, bottom or on the side and results in a loss of tracking. TIR camera range is also limited so may not suit non-standard PC desk/sim pit set ups "out of the box".

Although I loose the 6DOF with the EDtracker, I don't feel disadvantaged at all.  My set up is a bit odd in that I set it up to transition forward as I tilt my head . In practice this gives a pseudo 6DOF effect akin to looking around the stick if you get what I mean and it more realistically matches head movement when looking over the shoulder.

One of the thing that BOS does really well with the EDtracker types is that it allows snap view whilst the device is active. With the ED tracker that's a real bonus that helps to make up for the lack of 6DOF since I can set up views in each aircraft that I cannot obtain with 3 DOF. For instance in the 110s and PE2s I have a quick snap view set to look through the quarter panels of the windscreen so I can get a better view of what is out in front and below. In t5he 109 a view raises the camera view slightly to look a little more over the nose.

All that said, the above get round is great for Bombers and GA but you still cant beat 6DOF for dogfighting  - but ive gotten so use to the EDtracker even then its no issue and still I prefer the occasional bit of framing or bodywork getting the way to the whole thing throwing a wobbler when the sun comes out!

The next  house I buy is going to be checked not only for a South facing garden but a North facing gaming room (or better still a dark basement)!!



S!

BOO



Edited by BOO

Share this post


Link to post
Share on other sites

Yes, BoS's snap-views are great and beautifully simple to set up.

I use them for quick glances at the fuel gauges on the Yak's wings and the gauges on the Ju-88's nacelles.

Share this post


Link to post
Share on other sites
2 hours ago, BOO said:

Very comprehensive guide BHH. Well done!

I do think the 3DOF trackers like EDtracker are worth a mention though. I was lucky enough to get hold of a TIR5 for almost nothing and whilst its my usual "go-to" device, my set up (armchair for a seat on a family TV in a very sunny room) often makes the less fussy EDtracker a better choice for "get in and fly" days when I cant afford the time taken to set up the camera etc (obviously not an issue for fixed rigs and set ups).

Ive also had to go to some lengths to get TIR to work with both the hat reflectors and the Delan-clip. This is because locating the TIR camera on my 40" TV was so hit and miss so I had to concoct an additional arm on my wheel stand pro for it.  In fact sitting on anything other than a PC chair with the screen at the normal "office" monitor height can be a problem. This is especially problematic f you are using a big screen TV and sitting lower than its top edge (cos you just LURVS your armchair :-)) since its putting the camera outside of the intended position regardless of it being mounted top, bottom or on the side and results in a loss of tracking. TIR camera range is also limited so may not suit non-standard PC desk/sim pit set ups "out of the box".

Although I loose the 6DOF with the EDtracker, I don't feel disadvantaged at all.  My set up is a bit odd in that I set it up to transition forward as I tilt my head . In practice this gives a pseudo 6DOF effect akin to looking around the stick if you get what I mean and it more realistically matches head movement when looking over the shoulder.

One of the thing that BOS does really well with the EDtracker types is that it allows snap view whilst the device is active. With the ED tracker that's a real bonus that helps to make up for the lack of 6DOF since I can set up views in each aircraft that I cannot obtain with 3 DOF. For instance in the 110s and PE2s I have a quick snap view set to look through the quarter panels of the windscreen so I can get a better view of what is out in front and below. In t5he 109 a view raises the camera view slightly to look a little more over the nose.

All that said, the above get round is great for Bombers and GA but you still cant beat 6DOF for dogfighting  - but ive gotten so use to the EDtracker even then its no issue and still I prefer the occasional bit of framing or bodywork getting the way to the whole thing throwing a wobbler when the sun comes out!

The next  house I buy is going to be checked not only for a South facing garden but a North facing gaming room (or better still a dark basement)!!



S!

BOO





I had originally planned to add EDtracker as well but decided against it since it only has 3DoF. EDtracker is by no means a bad product. However, EDtracker does not give the user the full experience. On top of that, EDtracker does not take advantage of all features available in opentrack.



I felt that it was more important to introduce new players to the full experience.



BlackHellHound1



:salute:

  • Upvote 1

Share this post


Link to post
Share on other sites
2 hours ago, Valis said:

Great post but yikes I tried your profile and....well each to their own and all that. I don't understand why when you look up you sink into the floor of the aircraft?



I don't know why it does that. It doesn't for me. Sadly, I have no idea how to solve this either.



BlackHellHound1



:salute:

Share this post


Link to post
Share on other sites
5 hours ago, BlackHellHound1 said:



I don't know why it does that. It doesn't for me. Sadly, I have no idea how to solve this either.



BlackHellHound1



:salute:



I bet its the model position calibration made wrong  + sensitive Y axis.



Share this post


Link to post
Share on other sites
Posted (edited)

Your profile works great with face tracking, however I have a few issues with it.



Whenever I look up, it decides to look at my instruments instead, whenever I look down it looks up.



If I lean to the left it is leans to the right in game and whenever I lean to the right it leans to the left.





the only thing that works isthe yaw movement of my head.







Edit: Managed to fix this by inverting X and Pitch on the program.

Edited by ionicfold

Share this post


Link to post
Share on other sites
On 03/03/2018 at 12:17 PM, BlackHellHound1 said:

I felt that it was more important to introduce new players to the full experience.

For the record I think you've done a great job with that. I've been using it for quite q while and didn't really find an awful lot different to how I've got mine set up but I can imagine that it would be a great help to set people who are using it for the first time onto the right road. Half the terminologies are a little baffling and you do a grand job of 'unbaffling' them! Nice one

Share this post


Link to post
Share on other sites

Hello BlackHellHound1



I have joined just to be able thank you, for this great guide and for the chance to ad my experiences to it.



This is by far the best opentrack guide that I have seen.



My intention was to make a comprehensive guide, for using a Logitech C920 webcam and a DIY trackcap with 3 green LED’s, using PointTracker 1.1, freetrack 2.0 Enhanced and Accela.



You have already made most of that work, so I will just offer what I have.



I am using opentrack 2.3 and will ad pictures later.



I use green LED’s, because those was what I could find with enough viewing angle. My triple screen setup is close to 90° when turning from edge to edge. At first I put green foil in front of the lens, but discovered that I could set the camera so its not needed.



Games that I know can also be used with opentrack 2.3



Assetto Corsa

Dirt Rally

Richard Burns Rally



Loss of tracking tip

When the squid flips upside down and the center cross is way off, the camera has lost sight of one or more of the tracking points. In my case the green LED’s.



To get back on track, turn your head to front and cover one of the LED’s, for a while, then uncover it again. This can be done with a finger or two.

You need to cover the LED a little longer, than the time set in the Dynamic pose timeout field. This is found in the PointTracker Settings Camera tab.



Hardware

In 2.3 there is a Custom model tab. I guess that this is for people wanting to use a clip horizontaly.



Orientation

Directions as I use them here is always based on me looking at the screen, with the camera mounted on top of that. The camera is pointing slightly down at me.



Raw Tracker Data/Game Data



X Moving head left/right

Y Moving head up/down

Z Moving head forward/back

Yaw Turn head left/right

Pitch Turn head up/down

Roll Tilt head left/right



PointTracker 1.1



PointTracker Settings

Camera

Settings of note here:

Dynamic pose timeout

I have set this to 500ms, that is 0,5 seconds.



Camera settings

For me it opens the C920 settings. These should be set so you can only see your trackpoints. I have everything set on manual, with all but Exposure set to minimum. Exposure is adjusted so I can see the Trackpoints.



Color channels used

If you use red or blue LED’s you can set this here.



Point extraction

Play around with the settings here, until you get 3 extracted points at all times. Try to be systematic about it, that will make it easier.



Model/Cap

Model Dimensions

These should be as accurate as possible. The more accurate the more precise the tracking.



Model position

I have not been able to get an accurate result, when using the calibration, so I have done it manually instead.



Here directions are for moving the calibration + in relation to facing the screen, that is left is to your left and vice versa.



X 0 Y 0 Z 0 in my case is the top center LED of the cap.

X + is to the right, - is to the left

Y + is above, - is below

Z + is behind, - is in front



freetrack 2.0 Enhanced

Freetrack protocol settings

Select interface

Some programs don’t like freetrack, others don’t like Trackir. Here you can chose between either or both.



Profile

If you as me, use a black background, you won’t see these until you hover your mouse above the switch.



Create new empty config Self explanatory



Create new copied config Self explanatory



Open configuration directory Self explanatory





Ini

Chose the ini file you want to use/adjust. These are found in the User Documents/opentrack folder. In my case opentrack-2.3. You can ad downloaded profiles to this folder. Remember to adjust camera and model settings to fit your setup.

Open it with the Open configuration directory switch



Options

Shortcuts



Center

Sets the current position to look straight forward. This is done while being in the expected working pose.

This can also be done automatically when starting the tracker, by activating the “Center at startup” option. Make sure that you are in the working pose, before starting the tracker.



If the tracker is not centered when using the Start, Toggle or Restart shortcuts, then just hit the Center shortcut.



Toggle

Turns off/on tracking while leaving the camera on. (This is what you would hit before and after using snapviews in IL2 or DCS.)



Toggle while held

Turns off tracking while leaving the camera on, while held. (This could be used to keep the view on one panel, while consulting an external checklist and flipping the needed switches.)



Zero

Toggles between Centered straight forward view and the current pose.



Zero while held

Switches to Centered forward view, when pressed and returns to the current pose when released.



Start Tracking

Turns on camera and begins tracking. (This takes a couple of seconds)



Stop tracking

Stops tracking and turns off camera.



Toggle tracking

Turns on camera and begins tracking. (This takes a couple of seconds), or Stops tracking and turns off camera.



Restart Tracking

Stops tracking and turns off camera and Turns on camera and begins tracking. (This takes a couple of seconds)



This is what I have at this time. I hope that it is usefull.

Best regards from Denmark

Share this post


Link to post
Share on other sites

@DanTDBV Thank you for sharing this, there is indeed some new and helpful information in your work.

Would you mind if I add some of your work to the main post? Your text from the Model position and Shortcuts could prove to be a useful addition.

Your chapter on the loss of tracking gave me an idea as well. I think I will add a chapter on potential problems that might be encountered and how to solve them.



Of course, you will be credited accordingly.



BlackHellHound1



:salute:

Share this post


Link to post
Share on other sites

BlackHellHound1

You are very much welcome to use anything that you want.



I think that, a..., a..., troubleshooting guide, is what I would call it, is a great idea.



I would like to ask, if it would be okay for me to share a link to this thread, in some of the other forums I use, where it is relevant?

Like ED, SimHQ, Racedepartment, reddit Hotas, reddit HotasDIY and others.



DanTDBV

Share this post


Link to post
Share on other sites
Posted (edited)
1 hour ago, DanTDBV said:

I would like to ask, if it would be okay for me to share a link to this thread, in some of the other forums I use, where it is relevant?

Like ED, SimHQ, Racedepartment, reddit Hotas, reddit HotasDIY and others.



Of course, you are free to share the link on other forums, discord, TS, steam or any other relevant place. I wrote this topic while focused on IL-2 but it is applicable to other communities and games as well. The more the merrier!



I added some of your work. I did rewrite a few lines so it matches the rest of the text. Will get started on a troubleshooting guide one of the coming days.



BlackHellHound1



:salute:

Edited by BlackHellHound1

Share this post


Link to post
Share on other sites
Posted (edited)
On 7/9/2018 at 10:35 PM, BlackHellHound1 said:



Of course, you are free to share the link on other forums, discord, TS, steam or any other relevant place. I wrote this topic while focused on IL-2 but it is applicable to other communities and games as well. The more the merrier!



I added some of your work. I did rewrite a few lines so it matches the rest of the text. Will get started on a troubleshooting guide one of the coming days.



BlackHellHound1



:salute:



It looks good. I look forward to the troubleshooting guide.



I do however have a couple of issues with you Shortcuts descriptions.



Some of them are based on my mistakes.



I will start with my proposed changes and go over my reasons after.



Shortcuts

Here you can set up your preferred shortcuts to pause and start and stop your head-tracking.



The following commands leaves the camera and tracking on.

  • Center: This will set your current view as the "Look straight forward" point.

  • Toggle: Pauses and lock your view movements. Press it again and you will go back to moving the view around.

  • Zero: Snaps your view to “Look straight forward” and locks it. Press again to unlock.



The following commands turn the camera and tracking on and/or off.

  • Toggle tracking: this does the same as "Start tracking" and "Stop tracking" but on a single button or button combination.

  • Restart tracking: It stops and then restarts your tracking.

Note that it can take several seconds for the camera to turn on again.



My reasons in random order.



I think that the part about the tracking choices, turning on or off the camera is very important. In my research I have seen a number of post’s, about people giving up on opentrack, because turning tracking back on again took to long.



They have probably used Start Tracking and Stop Tracking. To me that is the natural choice and I am pretty sure that it is to many.



To avoid any misunderstandings, I think that calibrate and system should be left out from the shortcuts.

To me calibrate is what I am doing with the model in the PointTracker.



In opentrack 2.3.10 Zero locks view to “Look straight forward” There are no movements.



Your rewrite inspired me to do one to.



Based on sthalik’s answer to another guy, asking for permission to add a link to this thread, on the opentrack Github Wiki, I will go ahead and ad these to the Wiki.



Shortcuts

This is with opentrack 2.3.10

Opentrack 2.3.10/Options/Shortcuts



The following commands leaves the camera and tracking on



Center

Sets the current view as the “Look straight forward” point. This should be done, while being in the expected working pose.



This can also be done automatically when starting the tracker, by activating the “Center at startup” option. Make sure that you are in the working pose, before starting the tracker.



If the tracker is not centered when using the Start, Toggle or Restart shortcuts, then just hit the Center shortcut.



Toggle

Pauses and locks view movements. (This is what you would hit before and after using snapviews in DCS or IL2.)



Toggle while held

Pauses and locks view movements while held. (This could be used to keep the view on one panel, while consulting an external checklist and flipping the needed switches.)



Zero

Snaps your view to “Look straight forward” and locks it. Press again to unlock.



Zero while held

Snaps your view toLook straight forward”, when pressed and returns to the current pose when released.



The following commands turns the camera and tracking on or off.



Start Tracking

Turns on camera and begins tracking. (This takes a couple of seconds)



Stop tracking

Stops tracking and turns off camera.



Toggle tracking

Turns on camera and begins tracking. (This takes a couple of seconds), or Stops tracking and turns off camera.



Restart Tracking

Stops tracking and turns off camera and then Turns on camera and begins tracking. (This takes a couple of seconds)



Manual calibration of PointTracker 1.1 model

This is with opentrack 2.3.10

Opentrack 2.3.10/PointTracker 1.1/PointTracker settings/model



This is for Clip, Cap and Custom

Here directions are for moving the calibration marker (The +) in relation to you facing the screen, that is left is to your left and vice versa.



X 0 Y 0 Z 0 is the position of one of the LED’s (The LED with the + over it.)

(In my case, the top center LED of my cap.)

X + is to the right, - is to the left

Y + is above, - is below

Z + is behind, - is in front



Thank you for the inspiration.



Have nice weekend



DanTDBV





--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------





As promised pictures of opentrack 2.3.10



My screengrabber refuses to capture the mouse over's or scroll down picker's in opentrack, so I don't have those. I use Greenshot.



Opentrack 2.3.10


Opentrack 2.3.10 Tracker running


PoinTracker settings Camera


PointTracker Settings Model Clip


PointTracker Settings Model Cap


PointTracker Settings Model Custom


freetrack protocol settings


Filter settings


Options Shortcuts


Options Output


Options Relative translation


Options Game detection


Mapping properties Pitch


Mapping properties Yaw


Mapping properties Roll


Mapping properties X


Mapping properties Y


Mapping properties Z




Enjoy.





Edited by DanTDBV
Adding clear separation because of post merging

Share this post


Link to post
Share on other sites

Why am I unable to calibrate on my setup? I have the clip, and a ps3 eyecam, everything works pretty well, but the start calibration thing is greyed out on mine.

Share this post


Link to post
Share on other sites
1 hour ago, JonRedcorn said:

Why am I unable to calibrate on my setup? I have the clip, and a ps3 eyecam, everything works pretty well, but the start calibration thing is greyed out on mine.



You will need to start your tracking first. Then try to calibrate.

Let me know if you have any more issues.



BlackHellHound1



:salute:

Share this post


Link to post
Share on other sites

I have added a section Basic troubleshooting to the main post. This section will not fix all problems but addresses the most common issues I get asked about.

In all honesty, each of the subjects and their solutions had already been addressed in the main text. However, the section was added to make it a bit easier to fix these common issues on your own.



BlackHellHound1



:salute:

Share this post


Link to post
Share on other sites

Hi BHH,

Great explanation, so much I have ventured with a purchase of trackhat. The only problem is there are no photos linked with the text. I saw a lot at the end but unsure of the camera set-up sliders, could you please provide an explanation or pictures.

Many thanks

Lisa

Share this post


Link to post
Share on other sites
40 minutes ago, SwimsWithSharks said:

Hi BHH,

Great explanation, so much I have ventured with a purchase of trackhat. The only problem is there are no photos linked with the text. I saw a lot at the end but unsure of the camera set-up sliders, could you please provide an explanation or pictures.

Many thanks

Lisa



Thank you!

In the section "setting up your Opentrack" each screen is explained in the text with an image right below the text. What other images are you referring to?



I am not sure what exactly you mean by camera setup slider. could you be more specific?



BlackHellHound1



:salute:

Share this post


Link to post
Share on other sites

Hi BHH,

Thanks for the quick response.  I am not seeing any pictures in your text, all I get is a small cross and the name of the jpg file which should be there at the location of the photo. In fact I am getting the same with the two jpg files at the end of all your posts. I thought it was my browser but I am getting the same  on IE, Edge, and Chrome.

Towards the end of this post after many replies is a long list of jpg pictures I assume from the text. The one I am not sure about is the settings for the PS3 eye.

Many thanks

Lisa

Share this post


Link to post
Share on other sites

I tested to see if I could see the images in multiple browsers (Chrome, IE, Edge and FireFox) and they all displayed the images as intended. Not sure why you can't see them.

However, I can share the images in a different way that might work. Here is a link to my imgur album with the images: https://imgur.com/a/iuMYm3e

If that also doesn't work, then I will zip them and send a download link your way.



The PS3 Eye settings are done in the CL-Eye Test program. In the program, click on options and go to video capture filter and set the sliders as follows:

Set the "Gain" slider all the way left.

The other sliders all the way right.

uncheck all the checkboxes.

This works best for me but of course, you can play around a bit with the sliders to find your optimal settings.

(I will add this to the main post as well)



BlackHellHound1



:salute:

Share this post


Link to post
Share on other sites

Got my headtracking dialed in pretty well now, I find deadzones for any type of the 3 movements of pitch, yaw and roll are detrimental to the feeling, using deadzones on the x,y,z though helps for me. Just wish I could make them smaller on opentrack. But I flew about an hour last night in a career with the 109f2 and it was just gorgeous to see the game in it's full detail. Might try practicing some more with it. Sticking to single player for now, I find I am still MUCH better at actually flying the plane in VR than 2d. But I am working on it. The graphics are too nice to waste!

Share this post


Link to post
Share on other sites

Hi BHH1



Thank you (and others) for the guide. Gave me the confidence to jump into the world of headtracking (I'm software jargon illiterate!). Followed the guide easily. best bit of advice for me was disabling roll. Perhaps my dodgy eyes but that worked great for me! Have even dug Rise of Flight out of mothballs!! Cheers

  • Thanks 1

Share this post


Link to post
Share on other sites

So headtracking is the bomb diggity and I've been led astray with VR. I shall wait till the new GPU's release to get back into it. Headtracking is freaking glorious, not only are the graphics gorgeous, but the games just more fun for some reason since I am not squinting to read everything on the screen. VR is bar none the best immersion you can get while in the plane, but for everything else it's absolutely terrible.

  • Haha 1

Share this post


Link to post
Share on other sites
Posted (edited)
21 hours ago, SkyBlueBenz said:

Hi BHH1



Thank you (and others) for the guide. Gave me the confidence to jump into the world of headtracking (I'm software jargon illiterate!). Followed the guide easily. best bit of advice for me was disabling roll. Perhaps my dodgy eyes but that worked great for me! Have even dug Rise of Flight out of mothballs!! Cheers

Great to hear that you were able to get it all working so easily.

I hope you will enjoy it for a long time.



20 hours ago, 15th_JonRedcorn said:

So headtracking is the bomb diggity and I've been led astray with VR. I shall wait till the new GPU's release to get back into it. Headtracking is freaking glorious, not only are the graphics gorgeous, but the games just more fun for some reason since I am not squinting to read everything on the screen. VR is bar none the best immersion you can get while in the plane, but for everything else it's absolutely terrible.

That is the best comment I have seen in a long time! Absolutely love it!

And of course; happy that my guide could help you.



BlackHellHound1



:salute:

Edited by BlackHellHound1
  • Thanks 1

Share this post


Link to post
Share on other sites
Posted (edited)
On 8/14/2018 at 1:18 PM, BlackHellHound1 said:

Great to hear that you were able to get it all working so easily.

I hope you will enjoy it for a long time.



That is the best comment I have seen in a long time! Absolutely love it!

And of course; happy that my guide could help you.



BlackHellHound1



:salute:

Hey bud,



What do you suggest running for the acella smoothing and deadzone settings? I am currently using 1.6 smoothing and 0.02 for deadzone. Also is there no way to adjust the deadzones for the movement curves in smaller increments than .5 cm? It would seem that is not possible.

Edited by 15th_JonRedcorn

Share this post


Link to post
Share on other sites
1 minute ago, 15th_JonRedcorn said:

Hey bud,



What do you suggest running for the acella smoothing and deadzone settings? I am currently using 1.6 smoothing and 0.02 for deadzone.



My settings are as in the image in the first post. Worked fine for years and haven't had anything to complain about it.

Of course, that is my setup. You are best off testing your own system with various settings and see what you like.



BlackHellHound1



:salute:

Share this post


Link to post
Share on other sites
12 minutes ago, BlackHellHound1 said:



My settings are as in the image in the first post. Worked fine for years and haven't had anything to complain about it.

Of course, that is my setup. You are best off testing your own system with various settings and see what you like.



BlackHellHound1



:salute:

I'd suggest updating the accela picture to the current version. It's using the older 2.2 settings which we do not have anymore with 2.3 There's only 4 sliders now, 2 for rotation and 2 for movement.

Share this post


Link to post
Share on other sites

For those of you who like to experiment you can always find the latest test builds here: https://www.dropbox.com/sh/823dd4wyhixv5a7/AACB1Iqquvia_keD9jUY2qFBa?dl=0&lst=



I'm currently running the 20180803_02 build w/o any issues. I normally test these and let the developer know if there are any issues. Just be careful to back-up your ini files as sometimes the test builds will screw-up your current ini files.

Share this post


Link to post
Share on other sites



13 minutes ago, 15th_JonRedcorn said:

I'd suggest updating the accela picture to the current version. It's using the older 2.2 settings which we do not have anymore with 2.3 There's only 4 sliders now, 2 for rotation and 2 for movement.



The releases before 2.3.10 have it. Only the latest version has it removed.

Will add a notification with it to warn other people.



BlackHellHound1



:salute:

Share this post


Link to post
Share on other sites
35 minutes ago, BlackHellHound1 said:





The releases before 2.3.10 have it. Only the latest version has it removed.

Will add a notification with it to warn other people.



BlackHellHound1



:salute:

Ah! didn't realize that. It would seem I am on that version then.

Share this post


Link to post
Share on other sites

Great Guide! I got trackhat set up in only a few minutes. Playing around with the curves took a bit and headtracking itself took some getting used to but now after using it for 1 or 2 months I´m not going back to using the mouse :lol:.

Thanks! :salute:

  • Like 2
  • Thanks 1

Share this post


Link to post
Share on other sites

Great software! Is there a way to access raw tracker data over UDP or some other output? I am using aruco markers and would like to be able to reference absolute position to avoid recalibration on every load.



Thanks!

Share this post


Link to post
Share on other sites

Great guide! I've been using Open Track a while, and it was working well. Now I realise that you can calibrate with the inbuilt function, it works even better!



One question: is it possible to do the following in IL2 with headtracking? Because my tracker goes gets obscured, it often difficult to read the lower instruments. I'd like to set some quick views that look at the lower instruments, and allow tracking to continue off the new 'centre' while my POV hat is engaged. Basically, my head would keep moving, but the POV hat would apply a modifier to the input.











Share this post


Link to post
Share on other sites
15 hours ago, Albino said:

Great guide! I've been using Open Track a while, and it was working well. Now I realise that you can calibrate with the inbuilt function, it works even better!



One question: is it possible to do the following in IL2 with headtracking? Because my tracker goes gets obscured, it often difficult to read the lower instruments. I'd like to set some quick views that look at the lower instruments, and allow tracking to continue off the new 'centre' while my POV hat is engaged. Basically, my head would keep moving, but the POV hat would apply a modifier to the input.

4



Thank you :)



Don't think that is possible and if it is, I have no clue how.

However, what you could try to set up "asymmetrical mapping" for you Pitch axis. By making the "looking down" more sensitive, you might be able to remedy the problem. May take a little getting used to but that won't take long.



BlackHellHound1



:salute:

  • Thanks 1

Share this post


Link to post
Share on other sites

Thanks hound :)



That's good advice. It's only recently that I've been flying with the HUD off. Before I never needed to look at the gauges! I was missing out. They are so beautifully modelled.

Share this post


Link to post
Share on other sites

Hi all



I cant save a new pilot head center pos unless I end Opentrack program, I use edtracker(works great) with opentrack(also works great) but no joy when I want to save new center pos. It works if start IL-42 without starting opentrack program(latest version). It doesent matter how mutch I hit F9 key when opentrack is running, opentrack seems to overide IL-2 when using F9 modes.

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

×
