Iron mechanic (Throttle) motor control (axes)

[Sokol1]

4 hours ago, GVL224 said:

Sokol1, Nobody orders such a hilt.



Go figure, with this support the grip follow the natural position of the hand on side, this concept (of Fw 190) was refined in F-16 throttle:



[GVL224]

I did not locate my arms too horizontally ...

[Wolf8312]

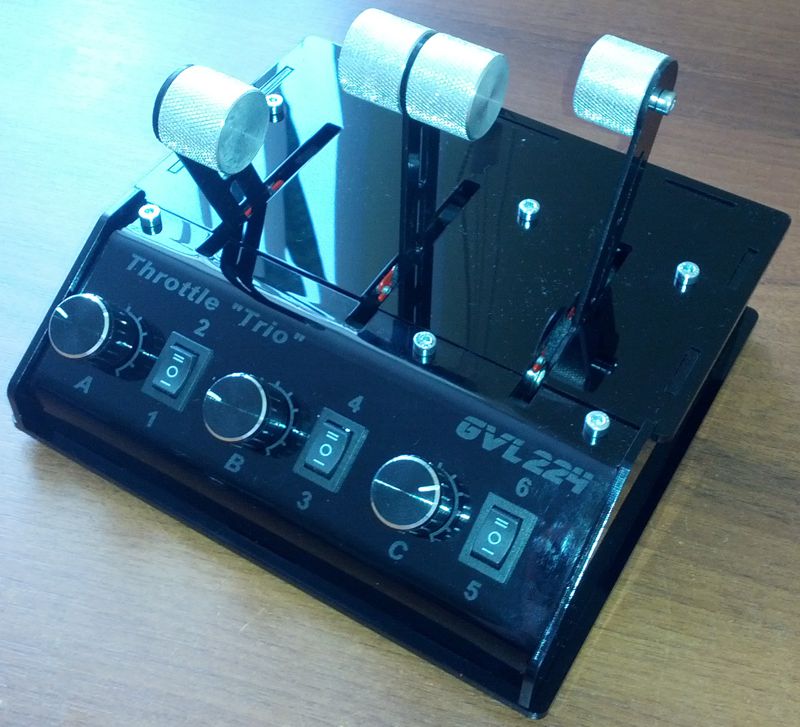

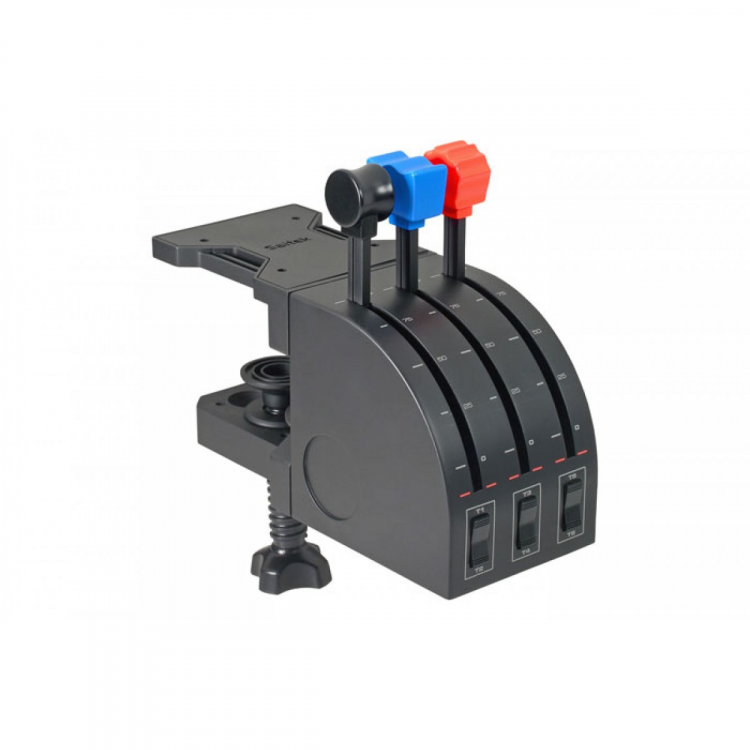

GVL224 I already have a throttle so dont really need one of them, but do you have anything that is just a bunch of levers for things like the prop pitch, radiators, and mixtures etc? I'd like something kind of like that one saitek sell but obviously better workmanship and a few more levers! Do you have anything like that?



anship?

[GVL224]

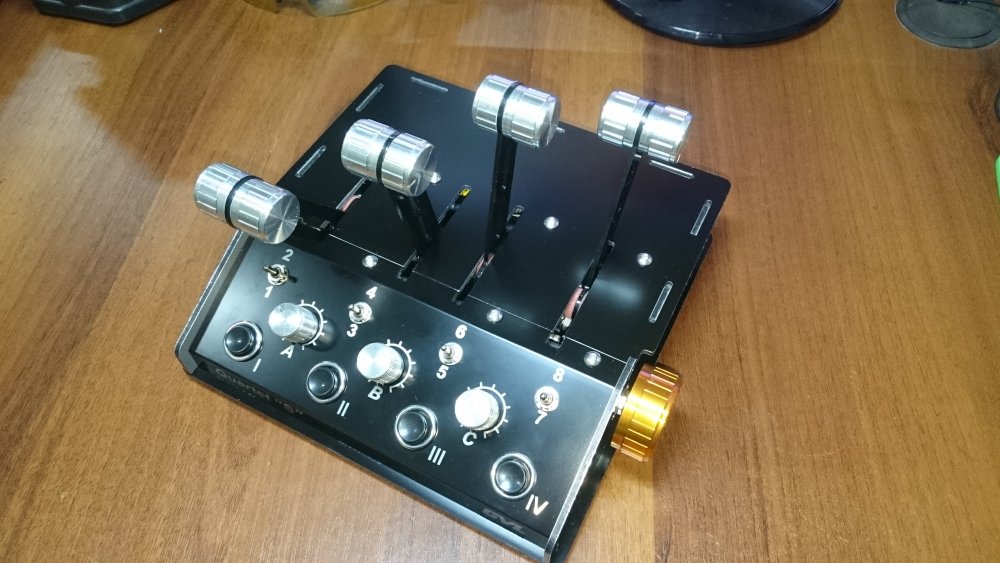

only this



[Wolf8312]

How much is that one and how would I pay my friend?

[Archie]

2 hours ago, Wolf8312 said:

How much is that one and how would I pay my friend?

Best way is to send him a PM here, or an email to:
gvl224@ukr.net
Transferwise seemed to be the easiest and cheapest way of sending money (thanks Luke for the tip)

[Sokol1]

Wolf8312

Ask GVL224, but I think that in this levers "console"





Can replace one of the levers (e.g. the left) with this landing gear control:





Or this 3 positions (can be used for landing gear or flaps).







[SCG_motoadve]

I want one too, which is the name of this one so I send you an e mail asking for this one specifically.

[Wolf8312]

I think it's called a quadrant JG77 I didn't know either and had to send a photo!

[Archie]

Yes, easiest way is to send him the picture of the one you want, with any changes if needed.

[Wolf8312]

54 minutes ago, Sokol1 said:

Wolf8312

Ask GVL224, but I think that in this levers "console"





Can replace one of the levers (e.g. the left) with this landing gear control:





  Reveal hidden contents







Or this 3 positions (can be used for landing gear or flaps).





  Reveal hidden contents















You mean ask him to change the left lever for something more like a landing gear? Good idea but as I have already bought it, I am not sure if that would mean altering the price!



[Archie]

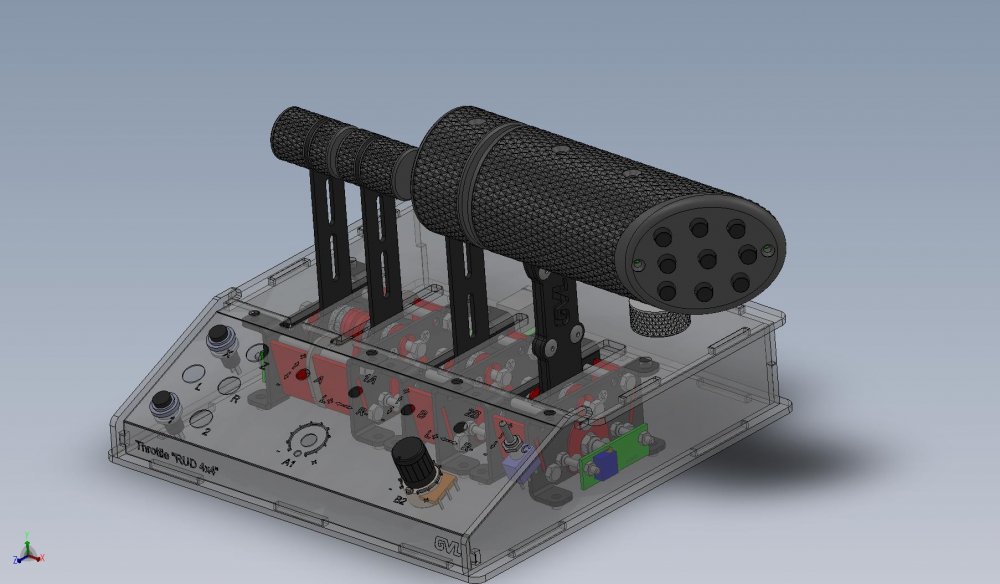

This is a render of what what Vitaly (GVL) is building for me currently

[Archie]

5 minutes ago, Wolf8312 said:



You mean ask him to change the left lever for something more like a landing gear? Good idea but as I have already bought it, I am not sure if that would mean altering the price!



Send him an email and ask, I made changes to mine (extra two buttons on front of throttle, and two less on main body)

[Wolf8312]

13 minutes ago, 6./ZG76_Archie said:

This is a render of what what Vitaly (GVL) is building for me currently



Nice! Though I hope he puts it on a low priority while he deals with mine haha!



To be honest apart from maybe getting something more like a landing gear I'm happy with the design as it is, and as I already have a throttle it's never going to quite match up to my 109 or spitfire cockpit anyway!









Edited March 11, 2018 by Wolf8312

[15[Span.]/JG51Costa]

15 minutes ago, 6./ZG76_Archie said:

This is a render of what what Vitaly (GVL) is building for me currently

Very nice designe.



Saludos.

15(Span.)/JG51Costa

[GVL224]

1 hour ago, II./JG77_motoadve said:

I want one too, which is the name of this one so I send you an e mail asking for this one specifically.

Do you want one of my products?
Contact me through my email (GVL224@ukr.net) or through private messages on this forum.

[GVL224]

36 minutes ago, Wolf8312 said:



You mean ask him to change the left lever for something more like a landing gear? Good idea but as I have already bought it, I am not sure if that would mean altering the price!



Yes, I can set the leftmost mechanics "fixing" to two or three fixed positions (as long as you want), these positions will be handled by the controller as "pressing a button".
It will not affect the change in value.

[SCG_motoadve]

5 hours ago, GVL224 said:

Do you want one of my products?
Contact me through my email (GVL224@ukr.net) or through private messages on this forum.

E mail sent

[GVL224]

6 hours ago, II./JG77_motoadve said:

E mail sent

Answered the letter.

[Solmyr]

Hello GVL,



Looking at your nice work, I think I could be interested in your skills and knowledge too.

Rachie's one above is quite inspiring me, I may be happy with something similar.



May I think to it further and enter in communication with you ?



Regards.

[GVL224]

9 часов назад, Solmyr сказал:

Hello GVL,



Looking at your nice work, I think I could be interested in your skills and knowledge too.

Rachie's one above is quite inspiring me, I may be happy with something similar.



May I think to it further and enter in communication with you ?



Regards.

Solmyr, hello.

Oh sure.
Write me on my e-mail, GVL224@ukr.net

[GVL224]

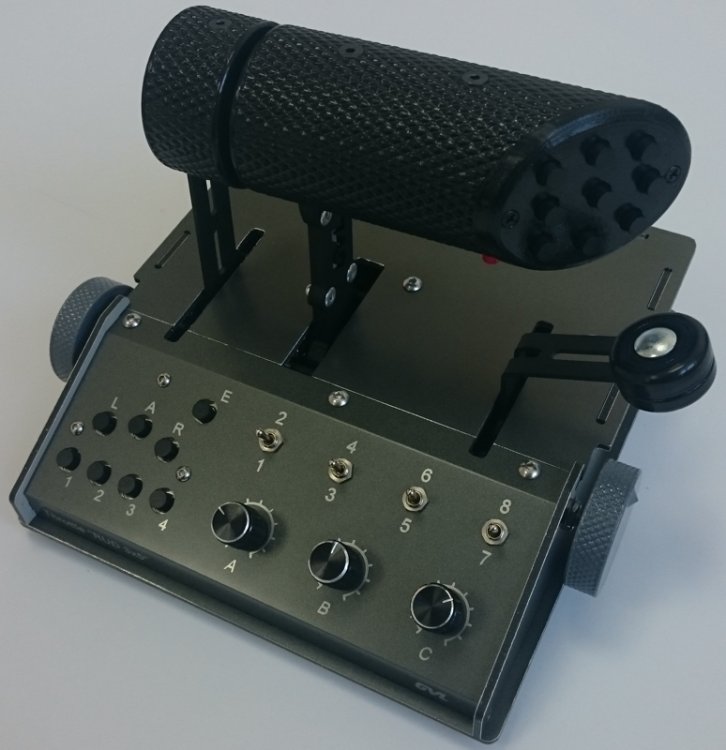

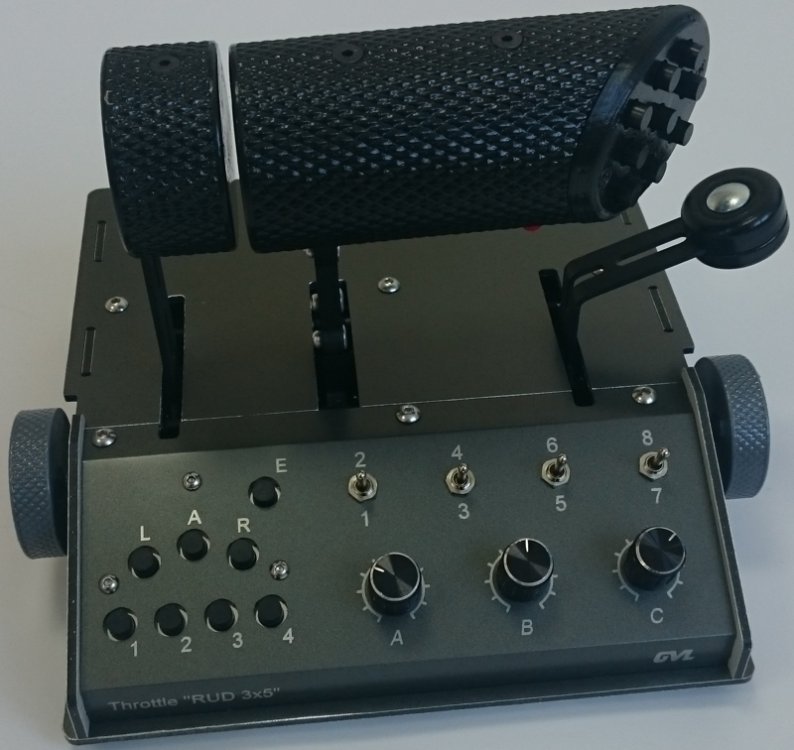

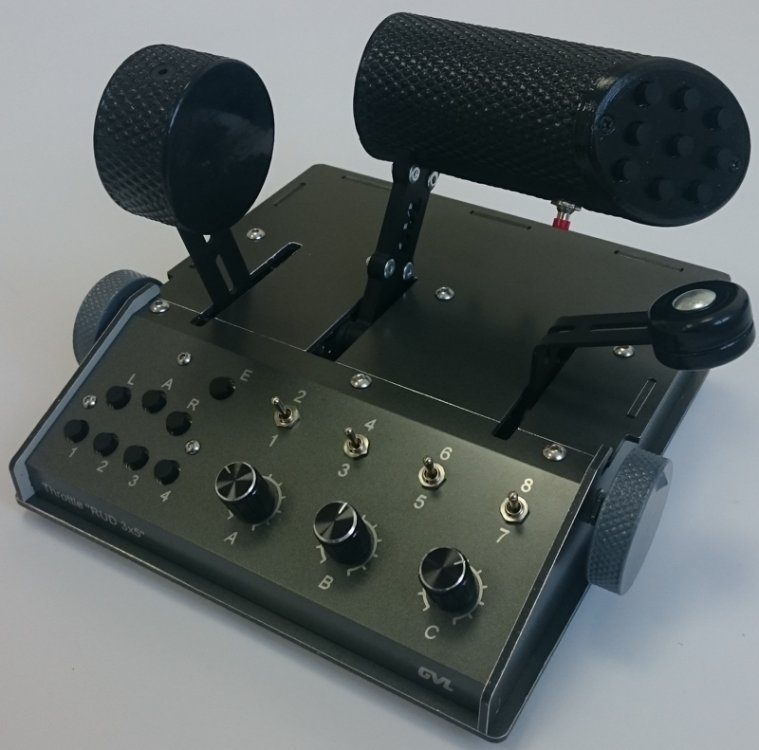

"RUD 3x5", composite body and "graphite" color.
https://youtu.be/waWVuVKflRg

[GVL224]

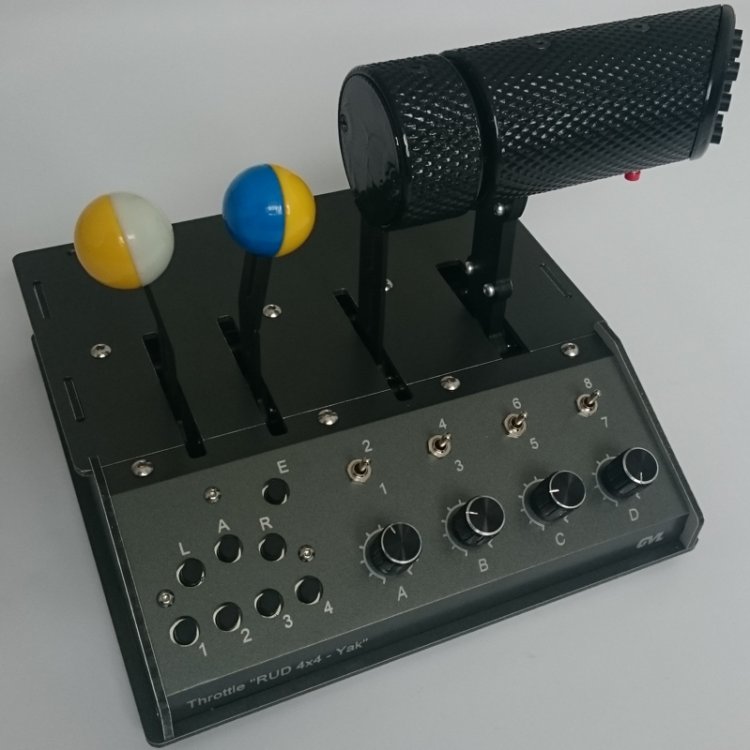

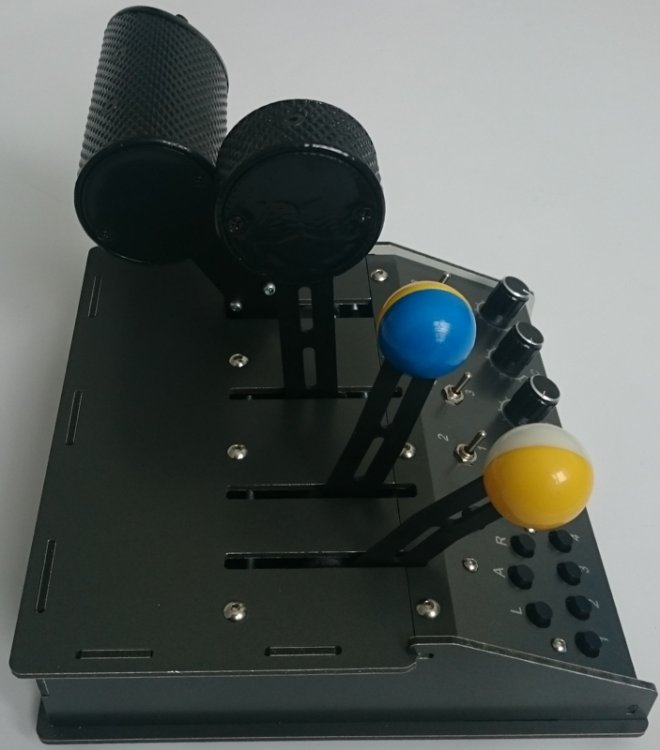

"RUD 4x4 Yak" body "graphite".

[GVL224]

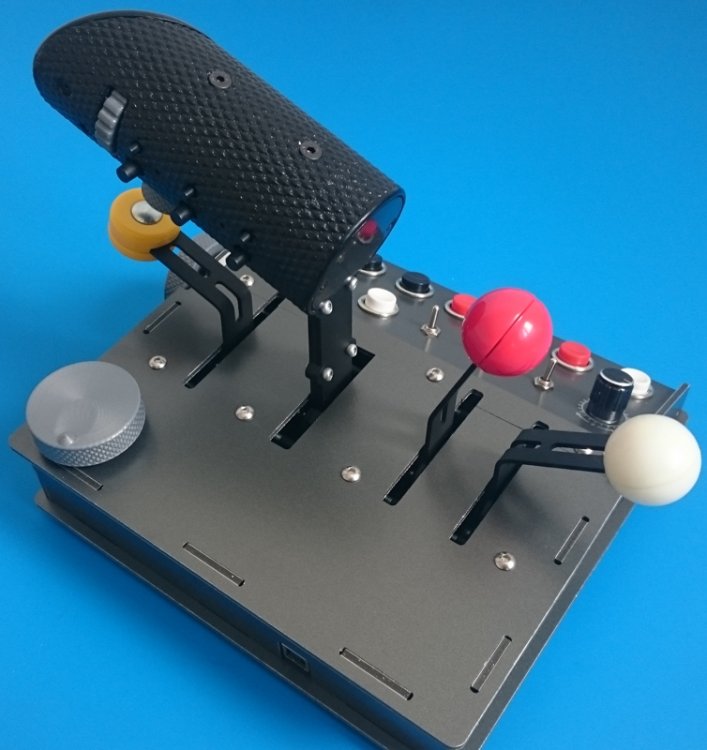

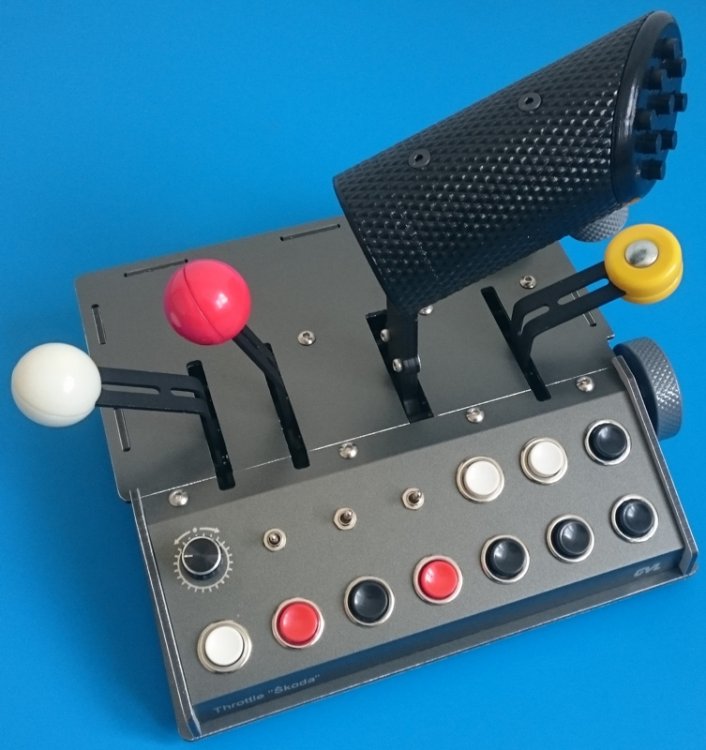

Throttle "Skoda"
https://youtu.be/dDDr1PI-8kw

[GVL224]

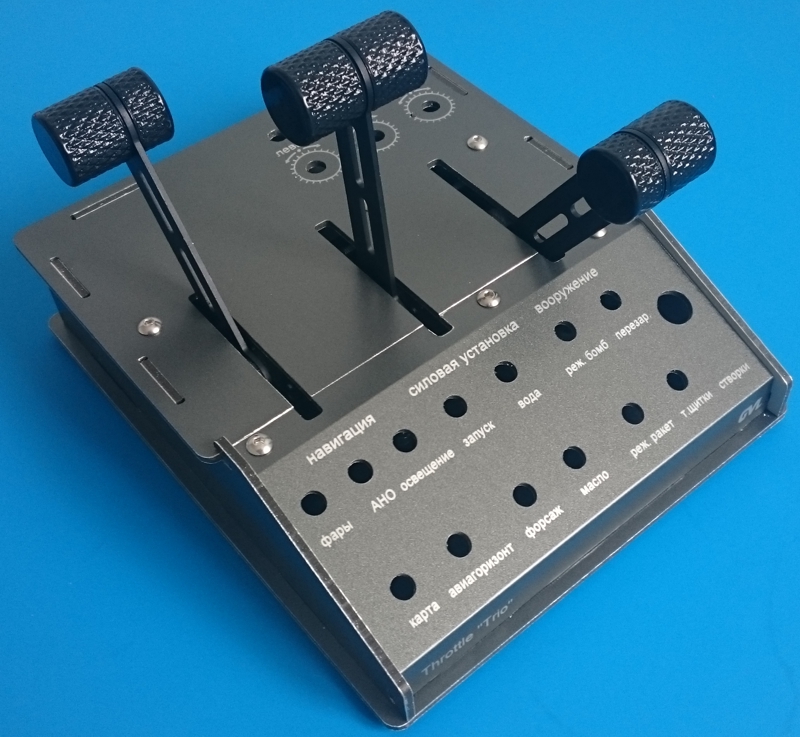

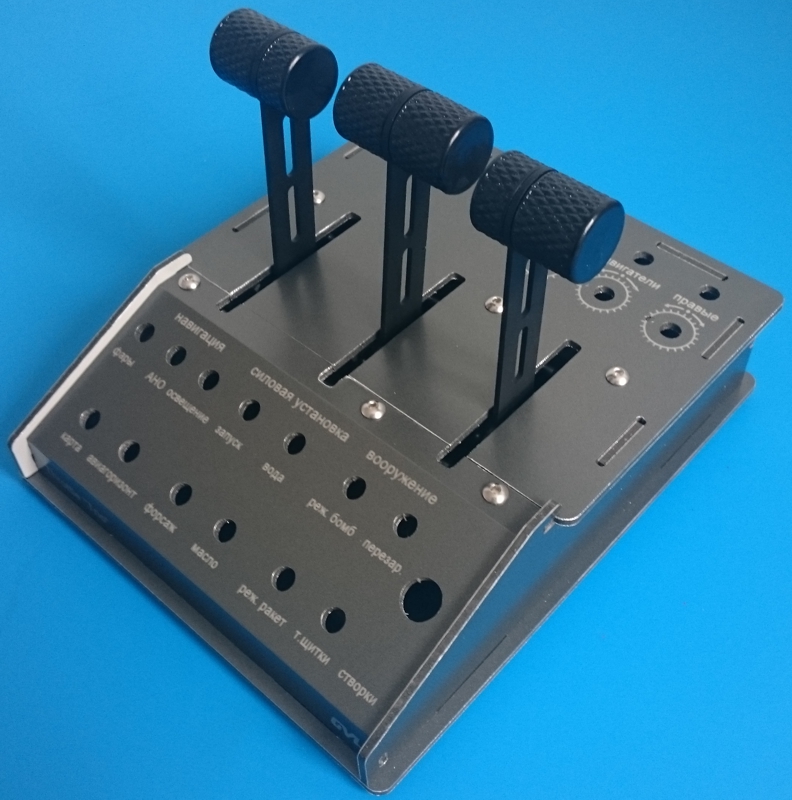

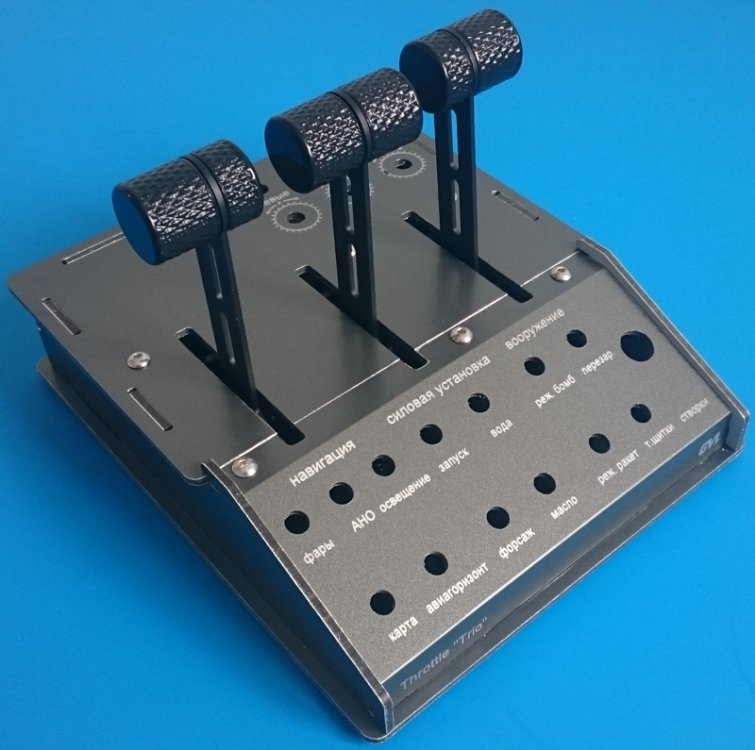

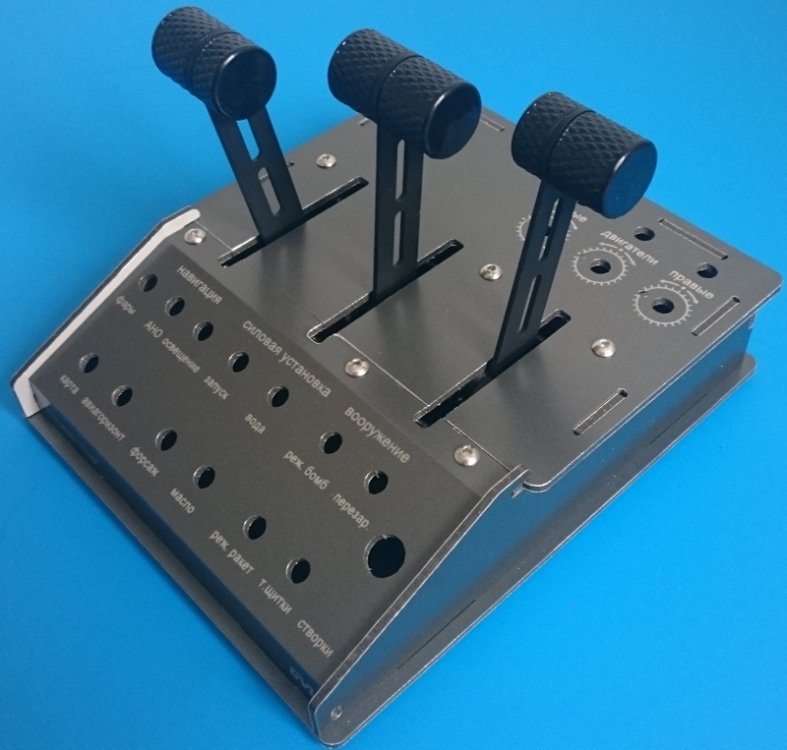

"Trio" without electronics
https://youtu.be/LN7mllw6RMM

[Remontti]



This is what I'm about to get. There is also a roll wheel for index finger what you can't see in the picture. Man, this is going to be great.

[GVL224]

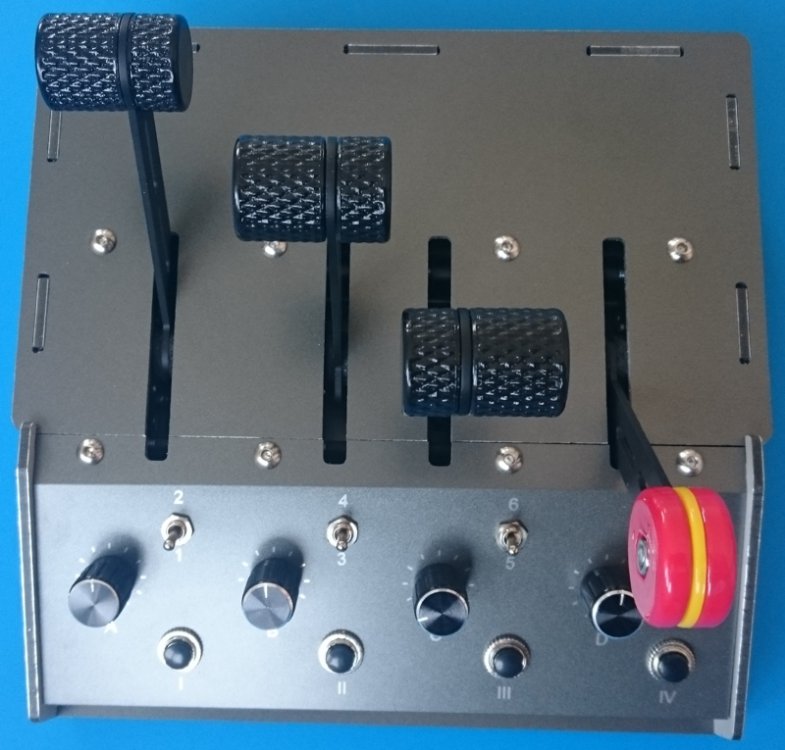

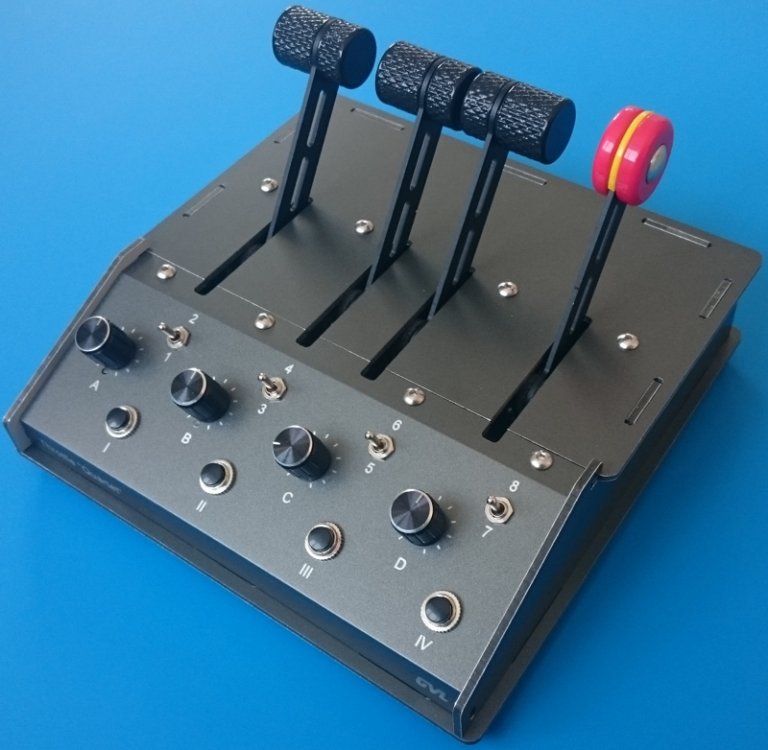

"Quartet" with different arms.
https://youtu.be/aYw-o1Dz4v0

[Archie]

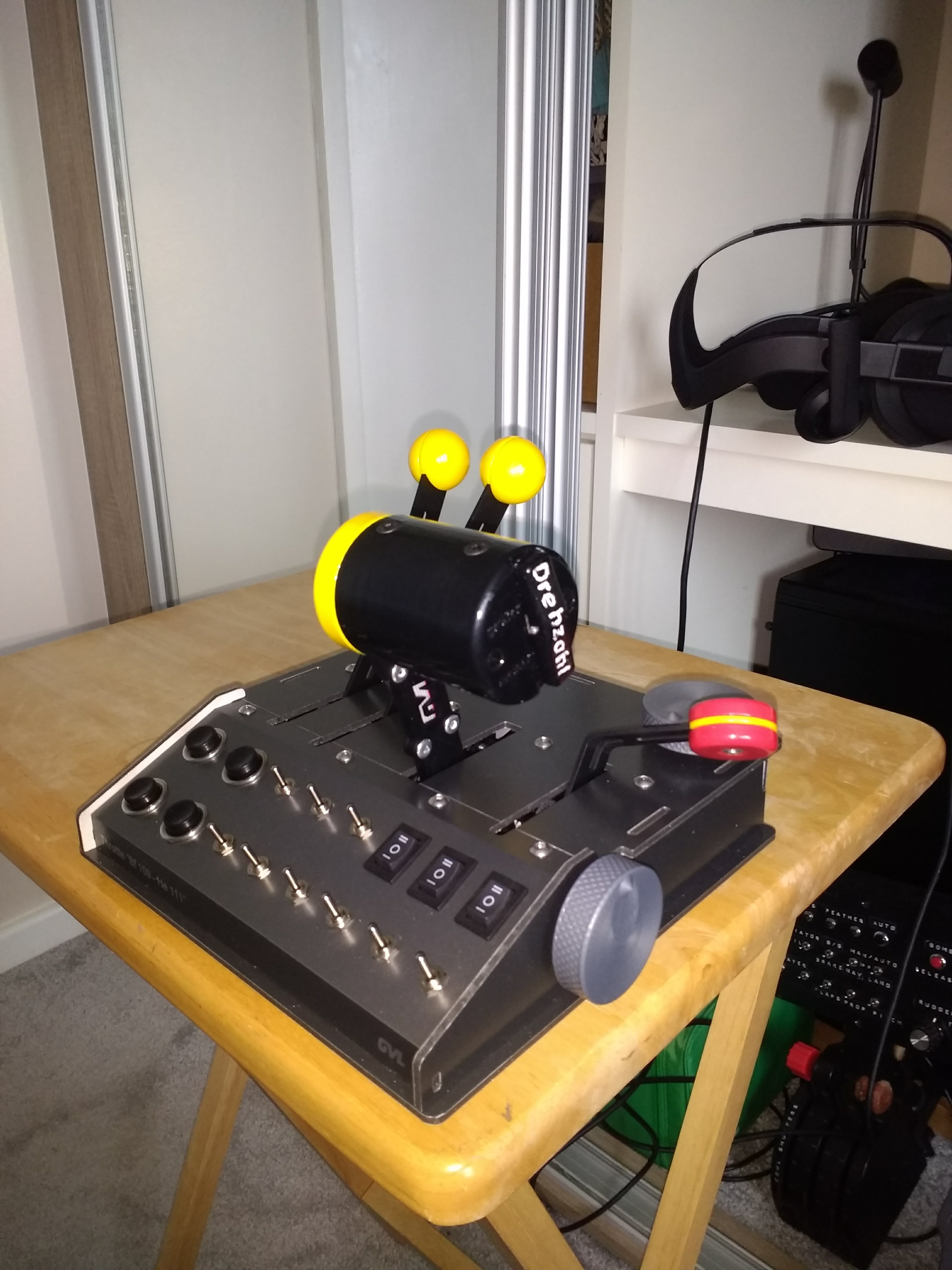

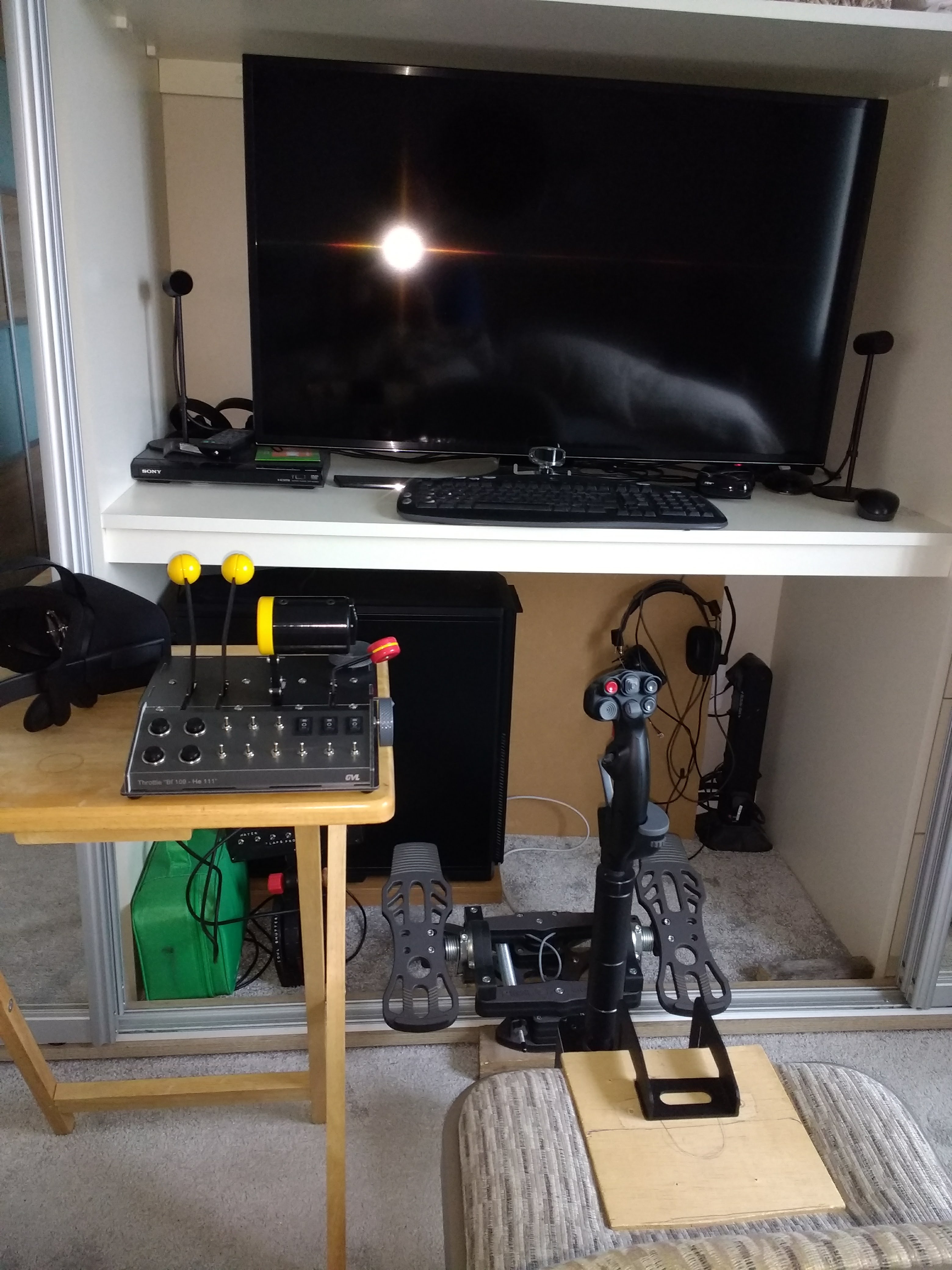

And it's just arrived! Thanks Vitaly, the build quality is fantastic, I love it.

[GVL224]

You are welcome.
I'm pleased that you liked the throttle.

[Seb71]

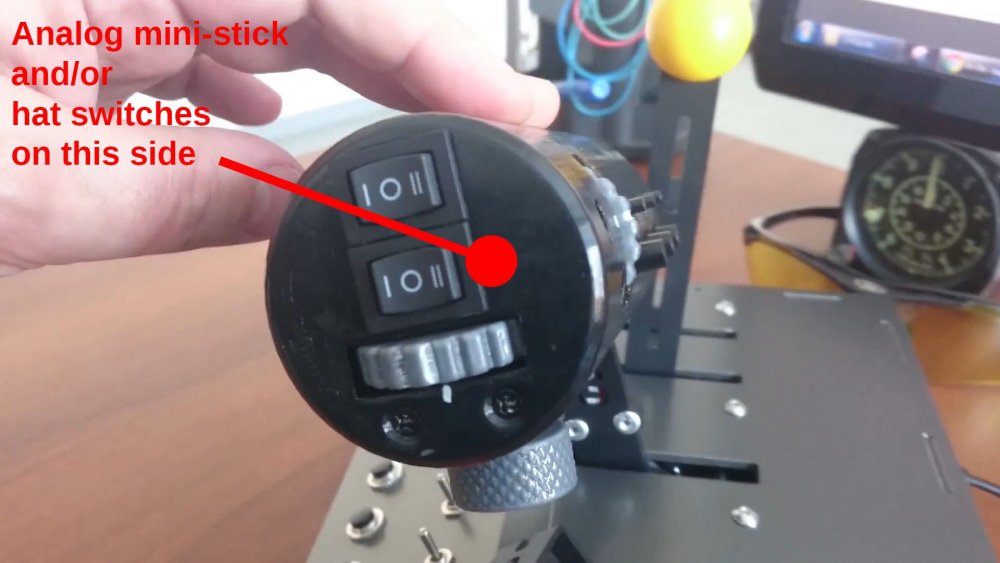

Could you put an analog mini-stick on the throttle handle (on the end side, for the thumb)?



Also, could you put Hat switches on the throttle handle?

[GVL224]

6 минут назад, Seb71 сказал:

Could you put an analog mini-stick on the throttle handle (on the end side, for the thumb)?



Also, could you put Hat switches on the throttle handle?

Theoretically I can establish, but at my order there is no ready decision (mass factory manufacturing).
If you show (give a link) to what exactly you want I can do.

[Seb71]

[GVL224]

I understand where you want to install, but which one?

[Seb71]

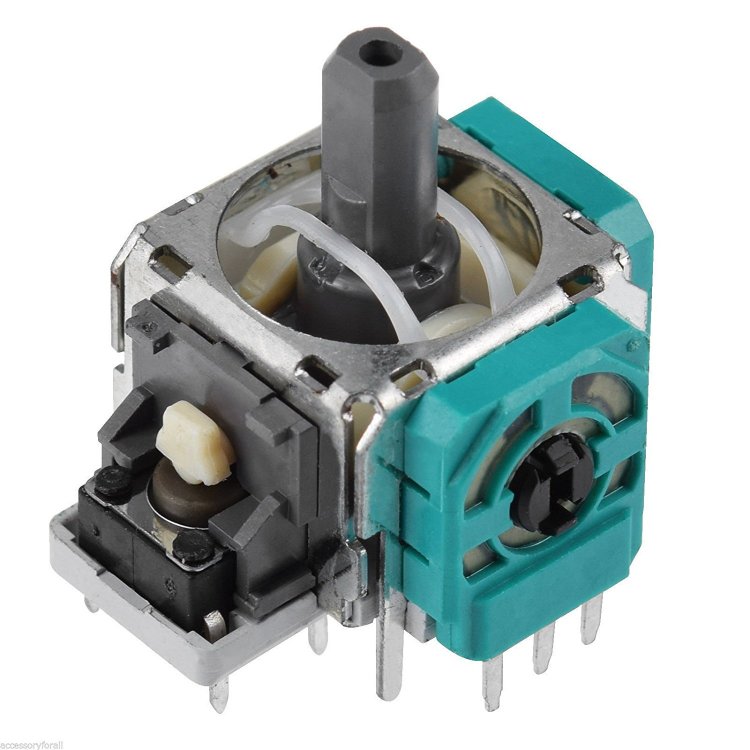

Ah, you wanted a specific mini-stick model. Something like the thumbsticks from Xbox One controllers, for instance.

[GVL224]

Is that so?



https://ru.aliexpress.com/item/DFRobot-Gravity-Series-Joystick-Module-V2-3-3-5V-connect-two-analog-inputs-one-digital-pin/32653498258.html?spm=2114.13010708.0.0.hTBLhf

[Seb71]

Something like this (but better quality; this model has some bad reviews).

Edited April 17, 2018 by Seb71

[GVL224]

This I can not fix in my products.

[Seb71]

The mini-stick you linked is one which you already used?



Do you know anything about its quality?



For Il-2 BoX I don't need an analog mini-stick, but I would want one for Elite Dangerous (for up/down and left/right thrusters). And I can't buy two throttles, one for each game. So this is why I am asking about an analog mini-stick option on your throttle.

[GVL224]

Yes, I used it twice, I do not have any problems.

[Sokol1]

On 17/04/2018 at 6:41 PM, GVL224 said:

This I can not fix in my products.



Just as curiosity: but you two are talking about the same thing, the "mini-stick" linked in Amazon (2 axis plus push button) is the same kind of  "mini-stick" from DFRobot, just not fixed in PCB and without cap - several cap models is available in eBay/Aliexpress.



Replace the two "rocker" buttons with the mini-stick. An example in DIY throttle:









https://www.thingiverse.com/thing:1810592



Edited April 25, 2018 by Sokol1
