Radar and Radio Navigation System Germany 43/45:



-for Daylight German SP Missions from mid 1943 - 1945, current version for Rheinland Map

(for Night Fighter Radar Guidance see:)

https://forum.il2sturmovik.com/topic/90528-teaser-working-radar-guidance/

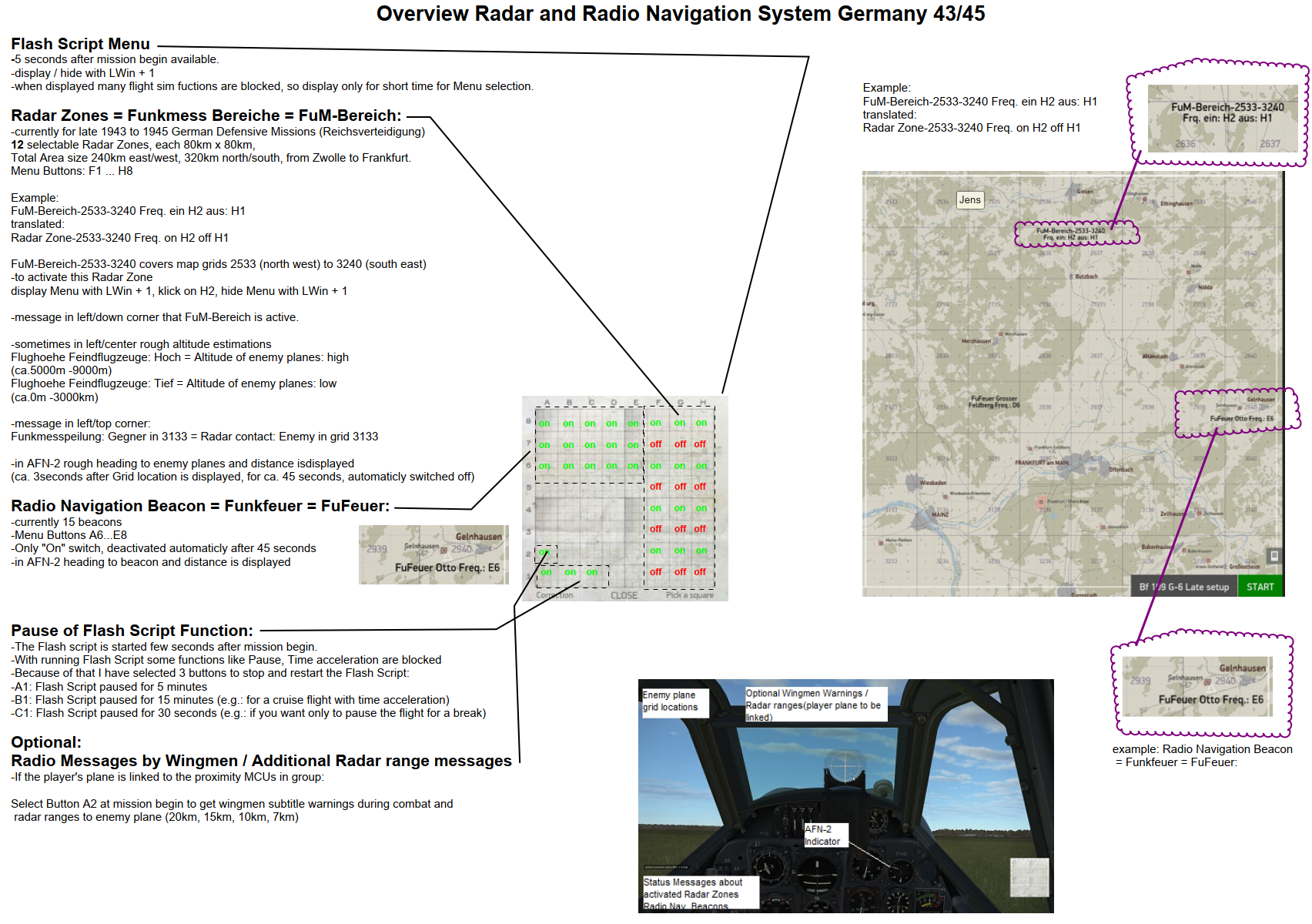

-usage of defaullt Artillery Spotting Flash Script as "Radio Frequency Selector" with 8x8=64 Buttons

-see detailed description with german / english translation in the Overview below

-12 selectable Radar Zones for Germany and eastern parts of Netherlands / Belgium

Target plane information:

-Grid position (Subtitle)

-sometimes rough information about altitude (high / low)

-heading / range to target displayed with modified AFN-2 Indicator for long/medium ranges (+-5km resolution)

-optional additional ranges to target 20km, 15km, 10km, 7km(subtitle) if the players's plane is linked to a group proximity MCUs (5 minutes work in ME)

-15 selectable Beacons for Radio Navigation

-3 different Pause options to deactivate the Flash script for 30s, 5min, 15min to pause the flight for a break or for cruise flights with time acceleration)

-Modular design with the possibility:

   -to add / connect further Radar Zones / Beacons

   -to to test new designs of radar / navigation systems

   -for usage on other maps, especially Normandy



-easy basic installation: mission to be opened in ME and Radar System Group to be loaded from file.



-Requirements for missions design:

-mission without additional flash scripts, without additional MCU Play Media.

-Existing beacons in mission: either deativated by setting the beacon channel to 0 or by connecting existing beacons to the Frequency selector of the System.



-Mission generation: Downloads see second post

-by Easy Mission Generator by @SYN_Vander (only modified Generic Template required / already working)

-additional EMG Mod with whole map fronts area WIP / ca.70%

-AQMB: to be tested

-Pilot Career Missions: to be tested

-Handmade ME missions



Download of Radar System:

Radar and Radio Navigation Germany4345 Group v01.zip





Download of Missions:

(missions with ...-v1 = easy basic installation and ...-v2 advanced installation with additional radar ranges / wingmen messages)

https://www.mediafire.com/file/cmvehvau2g278gz/Radar-Radio-Navigation-System-Germany4345-SP-Missions.zip/file

(28.02.25: Missions overworked, 2 missions added)



Download Compatibility Generic Template missions for missions production with EMG by Vander:

for EMGv88.1:

CoopTemplate_GENERIC-default-beacons-deativated.zip

28.02.2025: small update: Template with more agressive escort fighters (cover priority = medium)

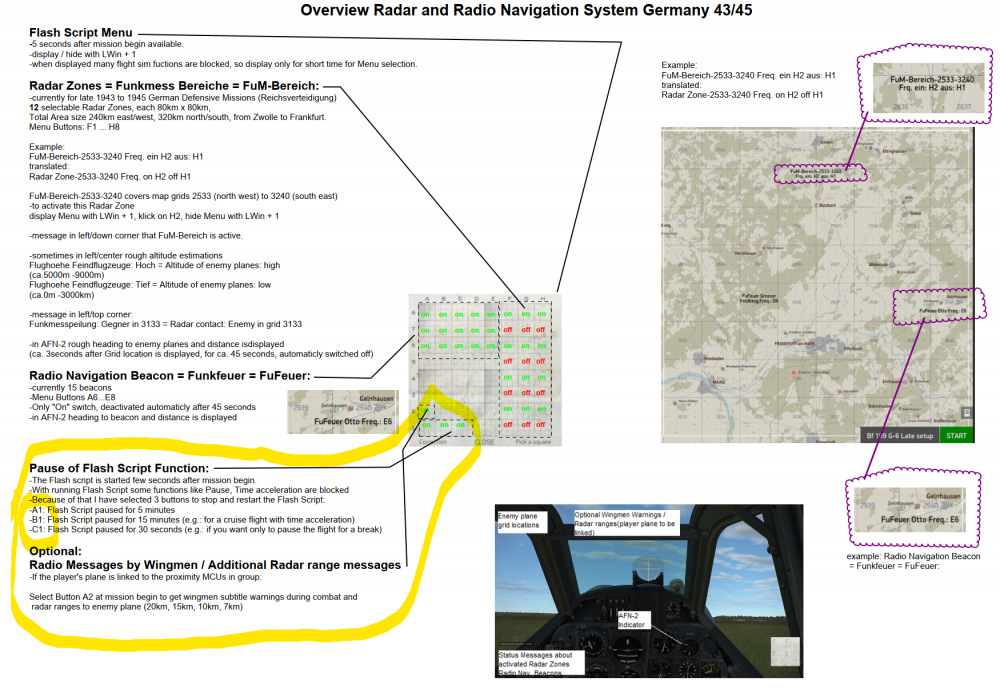

27.02.2025 late, Small update: Buttons and leader lines for "Pause of Flash..." and "Optional Radio Messages by Wingmen..." corrected in overview graphic,

No change of downloads!



Demo Video 1

(small note to the shown airfield Merzhausen: I am living in ca. 30km distance in the Rhein Main Area)



Demo Video 2

Radio Navigation with selection of 3 semi historical beacons (Funkfeuer)



Historical / Technical Information:
