About the soviet 20x99mm new 840m/s MV....


Recommended Posts

the_emperor
Posted (edited)

with the recent update the MV was increased to 840m/s and the projectile weight adjusted to the correct later 96g (the weight of the most common HE, HE-T and API projectiles).

The 840m/s MV was justified by the manual kindly provided by @=FB=VikS




which give us the MV up to 840m/s for the 1540mm barrel version, unfortunately not specifying the projectile weight, which can reach the 840m/s.



Does any one have another manual that show 840m/s?

As I think that should be reconsidered for the 96g projectile, based on the following sources:

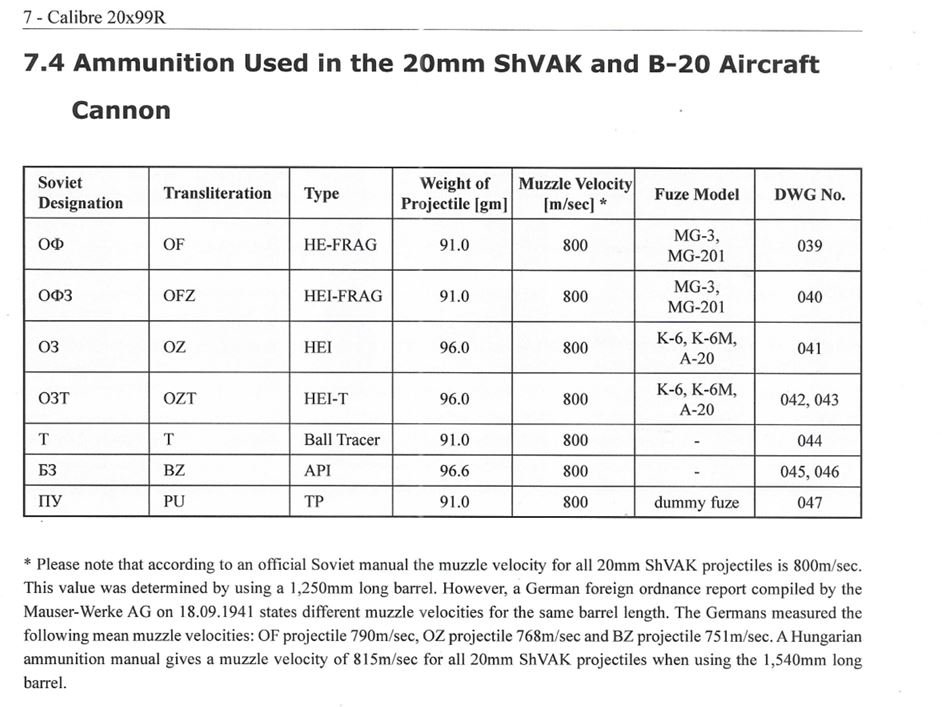

a) T-60 20mm Shvak manual giving 800m/s for the 1538mm barrel and the 96g API and HE-I projectile

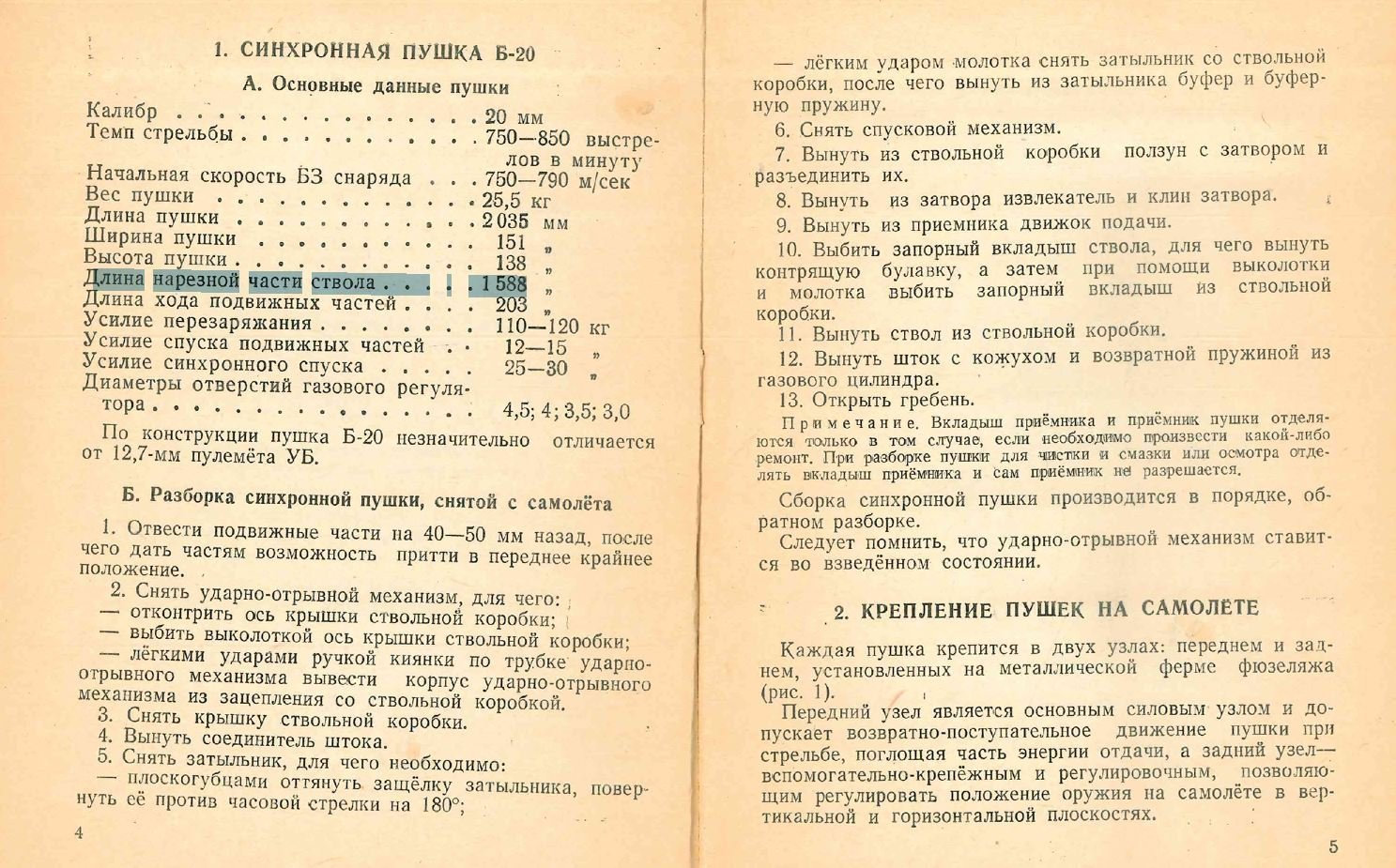

b) this La-7 manual that gives us a MV range of 750-790m/s for the  1588mm barrel length




matching the german intelligence report (770m/s for 96g at 1250mm -> 790m/s for the 1588mm barrel seem reasonable)

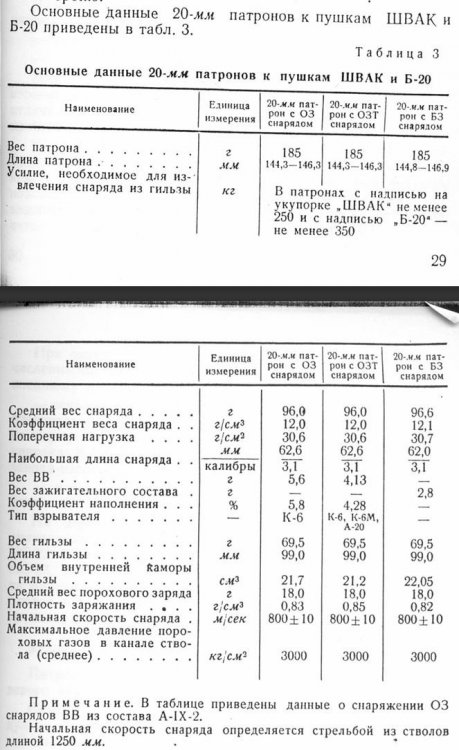

c) 1953 manual for soviet ammunition (specific qeight, propellant and barrel: 96g; 18g; 1250mm)




so thus far I have seen a maximum of 800m/s for the 96g projectile from the the  1540 barrel.

Does any one have manual specifying the 840m/s with projectile weight?



Cheers

Edited by the_emperor
Posted

There is quite a bit of discussion (might have some useful information), as well as some dev responses, in this thread:



  • Upvote 1
the_emperor
Posted

Yep, I know. that was me starting the discussion there😁
