What Is This?

[czech693]

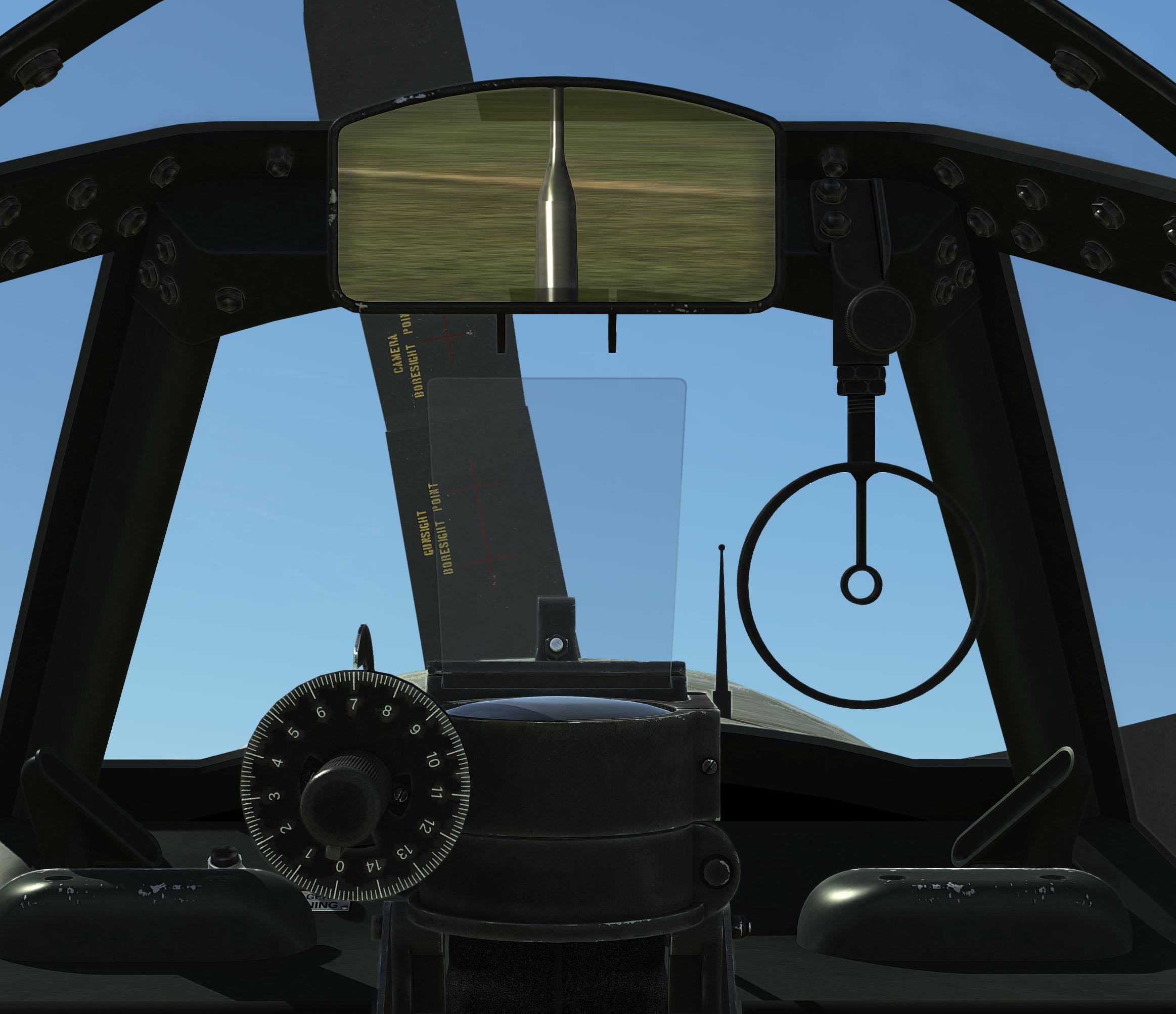

What the heck is this on the back of the P-51 props?

[Gambit21]

I’m guessing the gunsight bore-site point, and camera bore-site points.





…for alignment purposes.

[czech693]

Yeah, I figured that.  But is that for real?  I've never seen it before.

[LukeFF]

Yes

[AndyJWest]

Makes sense. You need some sort of datum to align everything to when setting up the guns, gunsight sight and camera, and the prop shaft should hopefully be in a fairly consistent alignment with the rest of the aircraft.

[Strewth]

2 hours ago, AndyJWest said:

and the prop shaft should hopefully be in a fairly consistent alignment with the rest of the aircraft.


One would certainly hope so.
If they become misaligned, you may find yourself with a rather pressing problem.



[czech693]

Well, it's real.  It's not for the guns.  It's to align the gun camera and gunsight up.  I found this:



https://www.heraldnet.com/life/lining-up-the-p-51-mustangs-gun-sight-and-camera/

[spreckair]

But what is really cool is that the devs found this and included it in the sim; that is real attention to detail and realism.  IL-2 is really cool.

[Oyster_KAI]

Glory to @Danziger?
She provided me with enhanced textures for the MIG-3 cockpit and P-51 propellers in mid-2020, which were finally integrated into version V4.505 on December 29th.

Edited January 16, 2023 by Oyster_KAI

[RossMarBow]

Cool info never knew it had this detail.
