Red Triangle Decal- Bf-109G-2


schwarzerHund
 Share

Recommended Posts

Could anyone tell me what German word is written on the red triangle decal on the port side nose of the G2?  Have been looking around the interwebs and couldn't find an answer...thanks!!

Link to comment
Share on other sites

Hi!

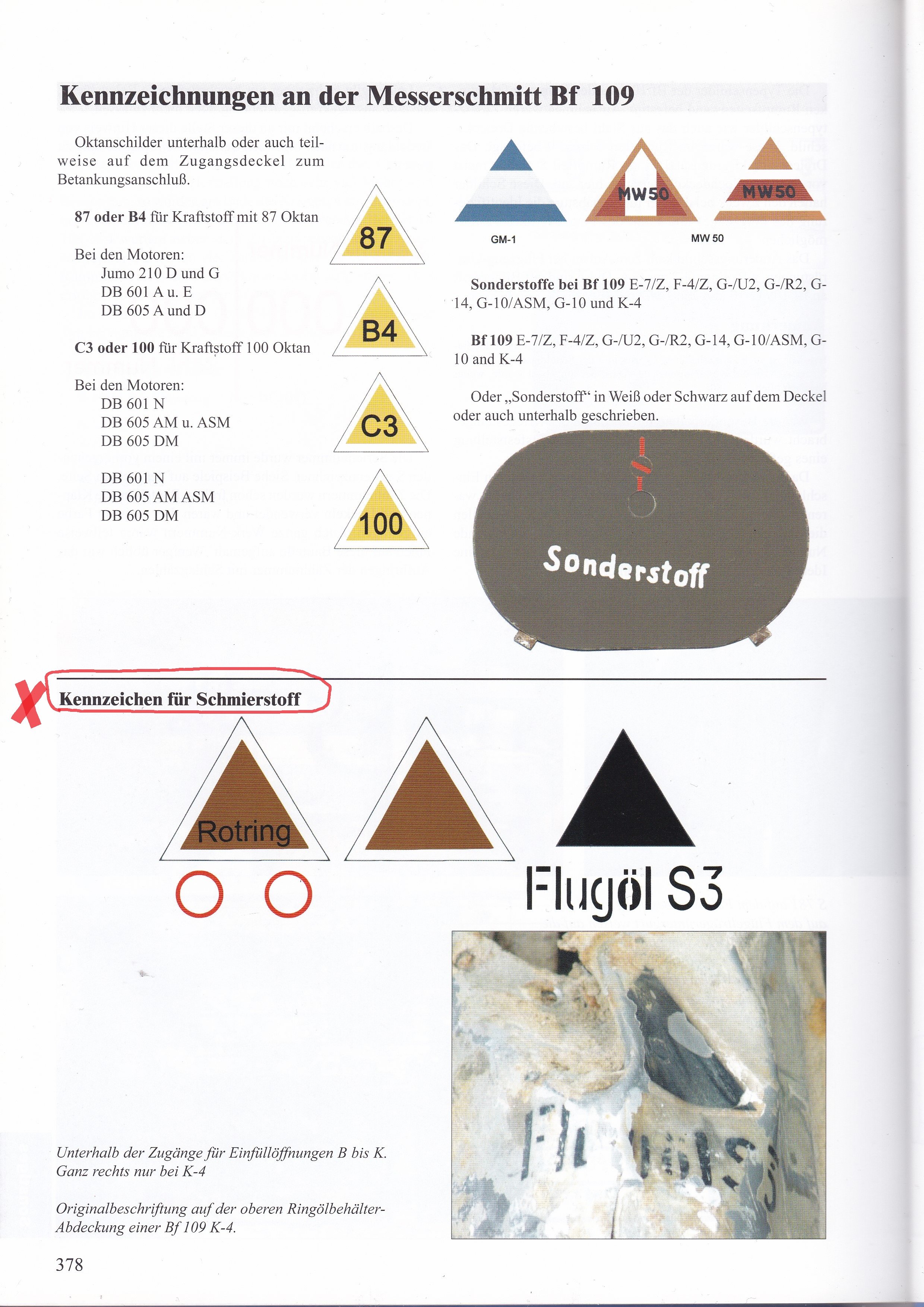

if I have correctely understood the Triangle is not red but yellow with a black outline with a black number inside

The number is the octane number fuel

  • Upvote 1
Link to comment
Share on other sites

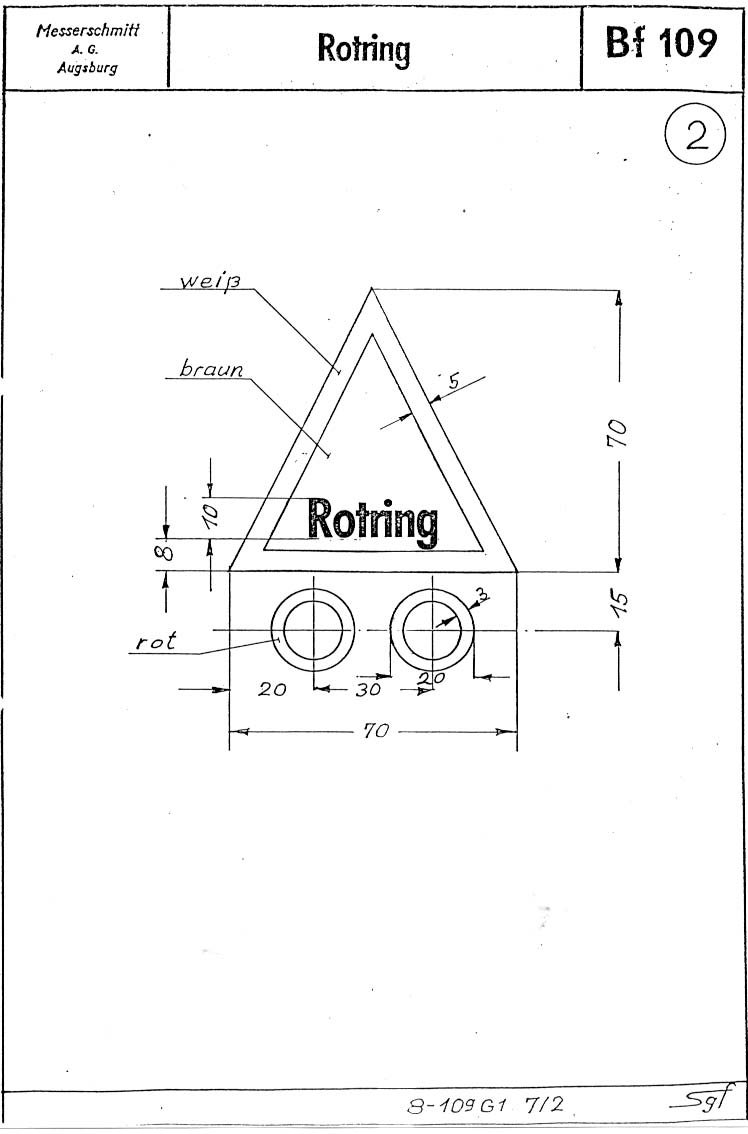

Just for the sake of completeness, Rotring was a brand of oil to be used when servicing the 109. An annular oil tank was right behind the propeller hub. The triangle was next to the oil filler port for this tank.

  • Thanks 1
Link to comment
Share on other sites

On 11/23/2021 at 10:58 PM, schwarzerHund said:

That solves my little Scooby Doo mystery for the day...

"If it wasn't for those pesky kids!!"...

  • Haha 2
