[FOR SALE] KG13 Luftwaffe grip STL for 3d printing

[Ansirial]

Hi everybody,

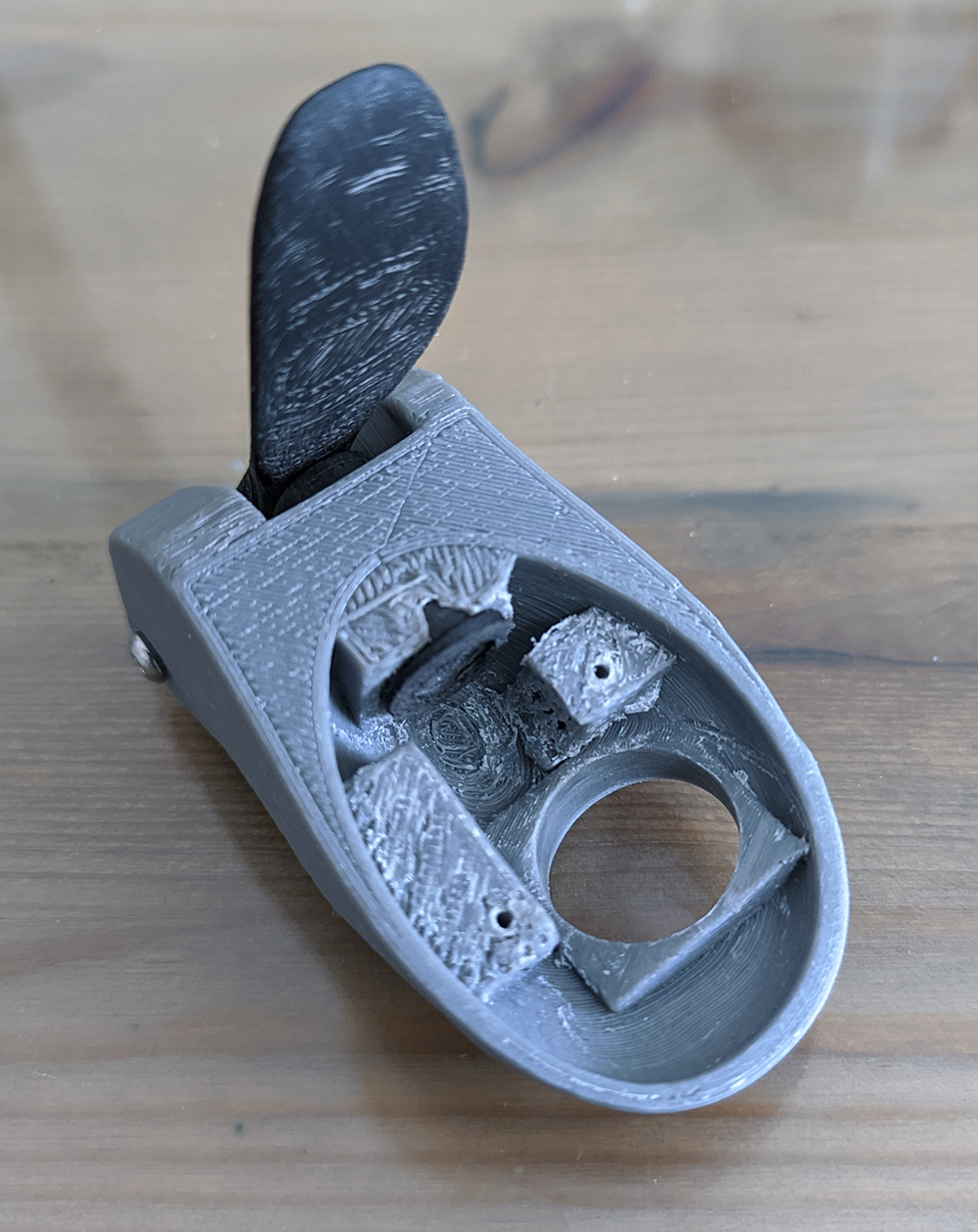

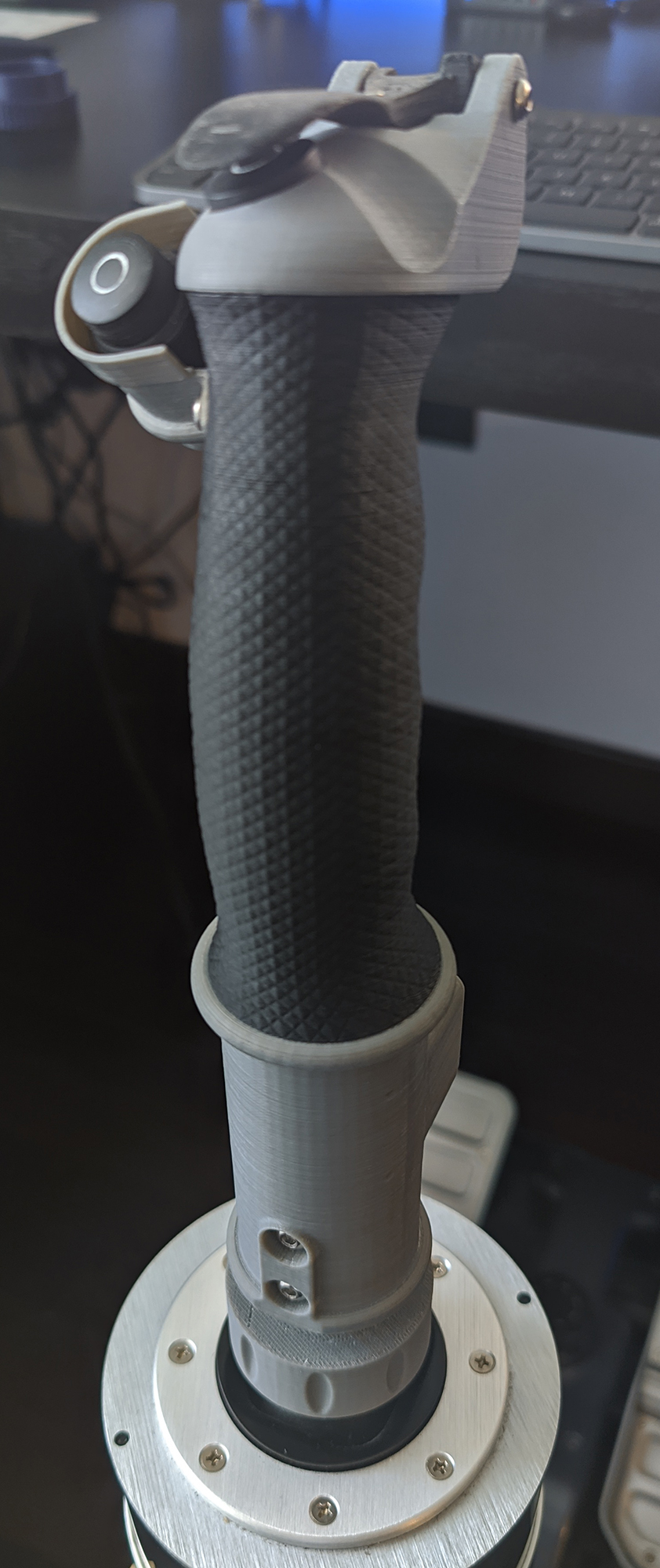

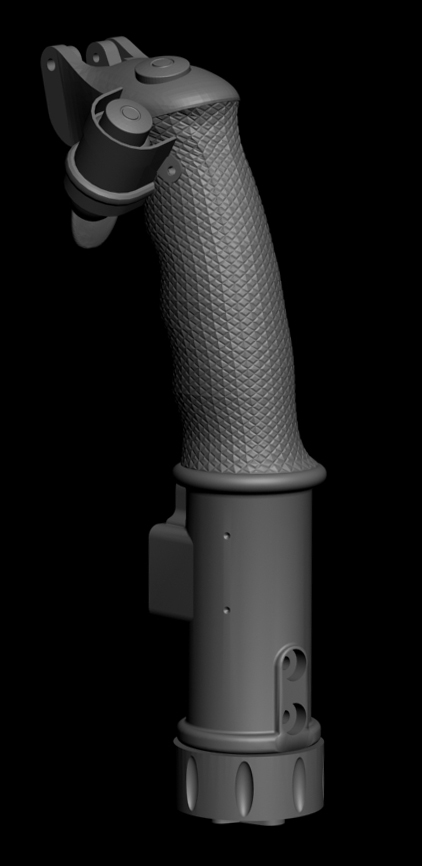

I would like to share another little project I developed in last 6 months during my spare time: a 3D printable Luftwaffe KG13B stick.

As you can see project is for Warthog base but can be adapted.











Starting from a free model I found on the web I deeply revised all the details in order to optimize 3D printing purpose:

- Most of the screws are internal;

- Models are separated in order to avoid to color them;

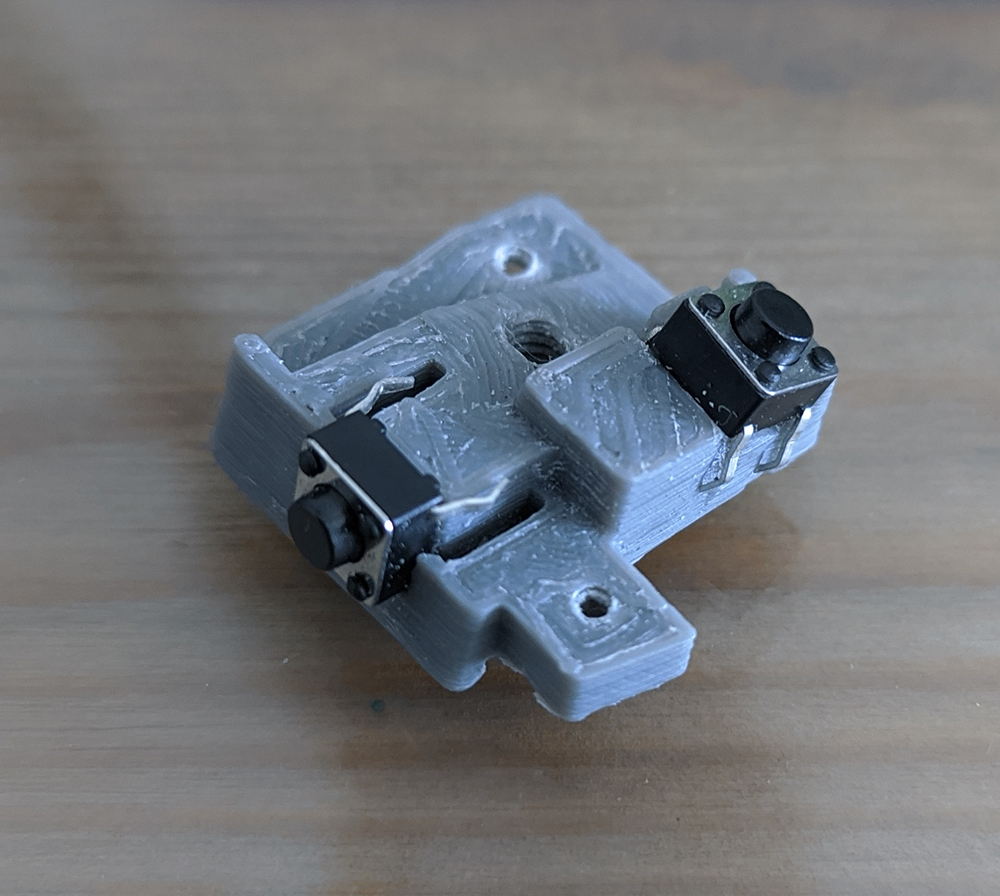

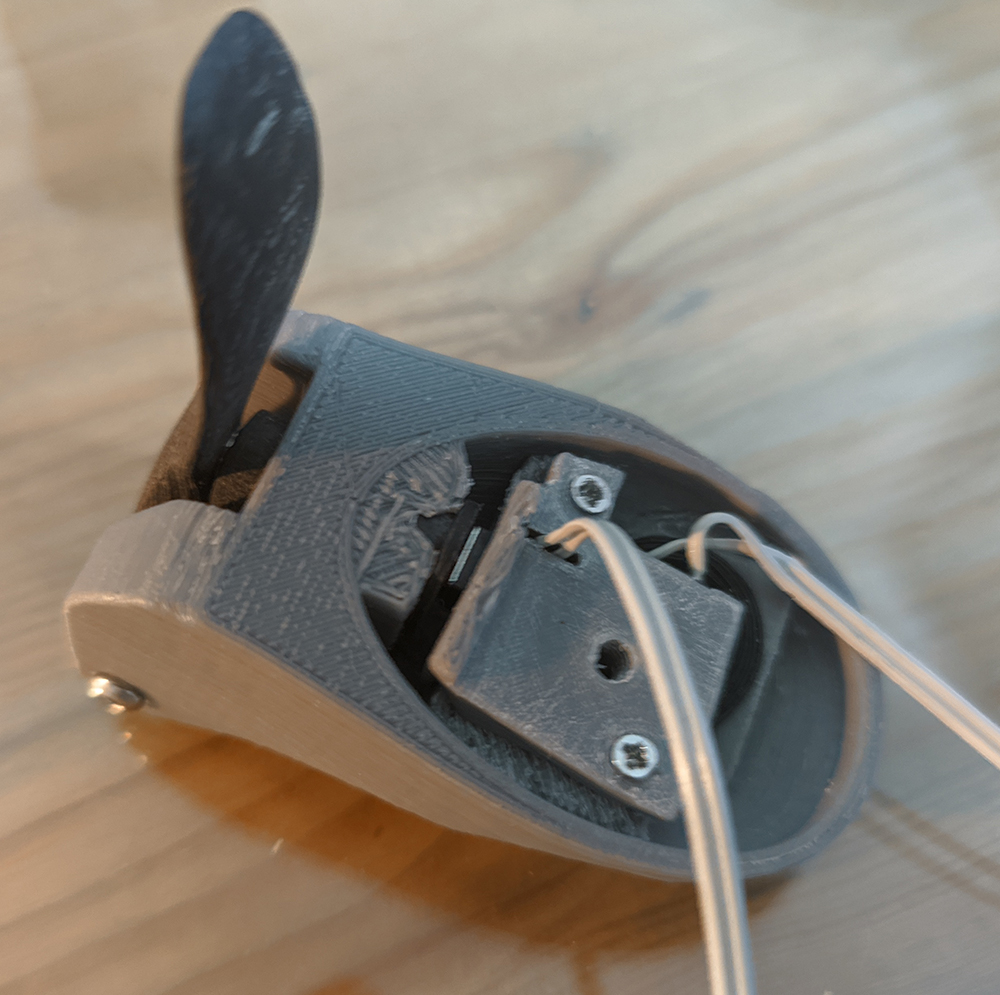

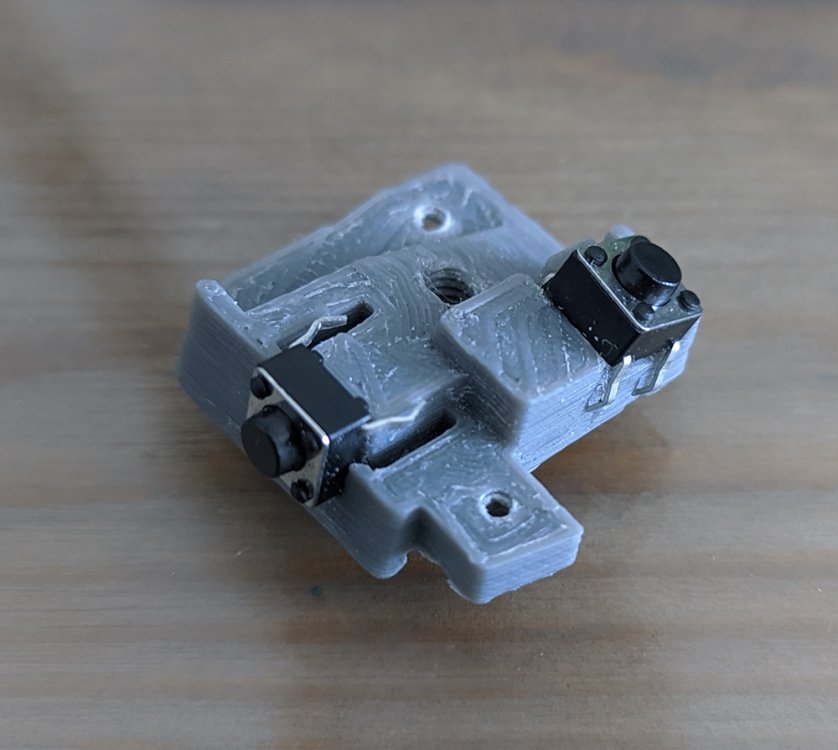

- Internal space is adapted to common micro switch sizes;

- Components thickness is enough to give strength (please note I printed it using ABS, but I think also a strong PLA can be suitable);

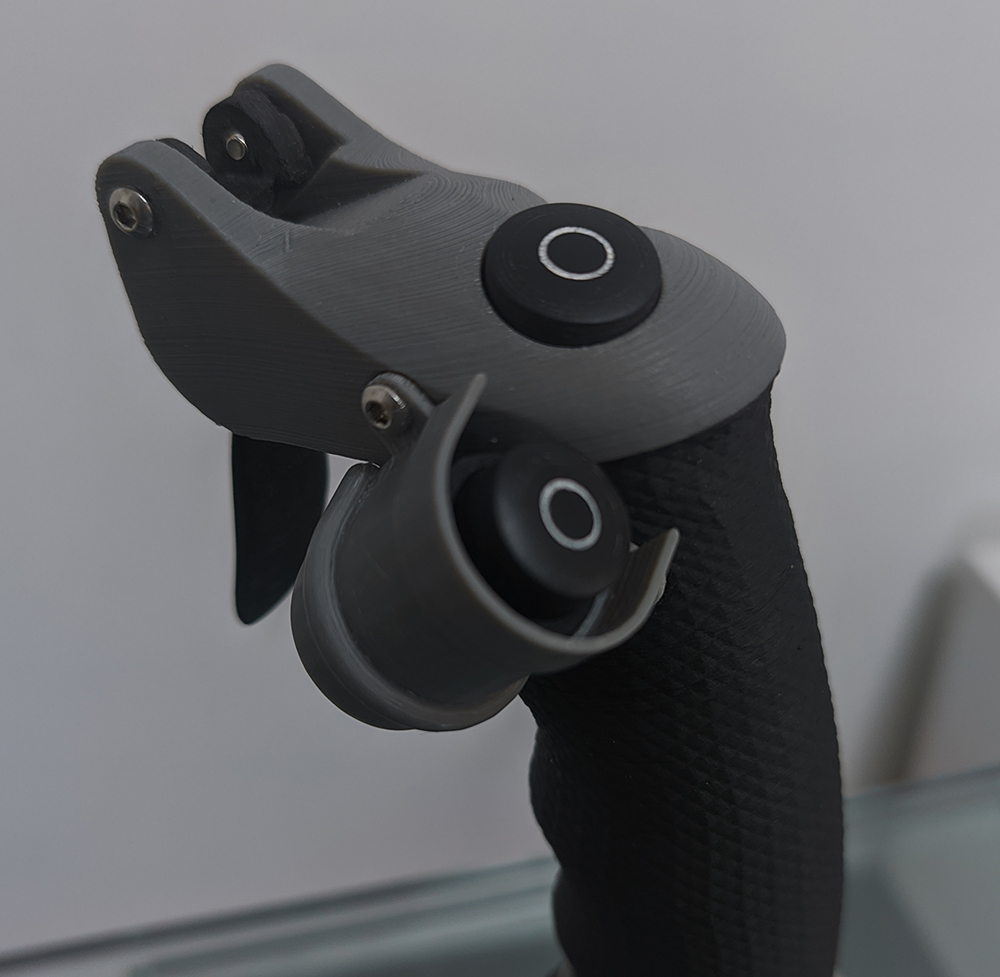

- Fully working safety using a small magnets;

- Some revisions from the original one to optimize usage.

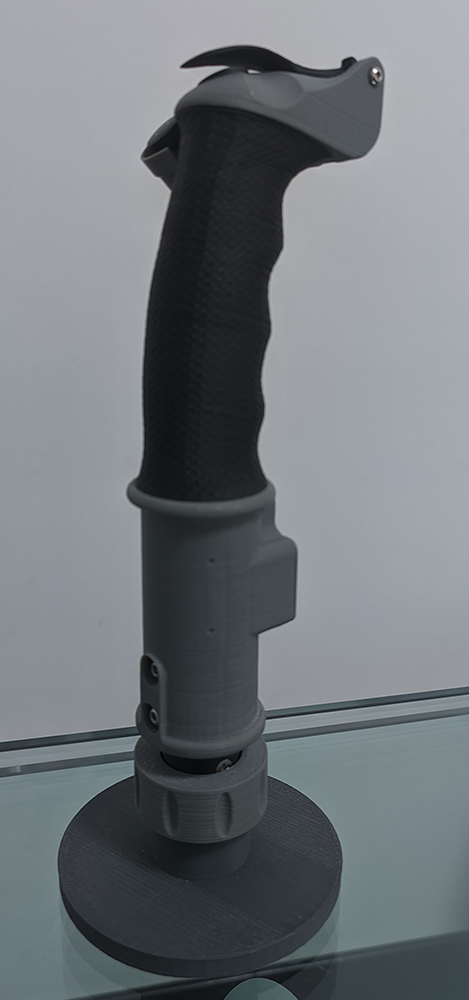

As you see replica it come out is pretty similar to real one.

If anyone is interested to STL please write me a message, I decided to share them for a small price privately before start a subscription on any sharing platform (People interested might be few).  I will also share schema for the internal board for the Warthog witch is by public use and far known.





To resume, I include:

• STLs to print for yourself
• Renders showing how to assemble
• List of parts for the build (screws, resistors, etc)

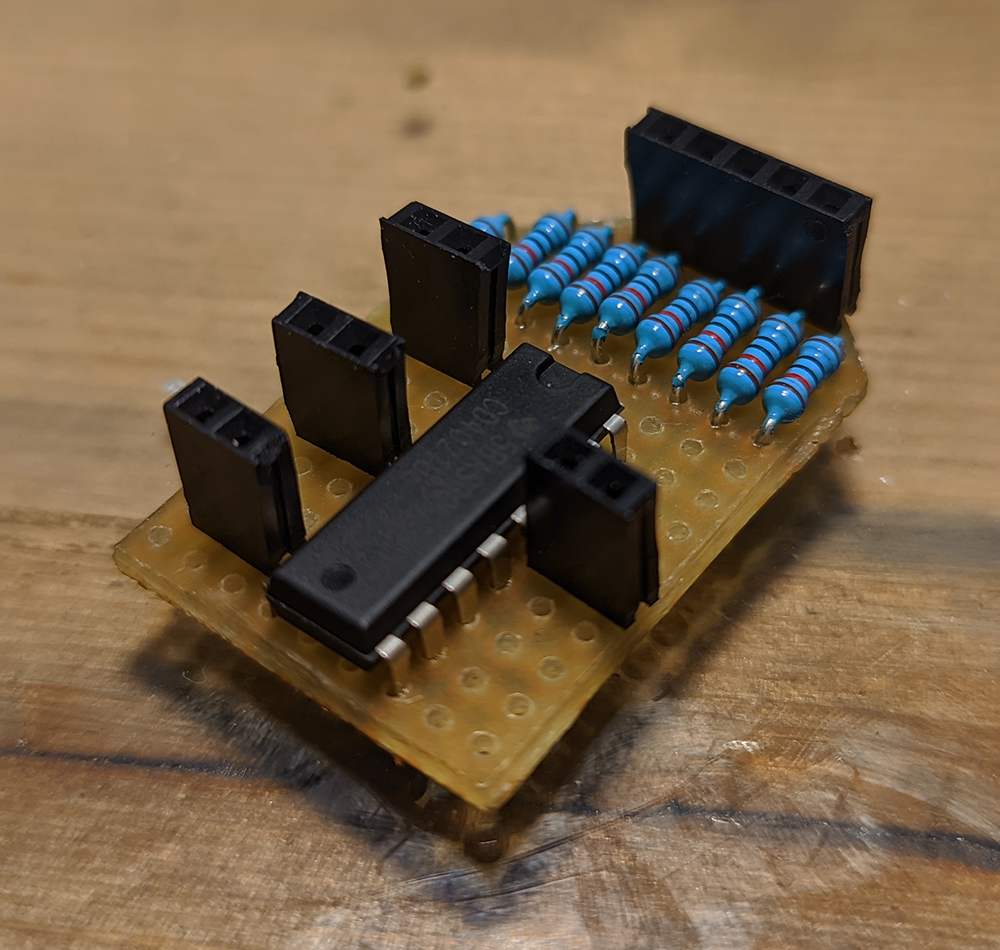

• Schema for the internal board (working for Warthog stick)







You can print for your own or, if you prefer, ask to print pieces to a 3D printing service.

Obviously I will ask to use STLs for your own and keep them private.

Edited April 21, 2021 by Ansirial

[Marvel]

Hi Ansirial, the pictures are not visibles, this the message: "The file you were looking for could not be found "



Ciao!



M

[Ansirial]

40 minutes ago, Marvel said:

Hi Ansirial, the pictures are not visibles, this the message: "The file you were looking for could not be found "



Ciao!



M



Hi Marvel thanks! Now they should be visible.

[Marvel]

On 4/6/2021 at 1:24 PM, Ansirial said:



Hi Marvel thanks! Now they should be visible.

Thanks Ansirial! ?

[XiaoFeiXiong]

How are the parts connected? Glue?

[Ansirial]

10 hours ago, XiaoFeiXiong said:

How are the parts connected? Glue?



Hi XiaoFeiXiong,

All parts are connected with screws and can be disassembled if needed.

Screws visible are even few than the real stick, they are mainly inside the internal structure.

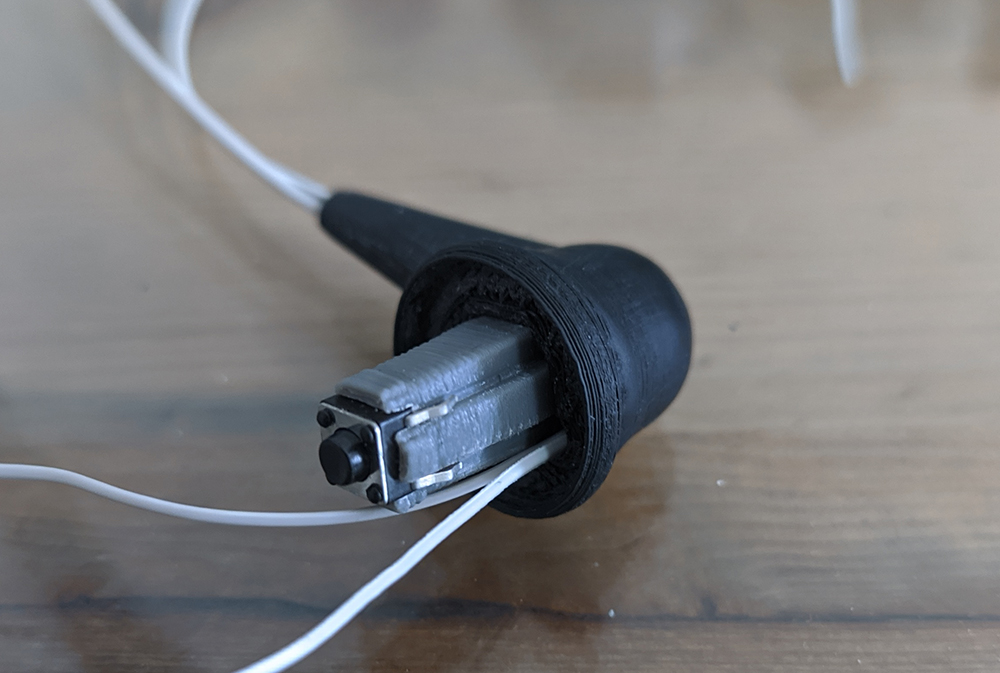

Only lateral button needs some glue where it joins with handle, this will keep all the object completely dismountable for maintenance purposes.



Feel free to ask for any question.

Bye

[XiaoFeiXiong]

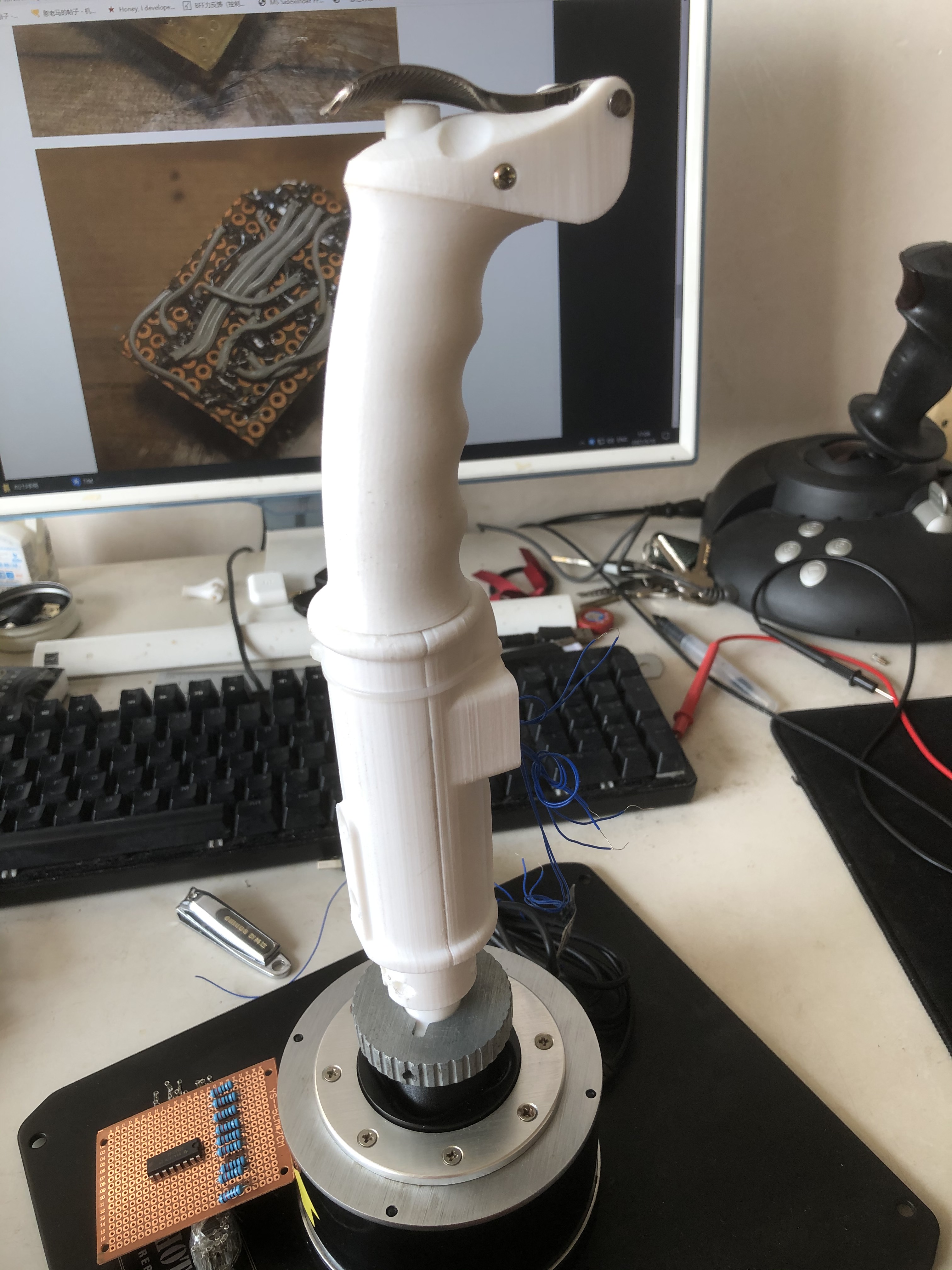

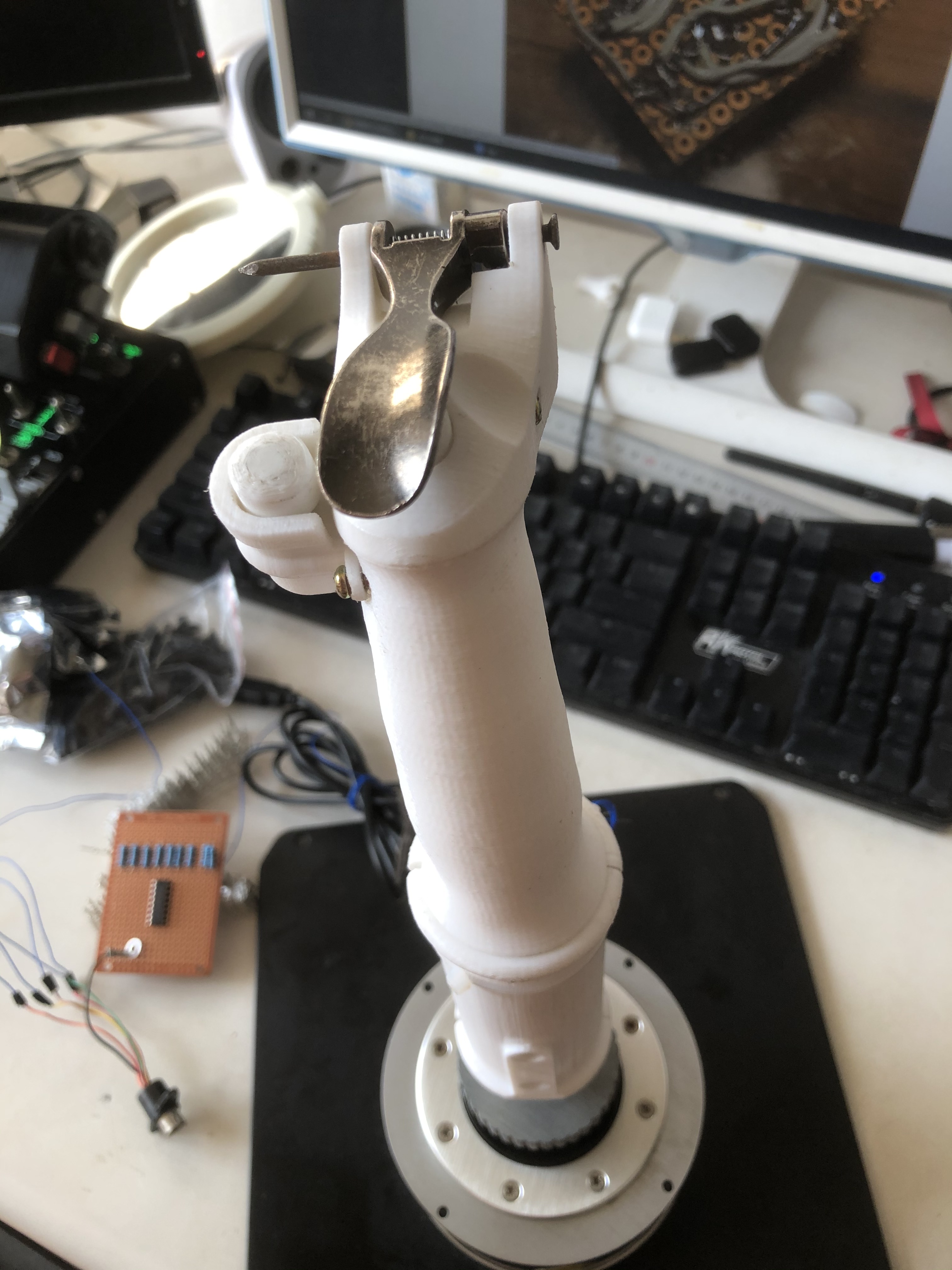

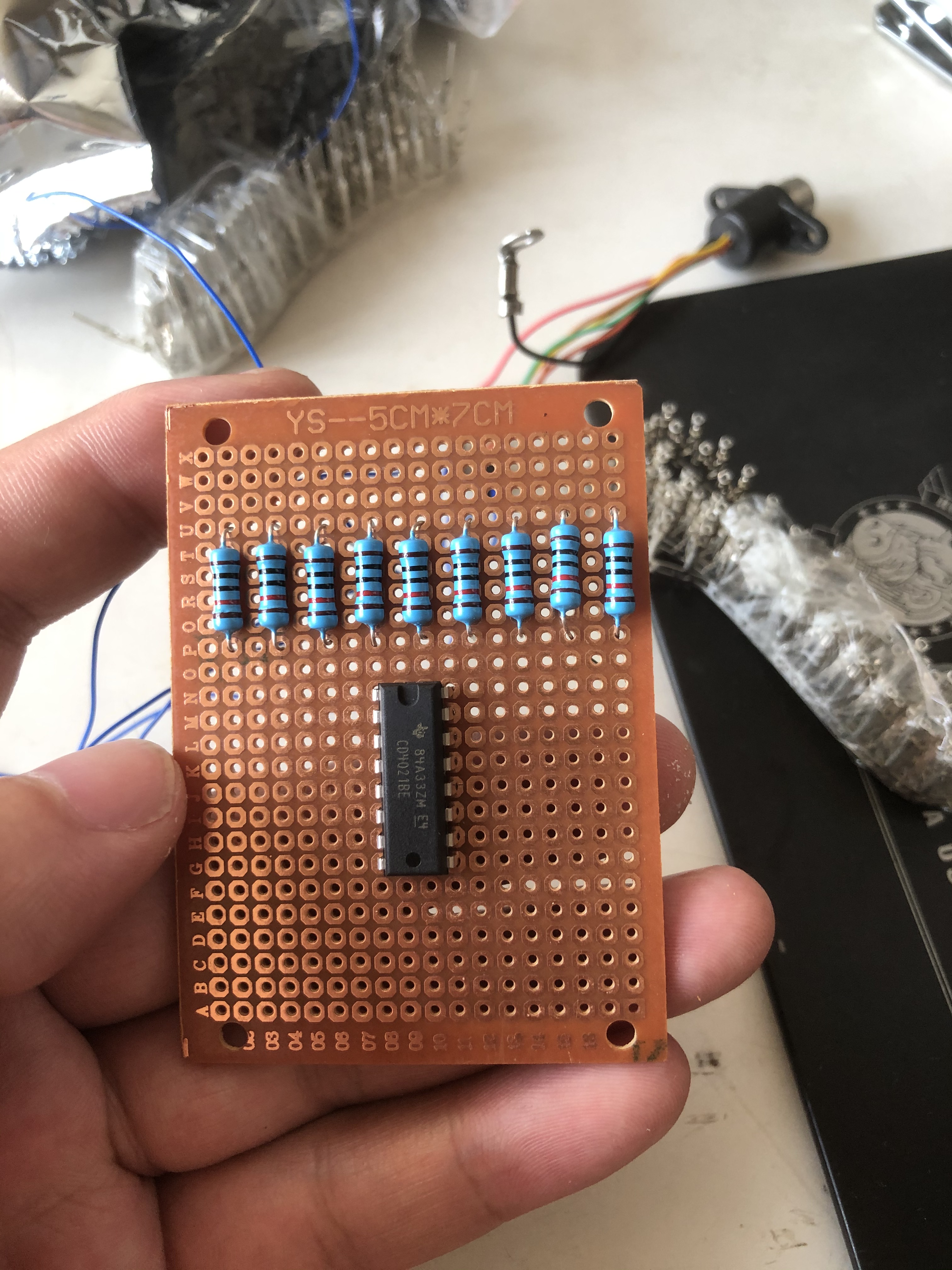

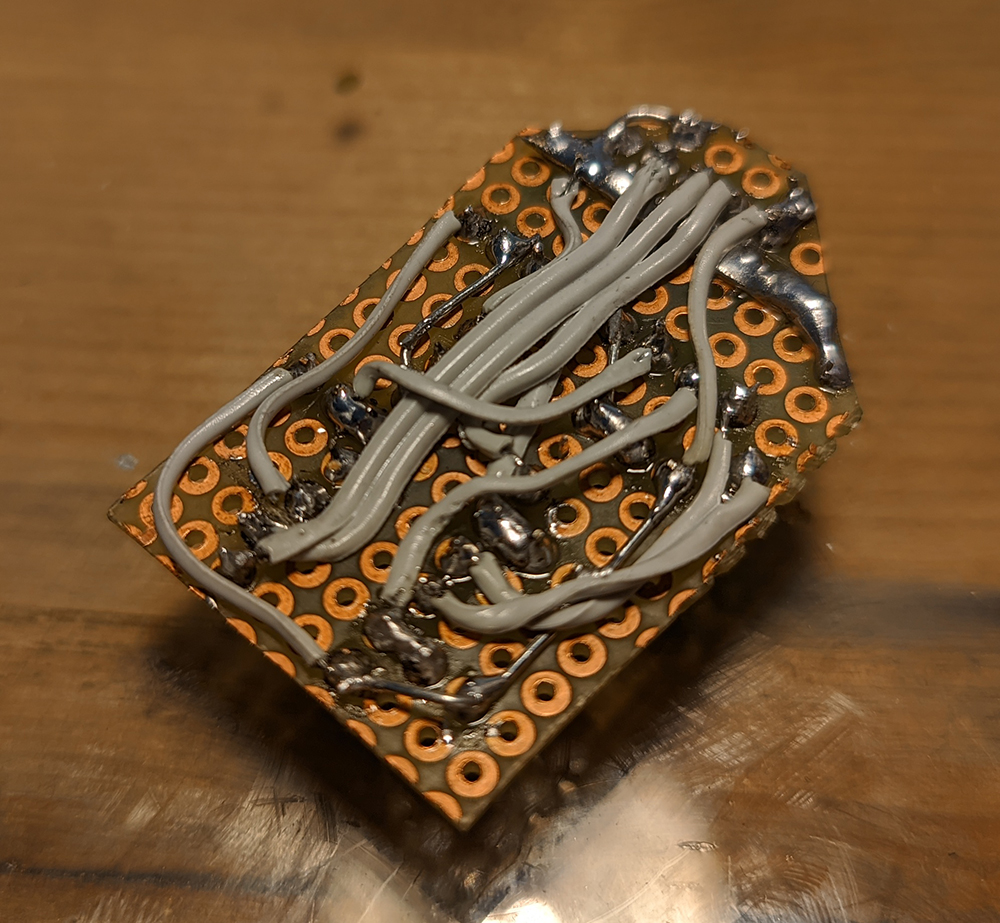

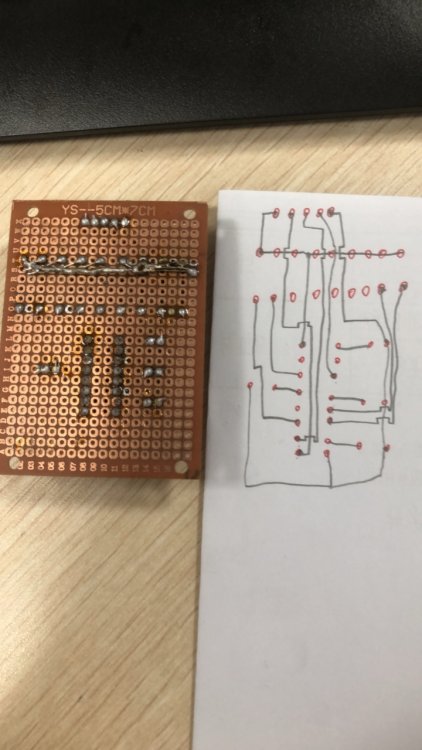

hi,Ansirial.I made a KG13 by referring to the picture in your post.Please tell me how to make the circuit part，How is the back welded

？thank you

[XiaoFeiXiong]

Dankie, Ansirial. Jou prentjie is vir my van groot hulp.

Edited May 11, 2021 by XiaoFeiXiong
Bywerking

[Ansirial]

5 hours ago, XiaoFeiXiong said:

Dankie, Ansirial. Jou prentjie is vir my van groot hulp.



Hi XiaoFeiXiong,

The circuit is developed from a public thread on another forum, I normally share the circuit design with the STL for a small price, but I will share it with you via PM,

Bye

[Sokol1]

if want a compact PCB for 8 buttons Shift Register (1 x CD4021) layout is available OHSPark, for order from there or DIY one.



Debolestis: https://oshpark.com/profiles/Debolestis/page/2



[varg0978]

can i please have the print datas ? i am allso about to make a KG13 joystick for my homecockpit

[Ansirial]

On 8/23/2021 at 2:06 PM, Macchi205 said:

Hello Ansirial I am Macchi205 from Rome and I am new here.

I am trying to send a PM with no luck. Probably because I am a newbie.

Could you please send me a PM just to see if it works and to get in touch ?

Thanks a lot Maurizio



Hi Macchi205, I wrote you right now with PM

[Macchi205]

Hello could you please read my PMs please ?

[bclark219]

Hi Ansirial,

I am interested in building my own flight sim controls. Could you please PM me because I'm not able to send you a message.

Right now I am 3d printing a throttle quadrant and IR head tracking. I'm thinking of mounting the KG13 on a piece of bent aluminum tubing and making a flight stick gimbal with hall sensors.
