-[HRAF]Roland_HUNter

Bf-109 G-14 Longertail wheel modification

Recommended Posts

Posted (edited)

Greetings!

I've seen the K-4 can carry an 500 kg bomb because it has a longer tail wheel.
Before the K-4, the G-10s rolled out from the factory with longer tail wheels, but not retractable.

But before the G-10, the germans started use longer tail wheels on G-6s and G-14s.
With this modifications the G-6 or G-14 would carry 500 kg bombs.

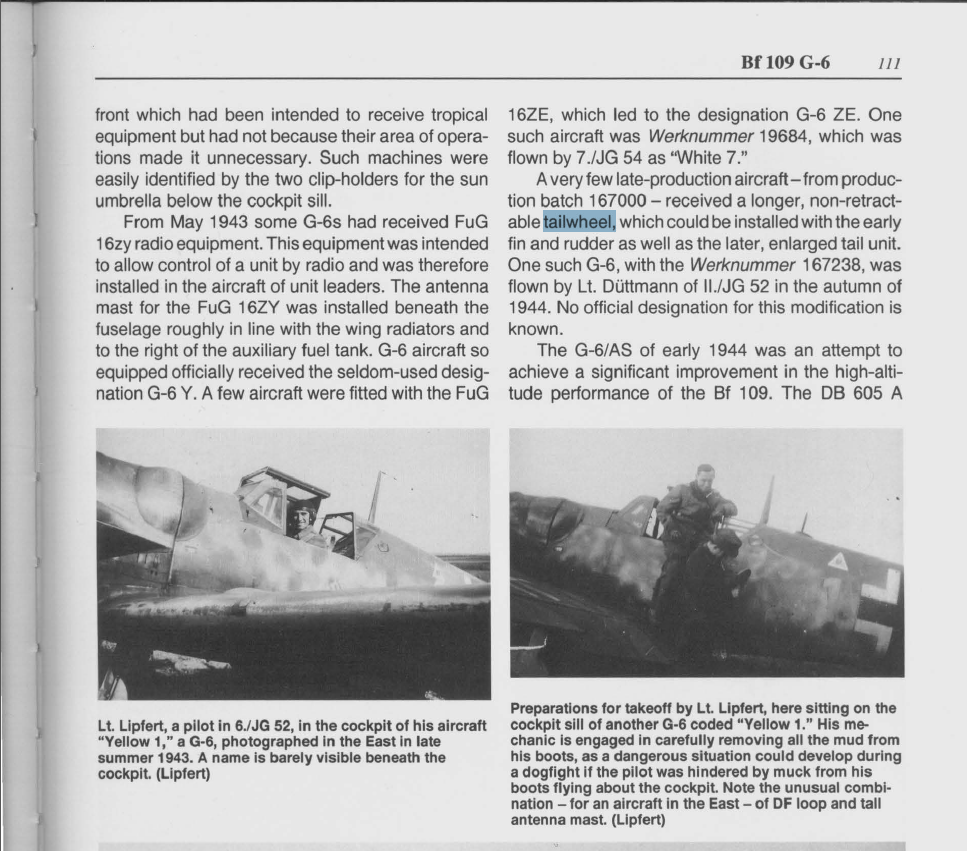

G-6:

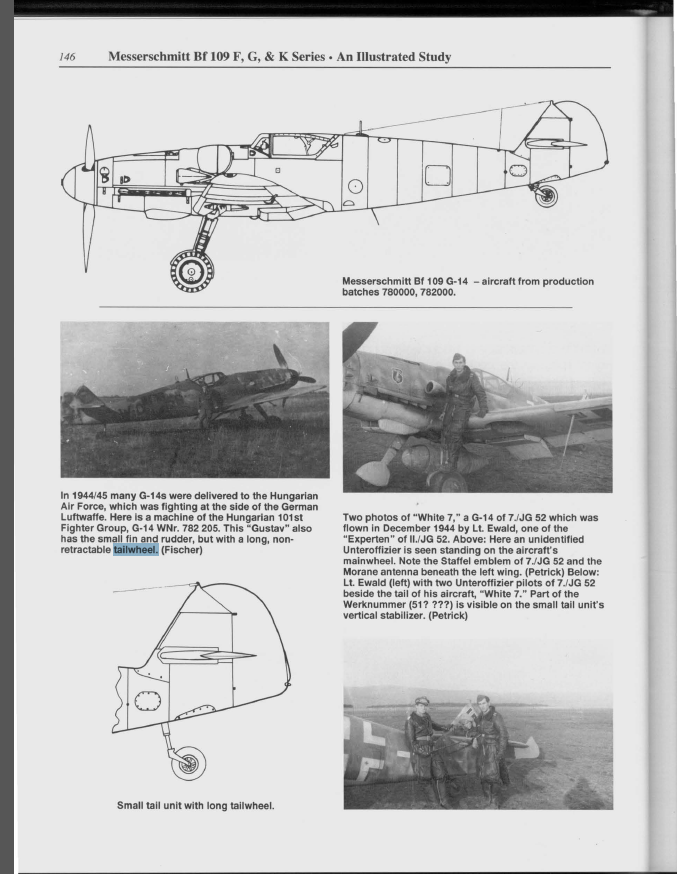

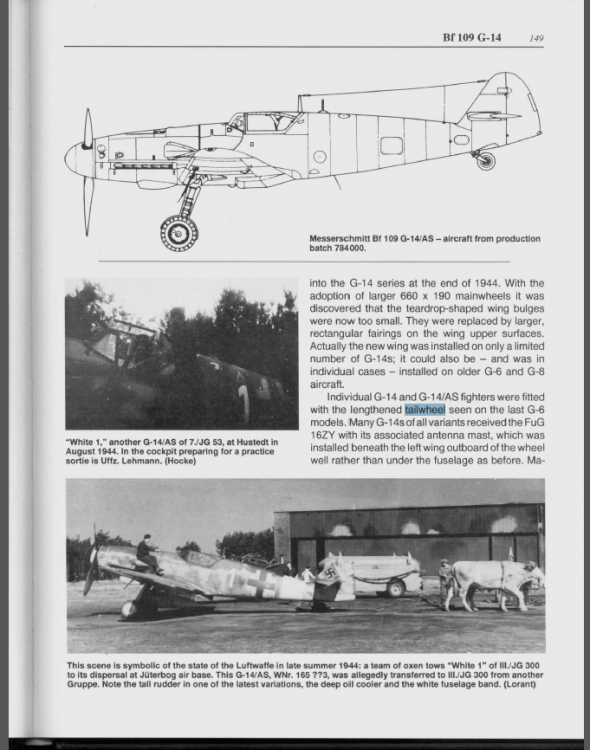

G-14:

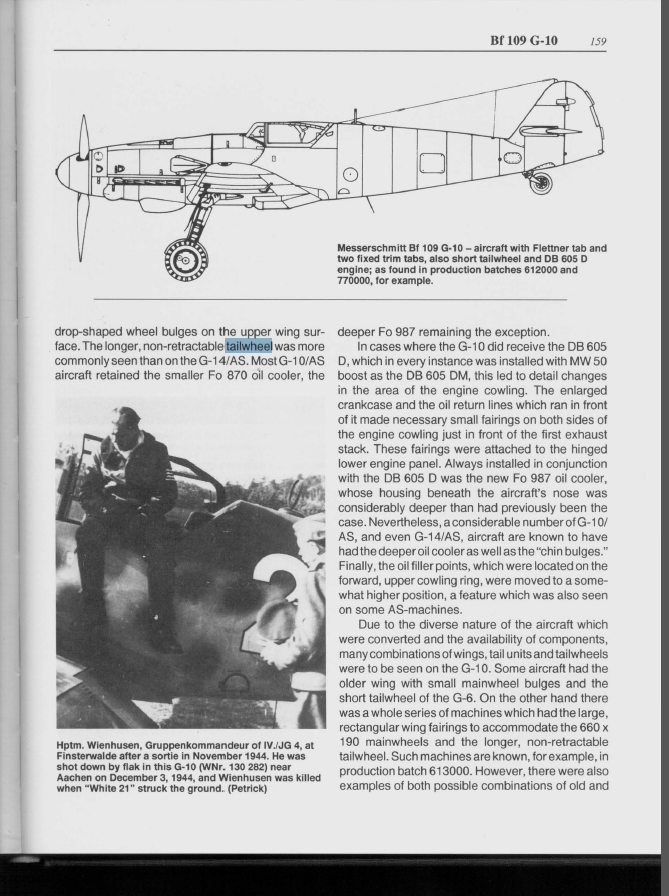

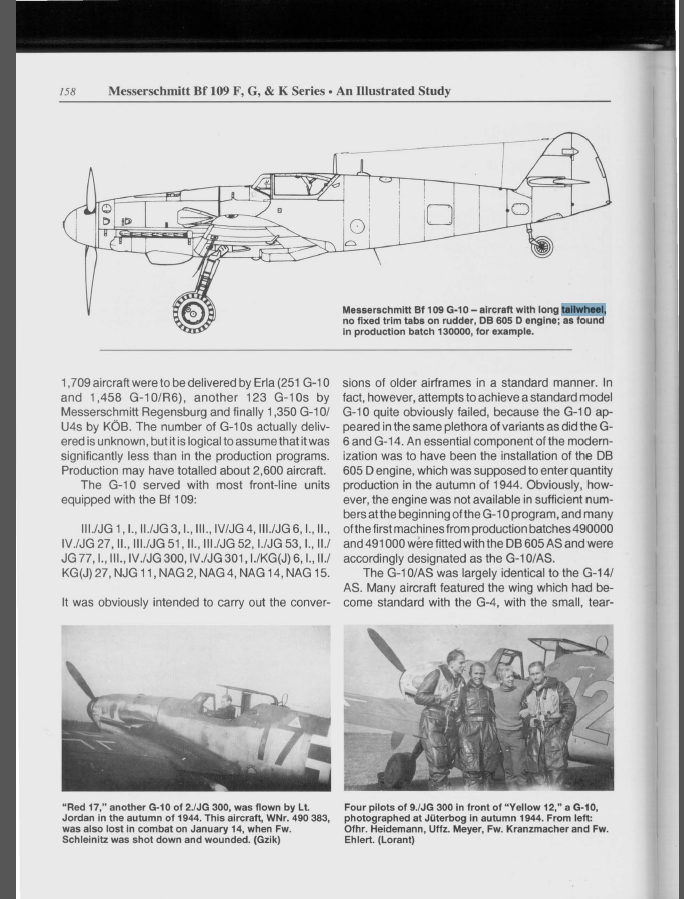

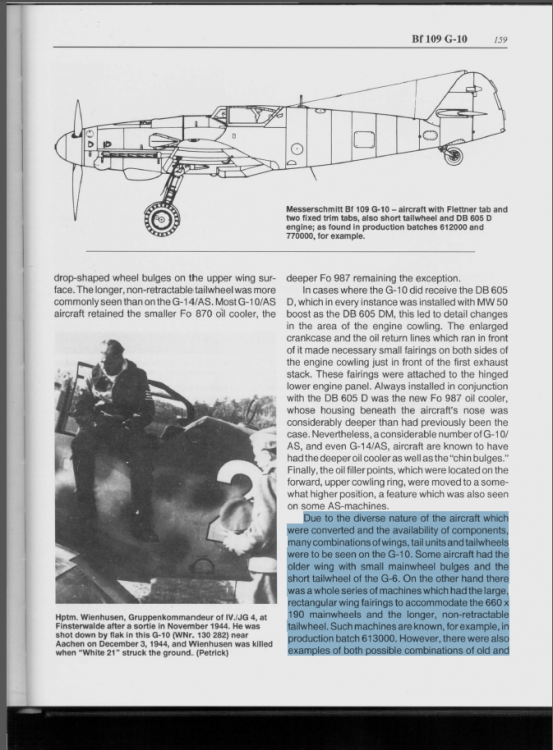

G-10



Source:Messerschmitt Bf 109 F,G, & K Series by Jochen Prien, Peter Rodeike



Sincerely, Roland_HUNter

Edited by -[HRAF]Roland_HUNter
