Home made switch panel for my bro

Recommended Posts

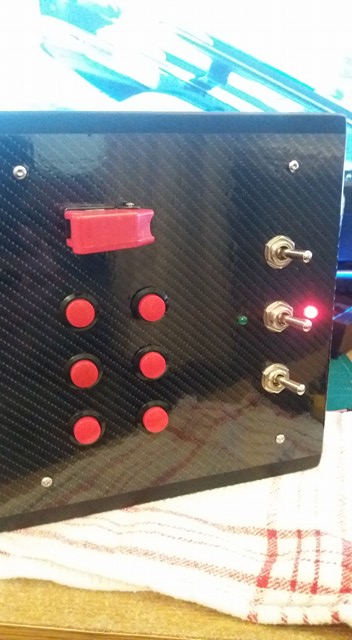

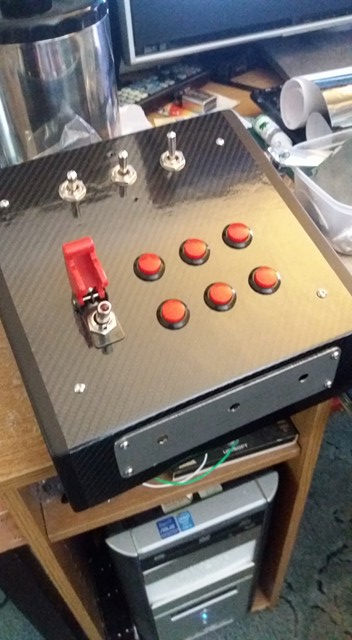

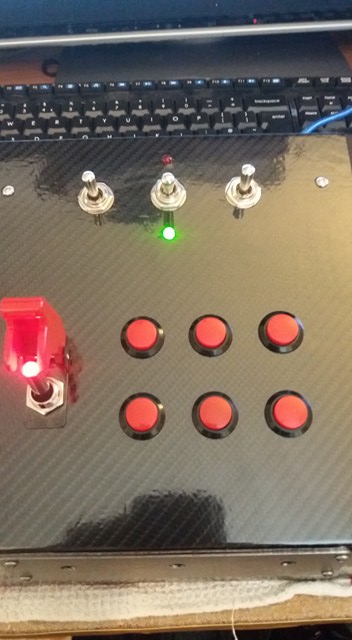

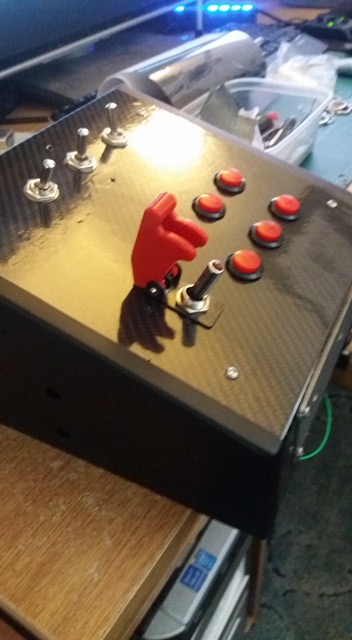

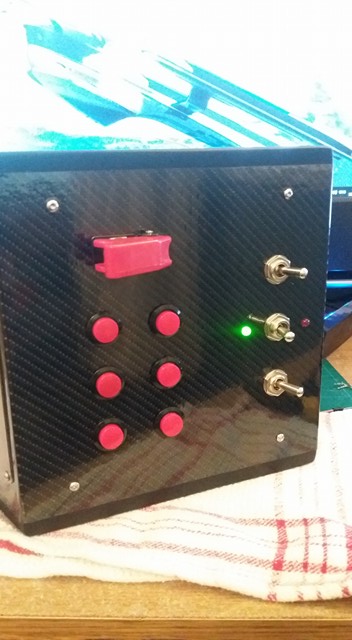

Hi all,  Not sure if correct forum so apologies if not, I've made a small control box for my bro who likes to fly IL2 and Elite Dangerous so ive made it as "unisex" a possible lol. , panel at front will have rotary potentiometers. Approx cost in materials about £40.00 give or take using an Arduino Uno as control board, switches, boeard and wire all on your favourite bay selling thing ;) and box made from ply scraps in shed. Still under construction as also need to install red and green LED's on center toggle switch

Thoughts??

Best Regards



Sparty




Share this post


Link to post
Share on other sites

Nice button box and thanks for posting.  Any construction shots for other aspiring builders?  Thanks for the thread.

Share this post


Link to post
Share on other sites
On 4/17/2018 at 4:42 PM, Beazil said:

Nice button box and thanks for posting.  Any construction shots for other aspiring builders?  Thanks for the thread.

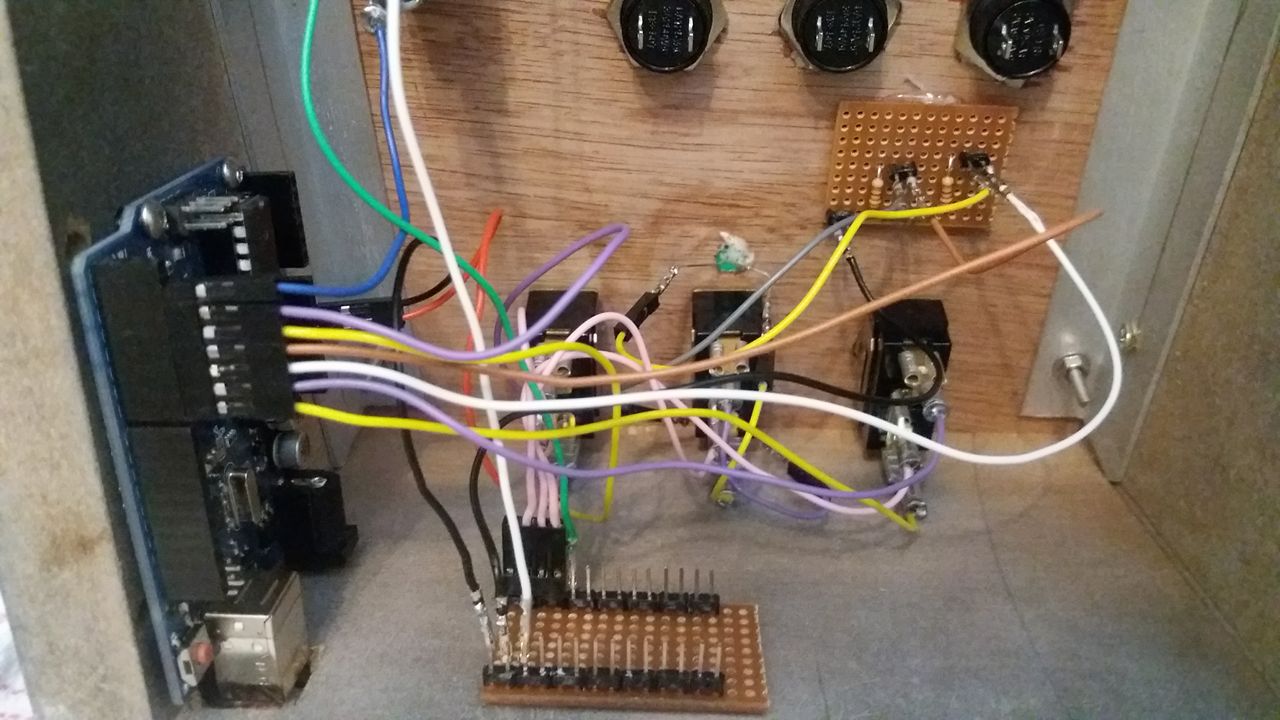

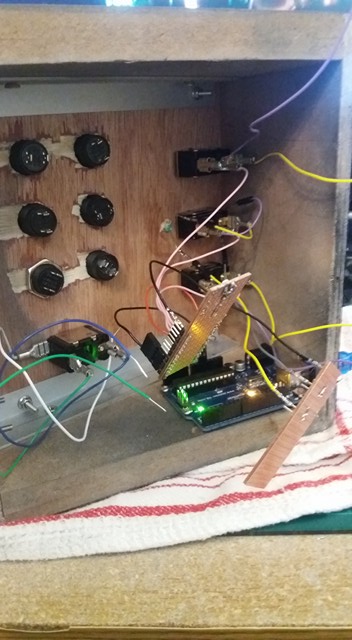

 Hi Beazil :)  I do have shots somewhere but not many but i will post if i come across them, for now i have more internal shots just to give an idea of how busy it becomes :)
