IL-2 1943 Cockpit, lights below the Gunsight?

Recommended Posts

Hi,

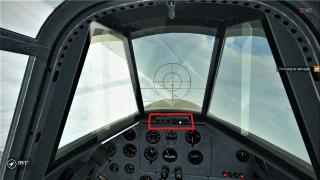

Does anyone know what these lights are I cannot find any information about them? I am currently working with the assumption that they are a simple communications systems between the Gunner and Pilot.





Regards



Munaz




Share this post


Link to post
Share on other sites

Yes, they are communication lights. From Han:



Pilot to gunner light signals:



Green light, single flash - fire at will

White light, single flash - return fire only

Red light, single flash - hold fire



Green light, multiple flashes - engage the intermediate flaps stop

White light, multiple flashes - engage the fuel tanks pressurization system (after taking off)

Red light, multiple flashes - disengage the fuel tanks pressurization system (after landing)



Gunner to pilot light signals:



Green light, single flash - the target is far away

White light, single flash - no ammo left

Red light, single flash - we're being engaged



Green light, multiple flashes - the intermediate flaps stop engaged

White light, multiple flashes - the fuel tanks pressurization system engaged

Red light, multiple flashes - the fuel tanks pressurization system disengaged.

  • Upvote 2

Share this post


Link to post
Share on other sites

Yes, they are communication lights. From Han:



Thank you very much for your answer and your time, sorry for the late reply :)
