Requiem

Labeled Bf 109 F-4 Cockpit

Recommended Posts

Labeled cockpit for the Bf 109 F-4.



I am not a native german speaker nor an expert on the 109, so if there are any issues please let me know and I can amend the images so they will be updated in this first post without needing to edit the post itself.



Items in pink on the the right hand side (radiator flap control) and portions of electrical panel which I couldn't read properly could probably use some better translation.










  • Upvote 16

Share this post


Link to post
Share on other sites

The lever you marked with prop-pitch is actually the fuel cock lever.



The prop-pitch is controlled by the rocker-switch on the throttle know itself.



The two way switch below the throttle is the switch for automatic propeller pitch control (on/off), in front of the throttle is the mechanical undercarriage position indicator (might be of interest).

  • Upvote 1

Share this post


Link to post
Share on other sites

About the text  for the radiator flap control lever:

Zu = Closed

Auf = Open

Ruhe = Rest

  • Upvote 1

Share this post


Link to post
Share on other sites

Couple of things:



-The coolant temperature gauge is actually a combination gauge that reads coolant exit and oil intake temperature.



-The bomb release handle is technically the emergency bomb release handle (i.e., emergency jettison).



-"Oxygen shower" should be "oxygen cylinder."

Edited by LukeFF
  • Upvote 1

Share this post


Link to post
Share on other sites

Thanks guys, +1 for you :)



I've updated them accordingly, so I hope I've understood you correctly in the changes.

Share this post


Link to post
Share on other sites

About the text  for the radiator flap control lever:

Zu = Closed

Auf = Open

Ruhe = Rest



If anybody want to know how it works:



Engine cooling system description
Heat generated by this engine is dissipated into the  lipstream from two radiators, one located beneath eachwing root towards the trailing edge.
The cooling air flow is controlled by two hydraulic actuators which determine the position of the intake lip and upper and lower radiator flaps associated with each radiator.
These flaps are controlled by the rotary selector valve, set by the pilot to one of four detented positions. Both radiator flaps move in association with the wing flaps.
The valve settings are 'auf' (flaps fully open),'zu' (flaps fully closed), 'ruhe' (flaps hydraulically lockedat their current position) and 'autom'. When the flaps are at the closed position, and the wing flaps are retracted, the cooling flaps remain slightly apart, and maintain a minimum cooling flowthrough the radiators. The 'autom' setting provides for automatic modulation of the flaps position under the influence of a thermostat. This is installed in the coolant outlet pipework from the engine and normally regulates the engine coolant temperature to around 80°/85°C. At approximately 110°C, at low altitudes,the coolant may be expected to boil. The cooling system operates at elevated pressure maintained by a pressure relief valve whichoperates at approximately 1 bar.
Any outflow of coolant from this valve is piped so as to discharge immediately ahead of the exhaust stubs on the right side of the engine, where itimmediately vaporises, thereby indicating to the pilot in a direct manner that the engine has become too hot.
Under these conditions it is reported that vapour may enter the cockpit although thepilot was not aware of this. The design and orientation of this relief valve are such that positive g assists the valve to open.
Engine temperature is indicated to the pilot on a dual function gauge. This gauge normally indicates coolant temperature,unless the adjacent spring loaded button is pushed, where upon oil temperature is displayed.

Share this post


Link to post
Share on other sites

These 2 layouts of a Bf 109 F-2 might help as a reference for the F-4 type:









Share this post


Link to post
Share on other sites

Thanks to Requiem for starting this, and others for their contributions.

(Pretty darned good community, here.)

:salute:

Share this post


Link to post
Share on other sites

Good job again!



I'm gonna add these pictures to the 109 flight manual, if Requiem doesn't have anything against it?

Share this post


Link to post
Share on other sites

Thanks!






Small detail, but the "Oxygen Cylinder" is actually the "Oxygen Regulator" (Or "Economizer" in Queens English  :) .  The cylinder is somewhere in back of plane.  And missing flow in "Oxygen *flow* monitor."

Edited by Flyingpencil

Share this post


Link to post
Share on other sites

Great stuff guys! Updated again.

:salute:





P.S. No objections Zwoop, have at it.

Edited by SYN_Requiem

Share this post


Link to post
Share on other sites

There is still something wrong about the throttle Requiem !



As Matt said in post 5 , the rocker switch on the throttle is to set manually the prop pitch.

The 2 way switch manual/auto is under the throttle friction nut

Share this post


Link to post
Share on other sites

Has anyone noticed that when pushing the stabilizer trim forward, the value on the indicator goes from -8 to 3?

Share this post


Link to post
Share on other sites

Couple of things:



-The coolant temperature gauge is actually a combination gauge that reads coolant exit and oil intake temperature.



Yes and by default it shows coolant temp. To read the oil intake temp one had to press the little know on the right upper corner of the dial.

Share this post


Link to post
Share on other sites

Great thread... exactly what the doctor ordered. Thanks for the info guys, we need more like this when the other aircraft come into the game :)

Share this post


Link to post
Share on other sites

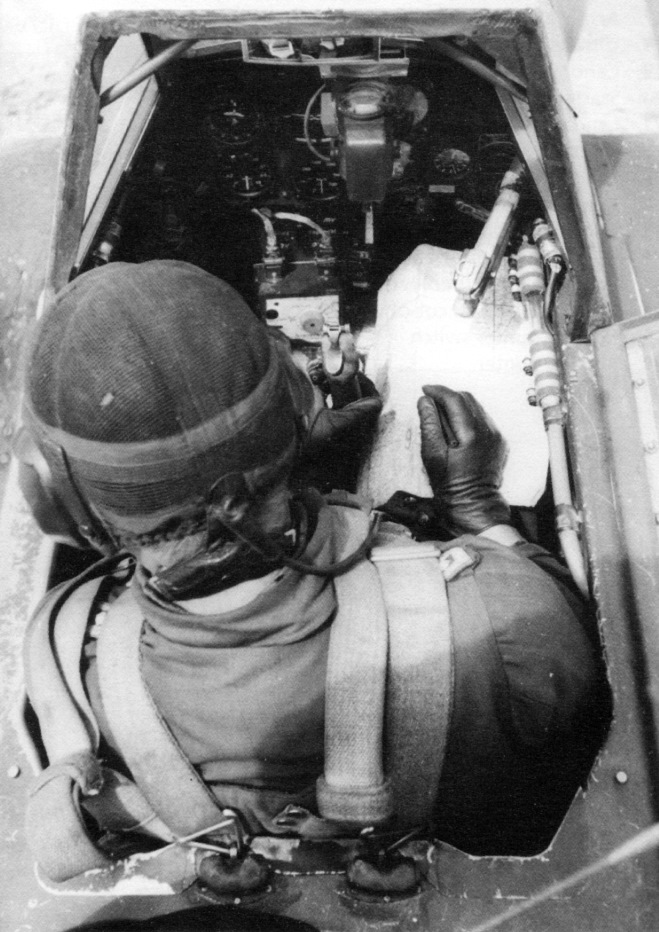

Does anyone know what those knobs are?



According to Uufflakke's reference pictures the big red knob next to the "fuel cock lever" is probably "engine instant stop lever" but there seems to be nothing on the two smaller green knobs: the one in front of fuel primer system and the one above radiator flaps switch.

Share this post


Link to post
Share on other sites

Thanks for posting that.  I lost all my old pdfs from the IL2 Sturmick days.

Share this post


Link to post
Share on other sites

Labeled cockpit for the Bf 109 F-4.



I am not a native german speaker nor an expert on the 109, so if there are any issues please let me know and I can amend the images so they will be updated in this first post without needing to edit the post itself.



Items in pink on the the right hand side (radiator flap control) and portions of electrical panel which I couldn't read properly could probably use some better translation.
