#1 LukeFF

LukeFF
  • Tester
  • Posts: 4754
  • Location:Redlands, California

Posted 27 October 2015 - 15:10

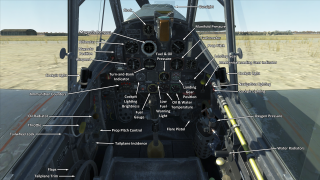

Attached File  Bf 109 E-7 Cockpit_English.png   2.77MB   26 downloads



Engine Notes:



Max continuous power: 1.18 ata

Max combat power: 1.26 ata, ~30 minute limit

Max emergency power: 1.40 ata, ~1 minute limit



Both radiators are manually controlled.


  • 2

#2 Yankee_One

Yankee_One
  • Founder
  • Posts: 407
  • Location:behind you at your 6 o clock

Posted 27 October 2015 - 15:56

I love you Luke, :biggrin:



not finihed download yet but the Cockpit guide is alredy finished ;)



Thank you young Skywalker :salute:


  • 0


#3 Space_Ghost

Space_Ghost
  • Founder
  • Posts: 2604
  • Location:Southern Dakota Territory, United States

Posted 27 October 2015 - 16:10

The E-7 has an unlocking tailwheel?



The E-4 modeled in the "other sim" has a similar handle but that version of the Emil didn't have a locking tailwheel.


  • 0

"Stop pulling so hard. You don't have to get someone under the gunsight right this second to win the fight." - Go_Pre

6700K @ 4.7GHz - GTX1080 @ 2.1GHz (11000MHz mem clock) - 16GB 3000MHz RAM - Samsung 950 Pro M.2 (512GB) - Dell S2716DG (1440p, G-Sync)


#4 LukeFF

LukeFF
  • Tester
  • Posts: 4754
  • Location:Redlands, California

Posted 27 October 2015 - 16:14

The E-7 has an unlocking tailwheel?



The E-4 modeled in the "other sim" has a similar handle but that version of the Emil didn't have a locking tailwheel.



Yep, its tailwheel functions pretty much like the one on the F-4 and the G-2.


  • 0

#5 216th_Pinko

216th_Pinko
  • Member
  • Posts: 1522
  • Location:Europe

Posted 27 October 2015 - 16:26

If rads are manual, could you advise on the required/avoided temperatures please?
  • 0



#6 LukeFF

LukeFF
  • Tester
  • Posts: 4754
  • Location:Redlands, California

Posted 27 October 2015 - 16:40

If rads are manual, could you advise on the required/avoided temperatures please?



Pretty much like the other inline planes: about 60-110 degrees celsius is your safe range.


  • 0

#7 Bando

Bando
  • Founder
  • Posts: 1352
  • Location:A Dutchman living in Germany.

Posted 27 October 2015 - 16:47

Thanks Luke   ;)


  • 0

System specs:

Spoiler

#8 216th_Pinko

216th_Pinko
  • Member
  • Posts: 1522
  • Location:Europe

Posted 27 October 2015 - 16:58

Pretty much like the other inline planes: about 60-110 degrees celsius is your safe range.


Thanks
  • 0



#9 Mabroc

Mabroc
  • Founder
  • Posts: 31

Posted 27 October 2015 - 19:19

Thanks for your guide
  • 0

#10 Reflected

Reflected
  • Founder
  • Posts: 987
  • Location:LHDK, Hungary

Posted 27 October 2015 - 19:34

Thanks! Intersting, in that other sim, the ATA and RPM limits had to be respected because the engine would overheat. Here, it will simply break because it's programmed to do so? Which one is accurate?


  • 0

"Courage is our leader, Luck is our wingman" // "Vezérünk a bátorság, kísérőnk a szerencse"

http://facebook.com/greggalemusic


#11 Klaue

Klaue
  • Founder
  • Posts: 156
  • Location:Springfield,MO

Posted 27 October 2015 - 22:06

S! THX for the info and time.


  • 0

3oXUGYv.jpg?1

b3pE3c3.jpg?1


#12 Trooper117

Trooper117
  • Founder
  • Posts: 1695

Posted 28 October 2015 - 14:45

Thanks for the info...


  • 0

#13 HotPursuit

HotPursuit
  • Founder
  • Posts: 49

Posted 31 October 2015 - 06:52

Thanks for all your guides Luke.







The E-7 has an unlocking tailwheel?



The E-4 modeled in the "other sim" has a similar handle but that version of the Emil didn't have a locking tailwheel.

AFAIK this is correct.

I read somewhere that the ability to lock/unlock the tail wheel was introduced from the Bf 109E-7 onwards and not possible on the E-4.


  • 0

#14 MK.MrX

MK.MrX
  • Founder
  • Posts: 176
  • Location:Russia

Posted 06 January 2017 - 03:14

Who knows what that is?





  • 0




#15 Matt

Matt
  • Founder
  • Posts: 2401
  • Location:Frankfurt / Germany

Posted 06 January 2017 - 11:20

Control switch and light for the radio.


  • 1

i5-4670k - GTX 970 - 8GB DDR3 - Windows 10 - VKB Gladiator Pro + Warthog grip - TM Warthog throttle - VKB T-Rudder Mk.IV - PC360 - TrackIR5 - Monster Tech table mounts


#16 Geleitzug

Geleitzug
  • Member
  • Posts: 429
  • Location:Cockpit

Posted 06 January 2017 - 12:38

"Schaltkasten für FT" - as Matt already said, it's the control switch for the radio type FuG VIIa. ;)



"Aus" means "off", "Anheizen" means "heat up the radio tube" and "Betrieb" means "(in) operation)".


Edited by Geleitzug, 06 January 2017 - 12:50.

  • 1




#17 MK.MrX

MK.MrX
  • Founder
  • Posts: 176
  • Location:Russia

Posted 06 January 2017 - 13:08

Thank you, guys! :salute:


  • 0
