OpenComposite Error

[DBCOOPER011]

Hello,



Anyone using opencomposite getting this error?



[[CPT]Crunch]

Yup, I had it yesterday when attempting to update.  First tried deleting the contents of the Runtime folder to try updating again, but it failed.  Deleted the entire app, re-downloaded fresh and tried updating, but still jammed up.  So fired up IL-2 to see if it would work without the contents of the Runtime folder completed, and it did.  As soon as I was done with the Friday night combat box fights immediately after shutting the game down I re-opened opencomposite and it auto updated itself without touching the update button.  Working fine now.

[firdimigdi]

When that happens the update site ( https://znix.xyz/OpenComposite/download.php ) is down. You can however manually download the dlls from the build server here:



https://ci.appveyor.com/project/ZNix/openovr/build/job/k4ptaidfp8a6hqtm/artifacts

and

https://ci.appveyor.com/project/ZNix/openovr/build/job/bopnfwfho93stfe6/artifacts



You can then rename them to vrclient.dll and vrclient_x64.dll and put them in the runtime directory.

[DBCOOPER011]

Thanks a lot for the help! all is fixed..

[FTC_Mephisto]

Bit stupid: where should I put the dlls exactly?

[DBCOOPER011]

32 minutes ago, FTC_Mephisto said:

Bit stupid: where should I put the dlls exactly?



After re-naming the files per the firdimigdi instructions. I put them where I extracted the OpenComposite folder and in the runtime/bin subfolders..

[Chilli_40]

On 9/30/2023 at 12:55 PM, firdimigdi said:

When that happens the update site ( https://znix.xyz/OpenComposite/download.php ) is down. You can however manually download the dlls from the build server here:



https://ci.appveyor.com/project/ZNix/openovr/build/job/k4ptaidfp8a6hqtm/artifacts

and

https://ci.appveyor.com/project/ZNix/openovr/build/job/bopnfwfho93stfe6/artifacts



You can then rename them to vrclient.dll and vrclient_x64.dll and put them in the runtime directory.

Got my problem fixed, thank you!

Edited October 5, 2023 by chilli40

[VanVogt]

Hi all,

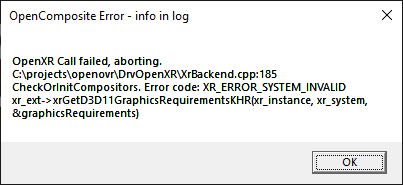

As of yesterday I'm getting this error message:



Tried to replace vrclient_x64.dll in the runtime\bin folder with every version available on appveyor but no luck. Disabling the OpenXR toolkit doen't help. SteamVR works though. Any ideas on how I can fix this? Thanks!



Van.

[JumpnShootman]

On 10/17/2023 at 7:36 PM, VanVogt said:

Hi all,

As of yesterday I'm getting this error message:



Tried to replace vrclient_x64.dll in the runtime\bin folder with every version available on appveyor but no luck. Disabling the OpenXR toolkit doen't help. SteamVR works though. Any ideas on how I can fix this? Thanks!



Van.

Got a new quest 3 and same problem here

[firdimigdi]

On 10/17/2023 at 8:36 PM, VanVogt said:

Hi all,

As of yesterday I'm getting this error message:



Tried to replace vrclient_x64.dll in the runtime\bin folder with every version available on appveyor but no luck. Disabling the OpenXR toolkit doen't help. SteamVR works though. Any ideas on how I can fix this? Thanks!



Van.



The failure point seems to be when querying for DirextX11 capabilities.

Possible reasons:

Your system perhaps has an integrated GPU that the game is trying to use.
You changed the OpenXR runtime to one that is not valid for your HMD. Get xrpicker (direct link to current windows build as of this post) and use it to switch to the correct one.

[VanVogt]

Hey firdimigdi!

Thanks for the insight. No integrated GPU, it's a 4090 running on a Prime Asus board. No changes to the OpenXR runtime, but the Oculus app self updated before the troubles started (I cannot revert back as much as I'd love to.)

I use Opencomposite with the OpenXR tookit. Narrowed the problem to a Opencomposite dll / Oculus runtime problem.

I got IL-2 working by using SteamVR as runtime, then Opencomposite and OpenXR toolkit both work fine. I'd love to be able to get back to native Opencomposite/Oculus runtime as the SteamVR slaughters my framerate.

Incidentally the OC/OXR toolkit works fine in other titles (DCS, etc), IL-2 is the only one crashing.



System is

Quest Pro on wired Oculus link (powered usb3)

Oculus runtime, Opencomposite / OpenXR toolkit

Nvidia 4090 and Intel i9 9900K.



[VanVogt]

Found the fix (on OC discord channel): disable beta version of the Oculus app. All good now.

[Argosafe]

I have a complete loss of Open Composite, xr toolkit and XRNecksaver.   I intend to take all out and reinstall, as I've tried all other options including replacement dll's etc.  Can someone please  a) advise me on any actions I need to take to uninstall apart from "uninstall programmes" and just delete,  b) confirm the latest download locations for these programmes c) any other settings I need to make (steam, occulus etc).



Anyone else having issues like this over the last 2 weeks?!

[Sabrefly]

On 9/30/2023 at 12:55 PM, firdimigdi said:

When that happens the update site ( https://znix.xyz/OpenComposite/download.php ) is down. You can however manually download the dlls from the build server here:



https://ci.appveyor.com/project/ZNix/openovr/build/job/k4ptaidfp8a6hqtm/artifacts

and

https://ci.appveyor.com/project/ZNix/openovr/build/job/bopnfwfho93stfe6/artifacts



You can then rename them to vrclient.dll and vrclient_x64.dll and put them in the runtime directory.



Hello,



I can't find the per-game files downloads in those links. There are some jobs but no dowloads. Where am I supposed to go next for the downloads after I click on those links?



Thanks.







Edited December 12, 2023 by Sabrefly

[firdimigdi]

8 hours ago, Sabrefly said:



Hello,



I can't find the per-game files downloads in those links. There are some jobs but no dowloads. Where am I supposed to go next for the downloads after I click on those links?



Thanks.









I don't think you need this manual workaround any more, the OpenComposite launcher was fixed some time ago.



However if you must then use

https://ci.appveyor.com/project/ZNix/openovr

(the previously linked build has expired)



And download by selecting whichever platform you need and looking under "Artifacts".



Edited December 12, 2023 by firdimigdi

[Sabrefly]

Do I still need OpenComposite at all if I have VirtualDesktop (with OpenXR runtime) and want to use OpenXR Toolkit, XRNecksafer in IL-2GB with my PIco 4?



Thanks.

Edited December 12, 2023 by Sabrefly

[firdimigdi]

Any game that is OpenVR/SteamVR requires OpenComposite (OpenXR branch) to translate calls from OpenVR to OpenXR.

[chiliwili69]

On 12/13/2023 at 12:44 PM, firdimigdi said:

Any game that is OpenVR/SteamVR requires OpenComposite (OpenXR branch) to translate calls from OpenVR to OpenXR



IL-2 is an OpenVR game and I have never used OpenComposite with Pico4 or Quest3.

SteamVR Runtime can talks both, OpenVR and OpenXR.

[firdimigdi]

38 minutes ago, chiliwili69 said:

SteamVR Runtime can talks both, OpenVR and OpenXR.



SteamVR and Oculus both provide an OpenXR Runtime implementation but for any non-OpenXR game to talk to it it requires an intermediate translation layer. This is what OpenComposite is.

[chiliwili69]

20 minutes ago, firdimigdi said:

an intermediate translation layer.

But SteamVR is acting as this translation layer as well.

I have been always using SteamVR to play IL-2 in VR (never used OpenComposite).



When I use SteamVR with the Quest3 this image show you that the OpenXR Runtime is SteamVR (which talks OpenVR with IL-2) and also the OculusXR plugin layer

[firdimigdi]

9 hours ago, chiliwili69 said:

But SteamVR is acting as this translation layer as well.

I have been always using SteamVR to play IL-2 in VR (never used OpenComposite).



When I use SteamVR with the Quest3 this image show you that the OpenXR Runtime is SteamVR (which talks OpenVR with IL-2) and also the OculusXR plugin layer



Indeed that tells you that if you run an OpenXR title like DCS's recent ver or MSFS (or a one via OpenComposite's openxr branch) then the Oculus (or SteamVR) OpenXR runtime implementation will be used.



Here's a handy schematic in the form of a puzzle which might (or might not) clear it up a bit:

https://docs.google.com/drawings/d/1D-IwVplUBbApKeV2m02s8Qh5Hi2a6Ec6JIFN44p8-gY/edit



Edited December 22, 2023 by firdimigdi

[chiliwili69]

14 hours ago, firdimigdi said:



Here's a handy schematic in the form of a puzzle which might (or might not) clear it up a bit:

https://docs.google.com/drawings/d/1D-IwVplUBbApKeV2m02s8Qh5Hi2a6Ec6JIFN44p8-gY/edit



Wow!  I love this schematic, very very nice! And general for all kind of games and headsets  Did you do it?



I was trying to create something similar just for IL-2 , but it is much worse than the one you showed



[firdimigdi]

5 hours ago, chiliwili69 said:

Did you do it?



No, as far as I could find this is the work of https://www.reddit.com/user/Zomby2D/
