Avia S-199 oil cooler

[Supercharger]

Morning guys,

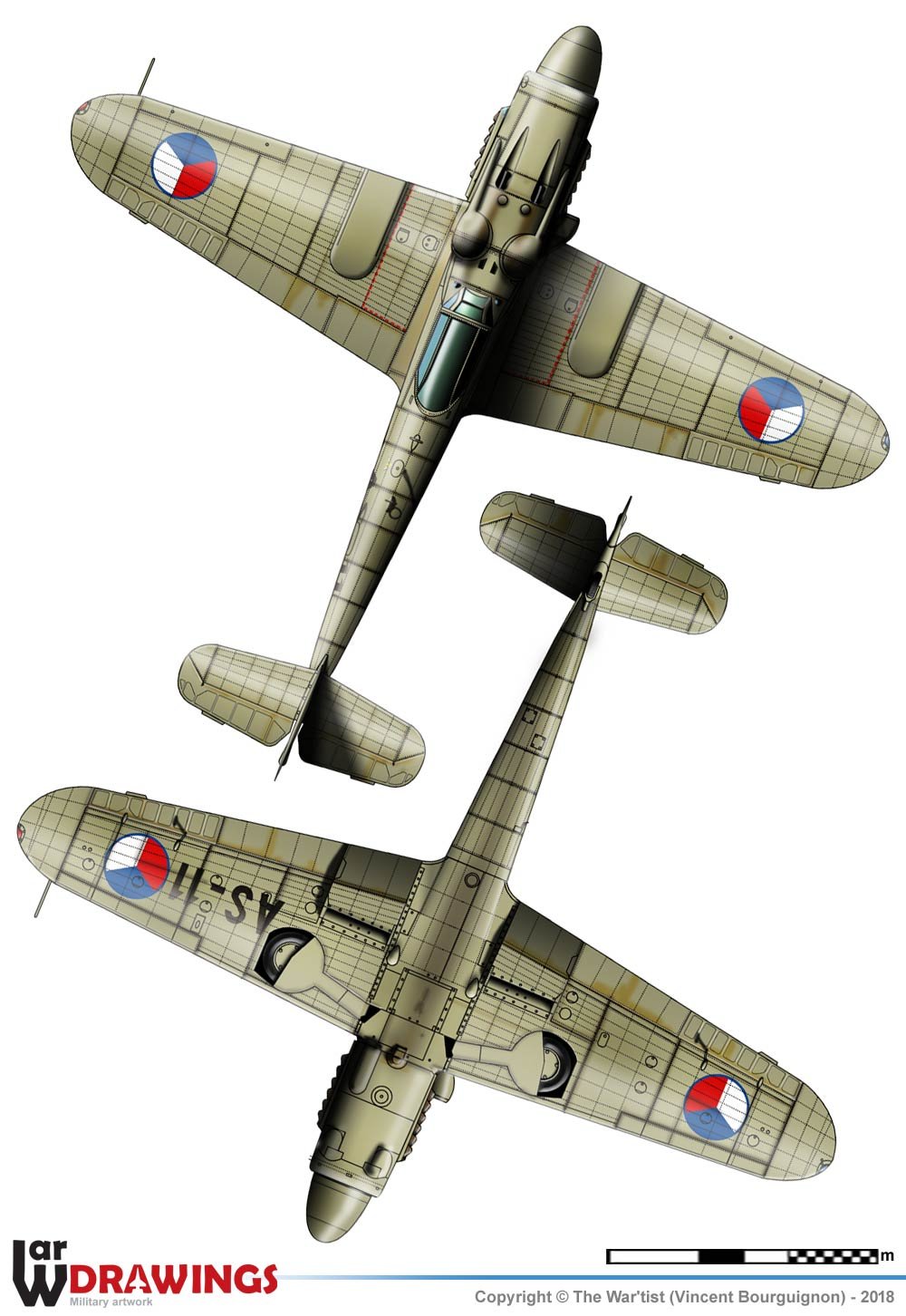

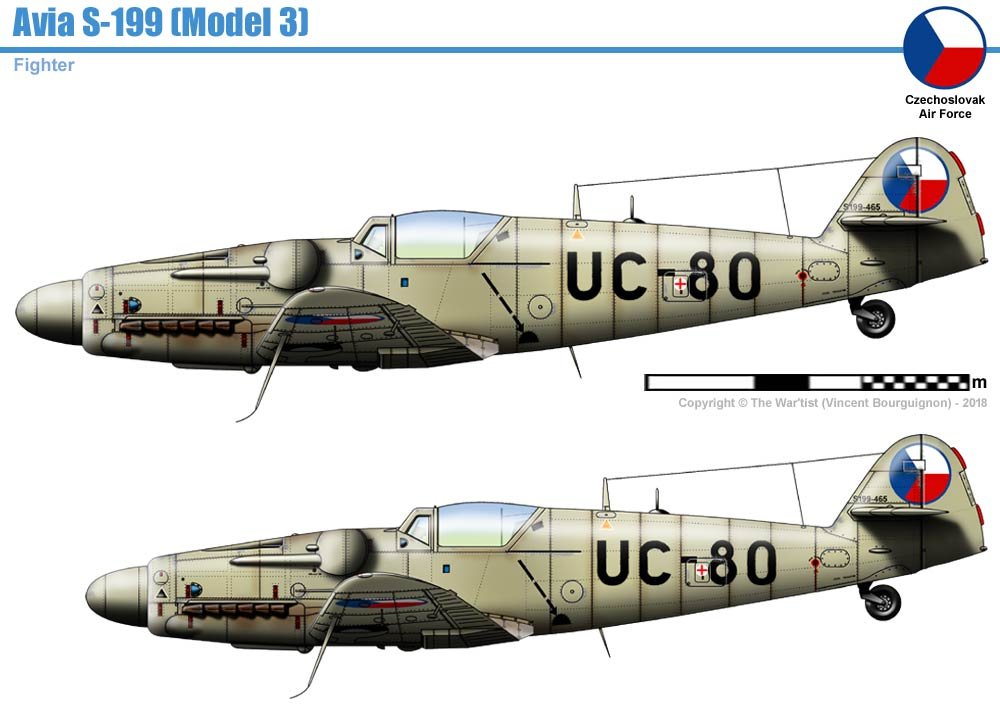

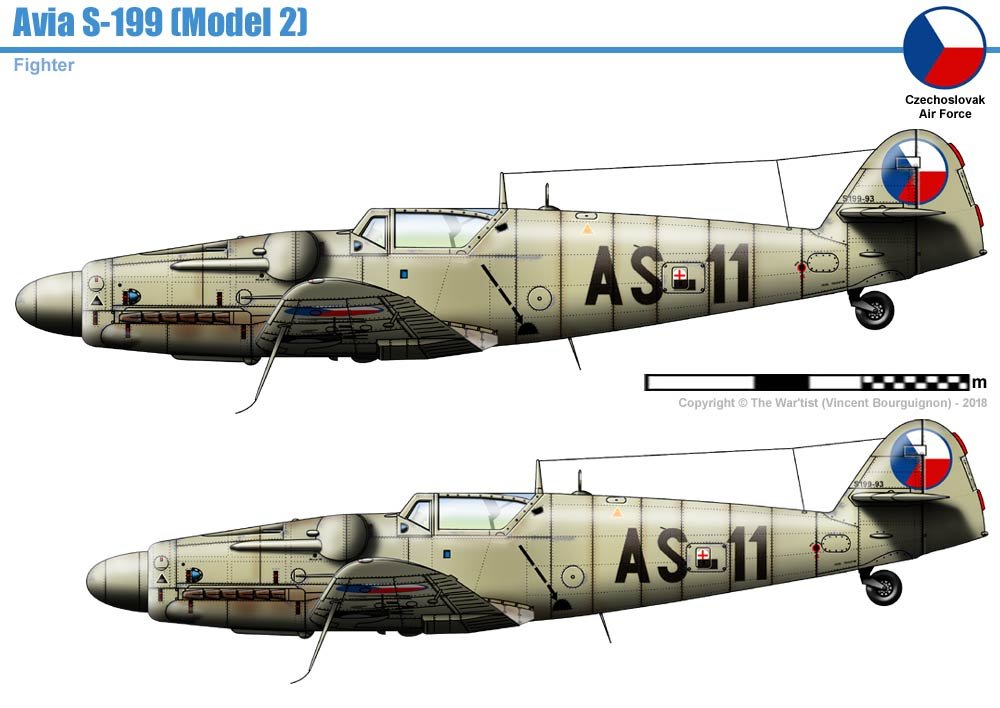

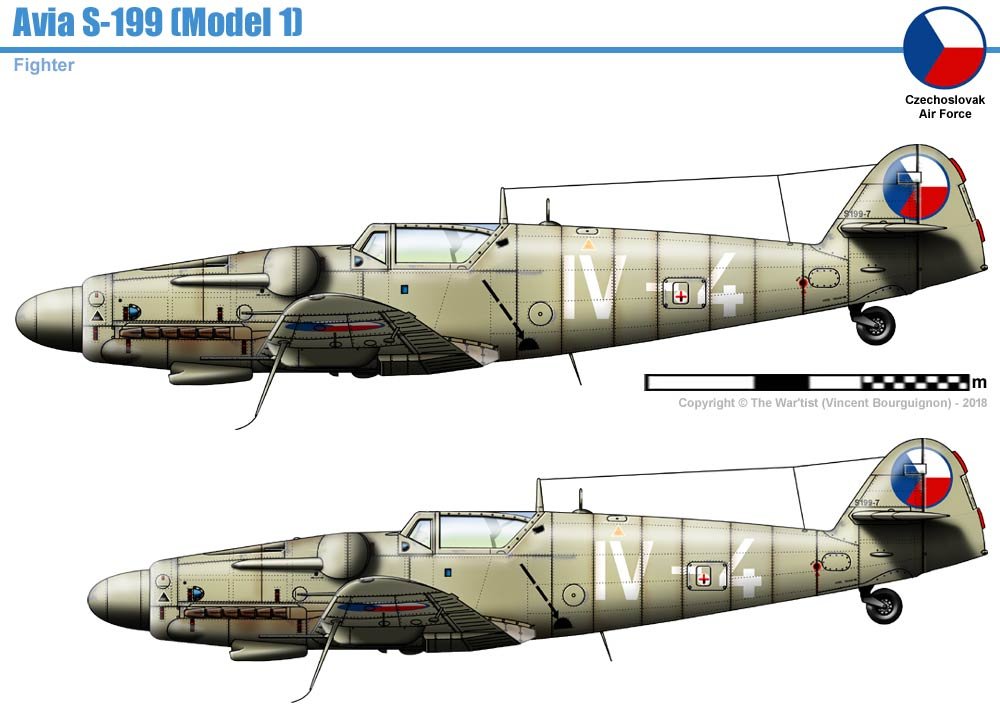

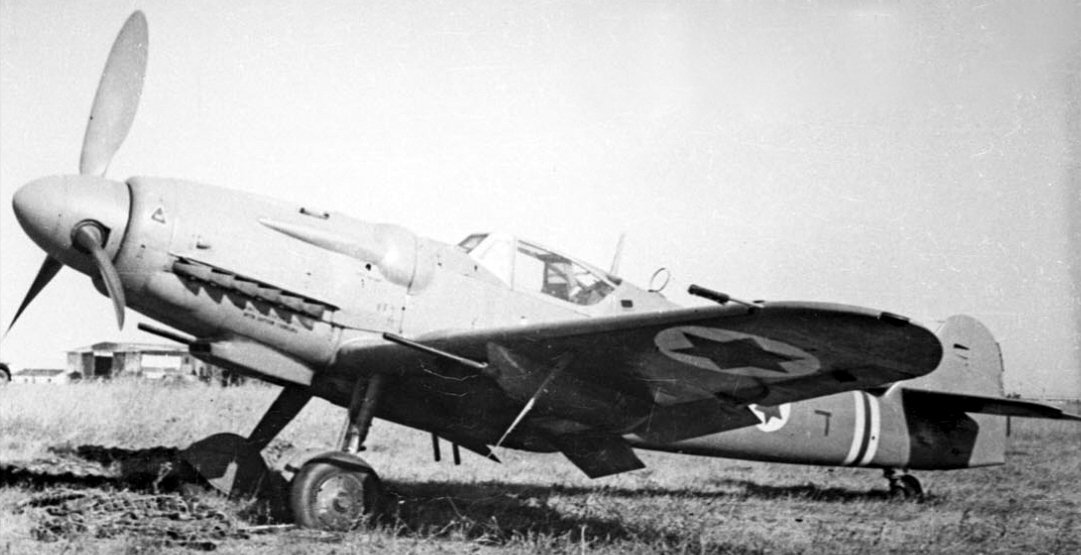

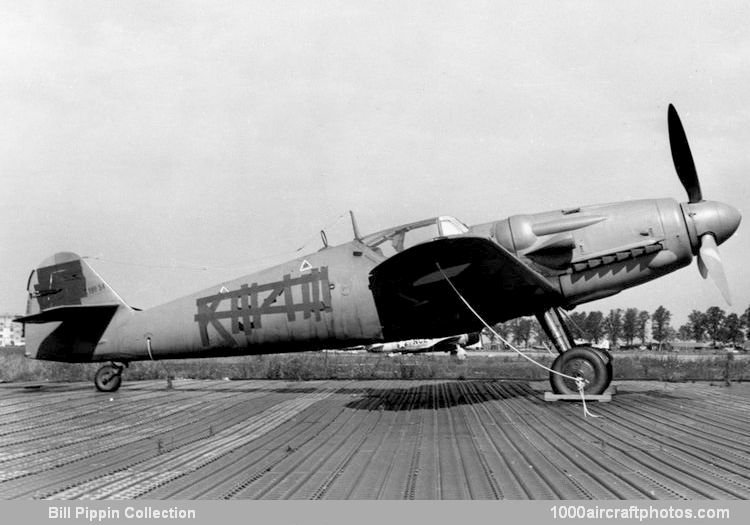

I noticed some differences between S-199 aircraft with Jumo 211F engine. Some of them have an air oil heat exchanger visible on the lower engine cowl, but some did not. Question is where is the oil cooler located on these aircraft, if not on the lower engine cowl?

[Roland_HUNter]



Still, it was under the nose, replaced with a heat exchanger:

https://www.facebook.com/EduardCompany/photos/a.122154977799458/5727738073907759/?type=3&paipv=0&eav=AfbtH6QjkQGyBL6UqXWFERRaWsiNR6MVWCdOYkdVua-qcriMGSIMwyrJodS4OBJXXbI&_rdr

[Supercharger]

That's interesting, nice to know thanks.



[Roland_HUNter]

11 hours ago, Supercharger said:

That's interesting, nice to know thanks.



You're welcome ^^

[Supercharger]

Do you have some technical backround information about this heat exchanger(oil/water)? I never saw any Jumo211 with this equipment, but its well known from Jumo213. Or is it a "free czech" invention?
