Schwenkplatte SP 1A for the Ju 88A-4

[Charon]

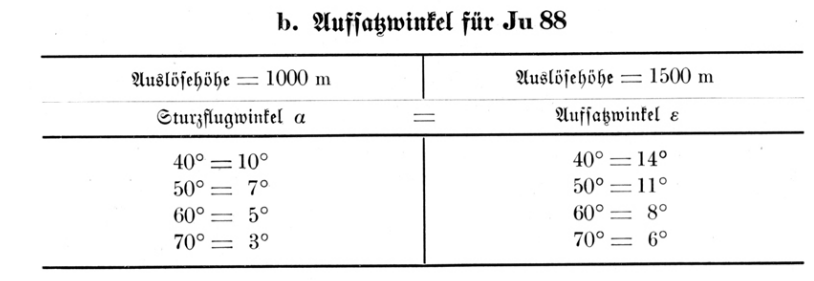

Now that we have the ability to adjust gunsight elevation (Typhoon, Mosquito), adding a Schwenkplatte SP 1A to the Ju 88A-4 would let it function as a dive bomber and take advantage of the dive brakes and contact altimeter it's equipped with. While not all Ju 88s were so equipped, LDv20/2 makes clear that the Ju 88 needed a substantial hold-over (up to 14 degrees even before accounting for wind!) and therefor must be adjusted if the pilot is to be able to effectively aim their bombs.





...





Ju 88 equipped with one of these devices at the Norwegian Aviation Museum:
