Bf-109 K-4 overheating


Recommended Posts

Roland_HUNter
Posted

Greetings!

Based on the specs
Water rated temperature in engine output: 100..102 °C
Water maximum temperature in engine output: 115 °C
The K-4 water rad should boiling at 115 °C.

I tested it with DB and DC engine, and the water start boiling at 110 °C.

Please investigate it.

PS:
Other 109s are start boiling at 115 °C.

Thank you!

  • 1CGS
Posted

You need to post track files that show exactly what happened, at a minimum. Plus, you made no mention of altitude, weather conditions, engine settings, etc.

the_emperor
Posted (edited)

tested at Kuban Autumn at 500m, weather clear

rad control to manual to force overheating

though irrelevant as max temps are not tight to an engine setting, testes at combat/climb 30min setting 2600rpm in level flight



overheating occurs at 110°C

(limit is 115°C for 10min 0-5.5km altitude, overheating should occur at 116°C, for the later DB605a)

Edited by the_emperor
Posted

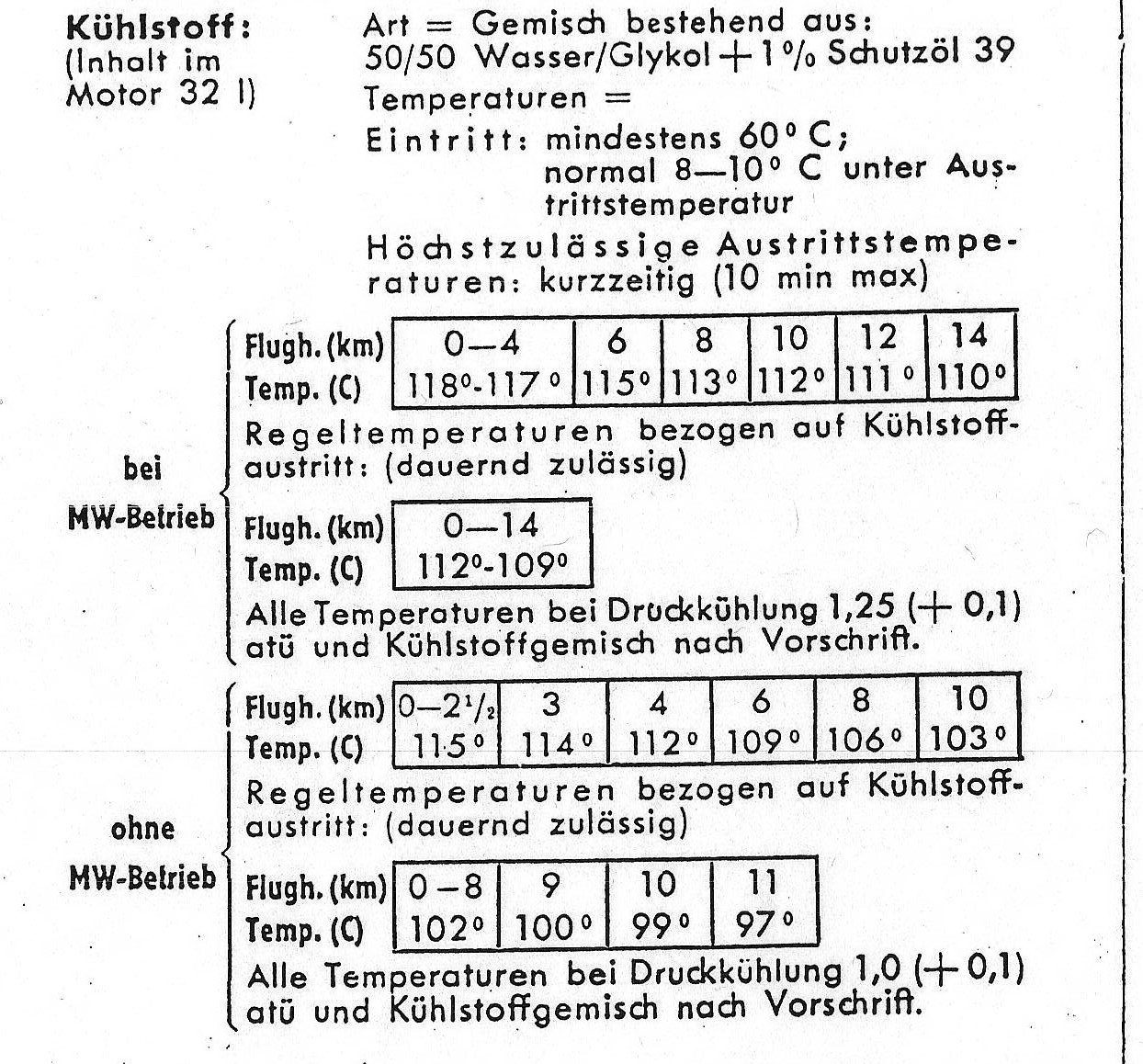

From DB 605 DB/DC Motorenkarte, cooling limits.



118-117 Celsius exit temperature is permissible for up to 10 minutes (0-4 km) with MW 50 operation

112-109 Celsius exit temperature is permissible continuously (0-14 km) with MW 50 operation


  • Upvote 3
Roland_HUNter
Posted
12 hours ago, LukeFF said:

You need to post track files that show exactly what happened, at a minimum. Plus, you made no mention of altitude, weather conditions, engine settings, etc.

Kuban Spring
300 meter
Closed rads.

Tracks.rar

  • 1CGS
Posted

Alright, I'll pass along the message and see what the response is. ?

  • Like 3
  • 2 weeks later...
Roland_HUNter
Posted
On 6/27/2023 at 6:14 PM, LukeFF said:

Alright, I'll pass along the message and see what the response is. ?

E-7:
Water rated temperature in engine output: 94 °C
Water maximum temperature in engine output: 100 °C
Oil rated temperature in engine intake: 30..75 °C
Oil maximum temperature in engine intake: 80 °C
Oil rated temperature in engine output: 95 °C
Oil maximum temperature in engine output: 105 °C

Water start boiling at 115 °C+
