Arduino quadrant

[162nd-YU-Markoni]

Hi guys i have six 10KO potentiometer sliders and arduino leonardo. Can anybody help me with coding? I just need six sliders nothing more, no buttons or so on. Unfortunately i dont know how to work with arduino. I can manage basic stuff. Copy, verify, upload. I dont have time to study and lear about coding. So if anybody can help i would be grateful.

[102nd-YU-cmirko]

https://forum.arduino.cc/t/need-help-with-linear-potentiometers/669459/14

https://mschoeffler.com/2020/11/14/arduino-tutorial-slide-potentiometer-slide-pot-controls-led-strip-ws2812b/



you can find sample code on either of upper links ^^



[GO63]

Yes, it's only half an hour's work. I got this:

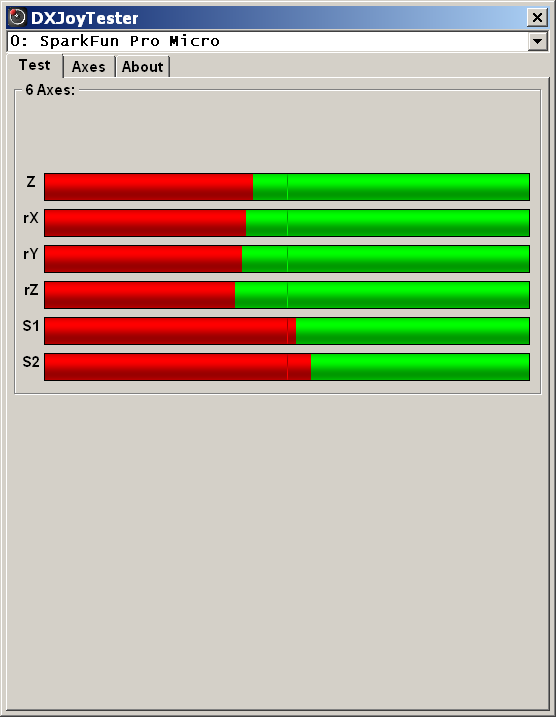

Arduino Quadrant Joy [221228]

• Joystick Quadrant with 1 to 6 analog axes.
• The middle pins of the potentiometers are connected to the any A0..A10 inputs of the Arduino Leonardo or Arduino Pro Micro.
• The extreme pins of the potentiometers are connected to VCC and GND.
• All axes are calibrated by means of Windows.
• Dead zones are not used.
• You can set the smoothing of the axes.



ArduinoQuadrant.rar



Good luck!


[162nd-YU-Markoni]

Thanks!
