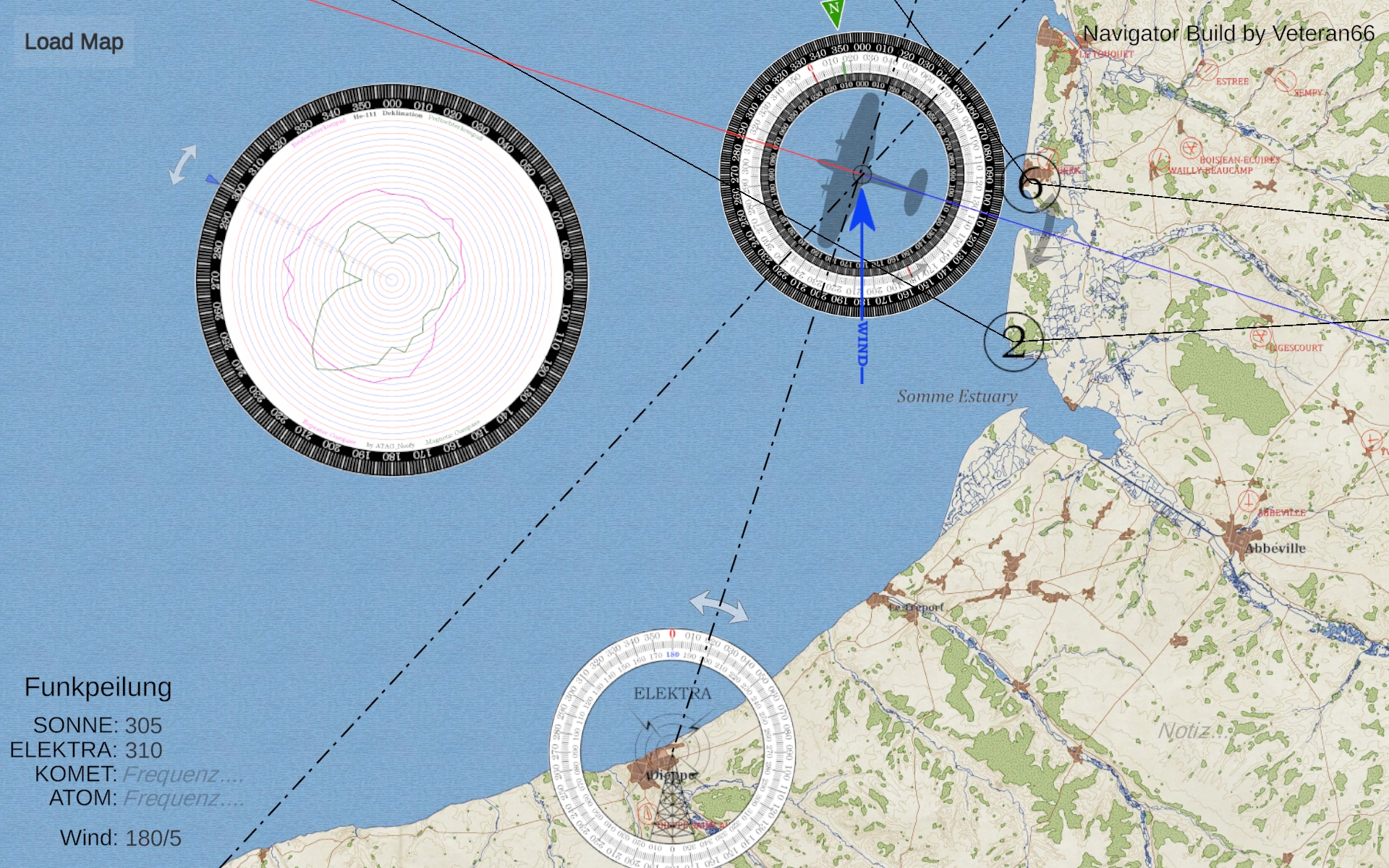

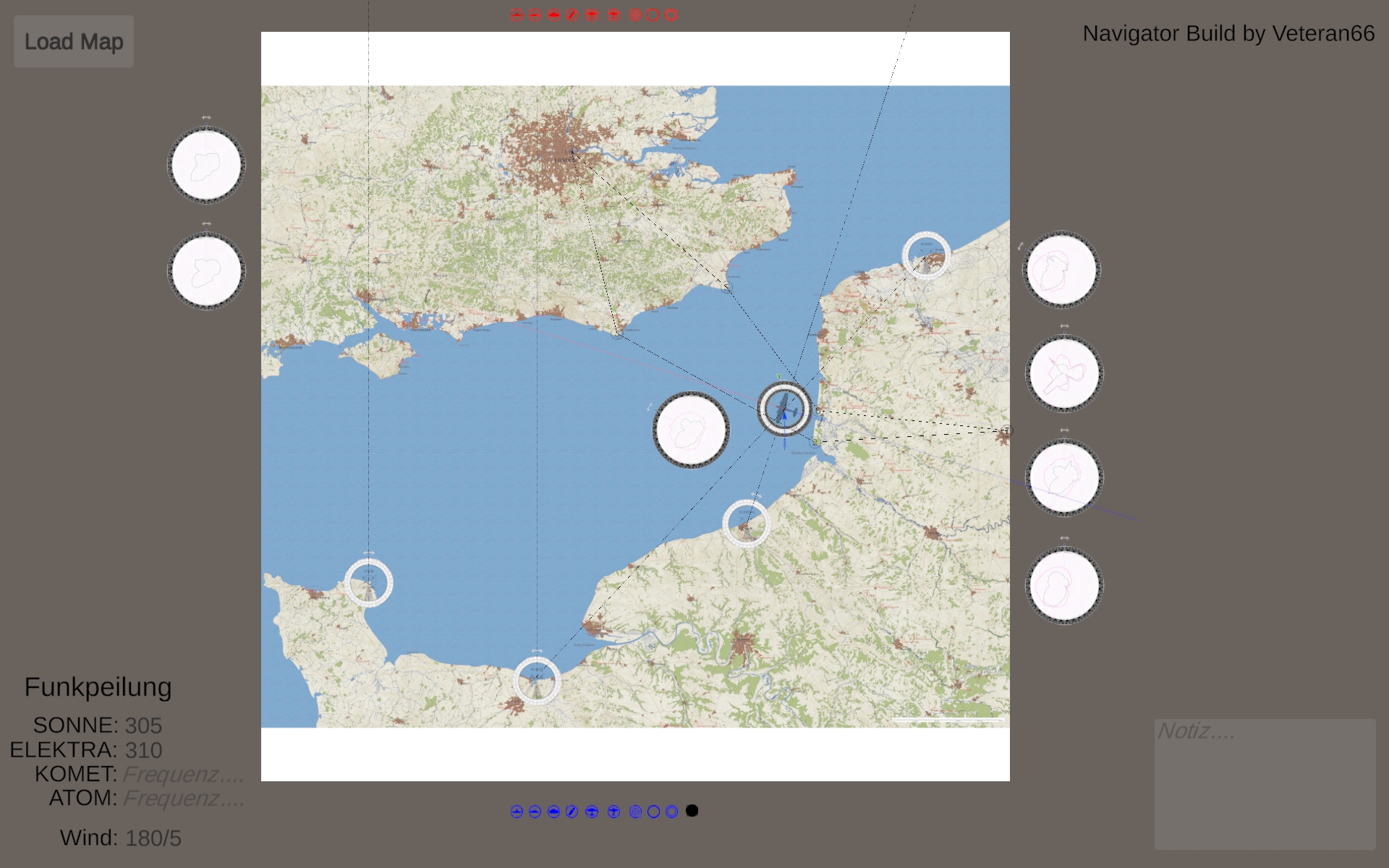

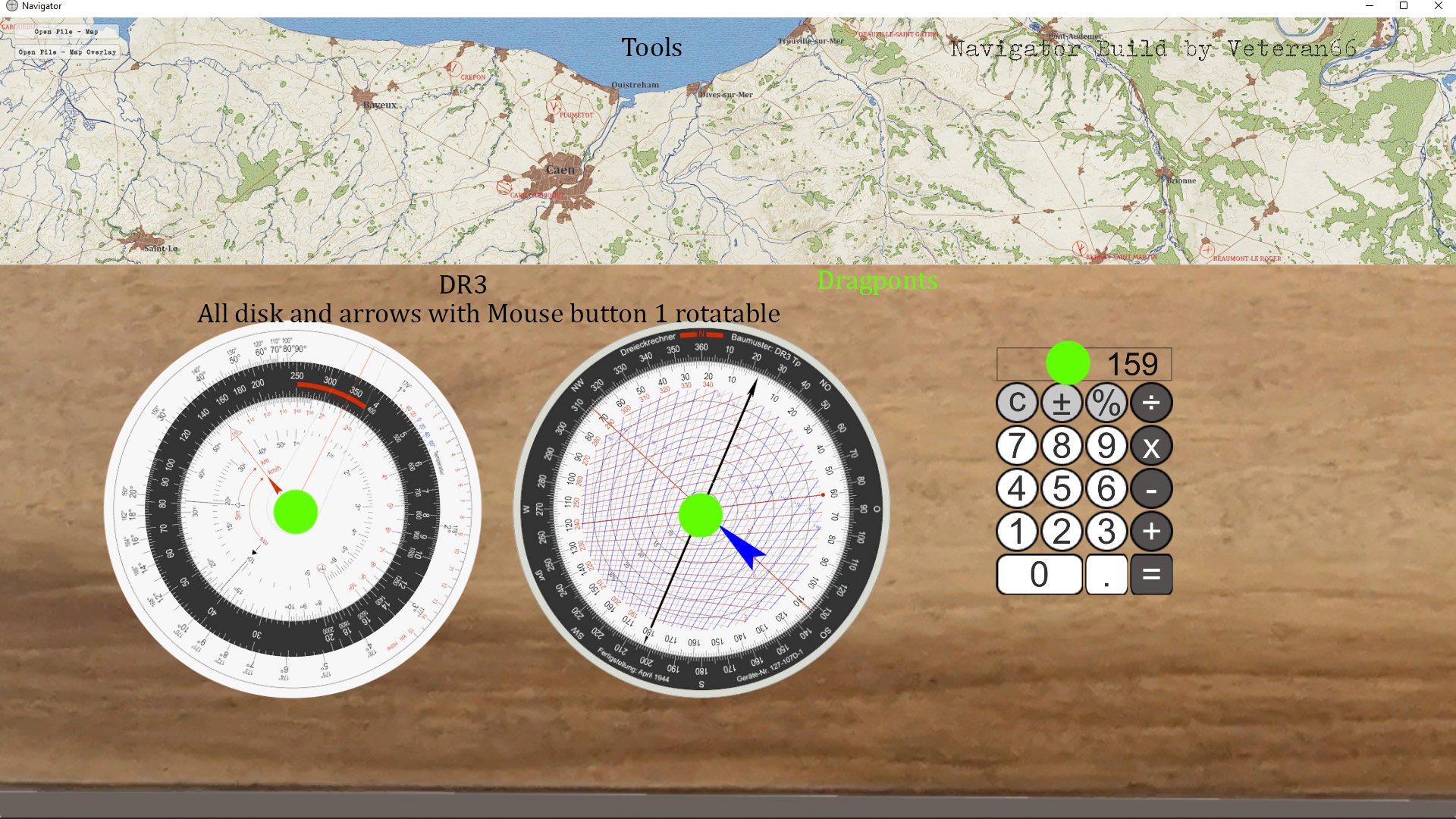

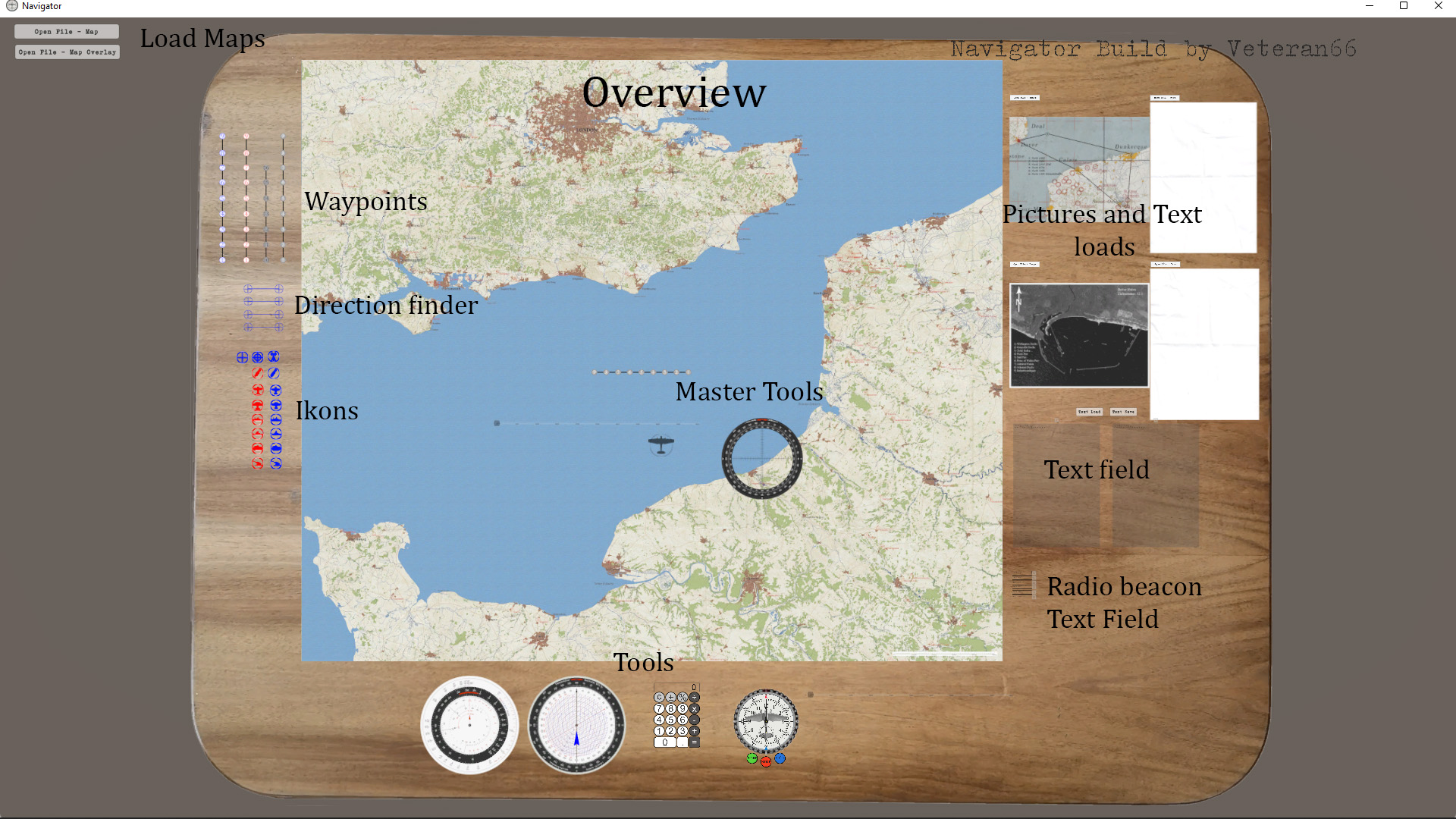

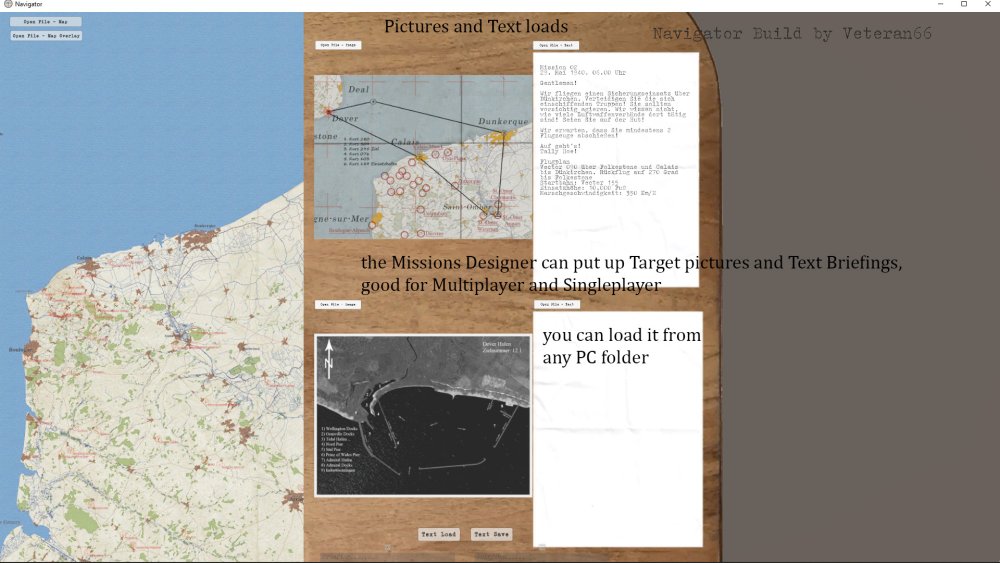

Veteran66 Posted August 28, 2022 Posted August 28, 2022 (edited) Hi all I am mostly unterway as Bomber Pilot. IL2 GB, DCS or CloD all Flightsimulations have the same Problem, low Tools for the Navigator. As Bomber Pilot i will fly hart core without Player Ikons on the Nav Map. This is the challenge am I looking for. Way finding on Night or bad weather, Target and Bombing is what i like. To bad the Games do not have a good Navigations Tool on the Flight Maps. So i try Unity3d (i make some more very small Apps for private with it) to make a Navigations Map for all Flightsimulations i like. So step by step i build the "Navigator" in this App i put some older Apps i make and put all Tools i need for Navigation in it. The App is not perfect i am no coder or Unity3d expert. I will shere the Navigator, so all Flightsimulations Fans can use this App. at standart i place the CloD Channel Map, but you can insert all maps like IL2 GB Stalingad or Normandy maps, only must be a square PNG pictures. Navigator Download Link: https://theairtacticalassaultgroup.com/forum/showthread.php?t=36466&p=384537#post384537 Edited September 2, 2022 by Veteran66 2 4
C6_lefuneste Posted August 28, 2022 Posted August 28, 2022 I'm afraid your tool can not be used in VR ?
Guest deleted@7076 Posted August 28, 2022 Posted August 28, 2022 (edited) -Deleted- Edited September 12, 2022 by Varrattu

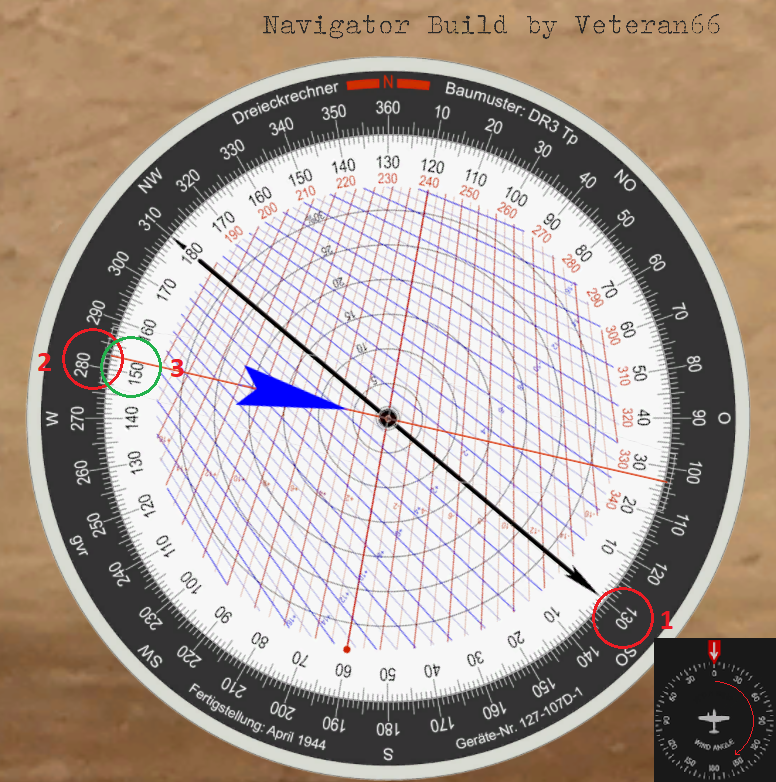

Sokol1 Posted August 29, 2022 Posted August 29, 2022 (edited) Using the included DR3 "Dreieckrechner" disk for calculate wind angle for adjust IL-2:GB bombsight. Plane heading: 130º Wind coming from: 282º (mission briefing) 1 - Set the black arrow pointing for the plane heading angle in DR3 outer scale (black) = 130 2 - Set the tail of the blue arrow in wind come from angle in DR3 outer scale (black) = 282 3 - Read the wind angle correction in the tail of blue arrow, in DR3 inner scale (white) = 152º Set "Wind Angle" in IL-2:GB bombsight for 150 (adjust there is in 5 increments, so round), moving the adjust lever for the right side. But... how know for what side (L/R) move the bombsight wind angle adjust? "Easy peasy" - in the above example notice that the angle 0-152º is in the right side of plane heading. An example in left side: Spoiler The wind angle 110º is in the left side of plane heading, so move the bombsight wind angle adjust for left. Edited August 29, 2022 by Sokol1 2
Veteran66 Posted August 30, 2022 Author Posted August 30, 2022 where i find high resolution IL2 GB Maps?
dbuile Posted December 1, 2022 Posted December 1, 2022 On 8/29/2022 at 11:56 PM, Veteran66 said: where i find high resolution IL2 GB Maps? Someone posted a dropbox link. Do these work? https://www.dropbox.com/sh/qkf8adge1ay1exd/AAC65FiPlp7wLG5Lt76A_kU1a?dl=0

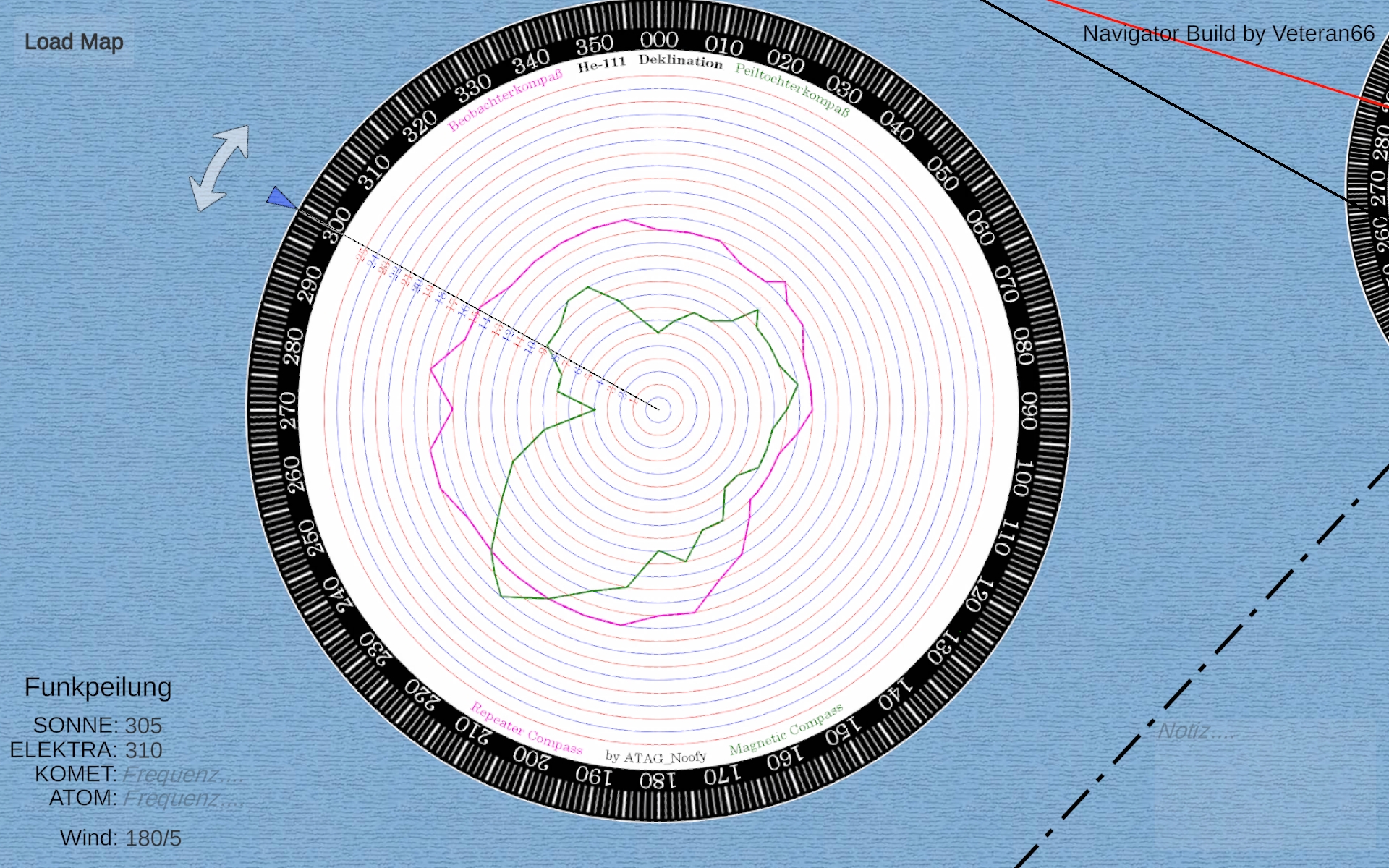

Veteran66 Posted December 31, 2022 Author Posted December 31, 2022 (edited) Hi all i make the Navigator for Android Tablet, optimized for Galaxy Tab A ATAG_Noofy thx for the Repeater and Magnetic Compass values ? Download Link: https://filehorst.de/d/eFbEgDyJ the Navigator is build for CloD but you can load IL2 GB or DCS Maps Edited December 31, 2022 by Veteran66 3 1
Nickkyboy99 Posted January 24 Posted January 24 (edited) Can you update the download link, it's broken EDIT: nvm, found a working link in a different forum post! https://www.file-upload.net/en/download-15430999/Navigator1.4.rar.html Edited January 24 by Nickkyboy99
