Identification Chart - Silhouettes

[no_brain]

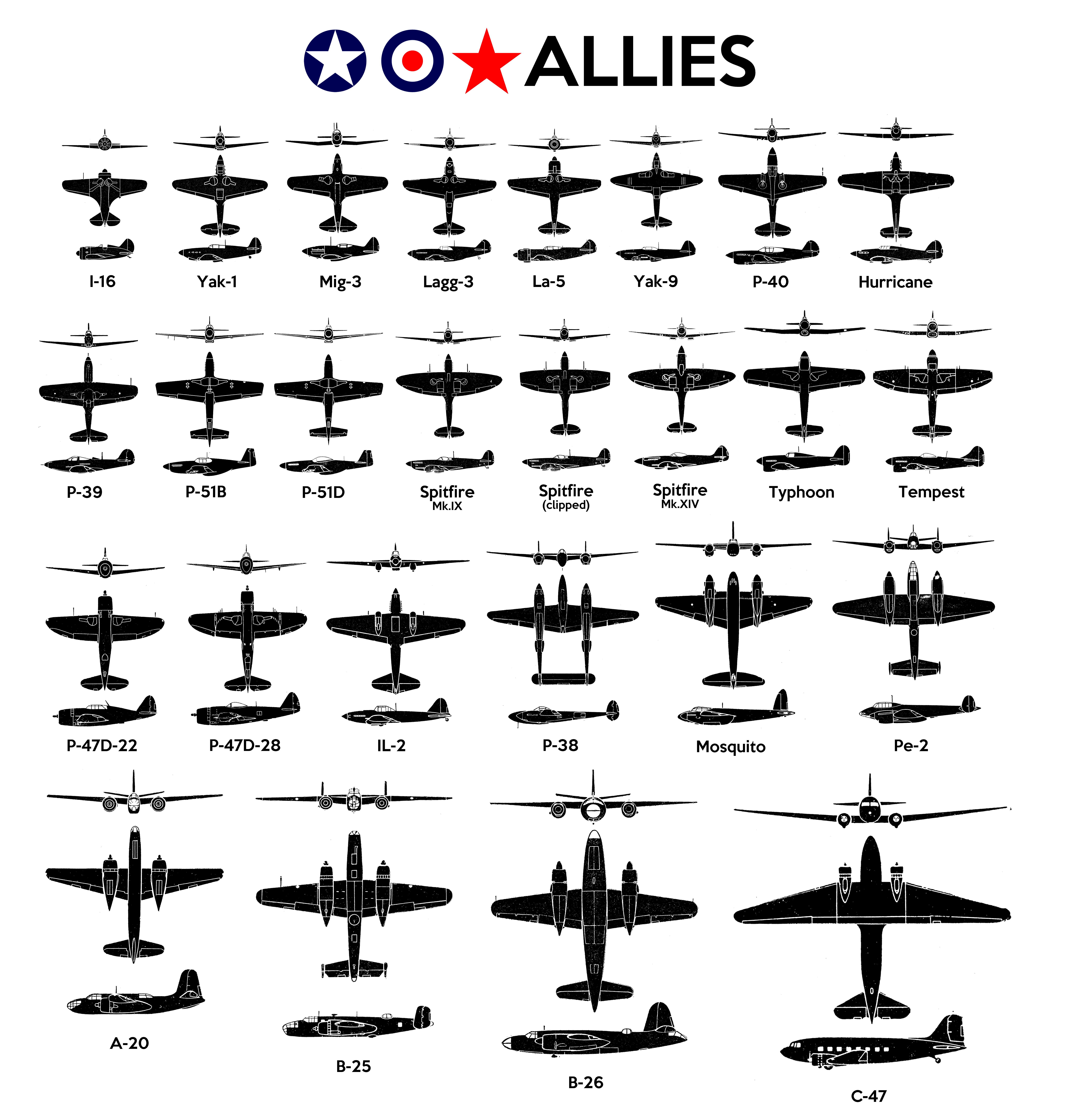

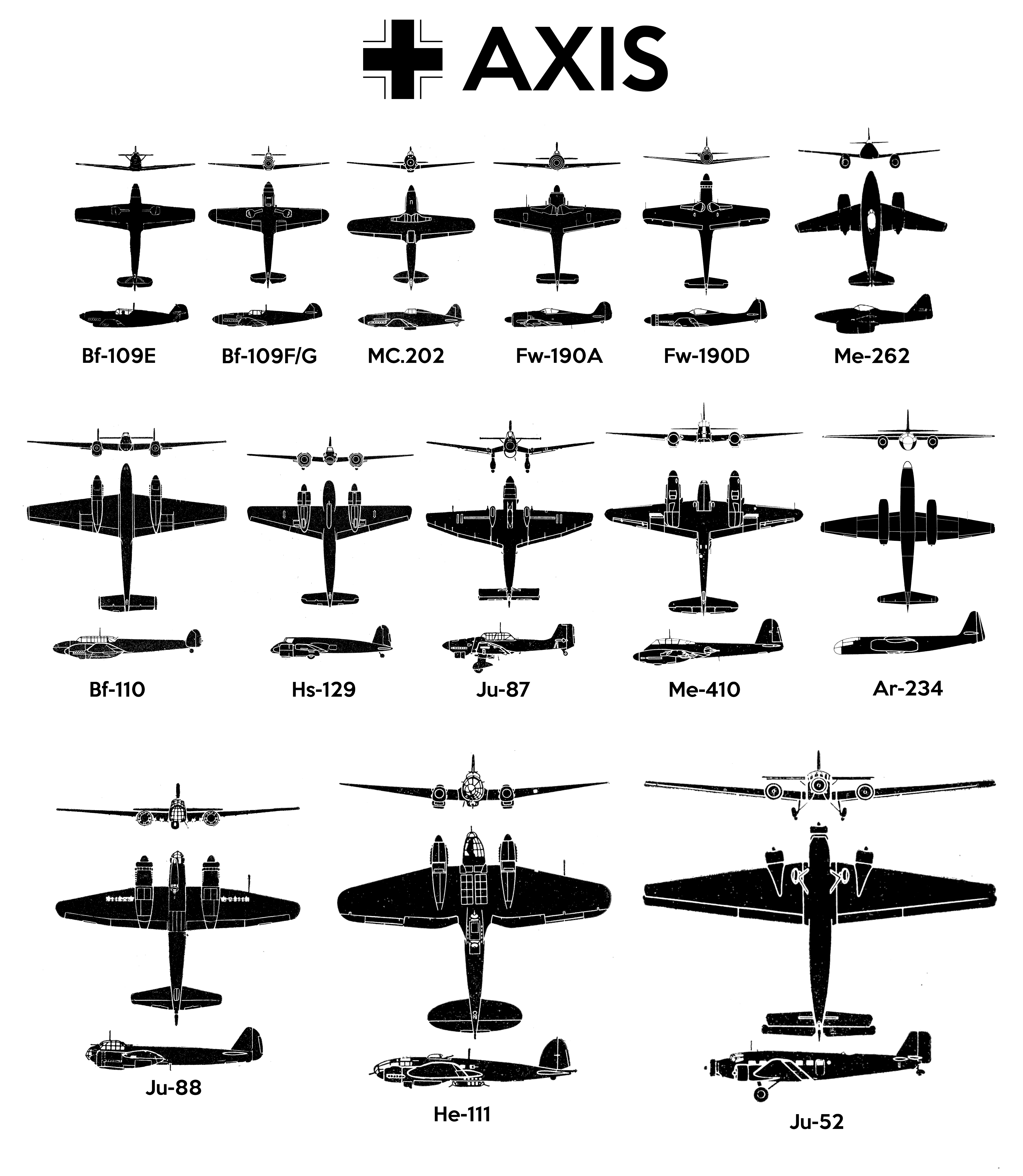

Threw this together using mostly scanned images from US FM 30-30 recognition manual.



Wingspans are scaled correctly relative to each other.



Includes all current and announced aircraft, or similar enough.



Click on the image until you get to the original full resolution, it's pretty big.

Edited December 24, 2021 by prsn

[AndyJWest]

Nice work.



You've left out the U-2VS, though hopefully people won't have much trouble identifying that. ?

[no_brain]

3 hours ago, AndyJWest said:

Nice work.



You've left out the U-2VS, though hopefully people won't have much trouble identifying that. ?



I considered the PO-2 a kite and not a real aircraft ?

[No_Face]

Thank you. I just have to learn these silhouettes but it is not easy.

[Knarley-Bob]

They do make playing cards with those silhouettes on them, they are reproductions of the WWll cards. Have seen them on the internet.

My screen is way too small for that tho...............One can dream..........

Edited November 12, 2021 by Knarley-Bob
