3D printed Throttle "Fokker"

[Nblg_Magni]

My little DIY project of Throtlle for 3D printing:

• On GitHub
• On Thingiverse

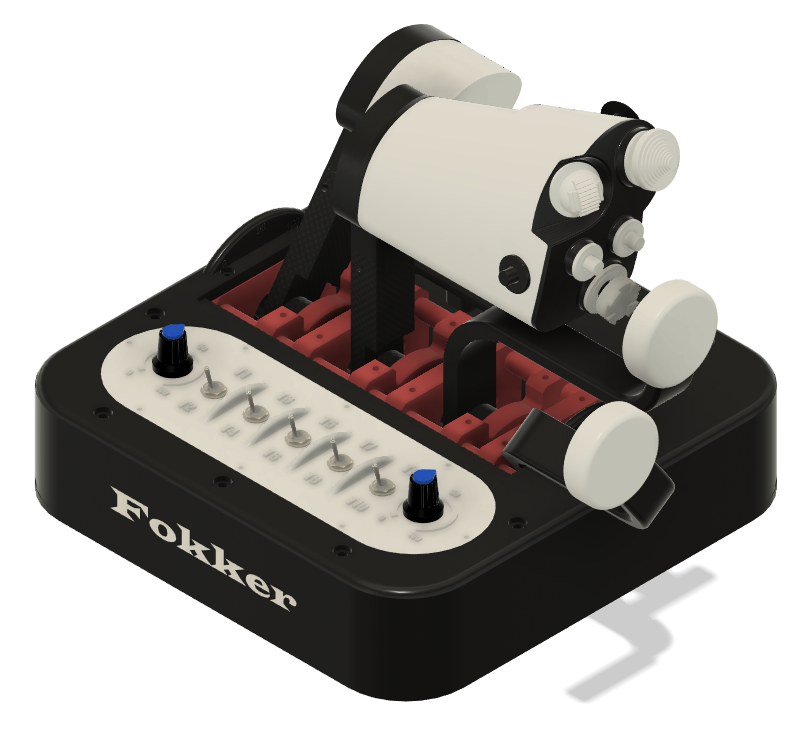

You can see the "assembled" 3D model here (password - Throttle).

Special thanks to @propeler and @busel - the project is based on their projects.







P.S. When I have more free time I`ll post a device video in action





Edited September 2, 2021 by Nblg_Magni

[kissTheSky]

It looks great! How long did it take to print? Also what material did you print it out of?

[Nblg_Magni]

23 часа назад, kissTheSky сказал:

It looks great! How long did it take to print? Also what material did you print it out of?

Hi, I used PLA (white) and PLA+ (black), but you can use other filament (PETG for example). I use Ender 3 Pro with 0.2mm nozzle.



I spent about:



For box:

• bottom 117gr 13h 15%
• walls 120gr 18h 15%
• button patch 33gr 5h 20%
• other patches 35gr 5h 15%
• lids 70gr 9h 15%



For mechanics and handles:

• bases 137 17h 50%
• levers 130 gr 15h 60%
• handles + etc. 120gr 15h 50%

Edited September 3, 2021 by Nblg_Magni

[kissTheSky]

It looked like PLA, but wasn’t sure. I’m finding petg to be quite finicky to print with to be honest.


It’s quite a nice project!

[LLv34_Flanker]

S!



Great to see such great talent here. 3D printin seems to offer a lot of options

Edited September 4, 2021 by LLv34_Flanker

[Nblg_Magni]

A "small" bug in the lever_arm_n4.stl file has been fixed; it is recommended that those who downloaded the project earlier than 4/09 download new version of this file .

[Nblg_Magni]

02.09.2021 в 15:48, Nblg_Magni сказал:

When I have more free time I`ll post a device video in action
