CH- Throttle Quadrant & Thrustmaster Quadrant for Airbus

[Superflyer]

Hallo, hat jemand Erfahrung mit dem CH- Throttle Quadrant von CH- Produkte und mit dem Thrustmaster Quadrant für Airbus? Werden diese beiden in IL-2 BOX erkannt und lassen sich problemlos konfigurieren? Wie ist die Feinfüligkeit unf Funktion? Der Thrustmaster Throttle Quadrant wäre doch ideal für 2- Mot., zum Beispiel Pe-2, Me-110 und so weiter.

Mein Saitek Throttle Quadrant ist defekt und ich brauche Ersatz. Ich würde ihn dann gegen einen der ersten beiden austauschen.

mit freundlichen Grüssen

Hello, does anyone have experience with the CH- Throttle Quadrant from CH-Produkte and the Thrustmaster Quadrant for Airbus? Are these two recognized in the IL-2 BOX and can they be configured without any problems? How is the sensitivity and function? The Thrustmaster Throttle Quadrant would be ideal for 2-Mot., For example Pe-2, Me-110 and so on. My Saitek Throttle Quadrant is defective and I need a replacement. I would then swap it for one of the first two. Yours sincerely

[cardboard_killer]

I use the CH 6-axis Throttle Quadrant without problem.



[Panzerlang]

I have used one (sent it to my brother a few days ago), all the levers work well but I found the six buttons to have a ridiculously short range of movement (like 1mm) with almost zero resistance and can be triggered by the user sneezing (almost). Lol. I bought it brand new, so it's not wear.
To be frank, the six buttons are utter trash (in my opinion).

Edited July 18, 2021 by Hetzer-JG51

[=FEW=fernando11]

54 minutes ago, cardboard_killer said:

I use the CH 6-axis Throttle Quadrant without problem.



The only "downside" of the CH throttle quadrant would be that it uses the old style potentiometers instead of the new hall sensor tipe.

But in normal use, its not an issue at all.



It looks outdated, but is very functional.

[Superflyer]

Danke für die schnellen Antworten  Thanks for the quick responses.

[72AG_Melnik]

Hello!



Does anybody know the exact letters of CH Throttle Quadrant axes in Il-2? The first three are the same as in the software - XYZ, but other three RUV don't seem to work. I need to write them manually in the game files, because it sees all CH axes like buttons due to some bug.

[cardboard_killer]

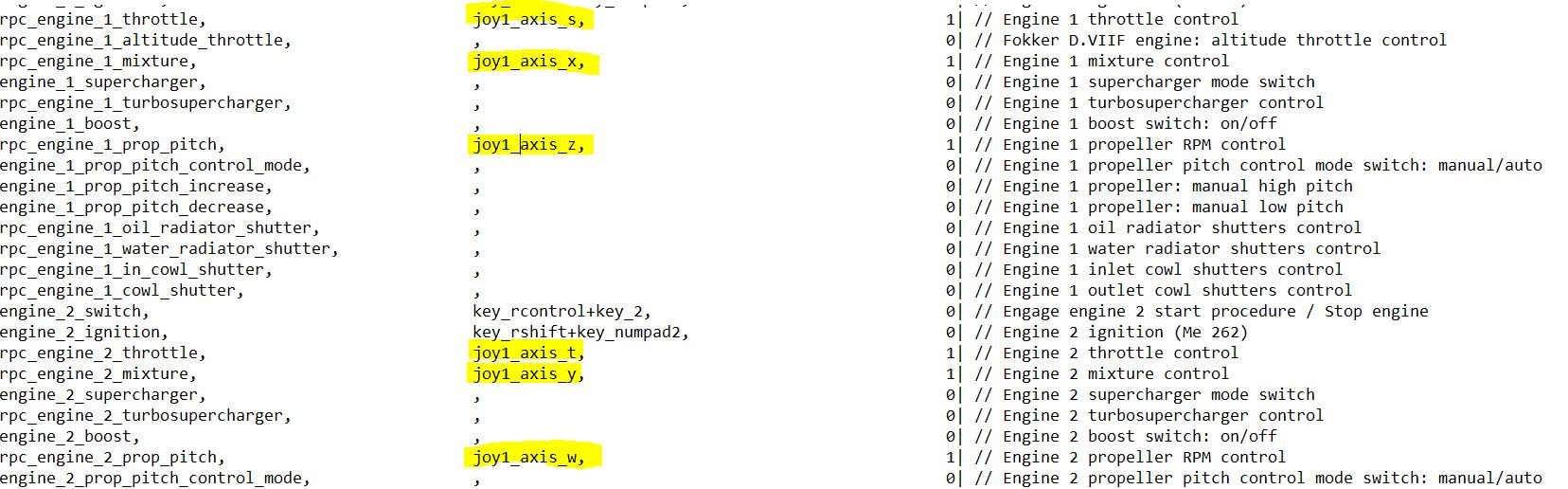

I think the only plane I use them all on regularly is the P-38 for engine 1 and 2. Here's what my current.actions file reads.





Edited April 1, 2022 by cardboard_killer

[72AG_Melnik]

Thank you SO much! So the names are: XYZTSW.

[KpaxBos]

Hello,

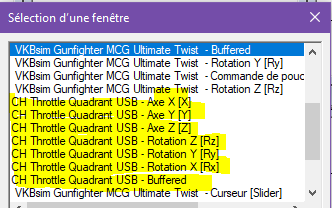

Here what I have with DIVIEW or VKB joystick tester :

X,Y,Z,Rz,Rx,Ry.





In the CH control manager I have X,Y,Z,R,U,V

In IL2 : X,Y,Z,T,S,W



Have fun.
