Gimbal joystick v3 Kompatto

[Marvel]

Hi folks, here my last production about gimbal joystick. Is an all metal work (ergal and aluminium)  production of a well-know 3d gimbal joystick that many of you have already seen on the web. I hope this is the definitive one for me ?.

















Here a short video:



Next steps will be the sensors, I will use once again my beloveds AS5600.



Ciao!



M





Edited September 22, 2020 by Marvel

[Soilworker]

Some really nice work there dude.



(Though from a professional point of view I think the embedded nuts are a tad overkill, especially as you're not even using capscrews with them.)



Hope it works out for you!

[Marvel]

1 hour ago, Soilworker said:

(Though from a professional point of view I think the embedded nuts are a tad overkill, especially as you're not even using capscrews with them.)



You've right mate but I really liked the idea and I trasferred that on this all metal work. With  jump EDM was a quick job.



Ciao!



M

[Soilworker]

7 hours ago, Marvel said:



You've right mate but I really liked the idea and I trasferred that on this all metal work. With  jump EDM was a quick job.



Ciao!



M



Fair enough. Actually if I think about I'm a total hypocrit, I'm the king of overkill machining! ? (I just don't have a CNC.)

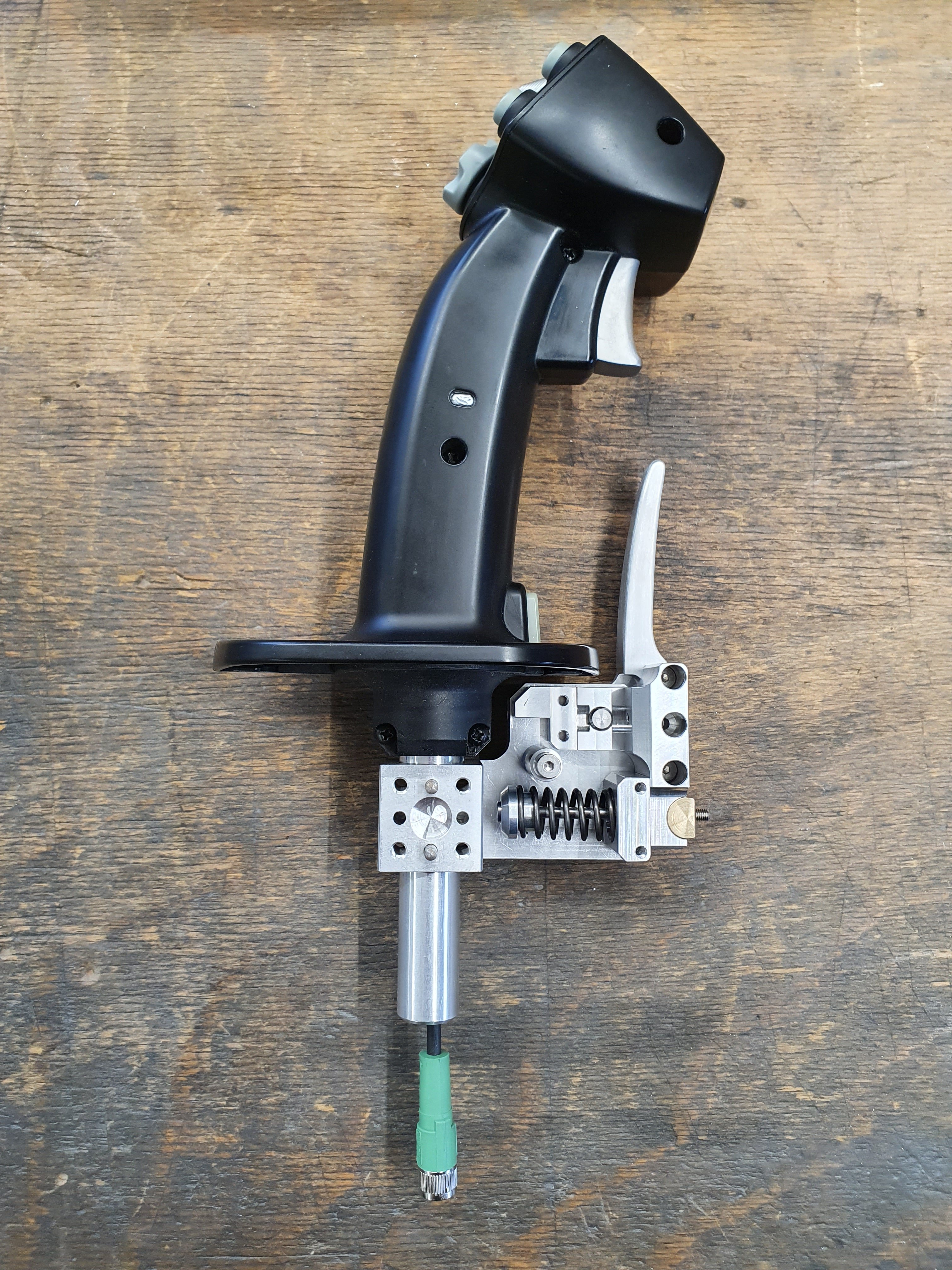

Here's a WIP of my brake lever, just as an example. ?

[Dirt_Merchant]

Saw your reply in my post lol.

Edited September 23, 2020 by [_FLAPS_]Dirt_Merchant
i am idiot

[Marvel]

On 9/22/2020 at 10:41 PM, Soilworker said:



Fair enough. Actually if I think about I'm a total hypocrit, I'm the king of overkill machining! ? (I just don't have a CNC.)



Here's a WIP of my brake lever, just as an example. ?



?? You can brake with both hands and no fear to break something! ??



Ciao!



M

[luckylaide]

Hi Marvel,

Great work! I am impressed by this design. I found this forum as I was searching for gimbal designs and had to ask you about some details. You stated its from the production of a well-know 3d gimbal joystick that many of us have already seen on the web. I have know idea which 3d gimbal stick you were referring. Do you mind sharing the actual brand and model? I am looking to build something similar for a VR idea. I would like for the gimbal built to be able to bare the weight of up to 150 kg. I would like to start researching where I can get the metal work done and what may be the best potentiometers to use. Would love to hear your suggestions.



Thanks
