Very powerful OpenTrack profile

Posted May 11, 2014 · May 11, 2014

Hello everyone who is using Opentrack!

[This profile is for the PS3 Eye camera]

The response time using this is practically instant - I can't actually notice any delay.

Here is my profile that you can save into a .ini file and get the most out of IL-2

make a .txt file - input all my commands and then save as a .ini - add this to your settings folder and enjoy.

[PointTracker]
CameraId=0
CameraF=@Variant(\0\0\0\x87?\x80\0\0)
CameraResX=640
CameraResY=240
CameraFPS=75
CameraRoll=0
CameraPitch=0
CameraYaw=0
PointExtractThreshold=79
PointExtractThresholdSecondary=101
PointExtractMinSize=6
PointExtractMaxSize=50
PointModelM01x=@Variant(\0\0\0\x87\0\0\0\0)
PointModelM01y=@Variant(\0\0\0\x87\x42 \0\0)
PointModelM01z=@Variant(\0\0\0\x87\xc1\xf0\0\0)
PointModelM02x=@Variant(\0\0\0\x87\0\0\0\0)
PointModelM02y=@Variant(\0\0\0\x87\xc2\x8c\0\0)
PointModelM02z=@Variant(\0\0\0\x87\xc2\xa0\0\0)
tMHx=@Variant(\0\0\0\x87\x42\xd8\xa1\xe8)
tMHy=@Variant(\0\0\0\x87\xc1\xc6\x89\x80)
tMHz=@Variant(\0\0\0\x87\x42VS\0)
DynamicPoseResolution=true
VideoWidget=true
SleepTime=2
ResetTime=1000
EnableRoll=false
EnablePitch=true
EnableYaw=true
EnableX=true
EnableY=true
EnableZ=true

[PointTrackerDialog]
ActiveModelPanel=0
CustomM01x=0
CustomM01y=40
CustomM01z=-30
CustomM02x=0
CustomM02y=-70
CustomM02z=-80
ClipTopHeight=40
ClipTopLength=30
ClipBottomHeight=70
ClipBottomLength=80
CapHalfWidth=40
CapHeight=60
CapLength=100

[Tracking]
invertYaw=true
invertPitch=true
invertRoll=false
invertX=false
invertY=false
invertZ=false
tcomp-rz=true
compensate=true
rx_alt=false
ry_alt=false
rz_alt=false
tx_alt=false
ty_alt=false
tz_alt=false
zero_tx=0
zero_ty=0
zero_tz=0
zero_rx=0
zero_ry=0
zero_rz=0

[GameProtocol]
DLL=libopentrack-proto-freetrack.dll

[TrackerSource]
DLL=libopentrack-tracker-pt.dll
2ndDLL=

[Filter]
DLL=libopentrack-filter-accela.dll

[Accela]
rotation-alpha=20.1
translation-alpha=20.1
deadzone=0
exponent=2.85
second-order-alpha=8.1
third-order-alpha=8.1
axis-0=1.5
axis-1=1
axis-2=1
axis-3=0.8
axis-4=0.8
axis-5=1.25

[Curves-rx]
point-count=2
point-0-x=0
point-0-y=0
point-1-x=31.6000003814697
point-1-y=180

[Curves-ry]
point-count=1
point-0-x=25.1
point-0-y=90

[Curves-rz]
point-count=0

[Curves-tx]
point-count=1
point-0-x=18.1071434020996
point-0-y=22.5

[Curves-ty]
point-count=1
point-0-x=18.25
point-0-y=48

[Curves-tz]
point-count=1
point-0-x=20.7142848968506
point-0-y=60

[Curves-tx_alt]
point-count=0

[Curves-ty_alt]
point-count=1
point-0-x=23.1071434020996
point-0-y=0

[Curves-tz_alt]
point-count=1
point-0-x=21.8571434020996
point-0-y=12

[Curves-rx_alt]
point-count=0

[Curves-ry_alt]
point-count=1
point-0-x=9.80000019073486
point-0-y=68.5

[Curves-rz_alt]
point-count=0

[KB_Shortcuts]
Shift_Center=true
Ctrl_Center=false
Alt_Center=false
Key_index_Center=55
Shift_Toggle=false
Ctrl_Toggle=false
Alt_Toggle=false
Key_index_Toggle=0

[FT]
UsedInterface=0

[FTIR]
useTIRViews=false
useDummyExe=true

Posted May 11, 2014 · May 11, 2014

I'll give this a try and see what happens. Thank you for the info.

Posted October 31, 2014 · October 31, 2014

Hi guys, sorry for bumping this old thread.

I need some help with opentrack, I've finished installing my ps3 camera after removing the IR filter and adding a daylight filter. Now I need some help getting the rest to work.

Do you recommend using the zoomed in view (rotate lens to the left) or the normal one? IR light tracking seems to work better zoomed in for me. I'm using this camera in combination with the Delanclip.

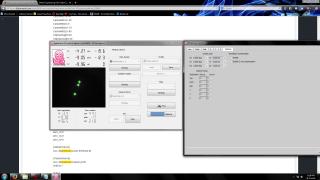

I've tried importing Eyek's profile into opentrack but it doesn't seem to work correctly, when I move my face there is hardly any movement. See my attached screenshot. Like it only loads up some settings.

Thanks for any help.

Posted November 2, 2014 · November 2, 2014

For starters, with the mapping properties open, click on the yaw tab and you'll be able to see how much movement you are getting. Sometimes you just need to play around with those settings, try it on the pitch and roll tabs also. As your move your head keep an eye on the movement in the mapping properties and adjust them to get the movement you are looking for. And what version of opentrack are you using? Also in the main window watch the readouts at the top to see how much travel you are getting. Your yaw reading should go from 0 to 180 and 0 to -180. Have you tried it in-game? Normally you won't see lots of movement in the main screen of opentrack but you'll find it works okay in the game. Can't comment on the PS3 camera as I do not use it. Keep us posted!

Edited November 2, 2014 by Gramps

Posted November 2, 2014 · November 2, 2014

I mostly use the zoomed in setting. Just make sure you don't move out of the cameras viewsight. Remember to specify exactly what dimensions your IR-model has! Maybe that's why it doesn't work?

Posted November 3, 2014 · November 3, 2014

I've finally managed to get opentrack working as it should for me, at least for all the axes. All I need to do is finetune some filter settings, as I find my current ones are a bit too "grainy".

After trying so much with opentrack first I decided to download Facetracknoir and see how it worked. I found it far more user friendly for a facetracking noob like myself, since most of it's axes and curve settings are explained much better. Naturally it has it's restrictive pitch up/down view in IL2:BoS so I knew it wouldn't be an option for the long term. But it gave me a much better understanding of all the different settings I could use with these kinds of programs.

I have also moved my webcam from the center to the rightmost corner of my screen, since at the center it would often see 2 ir leds overlap when I looked down, causing it not to work anymore.

I'm currently using opentrack 2.2-end of alpha 2. Maybe copy pasting settings from a different version don't work exactly as they should have?

My filter settings at the moment are:

rotation: 60.0
translation: 40.0
order #2: 80.0
order #3: 120.0
rotation deadband: 0.05
translation deadband: 0.05
exponent: 1.4

If anyone has any settings for a bit smoother settings let me know please.

Thanks for all the help and suggestions so far!

Posted November 3, 2014 · November 3, 2014

You are on the right track! I have to agree, info for opentrack is hard to come by. You definitely have to fine tune it to meet your needs. Here are the accela settings from eyek's ini file:

rotation: 20.1
translation: 20.1
order #2: 8.10
order #3: 8.10
rotation deadband:0.2
translation deadband: 1.8
exponent: 1.0

These work okay in my setup but I use a Logitech C270 camera. PS3 is supposed to be great in opentrack but again, you'll need to experiment with the numbers to see what works for you.

Posted November 25, 2016 · November 25, 2016

I know this is an old thread, but decided to look into my tracking for better, more natural head movement. I didn't have to!!! This is great!!!! Absolutely what I was looking for, I just had to tweak the pitch setting a bit for my taste/setup. Thank you very much Sir!! Natural, no problems with limits, easy to look behind and not at all twitchy.. Perfect.. I expect my awareness and dogfighting will increase a lot.. Many thanks again

o7

Percy

Posted November 25, 2016 · November 25, 2016

Another convert! I'm still using OT except I now use a PS3 eye cam instead of the Logitech.

Posted November 25, 2016 · November 25, 2016

Another convert! I'm still using OT except I now use a PS3 eye cam instead of the Logitech.

How many fps@resolution are you squeezing from Ps3 eye?

Posted November 25, 2016 · November 25, 2016

How many fps@resolution are you squeezing from Ps3 eye?

75 @ 640X480, can get higher with lower resolution but I like the performance at 75.

Posted November 25, 2016 · November 25, 2016

75 @ 640X480, can get higher with lower resolution but I like the performance at 75.

I also can't get more. Thx

Posted January 29, 2018 · January 29, 2018

Thanks for your profile Eyek,

I just got my Open Track setup going with your settings. Very happy, I did some modification to the curves giving me a little dead zone which I like for eye balling the gun sight and I am modifying the yaw to give me a good compromise between fine location movement and quick head tracking.

It is so much nicer to have a IR setup to FaceTrackNoIR. Still finding vertical movement a bit restricted i.e. looking up but I am sure I will figure it out.

For now, time to get on line and have fun without my tracking going psycho.

Posted January 29, 2018 · January 29, 2018

My settings for anyone who wants a slight dead center forward looking on YAW, Pitch, Roll and Sideways movement.

It isn't much except for vertical head movement which has more of a dead zone. Allows one to forward look into the gun sight without the need for a snap look bind or pausing the tracking. Also ones clip LED distance values might be different to mine.

Mileage may vary )

[PointTracker]
CameraId=0
CameraF=@Variant(\0\0\0\x87?\x80\0\0)
CameraResX=640
CameraResY=240
CameraFPS=75
CameraRoll=0
CameraPitch=0
CameraYaw=0
PointExtractThreshold=79
PointExtractThresholdSecondary=101
PointExtractMinSize=6
PointExtractMaxSize=50
PointModelM01x=@Variant(\0\0\0\x87\0\0\0\0)
PointModelM01y=@Variant(\0\0\0\x87\x42 \0\0)
PointModelM01z=@Variant(\0\0\0\x87\xc1\xf0\0\0)
PointModelM02x=@Variant(\0\0\0\x87\0\0\0\0)
PointModelM02y=@Variant(\0\0\0\x87\xc2\x8c\0\0)
PointModelM02z=@Variant(\0\0\0\x87\xc2\xa0\0\0)
tMHx=@Variant(\0\0\0\x87\x42\xd8\xa1\xe8)
tMHy=@Variant(\0\0\0\x87\xc1\xc6\x89\x80)
tMHz=@Variant(\0\0\0\x87\x42VS\0)
DynamicPoseResolution=true
VideoWidget=true
SleepTime=2
ResetTime=1000
EnableRoll=false
EnablePitch=true
EnableYaw=true
EnableX=true
EnableY=true
EnableZ=true

[PointTrackerDialog]
ActiveModelPanel=0
CustomM01x=0
CustomM01y=40
CustomM01z=-30
CustomM02x=0
CustomM02y=-70
CustomM02z=-80
ClipTopHeight=40
ClipTopLength=30
ClipBottomHeight=70
ClipBottomLength=80
CapHalfWidth=40
CapHeight=60
CapLength=100

[Tracking]
invertYaw=true
invertPitch=true
invertRoll=false
invertX=false
invertY=false
invertZ=false
tcomp-rz=true
compensate=true
rx_alt=false
ry_alt=false
rz_alt=false
tx_alt=false
ty_alt=false
tz_alt=false
zero_tx=0
zero_ty=0
zero_tz=0
zero_rx=0
zero_ry=0
zero_rz=0

[GameProtocol]
DLL=libopentrack-proto-freetrack.dll

[TrackerSource]
DLL=libopentrack-tracker-pt.dll
2ndDLL=

[Filter]
DLL=libopentrack-filter-accela.dll

[Accela]
rotation-alpha=20.1
translation-alpha=20.1
deadzone=0
exponent=2.85
second-order-alpha=8.1
third-order-alpha=8.1
axis-0=1.5
axis-1=1
axis-2=1
axis-3=0.8
axis-4=0.8
axis-5=1.25

[Curves-rx]
point-count=2
point-0-x=0
point-0-y=0
point-1-x=31.6000003814697
point-1-y=180

[Curves-ry]
point-count=1
point-0-x=25.1
point-0-y=90

[Curves-rz]
point-count=0

[Curves-tx]
point-count=1
point-0-x=18.1071434020996
point-0-y=22.5

[Curves-ty]
point-count=1
point-0-x=18.25
point-0-y=48

[Curves-tz]
point-count=1
point-0-x=20.7142848968506
point-0-y=60

[Curves-tx_alt]
point-count=0

[Curves-ty_alt]
point-count=1
point-0-x=23.1071434020996
point-0-y=0

[Curves-tz_alt]
point-count=1
point-0-x=21.8571434020996
point-0-y=12

[Curves-rx_alt]
point-count=0

[Curves-ry_alt]
point-count=1
point-0-x=9.80000019073486
point-0-y=68.5

[Curves-rz_alt]
point-count=0

[KB_Shortcuts]
Shift_Center=true
Ctrl_Center=false
Alt_Center=false
Key_index_Center=55
Shift_Toggle=false
Ctrl_Toggle=false
Alt_Toggle=false
Key_index_Toggle=0

[FT]
UsedInterface=0

[FTIR]
useTIRViews=false
useDummyExe=true

[spline-X]
points=@Variant(\0\0\0\x7f\0\0\0\xfQList<QPointF>\0\0\0\0\x2@\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0@2\x1bm\xbf\xff\xff\xfd@6\x80\0\0\0\0\0)

[spline-Y]
points=@Variant(\0\0\0\x7f\0\0\0\xfQList<QPointF>\0\0\0\0\x2@\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0@4\0\0\0\0\0\0@D\0\0\0\0\0\0)

[alt-spline-Y]
points=@Variant(\0\0\0\x7f\0\0\0\xfQList<QPointF>\0\0\0\0\x1@7\x1bm\xbf\xff\xff\xfd\0\0\0\0\0\0\0\0)

[spline-Z]
points=@Variant(\0\0\0\x7f\0\0\0\xfQList<QPointF>\0\0\0\0\x2@\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0@4\0\0\0\0\0\0@N\0\0\0\0\0\0)

[alt-spline-Z]
points=@Variant(\0\0\0\x7f\0\0\0\xfQList<QPointF>\0\0\0\0\x1@5\xdbm\xbf\xff\xff\xfd@(\0\0\0\0\0\0)

[spline-yaw]
points=@Variant(\0\0\0\x7f\0\0\0\xfQList<QPointF>\0\0\0\0\x3\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0@\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0@>\0\0\0\0\0\0@d\0\0\0\0\0\0)

[spline-pitch]
points=@Variant(\0\0\0\x7f\0\0\0\xfQList<QPointF>\0\0\0\0\x2@\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0@4\0\0\0\0\0\0@V\x80\0\0\0\0\0)

[alt-spline-pitch]
points=@Variant(\0\0\0\x7f\0\0\0\xfQList<QPointF>\0\0\0\0\x1@#\x99\x99\x9f\xff\xff\xfe@Q \0\0\0\0\0)

[migrations]
last-migration-at=20180102_00~

[tracker-pt]
camera-name=PS3Eye Camera
camera-fps=75
camera-res-height=480
camera-res-width=640
max-point-size=20
min-point-size=3
clip-by=55
clip-bz=80
active-model-panel=0
model-centroid-x=-65
model-centroid-y=93
model-centroid-z=10
threshold-slider=@Variant(\0\0\0\x7f\0\0\0\x18::options::slider_value\0@B\0\0\0\0\0\0\0\0\0\0\0\0\0\0@o\xe0\0\0\0\0\0)
camera-fov=56
clip-ty=45
dynamic-pose-resolution=false

[modules]
tracker-dll=PointTracker 1.1

[accela-sliders]
rotation-deadzone=@Variant(\0\0\0\x7f\0\0\0\x18::options::slider_value\0?\xa4z\xe1G\xae\x14{\0\0\0\0\0\0\0\0?\xc9\x99\x99\x99\x99\x99\x9a)
rotation-sensitivity=@Variant(\0\0\0\x7f\0\0\0\x18::options::slider_value\0?\xf8\0\0\0\0\0\x1?\xa9\x99\x99\x99\x99\x99\x9a@\x4\0\0\0\0\0\0)
translation-deadzone=@Variant(\0\0\0\x7f\0\0\0\x18::options::slider_value\0?\xd3\x33\x33\x33\x33\x33\x33\0\0\0\0\0\0\0\0?\xf0\0\0\0\0\0\0)

[opentrack-ui]
button-center=4
button-toggle-tracking=7
guid-center={6CEBBB70-D4EF-11E7-8001-444553540000}
guid-toggle-tracking={6CEBBB70-D4EF-11E7-8001-444553540000}
use-system-tray=true

[opentrack-mappings]
roll-max-value=45
yaw-max-value=60

[spline-roll]
points=@Variant(\0\0\0\x7f\0\0\0\xfQList<QPointF>\0\0\0\0\x2@\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0@F\x80\0\0\0\0\0@N\0\0\0\0\0\0)
