TFS 5.0 Bf 109F4/Z GM-1 Nitrous Injection System

[ATAG_Pattle]

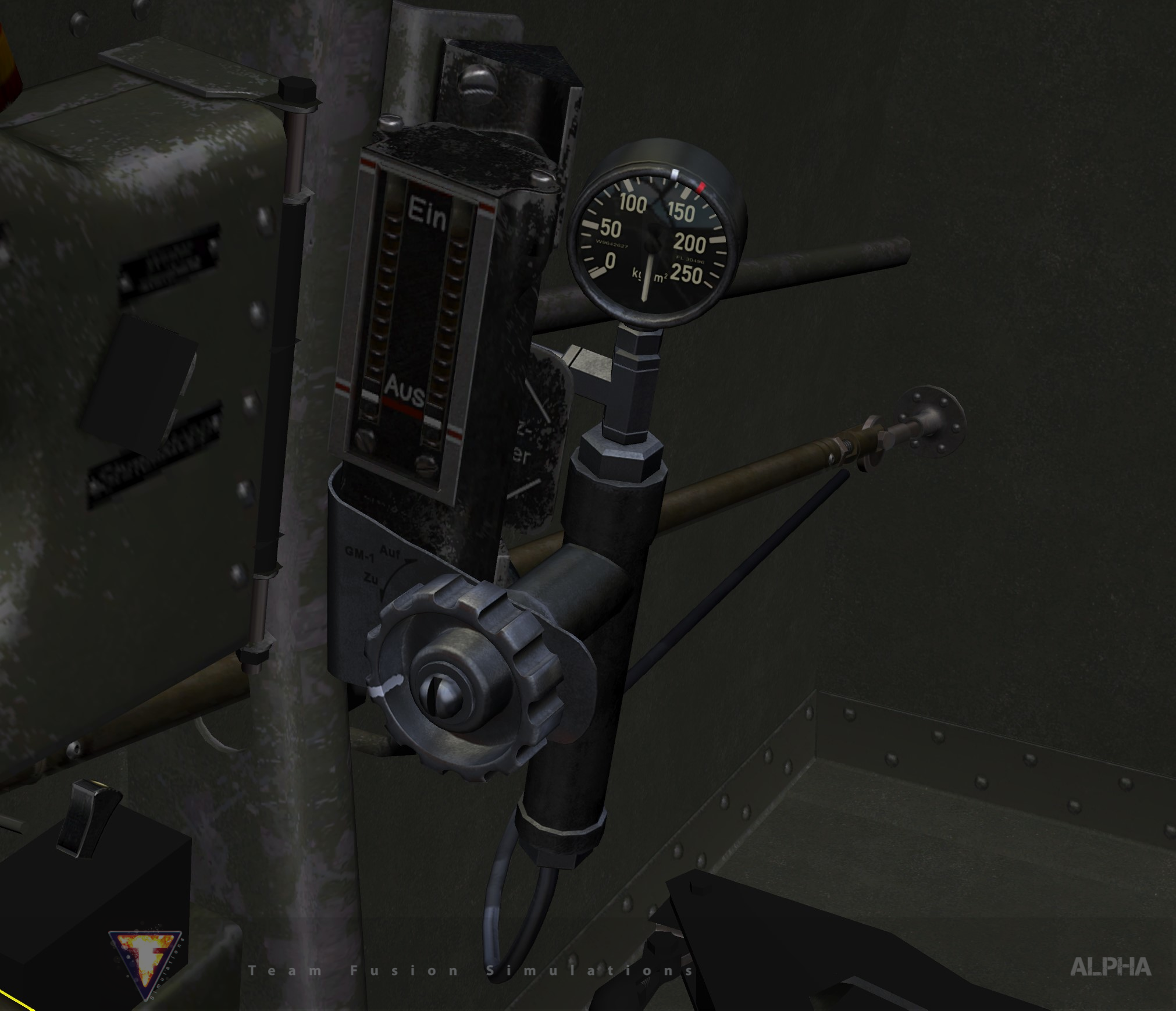

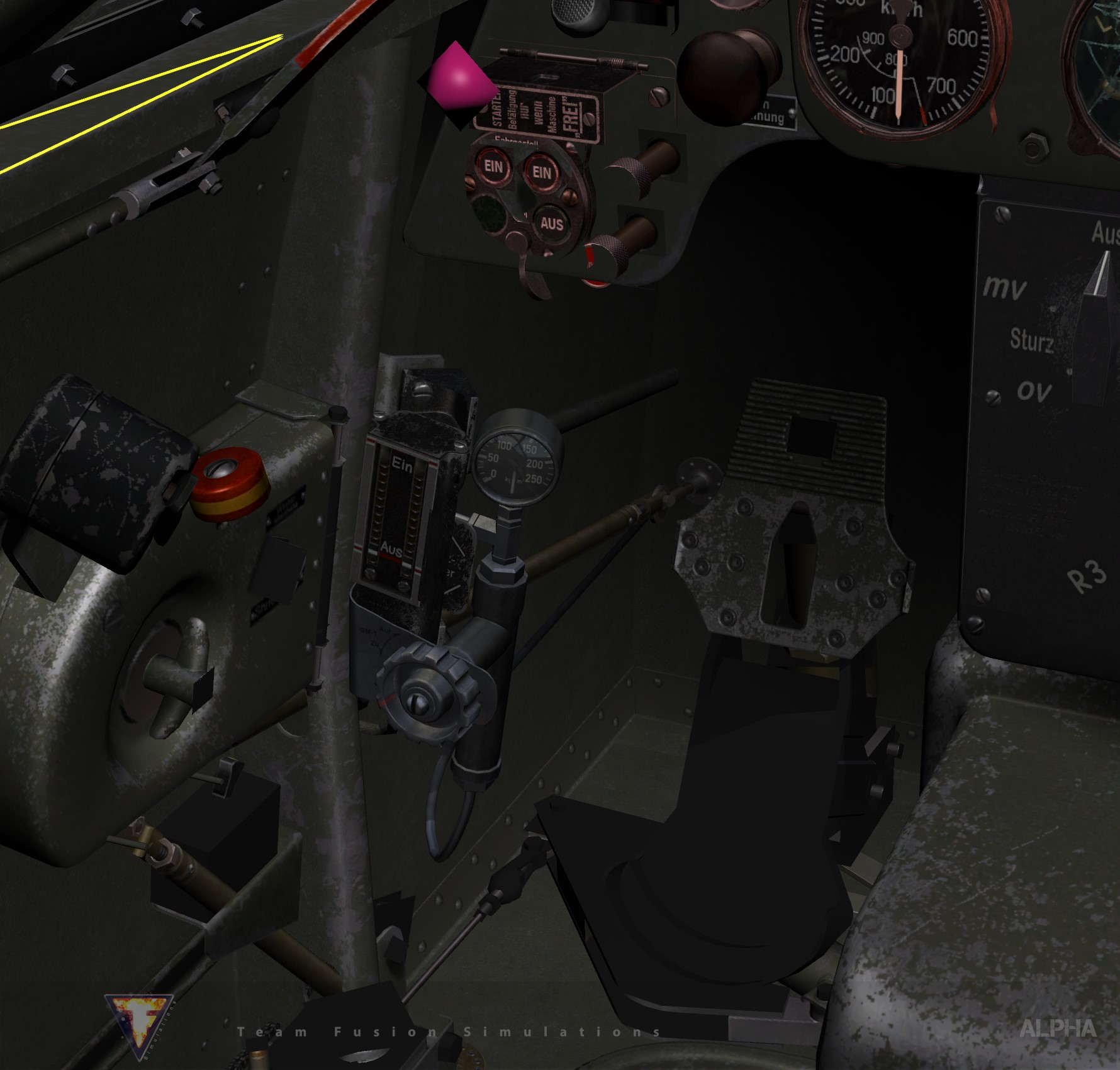

TFS 5.0 Bf 109F4/Z GM-1 Nitrous Injection System



Green cockpit general colours may change to grey in final version.



WIP



Cheers,



Pattle

[FurphyForum]

To Fast, too Furious -Tobruk Drifting.......

[InProgress]

6 hours ago, ATAG_Pattle said:

TFS 5.0 Bf 109F4/Z GM-1 Nitrous Injection System

How do you use it?

[keeno]

The detail looks amazing!

[Buzzsaw]

11 hours ago, InProgress said:

How do you use it?

This is only for use at high altitudes.  Using it at low altitudes will cause catastrophic damage to the engine.



The GM-1 Nitrous Oxide injection system supplements the less than ideal oxygen levels of the atmosphere at high altitude.  Oxygen is a necessary ingredient in the combustion process.



Three different flow rates...  low/medium/high... which give different levels of power boost.



Select flow setting, open valve, fly the plane normally using throttle control.



The apparatus/tanks add over 100 kg to the weight of the aircraft.



Was only installed in certain versions of the 109E and F... not standard.
