Ju-88 Dive bomb procedure

[fjacobsen]

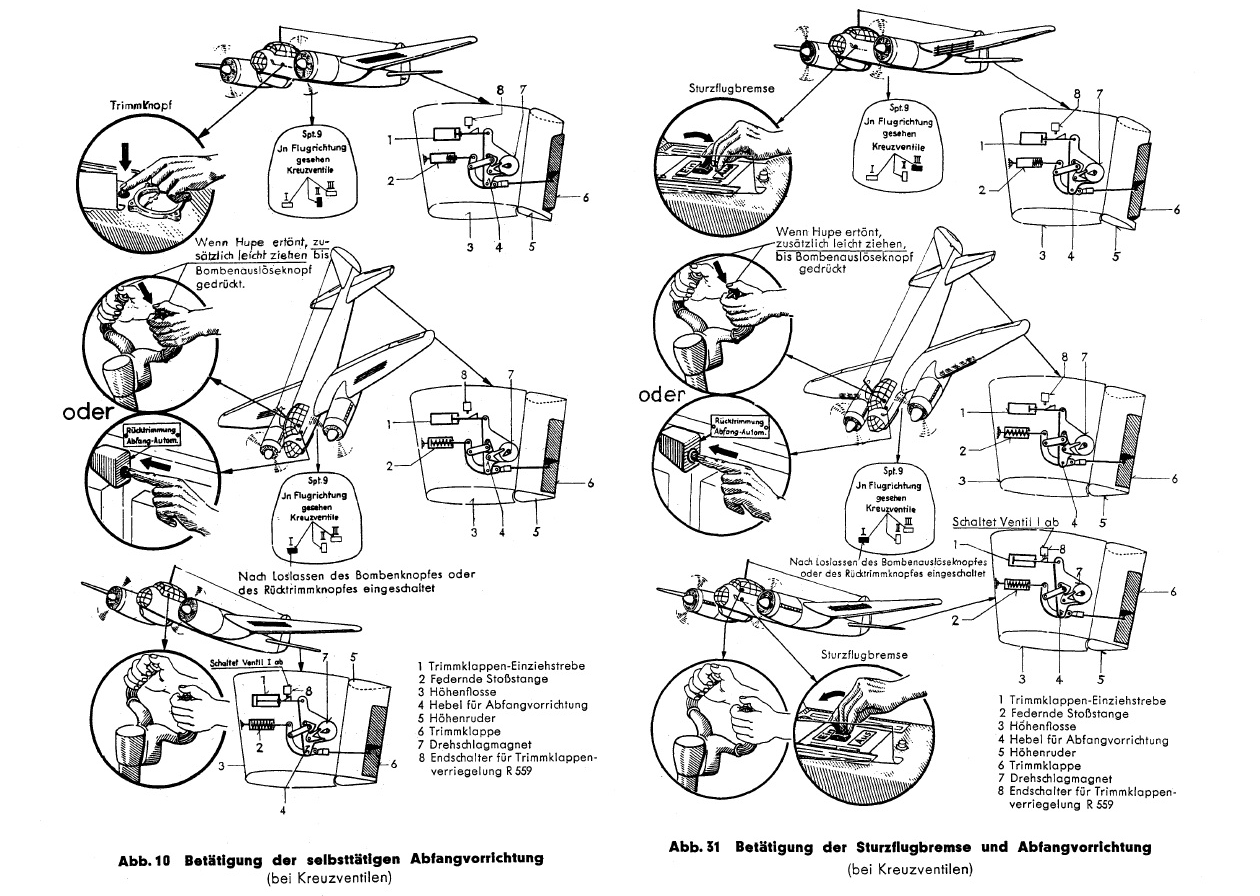

I have found this.



Not sure if all the mentioned items are opretaed automatic in IL-2 Sturmovik BOXX :



[Sybreed]

well I hope Air Combat Tutorial will make a video on this new thing. Will probably start a JU-87 or 88 career because of this!

[E69_geramos109]

Is sad that we dont have the dive reve for the 87 and the 88

[SCG_OpticFlow]

Tried about a dozen dive bombing runs in 88 and 87 with the new aids. It's awesome! And quite dramatic!



In a steep dive (70+ deg) the 88 picks up speed quickly even with the dive brakes on, the steering wheel is shaking, the wind is ripping and just as I wonder if it's going to break apart for real this time, the horn rings and I press the bomb release button and glance the speedometer needle at 700 before my vision gray-outs during the automatic pull-out sequence.

[Atomic_Spaniel]

1 minute ago, OpticFlow said:

Tried about a dozen dive bombing runs in 88 and 87 with the new aids. It's awesome! And quite dramatic!



In a steep dive (70+ deg) the 88 picks up speed quickly even with the dive brakes on, the steering wheel is shaking, the wind is ripping and just as I wonder if it's going to break apart for real this time, the horn rings and I press the bomb release button and glance the speedometer needle at 700 before my vision gray-outs during the automatic pull-out sequence.



Gee - try throttling right back! I get a much more sedate ride starting at 2,500 m and setting the alarm for 1200 m.



Hard to get the bombs on target, though.

[[APAF]VR_Spartan85]

Well that’s why there’s the auto dive recovery,, pilots would black out... and I’d rather be going up then down when I wake up

[Requiem]

5 hours ago, Sybreed said:

well I hope Air Combat Tutorial will make a video on this new thing. Will probably start a JU-87 or 88 career because of this!

Working on it ?

[fjacobsen]



7 hours ago, OpticFlow said:

Tried about a dozen dive bombing runs in 88 and 87 with the new aids. It's awesome! And quite dramatic!



In a steep dive (70+ deg) the 88 picks up speed quickly even with the dive brakes on, the steering wheel is shaking, the wind is ripping and just as I wonder if it's going to break apart for real this time, the horn rings and I press the bomb release button and glance the speedometer needle at 700 before my vision gray-outs during the automatic pull-out sequence.

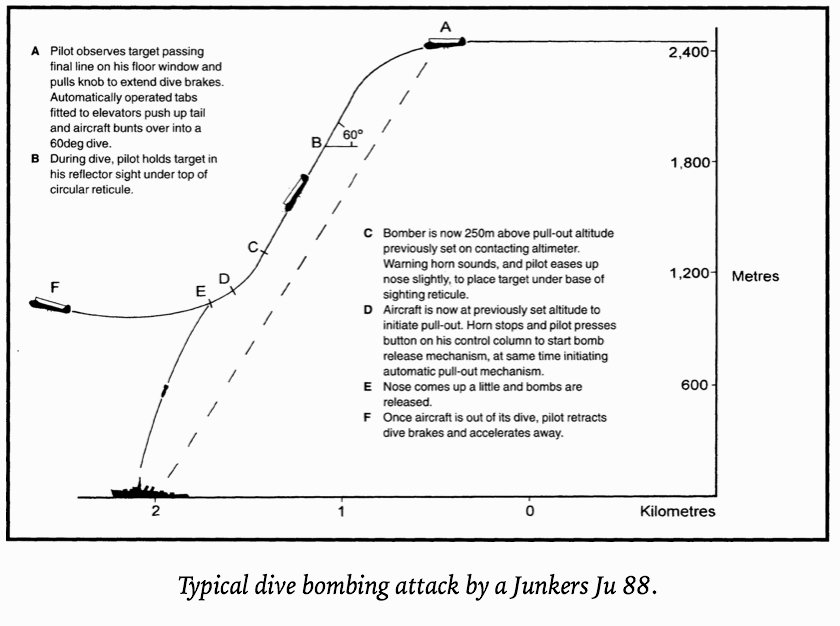

Ju-88 crews adopted a shallower dive in order to preserve the airframe.

Normal dive angle i the Ju-88 became around 60°.

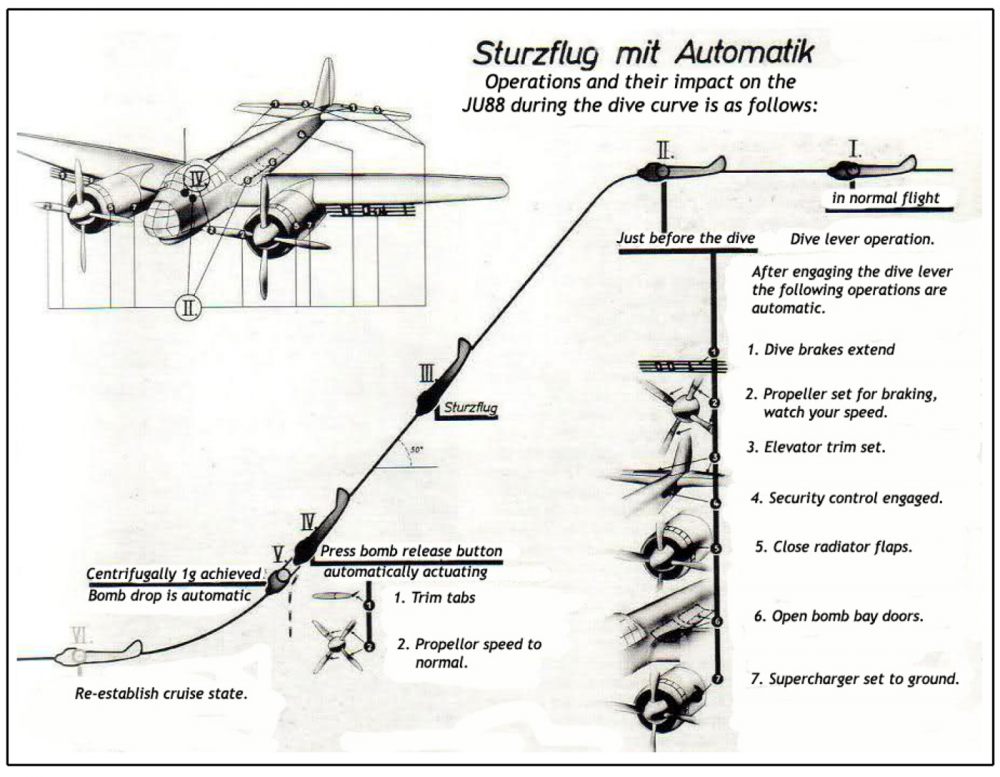

I still wonder if all those "automatic" actions in the second illustration was something that happened on the real Ju-88.

In IL-2 Sturmivok BOXX I don´t see those items being executed with Lctr+D and Bomb release button.

Here is a good description of the procedure:



https://theairtacticalassaultgroup.com/forum/showthread.php?t=4298&p=43438&viewfull=1#post43438



[LukeFF]

2 hours ago, fjacobsen said:

I still wonder if all those "automatic" actions in the second illustration was something that happened on the real Ju-88.



Yes, yes they were. Nothing's been implemented that's some sort of gamey crutch.

[Gavrick]

In game you can dive either with and without dive brakes. If you dive without dive brakes, you can engage dive system by press LCtrl+D (same key for recover).

[Chief_Mouser]

By the time of Kuban the Ju88s had given up dive-bombing and gone over to shallow diving attacks. They had pretty much removed the dive brakes as well. I would love this to be a loadout option if possible. Doesn't mean that I don't think that the new dive-bombing systems aren't a great addition though - they are!

[SCG_OpticFlow]

6 hours ago, No.322_Red_Cat said:

By the time of Kuban the Ju88s had given up dive-bombing and gone over to shallow diving attacks. They had pretty much removed the dive brakes as well. I would love this to be a loadout option if possible. Doesn't mean that I don't think that the new dive-bombing systems aren't a great addition though - they are!



We'd need the Sturzflugvisier (Stuvi) to be able to hit anything in a shallow dive angle unless we release from very low altitude.



10 hours ago, fjacobsen said:





Ju-88 crews adopted a shallower dive in order to preserve the airframe.

Normal dive angle i the Ju-88 became around 60°.



I still wonder if all those "automatic" actions in the second illustration was something that happened on the real Ju-88.

In IL-2 Sturmivok BOXX I don´t see those items being executed with Lctr+D and Bomb release button.

Here is a good description of the procedure:



https://theairtacticalassaultgroup.com/forum/showthread.php?t=4298&p=43438&viewfull=1#post43438





I know, there are even markers for the dive angle on the left window in the cockpit (60 white, 50 red, 70 yellow).
