Racore Javelin extention project (need help)

[ngabor]

Hi!

I would like to make an extension for my Ravcore Javelin. (It is an OEM VKB Gladiator sold in Europe.) It seems to be easy, I just have to disconnect the cable coming from the base inside the grip then connect them with and extention cable (and make an extention tube of course). The problem is I don't know the type of the connectors used in the stick. (I just bought a standard three pin fan extetion cabel just to realize it is too big.) I dont want to permanently solder the extention cabels so I need plugs/connectors.

If anyone knows, please let me know what kind of cable/connector/plug is used in the VKB sticks, and how sould I search for it, where can Buy one.

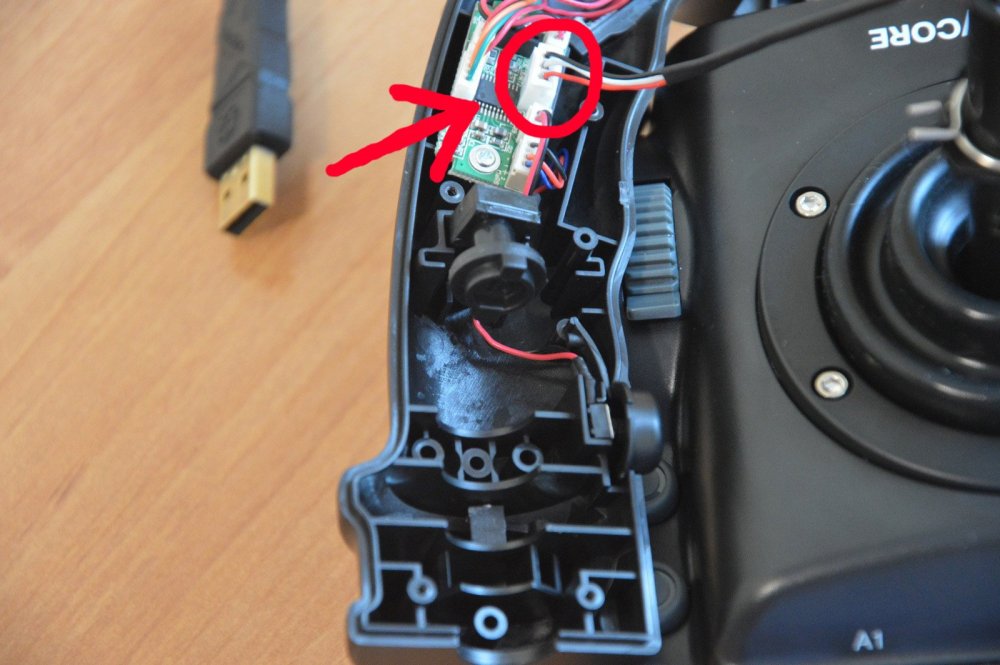

Here is an image with the actual connection marked on it.

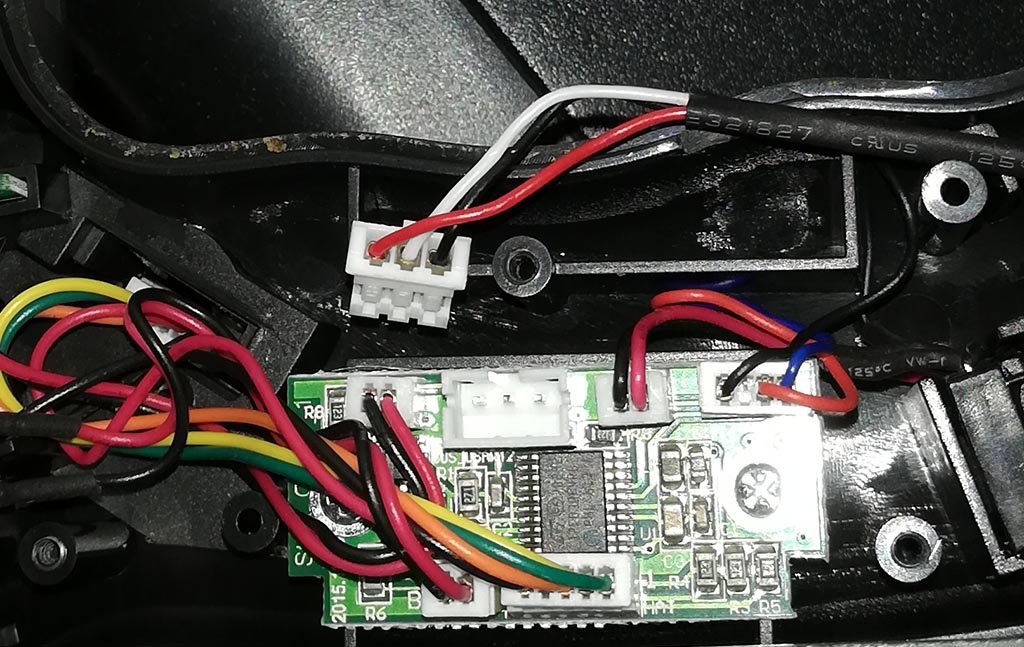

And another disconencted (it is the actual stick)





Thank you.



P.S.: I know I sould buy a Gunfighter base with Gladiator Pro grip and extention but sadly it is well over my budget...Anyways, feel free to send me one for Christmas

[ngabor]

Hi,



I got my answer here:

http://forum.vkb-sim.pro/viewtopic.php?f=25&t=3651

[Leon_Portier]

Very cool!

[Sokol1]

Since this pre-wired connectors in Aliexpress came with short wires, for assembly JST PH connectors is required an appropriated crimp tool:



https://ru.aliexpress.com/wholesale?catId=0&initiative_id=SB_20190605065507&SearchText=jst+ph+2.0+cimp+tool&switch_new_app=y



In that case I just cut the original cables a inch or two above connectors and add wire extensions.







[ngabor]

Thanks for the advise!

Although I found a package with 5 male and 5 female plugs preassembled. One can make the desired cabel from this without the crimp tool.

https://www.aliexpress.com/item/5Sets-Mini-Micro-2-0-PH-Connector-Male-Female-2-3-4-5-6-Pin-Plug/32972303673.html?spm=2114.search0104.3.38.148f17e6iyYWpb&ws_ab_test=searchweb0_0,searchweb201602_2_10065_10068_319_10059_10884_317_10887_10696_321_322_10084_453_10083_454_10103_10618_10304_10307_10820_10821_537_10302_536,searchweb201603_52,ppcSwitch_0&algo_expid=2607017b-6336-4ed6-b83b-6b09d89284c4-5&algo_pvid=2607017b-6336-4ed6-b83b-6b09d89284c4&transAbTest=ae803_5
