opinions? 3D printable throttle quadrant mechanism Hall Sensor (WIP)

[SAG]

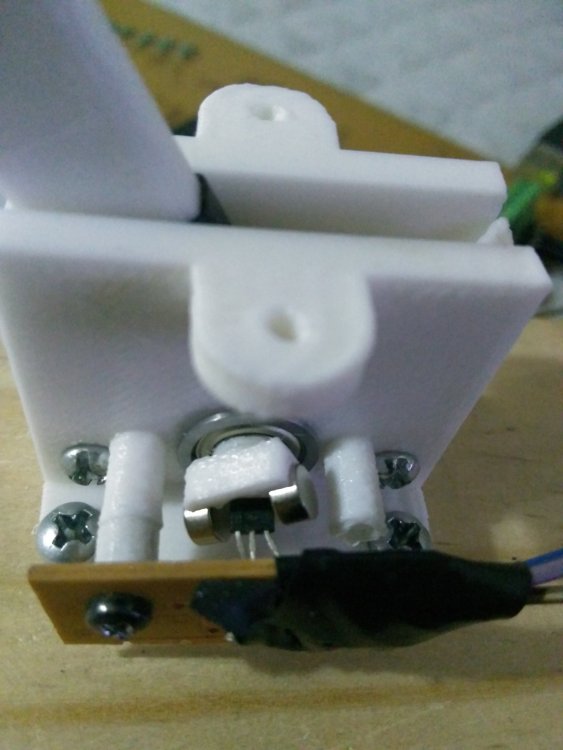

What do you guys think of this? i just started designing it yesterday (gotta love 3d printers!) ?

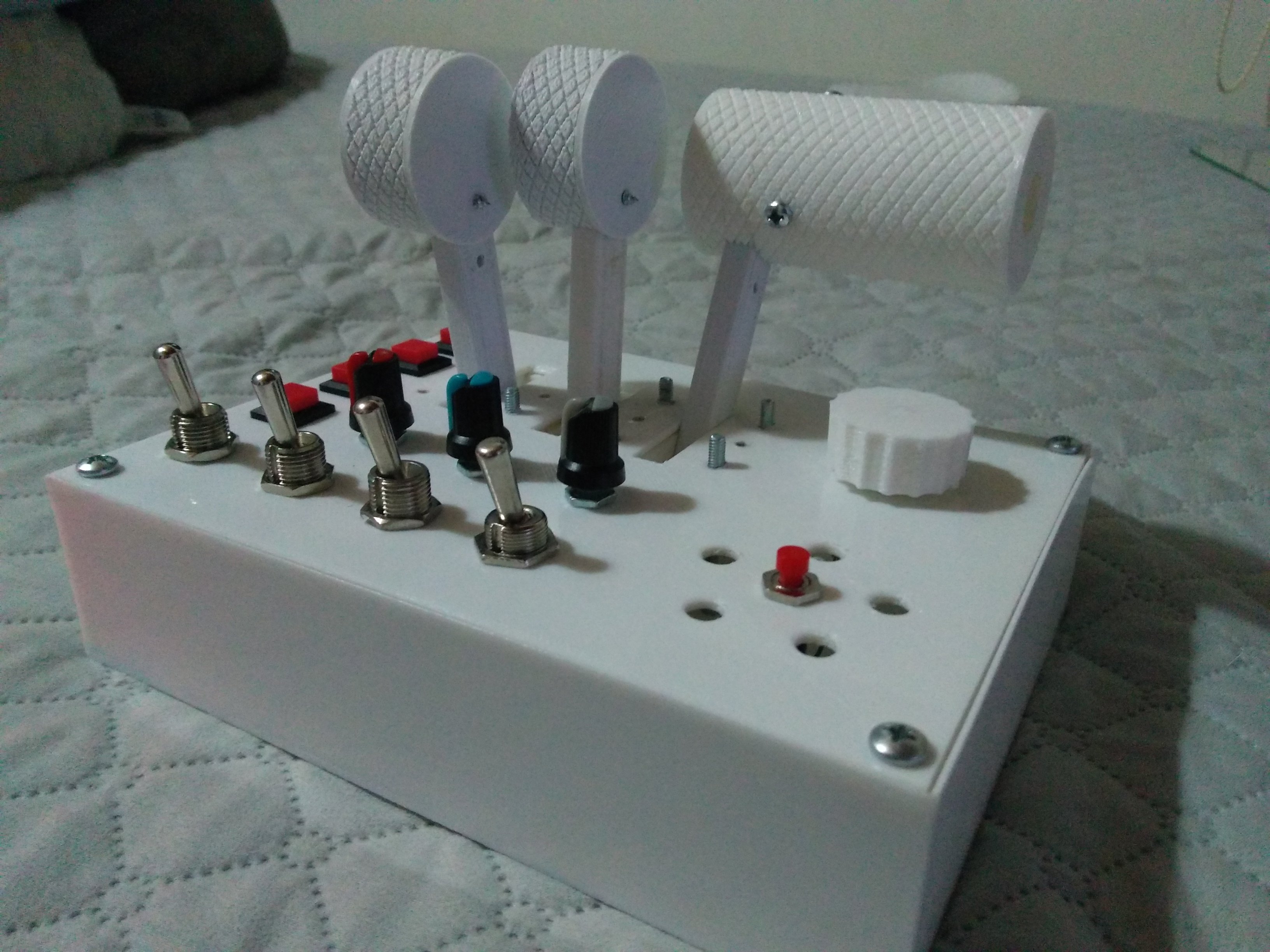

I want to build myself a throttle quadrant inspired on the La5's or the P51's eventually.

















And my faithful companion!



Edited August 24, 2018 by 19//SAG

[angus26]

That’s actually really cool. It’s certainly rudimentary, but it works, and I don’t have a problem with that.

[Dakpilot]

There are a lot of throttle quadrants of variable quality available to builders of homebuilt aircraft, which maybe could also be used as a useful starting point..



Just a thought



http://m.aircraftspruce.com/categories/aircraft_parts/ap/menus/ap/controls_quadrants.html



Just a small example above, starting from US 50 dollar, should be durable enough for flight sim use



Cheers, Dakpilot

[Sokol1]

Looks good - since this part will be inside a box their finish look don't matter, but the bearings and contacless sensor - things that you don't see in Saitek's/CH's throttles.



May you can add an adjustment for friction in the side opposite to sensor side.

[SAG]

4 hours ago, Sokol1 said:

Looks good - since this part will be inside a box their finish look don't matter, but the bearings and contacless sensor - things that you don't see in Saitek's/CH's throttles.



May you can add an adjustment for friction in the side opposite to sensor side.



I want to add adjustable friction and % Indents but it's getting king of hard working in such a small space. any ideas on how to do the friction mechanism?
