struggling so far

[-Roy-Cheesy-Chops]

sorry first time il 2 guy

anybody know where theres a video about  how to help with setting up delan clip and web cam

busy kitting myself out

i'll be a yak 3 pilot, ground attack in future. if you want to turn on same heading that would be appreasiated

 seems very hard this game call me

   B.A.I.T

[Emgy]

This is the software: (direct link)

http://ts3.cosaofficial.pl/opentrack/opentrack-win32-portable-2.0rc1.tar.xz (you can use 7-zip to unzip it)

website: https://github.com/opentrack/opentrack



Plug in your webcam and delanclip, start up opentrack, select Pointtracker as main tracker. Click the big Start button, you should see the webcam image in the opentrack window.



Then click the Settings button under Pointtracker, click the Camera tab. In the Point Extraction box, set min diameter to 2 pixels, then adjust the Point Extraction slider until the Status window shows "3 points OK!"

Tthis means the software is filtering out other light, and it's just tracking the clip IR points. You should also see the blue/white points in the webcam image.



You may/probably need some cheap kind of filter in front of the webcam. I've taped a piece of exposed camera film, others use VHS tape or a floppy disk.



That's for starters, let us know if you can get the webcam to pick up your IR clip . It should be painless, I've used my trackclip with cheap webcams.

If it works, set game protocol to Freetrack 2.0, click settings, turn on the EZCA setting, and it should work in BoS, RoF, Arma and other games.

Edited January 15, 2014 by Calvamos

[Emgy]

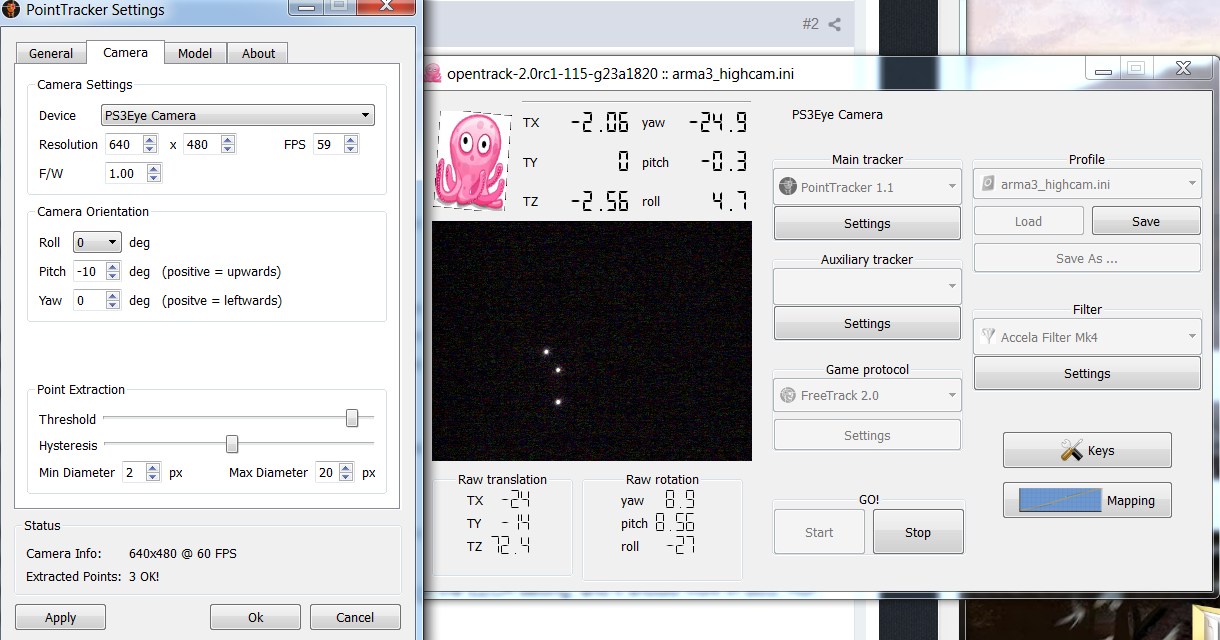

It should look something like this

but this is in a dark room, don't worry if you can see your face and room in the webcam picture, as long as the 3 dots are detected and tracked.

Edited January 15, 2014 by Calvamos

[-Roy-Cheesy-Chops]

brill man..will sort that out later thx 4r advice

[-Roy-Cheesy-Chops]

stresssssss....ssss

[Sternjaeger]

man, I gotta try this!!

[Creepermoss]

That's the one downside to cheap headtracking, it does take a bit of tinkering to get it working well.

[Tone71]



That's the one downside to cheap headtracking, it does take a bit of tinkering to get it working well.

Indeed. Much like a decent joystick/hotas, something like TrackIR is a must, and worth shelling out for.

[Emgy]

That's the one downside to cheap headtracking, it does take a bit of tinkering to get it working well.

Yes, but imho it's not a huge hassle. There was a bit of text in that setup post, but really not that many clicks!

Other settings: the default filter settings work well with Bos and Arma 3. (But need tweaking for some other sims.)

Input/output curves do take a bit of tweaking. But you might find an online profile that works for you, at least as a basis for tweaking.







Tartan, this can be copied into your opentrack settings file (in the opentrack\settings folder), delete the previous entries of these:

[Curves-rx]

point-count=1

point-0-x=16

point-0-y=180



[Curves-ry]

point-count=1

point-0-x=12

point-0-y=90



[Curves-ry_alt]

point-count=4

point-0-x=0

point-0-y=0

point-1-x=4.88888883590698

point-1-y=16

point-2-x=8.88888931274414

point-2-y=36

point-3-x=12

point-3-y=90



[Curves-rz]

point-count=1

point-0-x=30

point-0-y=60



[Curves-tx]

point-count=2

point-0-x=0.428571432828903

point-0-y=0

point-1-x=16

point-1-y=100



[Curves-ty]

point-count=2

point-0-x=0.571428596973419

point-0-y=0

point-1-x=4.85714292526245

point-1-y=99.5



[Curves-tz]

point-count=2

point-0-x=0.535714285714286

point-0-y=0

point-1-x=6.7142858505249

point-1-y=100



Edited January 23, 2014 by Calvamos
