Ju87D right elevator Trim don’t operate when dive brake extend and asking about water cooling armor

[TFS_Knuckles]

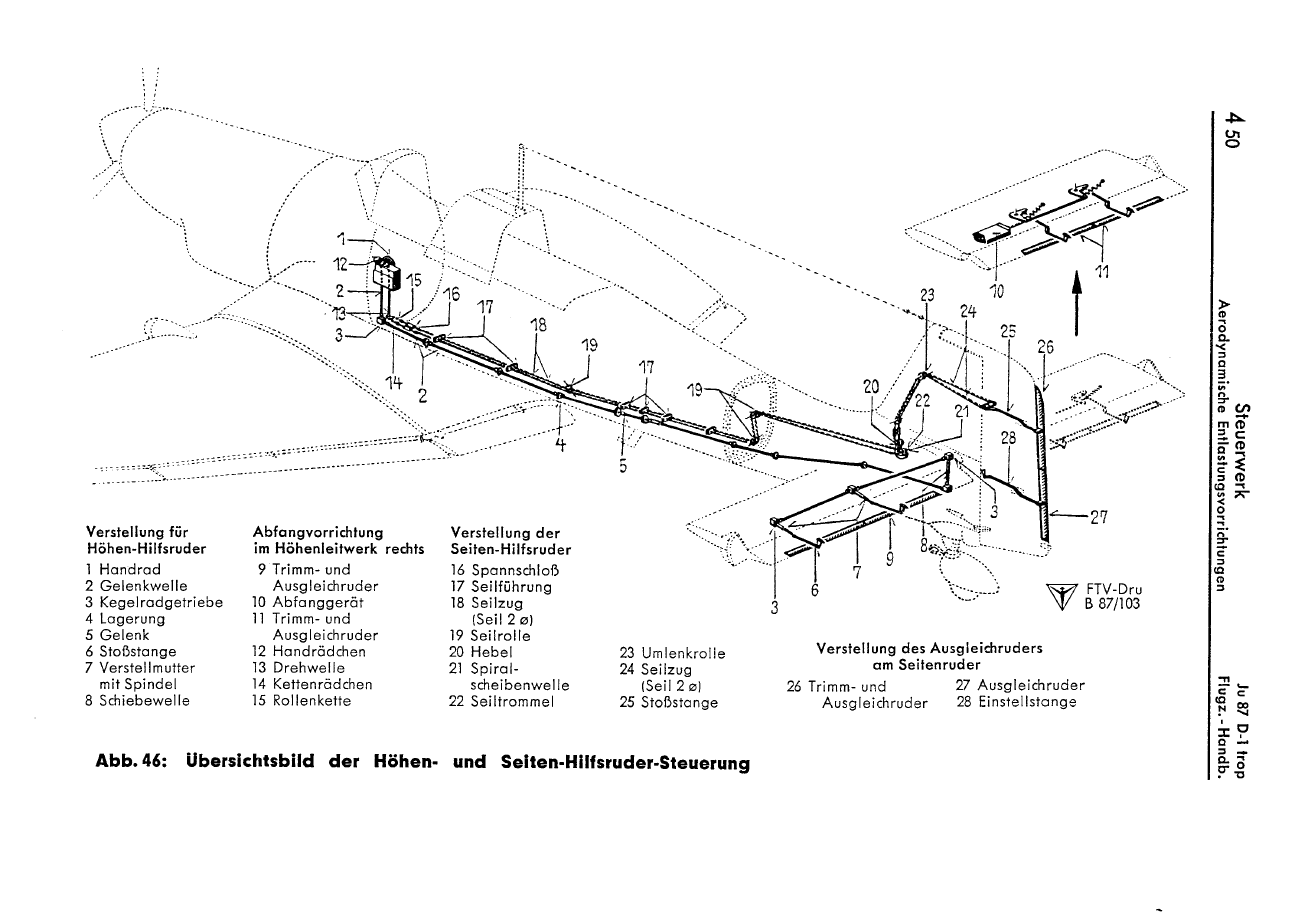

1. I found information from Ju87-D1 Handbook about elevator trim left and right was separate operation.

Left elevator trim was operate by elevator trim wheel on the left hand side of cockpit and in IL2 BOS is operate correctly.









but for right elevator trim was operate by hydraulic oil correspond with dive brake description as per below.

I've translate operation description by google as per below.

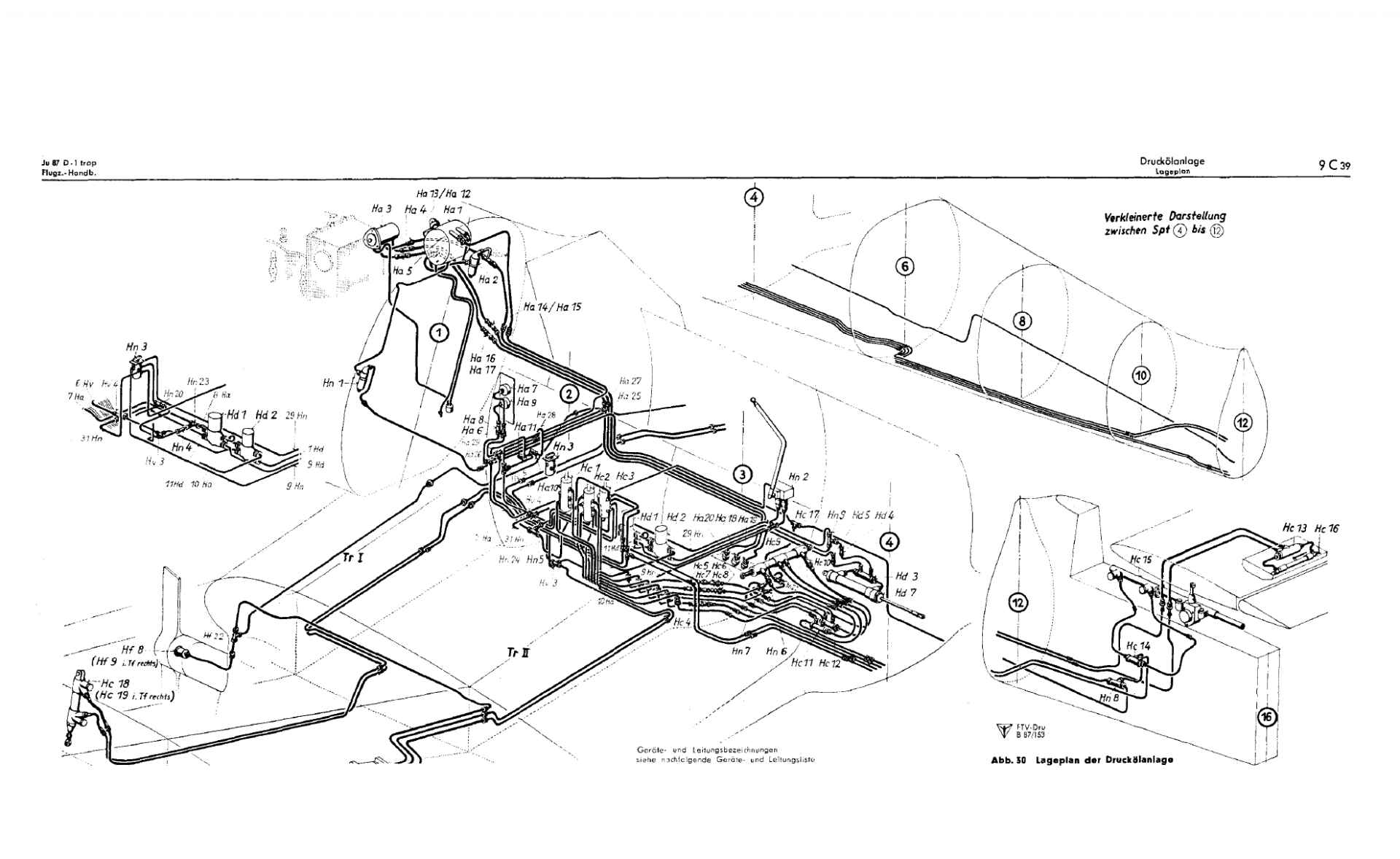

Compression system dive system

Operating procedures

In the "brakes" position, the two dive brake flaps are located on the underside of the wings (the pistons are driven out), the two right-hand trim elevator flaps are turned on (piston of the working cylinder moves to the left;

When triggering the bomb button the trim tabs are retracted again (intercepting device part 4 "control unit").

Only when the dive brake lever is moved to "retract" do the dive brake dampers enter, and the piston of the working cylinder HC16 is adjusted according to the direction of the tail.

If the bomb button has not been actuated, the trim tabs can be adjusted by retracting the dive brake flaps.

In this case, the working cylinder of the height trim trimmers is pressurized at the same time as the left dive brake damper of connection 7 of the sliding switch (HC3).

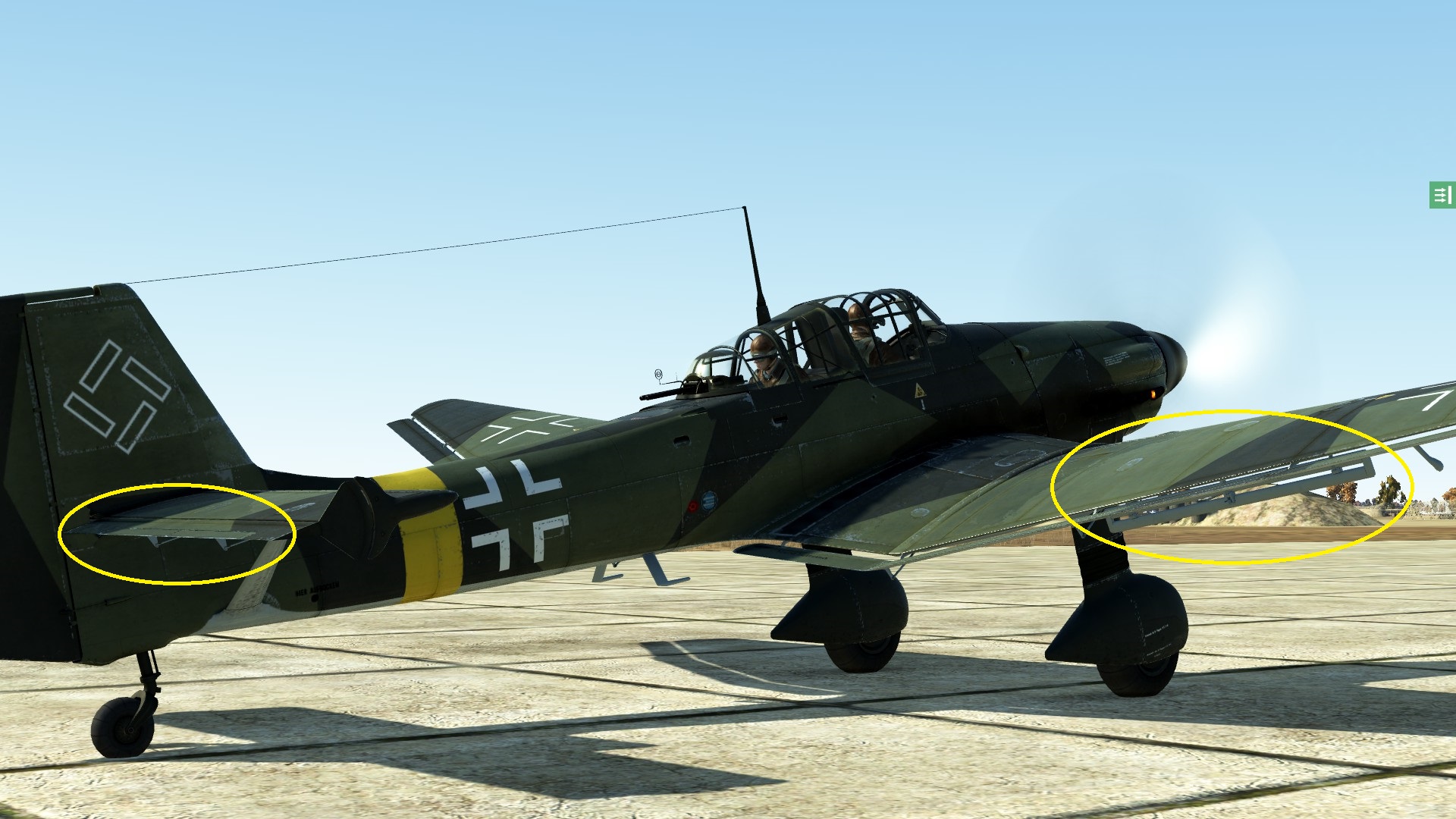

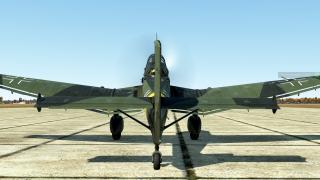

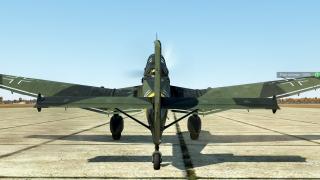

but in IL2 BOS have no any action when dive brake extend.

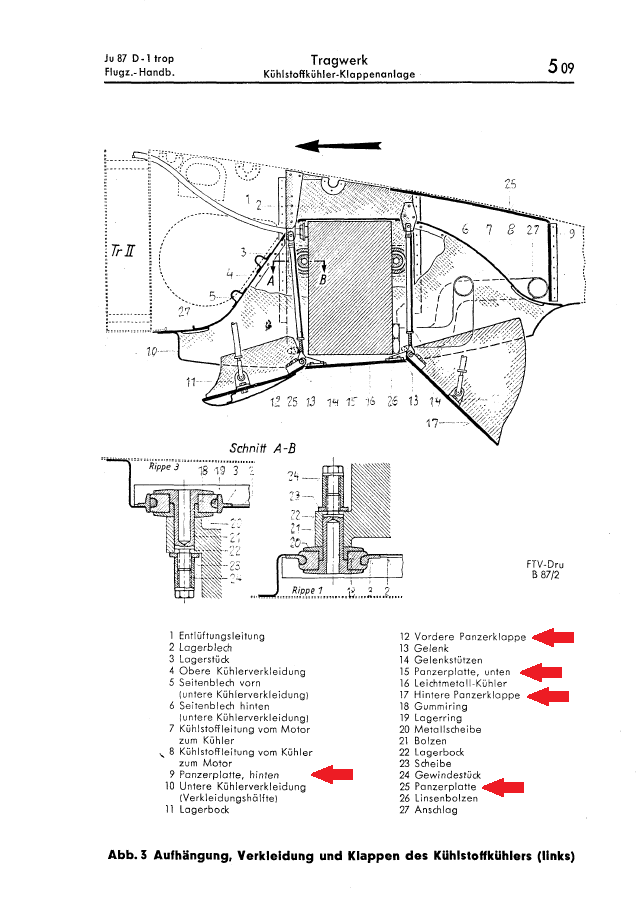

2. Does water cooling armor (Panzerplatte) was modeled?





Reference : Ju87 D-1 trop Flugzeug-handbuch Teil 4 Steuerwerk, Teil 5 Tragwerk and Teil 9C Druckölanlage



Salute

Edited April 11, 2017 by TFS_Knuckles

[6./ZG26_Klaus_Mann]

PM it to  Han.

[6./ZG26_Klaus_Mann]

It tends to be the Best Way to convey this sort of thing. Maybe put in the "Questions for Devs" Thread as well. These Tend to be answered Bi-Monthly and are a good Way to ask for these Things.

Edited April 11, 2017 by 6./ZG26_Klaus_Mann

[6./ZG26_5tuka]

It was part of the automatric dive recovery system which is not implemented ingame. Upon release the system would change trim to pullup the aircraft and ensure it would climb even when the pilot lost consciousness.



Since the whole system is missing I doubt it would make sense to implement this feauture alone.

Edited April 12, 2017 by 6./ZG26_5tuka
