Throttle - boost relation for DB engines?

[JtD]

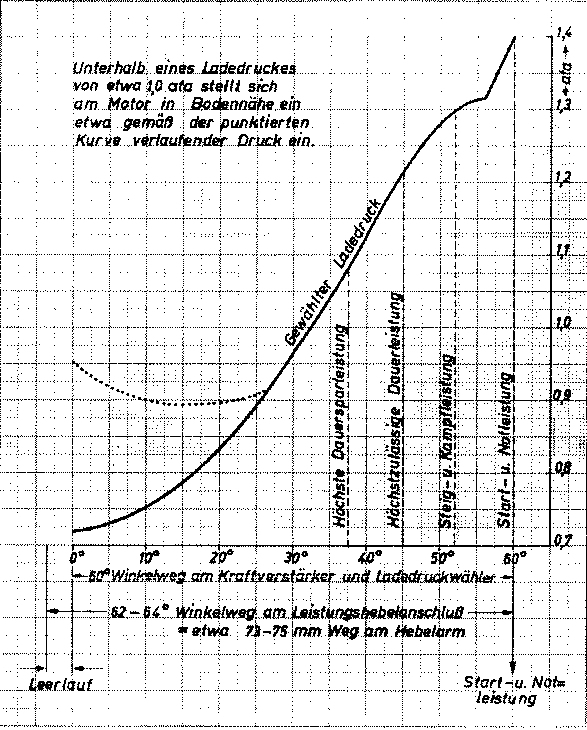

Looking at the Bf 109F-4 as modelled now, it seems to run at very low boosts and rpm for certain throttle settings (combat power settings at 95%, really?). I've attached a chart for a DB603 engine, showing the relation found with that engine, and as far as I have seen, the relation is similar with other German WW2 engines. I didn't find a chart for the DB601E or DB605A, though.



Does anyone have a chart like that for DB601E and DB605A he could share?

[wastel]

I only know the normal power charts for the DB601/605, but not a chart that give an throttle way value like in your chart.



But interesting chart, did not know it untill now. Thx for sharing



Wastel

[Requiem]

JtD,



This website might have what you are looking for. It focuses solely on the 109.



http://kurfurst.org/index.html



Also, here is a document about German engines with data taken only from German documents. It doesn't have graphs similar to what you show here, but you may find it helpful.



https://dl.dropboxusercontent.com/u/32760020/Air%20Ministry%20Report%20on%20German%20Engines%20from%20German%20data.pdf



Apologies if you have seen these before.

Edited November 26, 2013 by SYN_Requiem

[JtD]

I found a chart for the DB605A in my documents by now. It's pretty similar to the DB603 as shown above. I hope the team revisits the throttle of the 109 before release.



Requiem, a belated thanks for the link, I know that site and also the document. Nonetheless, both are good and interesting.

[JtD]

I see this got adjusted in game with today's update. Thanks guys!

[OBT-Psycho]

yep, exactly what I thought.



Throttle on the Bf-109 is less twitchy in the last build. more easy to use specific settings in flight.



Here is a happy dude, watching a sims growing better every weeks... and more to come next week ^^
