LaGG-3, Commande des freins.

[Rodolphe]

...



Question :



Comment fonctionnent le système de freinage des roues sur le LaGG-3 ?



Quelqu'un a-t-il une description du système (Types de freins, Circuit, câblage, gauges, manettes, etc...)  et de la procédure d'utilisation ?



...

Edited November 9, 2013 by Rodolphe

[PA-Sniv]

Petit début, mais tu l'as probablement déjà:



http://freechecklists.net/Resources/Lavochkin/LaGG-3/



Le manuel parle de "gachette" et de "pédale"... Un système de gâchette sur le stick?

Edited November 9, 2013 by PA-Sniv

[Zargos]

Peut-être comme sur le Spit ...

[Rodolphe]

...





Merci !



J'ai aussi obtenu une réponse à ma question sur le forum International et Deutsches Forum.                                                  .





_...



_{Thanks for the replies !}

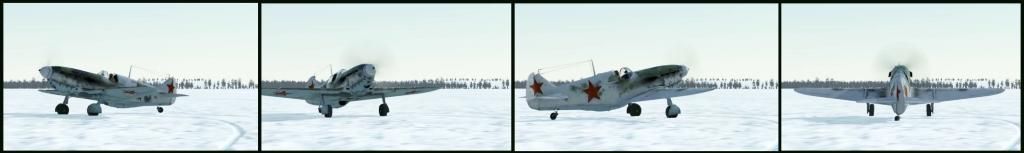

_{I was quite interested to see how the LaGG-3 behaved during the sharp 360° left turn shown in the DD # 40 video (0:39 - 0:46).}

_{My first understanding of that scene was that the LaGG-3 player was applying full left brake (left locked wheel) to make his sharp left turn... but watching at the rudder full right deflection... I thought that something must be wrong.}

_{So my query on the LaGG-3 Brake system posted on this thread.}



_{Following the description and schematic documentation received from JtD, (Thanks Mate) the LaGG-3 brake system is obviously a conventional design. Differential braking through the use of the rudder bar connected to a distribution valve.}







 _{So my second understanding of the scene is that the player probably counteracts the plane left rapid yaw with a full right rudder application,  the left wheel been trapped in deep snow.}



http://www.youtube.com/watch?v=dJYbOvrKuDs



_...















...

Edited November 10, 2013 by Rodolphe
