Selling compact mechanics for additional / major axes

[DVik]

Compact mechanics:

Stroke 84.6 degrees (there are stops)
Sensor mounting 35 mm (M3 screws)
Production of 1-4 weeks (depending on the date of delivery of the bearing and the sensor)
Mechanics Fixing screws M3
Price:
$6 of the mechanics (excluding shipping)
$14 per set mechanic + digital sensor based TLE5010 (excluding shipping)

The shape and size of the stem can be changed on request.



Major mechanics:

Proceedings 73.74 degrees
Sensor mounting 35 mm (M3 screws)
Production of 1-4 weeks (depending on the date of delivery of the bearing and the sensor)
Fixing handle screws M4
Mechanics Fixing screws M3
Possible different shape and size of stocks (by appointment)

Price double mechanics $28 (excluding shipping)
Price single mechanics $14 (excluding shipping)

Sensors:

Digital sensor TLE5010 $10 (for MMJoy2)



Edited July 28, 2016 by DVik

[Bando]

Is the circuitry ready (can I plug it into the PC)?



If not: What is the foreseeable amount of work left to be done to get this plugged in and recognised by the sim?



Interesting stuff

Edited October 20, 2015 by Bando

[Sokol1]

Bando



You need plug this sensors output into a USB Controller - I suspect that TLE5010 work only in digital mode, what requires a specific controller, like the...   what is very easy to setup.



DVik



The price for "major mechanics" options include the sensor or not?



Some questions that people will ask:

You shipping from?

Estimate shipping cost?

Accept PayPal - if not what options?



For the guys that already have USB controllers, like the popular BU0836 - no support for digital axis -  you can provide support for fit, instead sensor conventional pontentiometers, for example?

Edited October 20, 2015 by Sokol1

[DVik]

The sensors are connected to the controller MMJoy2 (development MegaMozg)

The price for "major mechanics" options not include the sensor.

Payment PayPal.

Instead, the sensor can be set TLE any magnetic sensor.





Shipping of Russia (Novosibirsk) Russian Post.



Price double major mechanics $36 (including TLE sensor, excluding shipping)
Price single major mechanics $22 (including TLE sensor, excluding shipping)

[T_oll]

Hi DVik!



Are these still for sale?

I'm interested in buying 1 double and 6 single mechanics with sensors.

[DVik]

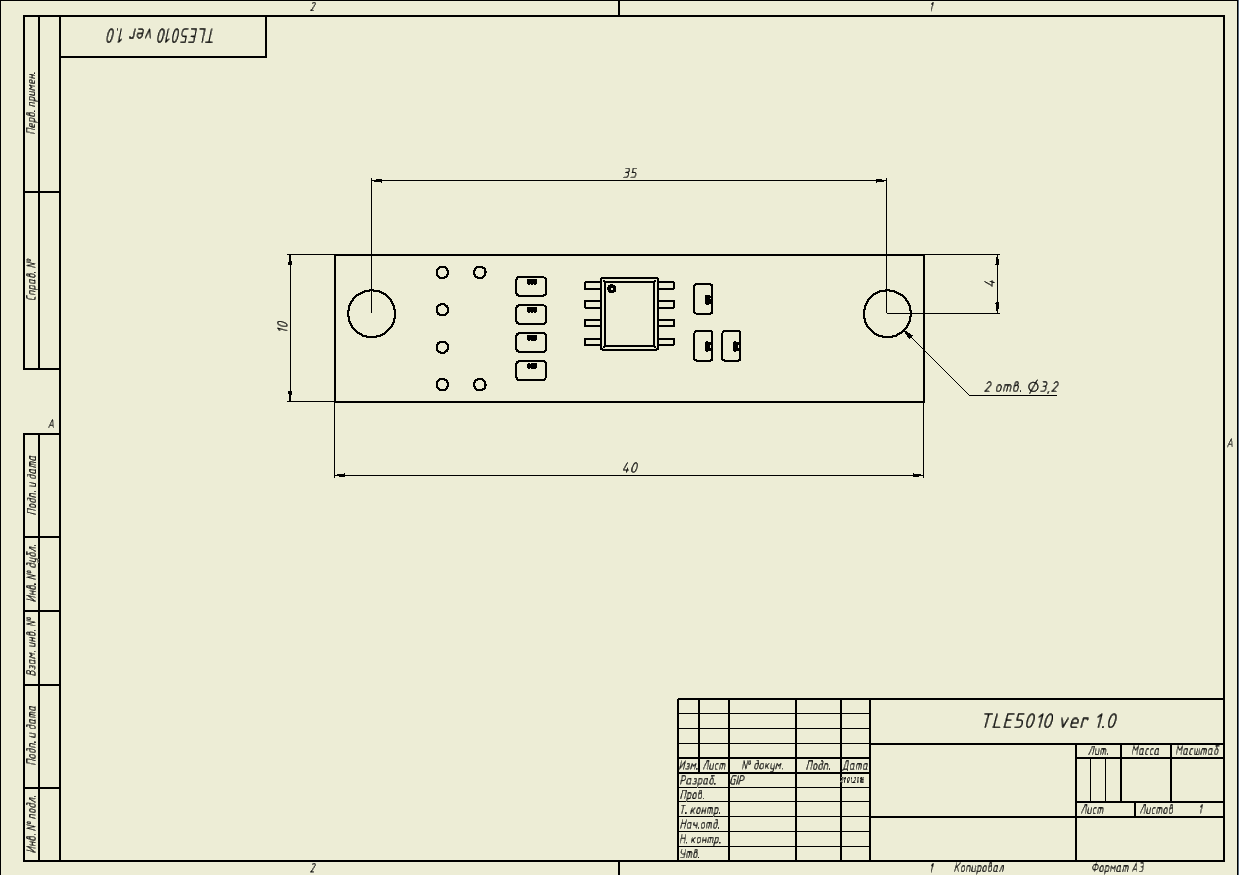

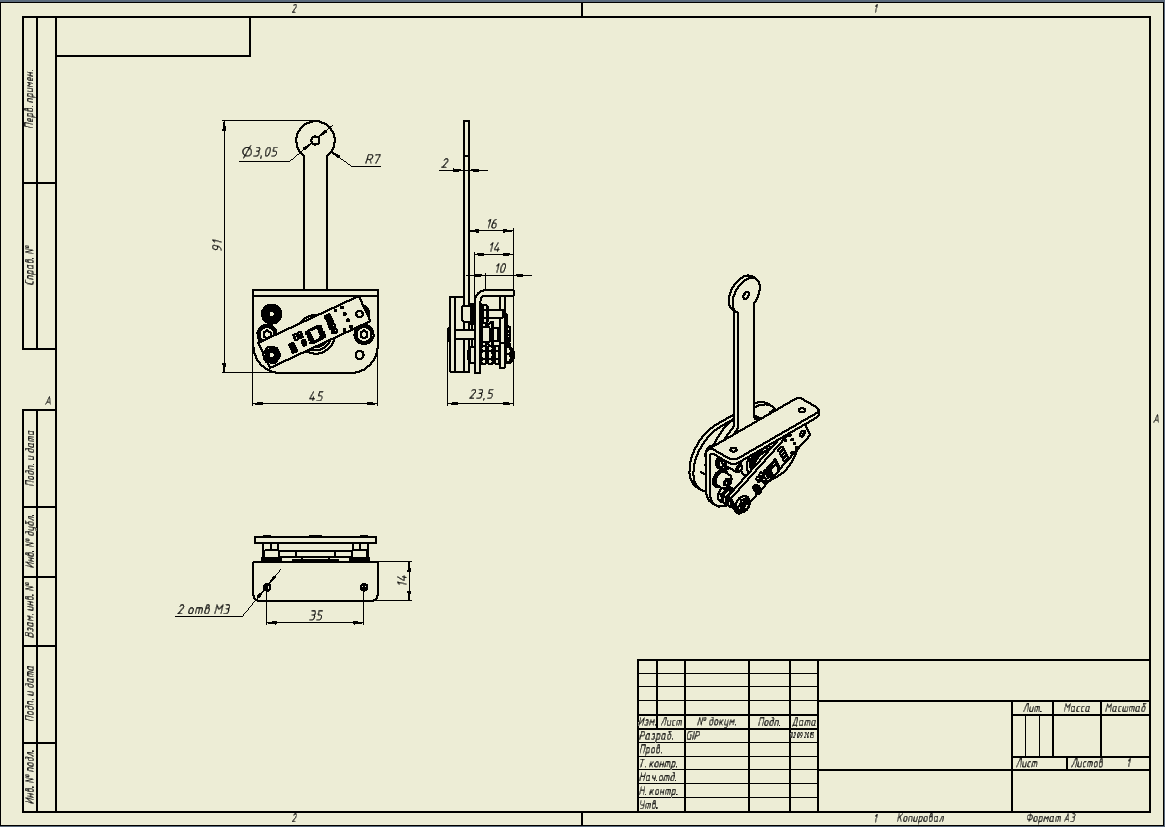

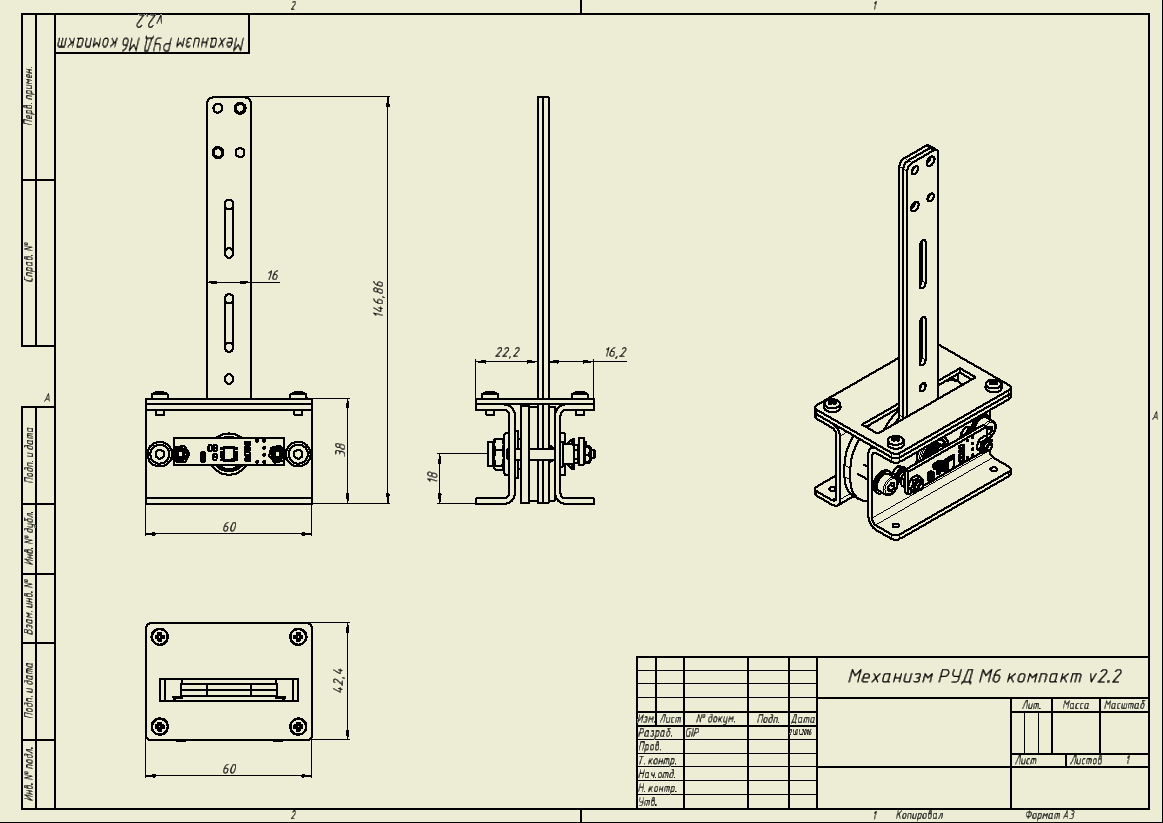

more drawings

Edited March 6, 2016 by DVik

[DVik]

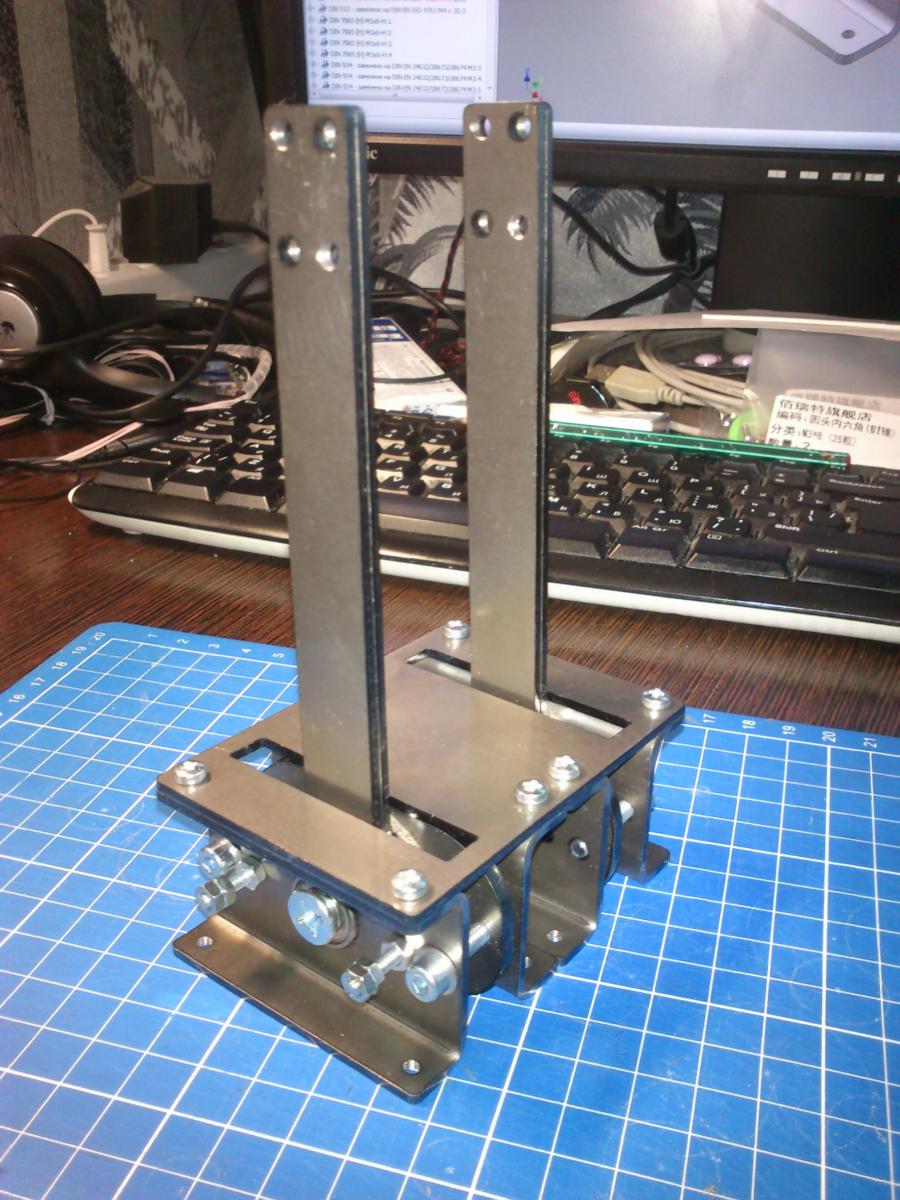

Steel Mechanical these Nords.

[T_oll]

Mine?!?

[DVik]

Mine?!?

yep

[T_oll]

Looks great! I have ordered a lot of stuff, including a custom PCB for the Teensy ++2 that will be powering the throttle.

[DVik]

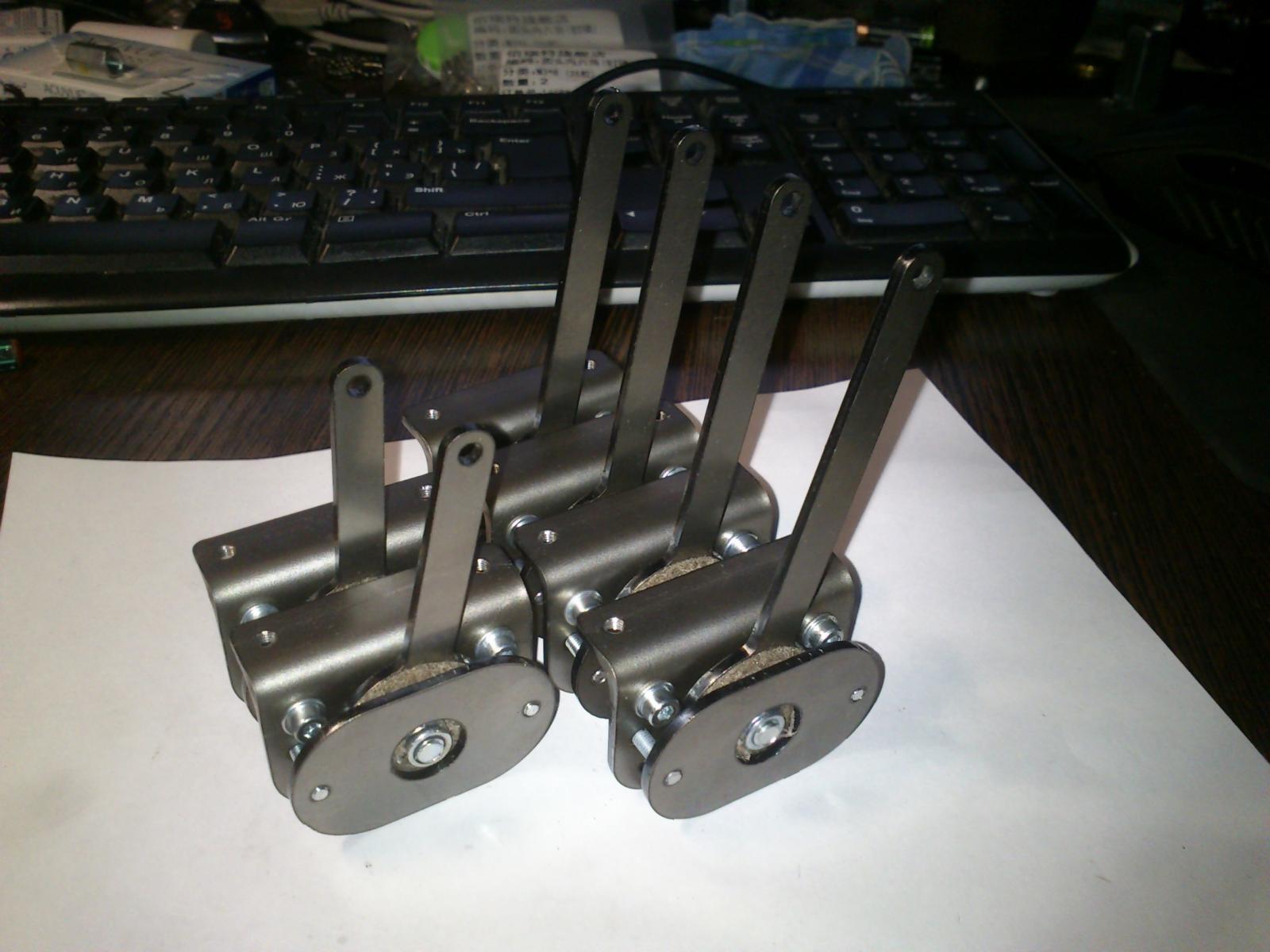

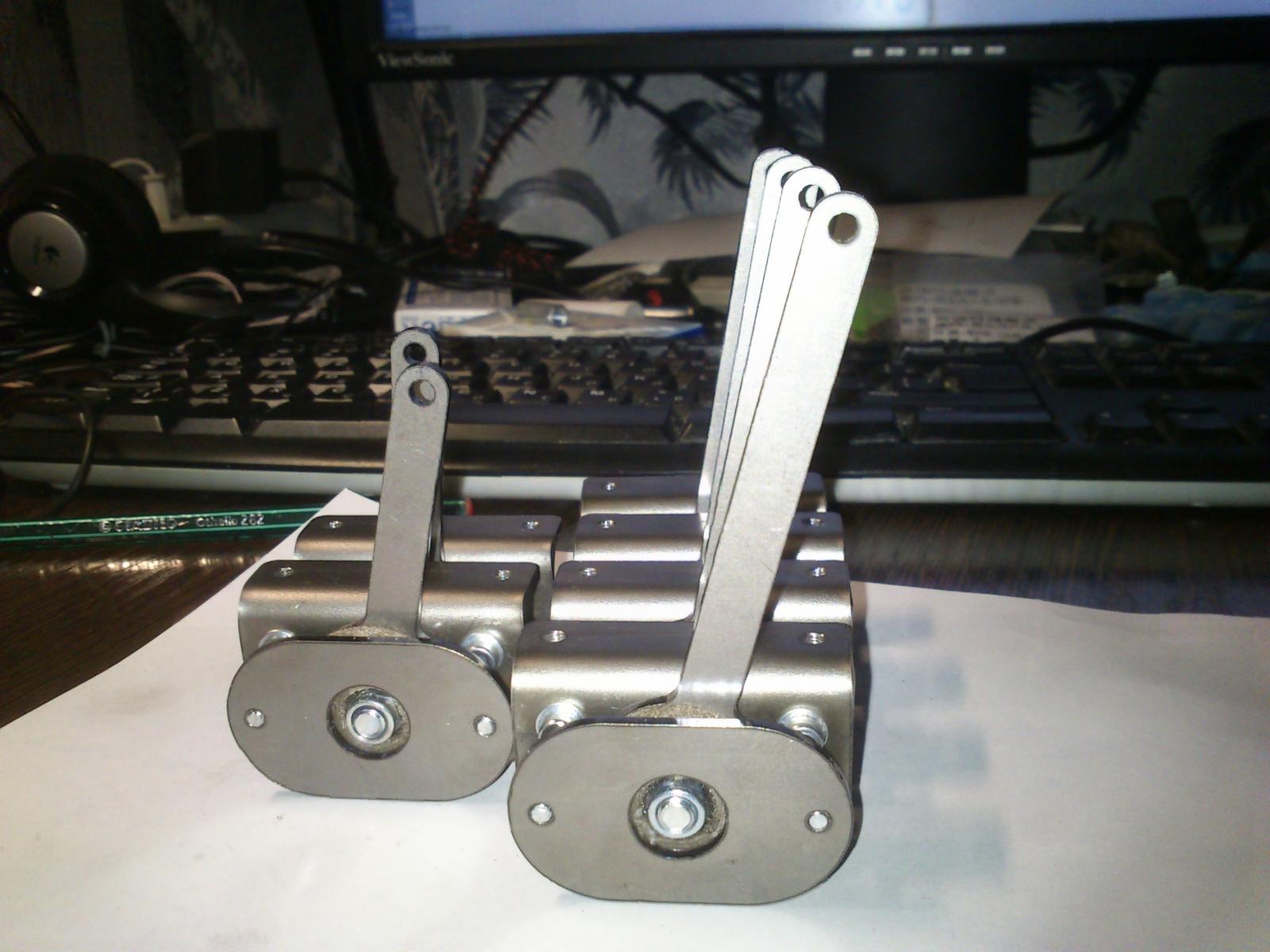

More juicy photos

[T_oll]

Metal porn! ;-)



Looks great! I like the design! Looking forward to try them...

[Sokol1]

Sample of DIY use of DVik mechanics for throttle. This elegant throttle quadrant made by T_oll.







MMjoy2 "powered" of course.



http://simhq.com/forum/ubbthreads.php/topics/4266967/1





[T_oll]

DViks levers are great!

Highly recommended!



Edit: Sokol1, you need to change your signature soon... ;-)

Edited July 28, 2016 by T_oll

[gadgetguru]

I was forwarded this link by Troll and followed it across from mudspike forums

any chance these levers are still available?



cheers



[Sokol1]

DVik use the Russian side of this forum, log there - same loguin of English section, and send an MP.



Case he are "out of business", GVL224 sell an similar mechanics parts - besides assembled throttles , see their topics there.

[DVik]

Mechanisms are available.
Write in personal messages what exactly is required.
