Sokol1

Wind Angle & DR-3

Recommended Posts

Dreieckrechner DR-3 "Triangle Calculator"



Online Flash version:



http://www.pumaszallas.hu/Private/VO101_Tom/Flash-DR3/DR3v10.htm

https://clodtools.weebly.com/



Practical test:






Plane heading: 130º

Wind coming from: 282º



Adjust: 150  on right side of bombsight instrument






Adjust: 150  on right side of BoS bombsight instrument.

Edited by Sokol1
  • Upvote 1

Share this post


Link to post
Share on other sites

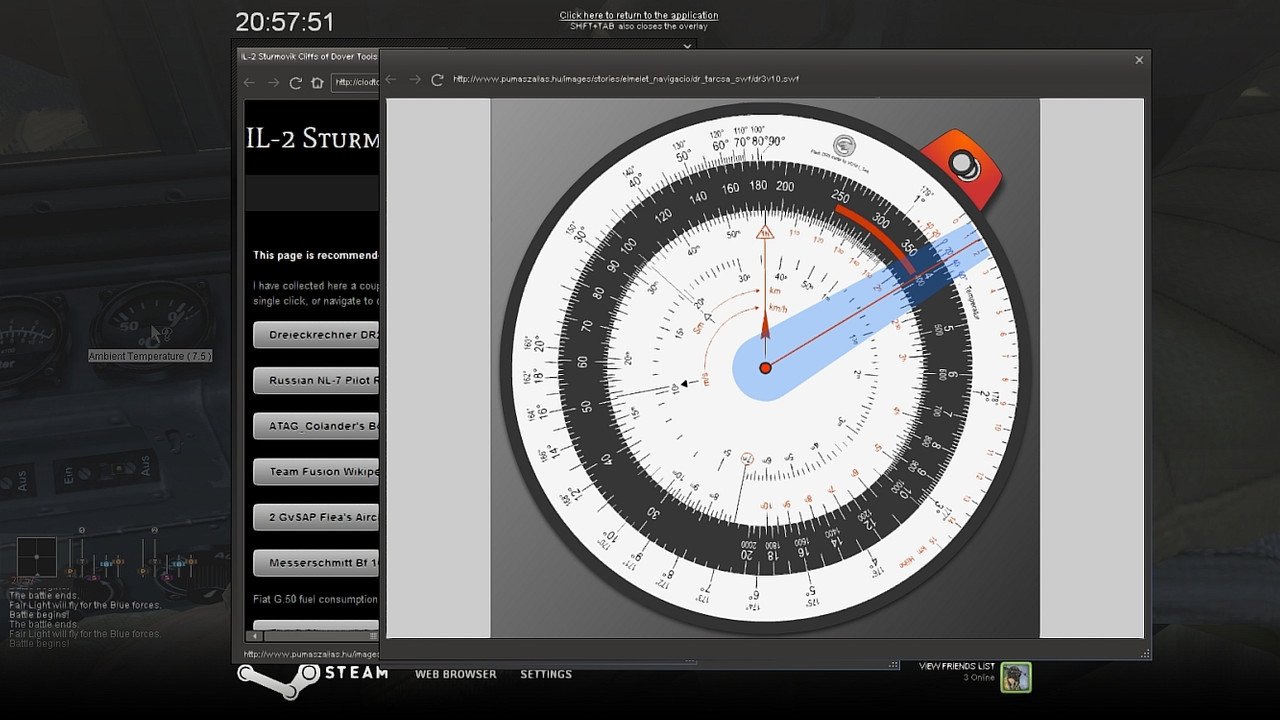

Using in game with STEAM Browser:

Plane heading: 103º

Wind coming from: 214º






Wind correction: 110º (right side).


For use DR-2 in a local (HDD) file, type this as url.

file:///E:/DR-3/DR-3.html


Edited by Sokol1
  • Upvote 1

Share this post


Link to post
Share on other sites

BTW - In the above picture the Wind Angle adjust need be in the right side.  :P

Edited by Sokol1

Share this post


Link to post
Share on other sites

yes: you fly down to 180° the wind come from 261° so the Wind- Airplane angle is 081° right side

Share this post


Link to post
Share on other sites

OK. Let's do a flight plan with these parameters.  :)



Plane heading: 130º

Wind coming from: 282º

Plane speed: 340 KM/H (IAS)

Flight altitude: 3.500m



First is need know the TAS (True Air Speed).



IAS: 340 KM/H

Altitude: 3.500m

OAS (Outside Air Temperature): -30º (Look at the thermometer on He 111 cockpit ceiling)



On DR-2 set IAS against OAT (340 > -30º) and read TAS under Altitude - (3.5 > 385)




Now set the Wind Angle Correction over TAS (80 > 385)





Move the cursor for  Wind Speed (KM/H) and read the Course Correction (Drift Angle) on outside scale (47 > 7):

"9 proof" with modern "gadget":




So to keep the True Course of 180º, follow the HDG 187º .

Disclaimer: Do not blame me if you get lost.

;)
Edited by Sokol1

Share this post


Link to post
Share on other sites

ohh noooo .. yer gonna make me get my E6b out .. I just know it.

-grin- ..it's buried on a shelf somewhere with pilot's log an all that 'stuff' .. -looks over at crammed shelves- ..-sigh-

Share this post


Link to post
Share on other sites
