AMD Radeon Pro Tweak sets.

[Static]

I would like to share my Radeon Pro sets.

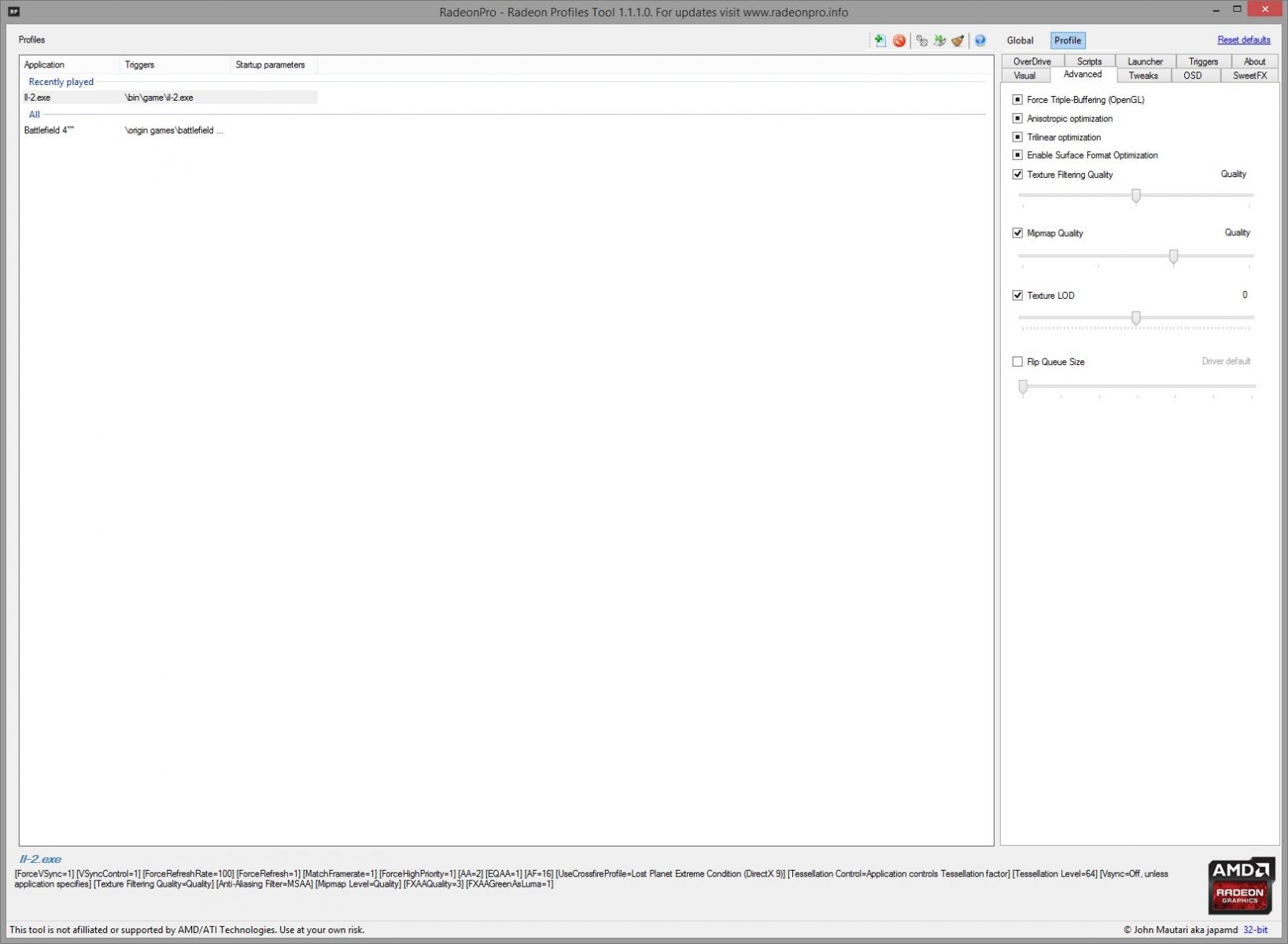

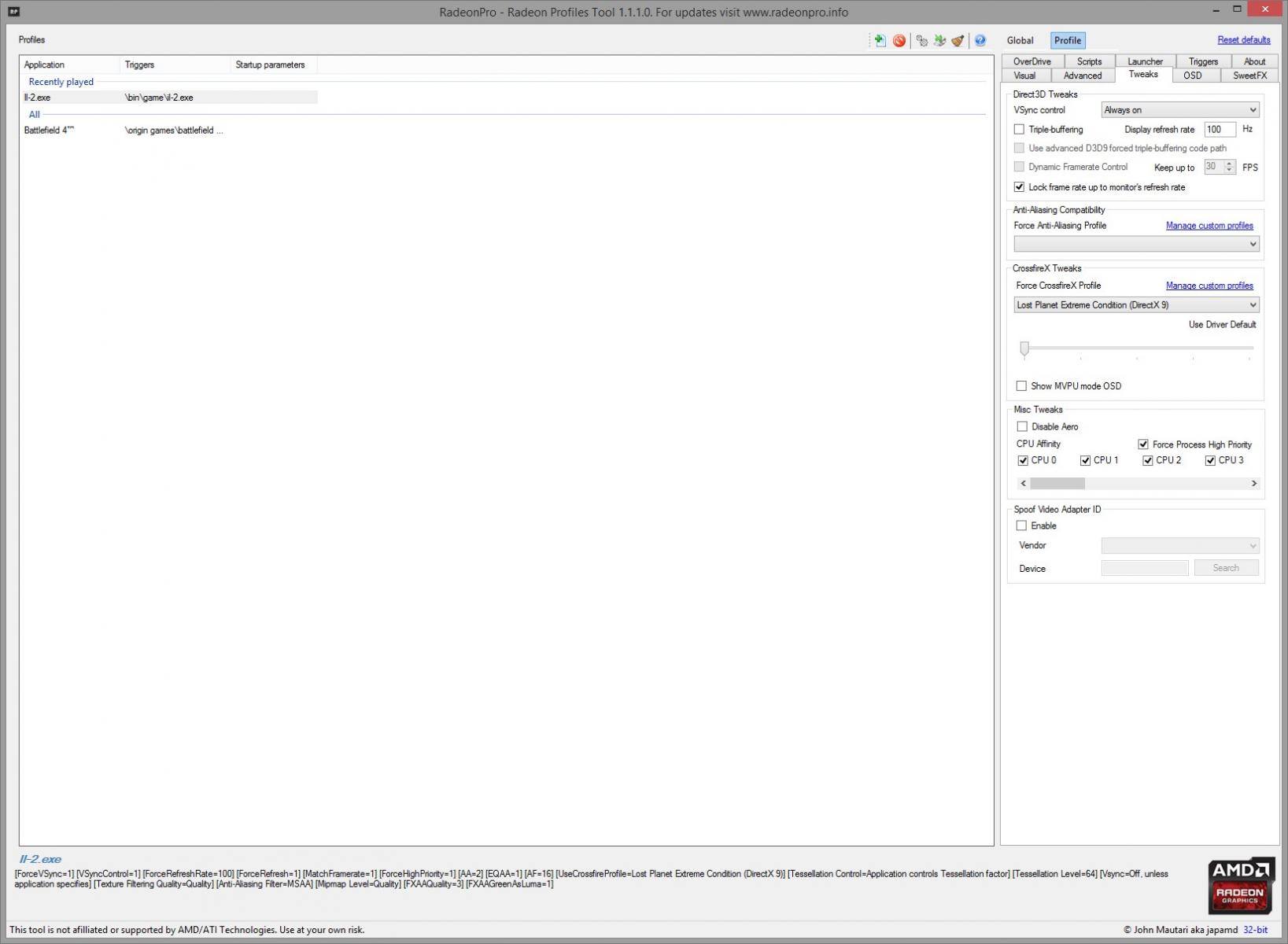

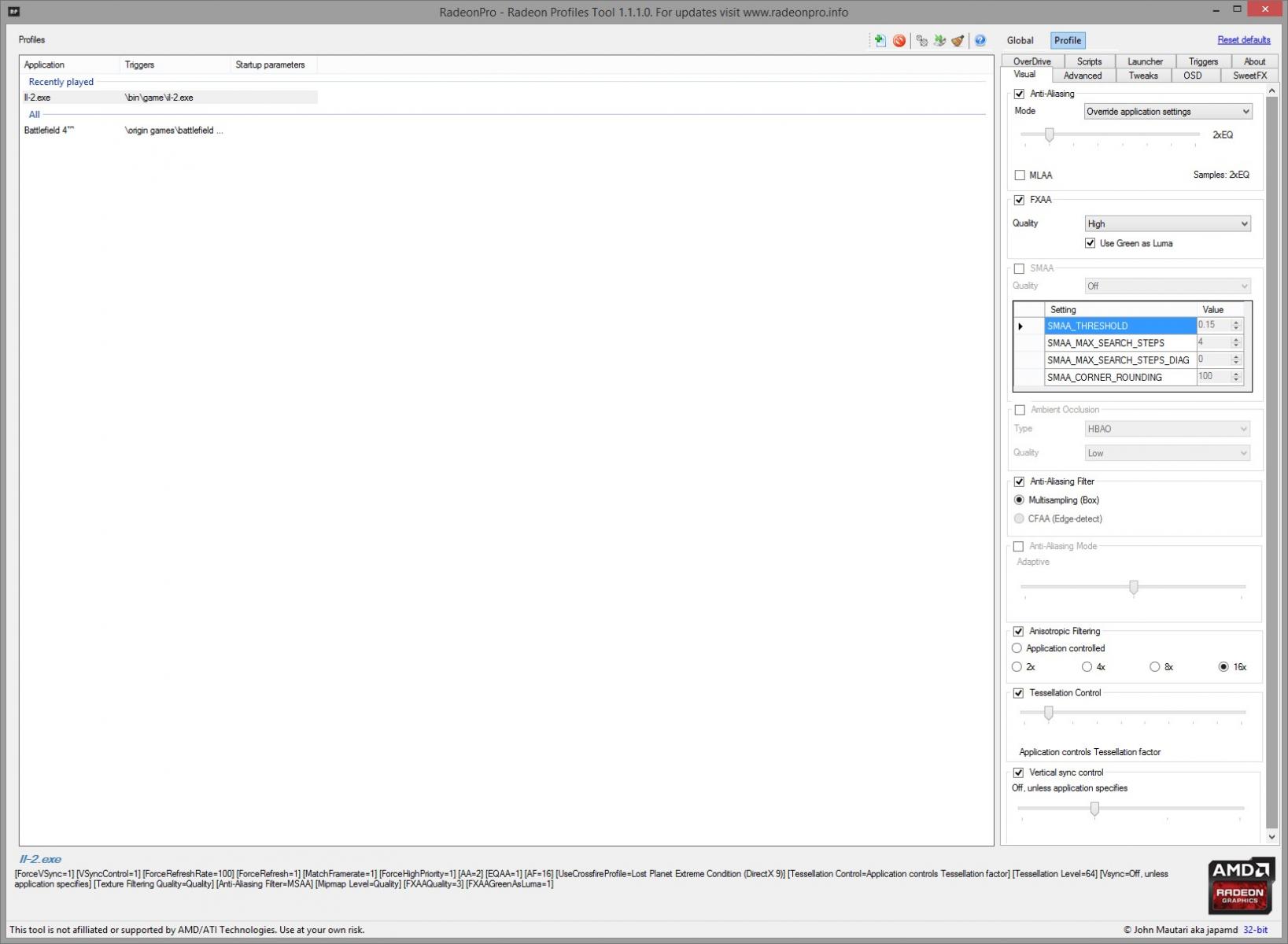

I have tested many different settings and found a happy medium, images below show my settings.



Specs:

Panel- 2560 x 1440 running @ 100Hz.

Mainboard- ASUS Rampage Extreme Black Edition running a 3930k @ 4.8GHz (1.344v)

Memory- 16GB Corsair Dominators default speed (1866MHz/ 1.50v)

Graphics- Two XFX 290x vanilla GPUs

Sound- Creative XFI gamer

Operating system- WIndows 8.1 64bit.



Someone DEV up a Linux Distro based on historical flight data, an Open Source engine for all to develop and share.



[Static]

Ooops! Past edit time frame. My BoS QMB settings with the graphical settings.



Graphical settings within BoS

--

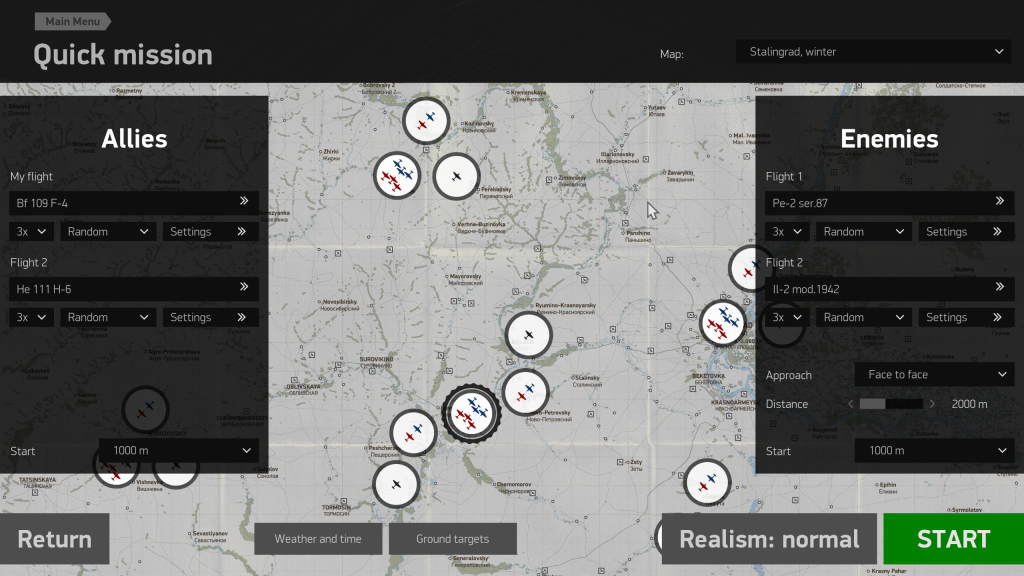

Mission settings:

Edited September 24, 2014 by Static

[LLv34_Flanker]

S!



 Gotta have a look at those, thanks for sharing. Seems my 2nd 290X will arrive today!

[CisTer-dB-]

HI Static I am new with AMD can you tell me more about Radeon Pro?

[CisTer-dB-]

I mean is it worth it, does it improve the graphic, how about the performance?

[Static]

HI Static I am new with AMD can you tell me more about Radeon Pro?



It is a program that lets you create game profiles with specific graphic settings using FXAA Injector SMAA Injector, Dynamic Vsync and much more for each game you have, links below.



Radeon Pro download

http://www.radeonpro.info/2013/04/download-radeonpro-preview-1-1-1-0-13apr2013-with-improved-overdrive-and-sweetfx-1-4-support/



Official site

http://www.radeonpro.info/en-US/



For news on lastest beta release visit

http://forums.guru3d.com/showthread.php?p=4496080



I mean is it worth it, does it improve the graphic, how about the performance?



So far I have notice an improvment on my end with my crossfire setup using custom settings using Radeon Pro. I will try and post some benchmark results using FRAPS with the BoS settings vs the Radeon Pro settings.

Edited September 24, 2014 by Static

[CisTer-dB-]

You have manage to get both gpu working with BoS with it?

[Static]

You have manage to get both gpu working with BoS with it?



Yes and from what I have tested if you want vsync to work efficiently with crossfire you need to set a FPS limiter to your monitors refresh rate. I use Afterburner's RSS application to set my FPS limit to 100 fps @ 100Hz/ 2560x1440 since BoS does not offer a 100 fps cap option (shame on them, lol). I have found using the Radeon Pro vsync settings do not work if you set them within Windows 8.1, they might work with other versions of Windows?



I am using a recording I made of the AI flying in a QM with 4x4 vs 4x4 aircraft with clouds at high altitude to bench mark. I also just noticed you can configure RP to benchmark, so I can ditch Fraps now. The recording at the end gets epic while the 109 F4 goes at 4 PEs with a wingman behind him, they pound one of the PEs as the PE & 109 demolish each other, the 109 AI pilot bails in flames. Nice sounds of gun fire and the canopy being hit. (Does sound like thin glass shattering though)



These sets render the best visual quality opposed to using the graphic options in BoS. The BoS graphic options seem to do nothing but degrade performance when using their simple, generic ready for console port graphical settings. Teehee!



2014-09-25 03:39:13 - Il-2: 2x EQ SMAA ULTRA/  2560x1440 @ 100Hz vysnc capped @ 100fps.

Frames: 17514 - Time: 196468ms - Avg: 89.144 - Min: 37 - Max: 101



Benchmarks between MSLAA, FXAA & SMAA:



2014-09-25 00:16:02 - Il-2 2x EQ MSLAA

Frames: 17561 - Time: 197875ms - Avg: 88.748 - Min: 38 - Max: 101



2014-09-25 00:24:46 - Il-2 2x EQ FXAA HIGH

Frames: 17282 - Time: 196360ms - Avg: 88.012 - Min: 37 - Max: 101



*2014-09-25 03:39:13 - Il-2 2x EQ SMAA ULTRA

Frames: 17514 - Time: 196468ms - Avg: 89.144 - Min: 37 - Max: 101



The actual visual quality and performance to me feels and looks more crisp compared to using the limited BoS graphic settings vs setting my own triggers within the Radeon Pro software. It has help me obtain better Crossfire usage from both of my GPUs when using the Lost Planet Extreme Condition DX 9.0 setting & leaving the Crossfire rendering to the driver default. After the shareholders get their cut and BoS is a hit we can get DX10/11/12 BoS, woohoo!



Out of the WW2 combat flights sims available I prefer to fly IL2 BoS even though I have CloD & DCS installed. I am thinking of getting the beta version of Elite & Dangerous? Anyone else have any experience flying in space with Elite & Dangerous? From the videos I have seen it looks more physically computer accurate than Star Citizen, that I have tested a bit.



S!

Edited September 26, 2014 by Static

[Static]

Edit:

MSI Afterburner's RTSS aka RivaTuner application not RSS, I knew it had Ts & Ss, lol.

[LLv34_Flanker]

S!

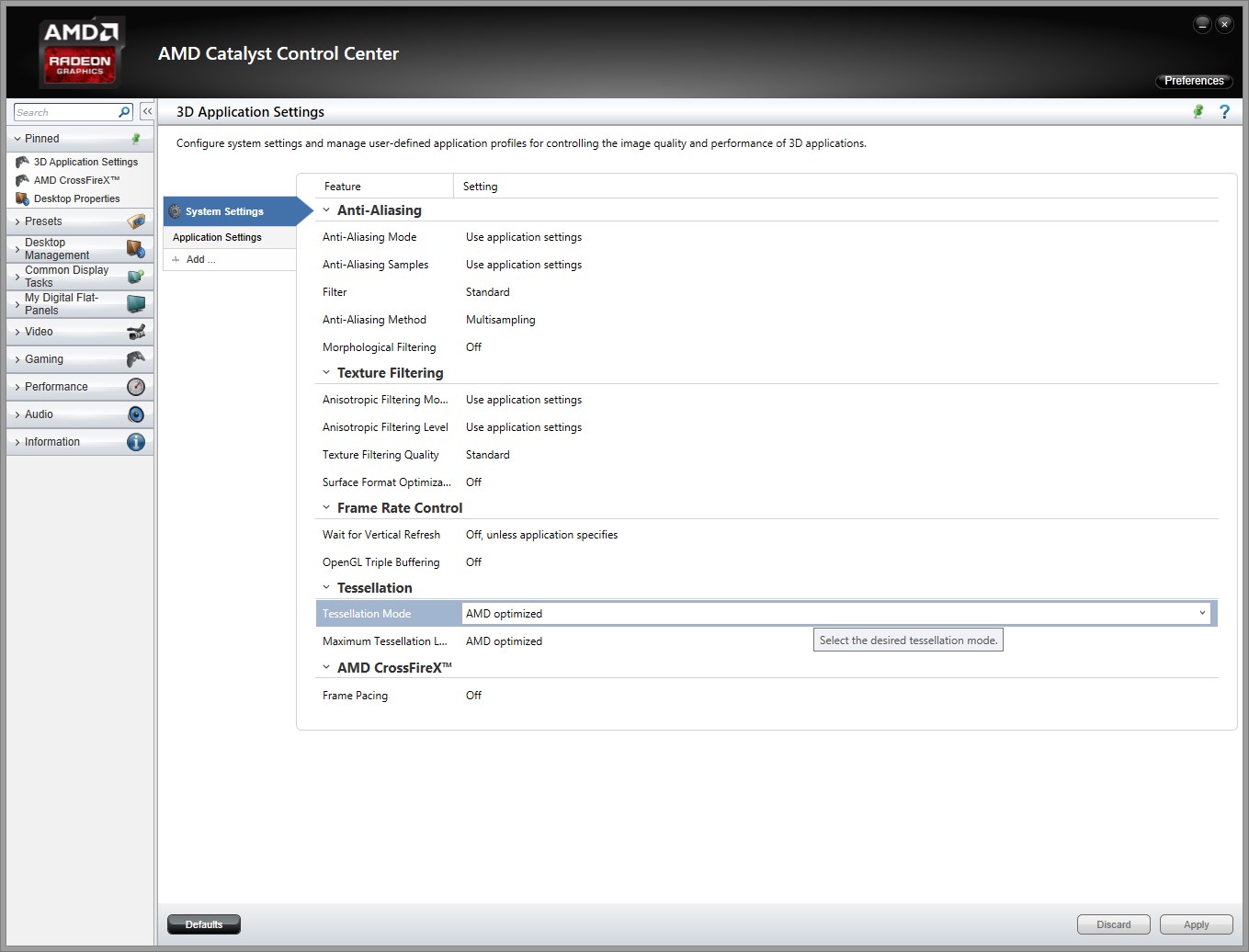

 How I got CrossFire to work was quite straightforward. Enabled CFX, ticked Use CFX on all applications and used Default profile with Frame Pacing On. In IL-2 launcher ticked Multi-GPU as in game you can not do it for some reason. Seems to work.

[LLv34_Flanker]

S!

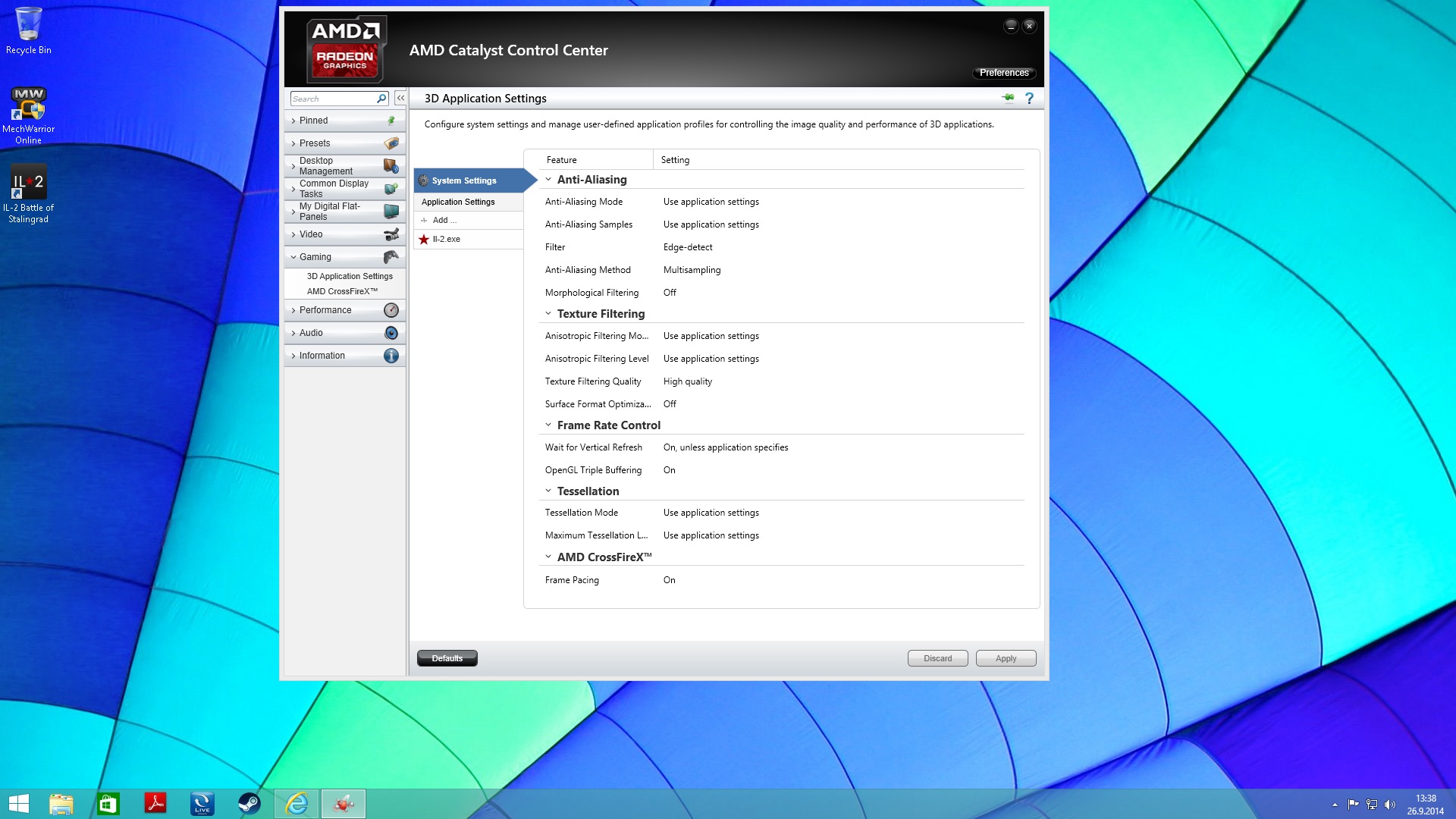

 My settings for CrossFire and BoS, using latest OpenCL 2.0 drivers that can be found here: http://support.amd.com/en-us/kb-articles/Pages/OpenCL2-Driver.aspx





[CisTer-dB-]

I found the problem I have to select full screen to enable the second card

[LLv34_Flanker]

S!



 CrossFire only works in fullscreen. Quite a smooth experience in BoS

[Static]

S!



My settings for CrossFire and BoS, using latest OpenCL 2.0 drivers that can be found here: http://support.amd.com/en-us/kb-articles/Pages/OpenCL2-Driver.aspx

Can BoS even use OpenCL compute? I noticed this on the OpenCL 2.0 website you linked.



Known Issues

Graphical corruption observed while running Sandra subtest bandwidth

Adobe Premiere Pro 2014 application hang observed

**Multi-GPUs not supported on OpenCL 2.0

CPU Conformance not supported on OpenCL 2.0
